Hands-on Activity Using Color to Enhance LED Lighting Quality

Quick Look

Grade Level: 9 (8-9)

Time Required: 1 hour

Expendable Cost/Group: US $3.00

This activity also uses some non-expendable (reusable) items such as LED flashlights and computers; see the Materials List.

Group Size: 4

Activity Dependency: None

Subject Areas: Physical Science

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
HS-PS4-5

This activity requires the resource(s):

A photograph in a dark room shows a lineup of eight vivid and glowing bottles of quantum dots composing the ROYGBIV color spectrum from violet to deep red.
Vividly colored quantum dots are manufactured for use in technology such as for TVs, monitors and cell phone backgrounds.
copyright
Copyright © 2012 Antipoff, Wikimedia Commons, GNU Free Documentation License https://commons.wikimedia.org/wiki/File:Quantum_Dots_with_emission_maxima_in_a_10-nm_step_are_being_produced_at_PlasmaChem_in_a_kg_scale.jpg

Summary

Students take what they know about materials, optical properties and electrons to the next level—to see how semiconductors can be used to augment light. First, they learn how light-emitting diodes (LEDs) work, which helps them to think critically about a real-world problem they are asked to solve later in the activity as if they are practicing engineers. The challenge: To design an improved LED headlight that lights the roadway without distracting oncoming drivers and passengers with the harsh, bright white light seen in many cars today. Students research the problem via an online video, article and interactive simulation, learning all about quantum dots. Then teams use small LED flashlights and pieces of red, blue, yellow and green acetate to independently experiment to come up with a model that has the potential to improve the measured visual quality of bright white LED light—their solutions to the headlight challenge.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

We live in a world in which improvement and optimization are continual goals. Engineers are instrumental in evolving the latest cutting-edge technology and are currently working to improve lighting properties by using quantum dots. Quantum dots are semiconductor nanocrystals that glow when stimulated by an external source such as ultraviolet (UV) light. In this activity, students see how quantum dots are used to increase the lighting quality of LEDs. Because of their ability to enhance color brightness and definition, quantum dots are increasingly used in modern day technology. For example, TV manufacturers employ quantum dots to make TVs brighter and improve color quality. Quantum dots eliminate the filtering process used in LED TVs, which lowers the energy use while producing brighter colors. Engineers also utilize quantum dot technology in personal electronics, such as to increase battery life in cell phones.

Learning Objectives

After this activity, students should be able to:

  • Apply their prior knowledge about the periodic table, semi-conductors and wave properties to explain how light-emitting diodes produce light.
  • Demonstrate how colors can be used to dim the lighting of LEDs.
  • Create a visual representation of various color combinations colors to maximize LED lighting quality.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

HS-PS4-5. Communicate technical information about how some technological devices use the principles of wave behavior and wave interactions with matter to transmit and capture information and energy. (Grades 9 - 12)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Communicate technical information or ideas (e.g. about phenomena and/or the process of development and the design and performance of a proposed process or system) in multiple formats (including orally, graphically, textually, and mathematically).

Alignment agreement:

Information can be digitized (e.g., a picture stored as the values of an array of pixels); in this form, it can be stored reliably in computer memory and sent over long distances as a series of wave pulses.

Alignment agreement:

Photoelectric materials emit electrons when they absorb light of a high-enough frequency.

Alignment agreement:

Multiple technologies based on the understanding of waves and their interactions with matter are part of everyday experiences in the modern world (e.g., medical imaging, communications, scanners) and in scientific research. They are essential tools for producing, transmitting, and capturing signals and for storing and interpreting the information contained in them.

Alignment agreement:

Systems can be designed to cause a desired effect.

Alignment agreement:

Modern civilization depends on major technological systems.

Alignment agreement:

Investigating or designing new systems or structures requires a detailed examination of the properties of different materials, the structures of different components, and connections of components to reveal its function and/or solve a problem.

Alignment agreement:

  • Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Identify the characteristics of electromagnetic and mechanical waves. (Grade 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will analyze the properties and applications of waves. (Grades 9 - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will communicate scientific investigations and information clearly. (Grades 9 - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

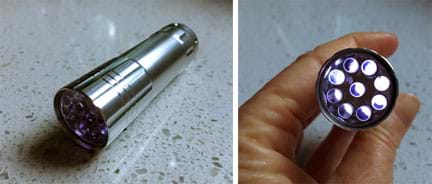

Two photographs. A three-inch-long silver cylindrical object—an LED flashlight. A view looking into one end of the flashlight, which is the outer lens where light emerges, showing nine smaller round light sources (LEDs) arranged in a circular formation.
An example LED flashlight.
copyright
Copyright © 2017 Denise W. Carlson, ITL Program, College of Engineering and Applied Science, University of Colorado Boulder
Each group needs:

To share with the entire class:

  • (optional) computer with Internet access and projector, to show the class an online video; alternatively: have students use their individual team computers

Pre-Req Knowledge

Background knowledge of the organization of the periodic table, the properties of metals and non-metals, and the properties of electrons.

Introduction/Motivation

Bright lights can be great or a nuisance—it depends on the context. For example, imagine it’s nighttime and you are riding in a car down a narrow, two-way road around a hill. Heading towards you is a car with LED headlights. The LED lights provide great visibility for the driver, but are almost blinding to the driver in your car who is faced with harsh, bright, white lights! Those super bright lights make it difficult to see, and can even be unnerving for passengers. How might you work as engineers to help solve this problem for your parents and future drivers (which one day will be you!)?

Two photographs. The front end of a white sedan—a Honda Insight concept car. A close-up of that car’s elongated headlight; beneath a clear cover many very bright LED lights can be seen.
An example LED headlight.
copyright
Copyright © 2008 Hatsukari715 Wikimedia Commons https://commons.wikimedia.org/wiki/File:Honda_Insight_Concept_03.JPG https://commons.wikimedia.org/wiki/File:Honda_Insight_Concept_01.JPG

Today, you will take on the role of engineers who work for a company that designs LED lights for vehicles. Your company has called on you to design a new LED headlight that lights the way without distracting drivers with the harsh bright white light that many cars have today.

Many bright white light LEDs contain a large amount of blue light, which is appears harsh to human eyes. Natural sunlight has more green and red light and appears less harsh to human eyes, but LEDs are different. The majority of white LEDs are made by using a blue LED and converting a small portion of the blue light to yellow using a yellow phosphor, which results in a harsh white light. Though this method of creating white light is effective, it is not very efficient.

A question that engineers and researchers are currently exploring is how to maximize the efficiency of LED lights while controlling luminescence—or the emission of light—and color quality. The use of color is a viable method to maximize the lighting properties of LEDs. If we are able to mix in some additional colors into existing white light LEDs, then we may be able to improve the color quality as it appears to human eyes. You will use this technique today as you work to design new LED headlights.

Procedure

Background

Quantum dots are semiconductor nanocrystals that glow when stimulated by an external source such as ultraviolet (UV) light. Since quantum dots can be designed to meet specific size qualifications, they are ideal for improving the color quality of white light LEDs by mixing new colors into the color spectrum. Thus, it is possible to tune the spectrum to improve visual color quality by adding green and red colors similar to natural sunlight. The following videos explain quantum dot technology in liquid crystal display (LCD) screens and how quantum dot filters work:

Quantum Dot TVs: Explained! by Marques Brownlee (3:13 minutes): https://www.youtube.com/watch?v=dIfLmM0YkXM

Better Lighting with Quantum Dots: A Brilliant Solution by The Economist (7:05 minutes): https://www.youtube.com/watch?v=VjznErmcLnU

Additional quantum dot applications include improving visual displays, such as LCDs. Remixing white LED light with red, green and yellow enhances the colors in smartphones, TVs and tablets. Currently, LCDs use white light that has been changed via a number of filters, which reduces the efficiency and limits the color quality of displays. Lighting and display efficiency can be improved by working with more efficient quantum dots and primary colors that are used to make a wide variety of colors.

As educators, we can challenge students to extend their knowledge of how they perceive color through the exploration of quantum dots. Humans perceive color when white light is absorbed, reflected, refracted, scattered or diffracted by matter. For example, when sunlight shines on a blue car, light at the wavelength for blue is reflected off the car and we see blue. The interference of light by matter is often emphasized in classrooms while light emission and conversion often receives less attention. During this activity, students combine their knowledge about materials, semiconductors, electrons and optical properties to understand how light-emitting diodes produce light. Students also demonstrate an understanding of how quantum dots can be used to enhance the color of white light LED technology.

An electrical circuit diagram shows p-type (holes) and n-type (electrons) next to each other as part of a circuit, with photons of light released where they meet.
LEDs work by combining p-type and n-type semiconductors in the presence of current to create diodes that release photons (light).
copyright
Copyright © 2015 PRIME RET, Georgia Tech

LEDs are tiny light bulbs that emit light by the movement of electrons in a semiconductor. When some of the electrons combine with holes, the process emits light that is equal to the bandgap of the semiconductor. The quantum dots are smaller semiconductor materials that absorb light, which causes electrons to be excited from the valence band to the conduction band. When these excited electrons relax, they give off light of a different color. By changing the size of the quantum dot, the energy gap in quantum dots can be artificially changed in order to vary the color of the light emitted from the quantum dot. Now, by combining LEDs (the light emission source) with quantum dots (the light conversion material), we can shift some of the color emitted by the LED and quantum dot assembly. By choosing specific quantum dots, engineers can explore how to expand the color spectrum emitted by white light LEDs by using quantum dots to fill in spectral gaps. In addition to enhancing the color emitted, quantum dots can augment the harsh LED light. In this activity, students apply their knowledge about wave properties to determine which color combination to mix in order to enhance LED light quality.

Before the Activity

With the Students: Engage

  1. Conduct the informal pre-activity assessment, as described in the Assessment section.
  2. Present to the class the Introduction/Motivation content, which introduces the engineering challenge: To design a new LED headlight that illuminates the roadway ahead without distracting oncoming drivers with a harsh bright white light.
  3. To pique interest in the topic and conduct some research about the problem, show students the online How Does an LED Work? video that describes what the N-type and P-type semiconductors are experiencing inside LED lights.
  4. Either as a class discussion or individual written responses, ask students to answer the following questions based on what they learned from the video:
    • What happens to the positive and negative charges once current is added? (Answer: Once current is added, negative charges move in one direction and positive charges move in the opposite direction. The free electrons combine with a hole that exists at a lower excitation state. The electrons lose energy to combine with the positive hole; as a result, a photon of light is given off.)
    • What determines the frequency or color of light emitted? (Answer: The amount of energy released determines the frequency or color of light emitted.)
  1. If students are familiar with the ROYGBIV acronym for the visible light spectrum, tell them that higher energy corresponds with higher frequency and that energy increases from R to B. For instance, an LED that emits blue light releases more energy than an LED that emits red light.

With the Students: Explore

  1. Remind students of the engineering challenge with the following prompt: “You are engineers solving a real-world problem. Your company has called on you to design a new LED headlight that lights the roadway without distracting oncoming drivers with the harsh bright white light that many cars have today. You just learned about how LED lights work. Now you will observe how color is mixed using a simulation.”
    • Inform students that the mixing of primary colors—red, blue and green—produces all the colors we see.
    • Suggest that students think about mixing paint; for example, adding blue to red produces purple. Light works in much the same way.
  1. Divide the class into groups of four students each and have each team assemble at a computer.
  2. Direct students to open the PHET Color Vision interactive simulation at https://phet.colorado.edu/en/simulation/legacy/color-vision.
    • Have students adjust the red, green and blue scale to create a number of colors. Then have them summarize in their journals their results from manipulating the colors.
    • Ask students if they notice any trends or patterns. (Expect students to see that mixing all the colors produces white light and that by adjusting the level of colors that make it to the human eye, various colors are perceived.)
    • Tell students to keep this in mind as they design a combination of added colors that reduces the harshness of the LED headlights. (Note: From the simulation, expect students to see how varying the intensity of primary colors creates the colors that we see.)
    • If groups finish early, challenge them to record in their journals how to create specific colors such as red, orange, yellow, green, blue, indigo and violet.
  1. Remind students that you have discussed how different colors could be emitted based on the type of materials used in an LED. Then direct students to read about quantum dots at the Nanosys website at http://www.nanosysinc.com/what-we-do/quantum-dots. Ask them to write in their journals their answers to the following questions:
    • What determines the electronic characteristics of quantum dots? (Answer: Their sizes and shapes.)
    • How can we change the color of light using quantum dots? (Answer: Using different sizes of quantum dots changes the colors they emit.)
    • If you wanted red light, would you use a larger or smaller quantum dot? Why? (Answer: We would use a larger quantum dot, because larger dots emit longer wavelengths, which means shorter frequencies, giving a color closer to red; see Figure 1. Note: The Figure 1 graph shows how quantum dots can emit a wide range of colors. When creating quantum dots, researchers alter the dot size to obtain specific colors.)

A photograph of five clear glass containers filled with luminescent (cadmium selenium) quantum dots is superimposed over a graph plotted to show the wavelength of light emitted in relation to color. The QD colors, left to right, are teal, light green, yellow, orange and red.
Figure 1. Larger quantum dots, shown in the far right bottle, emit longer wavelength light and show as red.
copyright
Copyright © 2009 NASA, Wikimedia Commons https://commons.wikimedia.org/wiki/File:CdSeqdots.jpg

With the Students: Explain

Remind students that they saw how we perceive color in the PHET simulation, and they saw how LED lights work and that the quantum dot size affects the color emitted. Ask students:

  • What can we vary within the LED to change the color of light emission? (Answer: Varying the level of photon energy released alters the frequency or color of light emitted. The materials used in the semiconductor can also influence the color emitted.)

With the Students: Evaluate

  1. Tell the students: “Up until now, you have been engaging in an important step of the engineering design process: researching the problem. Now, you are ready to apply what you have learned to work through the next steps of the engineering design process to solve the real-world problem posed earlier. Remember, you are engineers who work for a company that designs LED lights for cars. A manufacturing client wants to use LEDs in its headlights, but does not want oncoming drivers to be distracted by the harsh white light LEDs usually emit. As an engineer, your challenge is to design a method to reduce the blue light in the LED so that it is easier on the eyes of other drivers and passengers. You are given the following materials: colored acetate paper, white LED flashlight, ruler and black paper. Working in your teams of four engineers, determine which color combination dims the white LED light the best by measuring the light intensity (instructions below).”
  2. Direct students in the following procedure to measure the light intensity.
    • Using black construction paper as a background, hold the flashlight against the background and measure the length of the brightness from the middle of the flashlight to the end of the brightness (see Figure 2).
    • Add combinations of acetate films of your choice and measure the resulting brightness, being accurate in recording the combinations and length (brightness) in your journals. It is up to your team to decide which combination dims the bright LED light most effectively. (Hint: Consider overlapping the films to get the effect you want.)
    • Teacher note: The colored acetate paper mimics the effect of quantum dot filters. Quantum dot filters causes color changes based on controlling the semiconductor size. Colored acetate paper changes the color of the LED due to filtration.

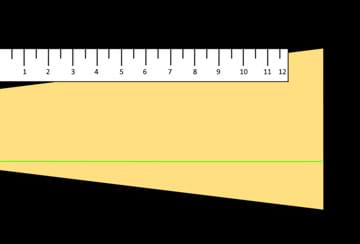

A diagram shows a light measurement guide composed of a one-foot ruler placed next to the beam of flashlight light on black paper.
Figure 2. Use a ruler to measure the distance the light travels, a length that relates to the light’s intensity.
copyright
Copyright © 2017 Sabina Schill, ITL Program, College of Engineering, University of Colorado Boulder

  1. To conclude, conduct a post-activity reflection as described in the Assessment section.

Vocabulary/Definitions

electron: An elementary charge that circulates the outer portion of an atom and carries a negative charge as current flows through a circuit.

hole: A positive elementary charge that flows opposite to electrons in a circuit.

light-emitting diode: A two-lead semiconductor with a p-n junction, designed to light up in a direct current (DC) circuit. Abbreviated as LED.

luminescence: The emission of light while not emitting heat.

quantum dot: Tiny, human-made crystals that can emit light across the visible spectrum.

semiconductor: A substance that has a conductivity between that of a metal and an insulator.

Assessment

Pre-Activity Assessment

Gauging Base Knowledge: As an informal warm-up and assessment, have students jot down the reasons humans see color. (Possible answers: White light from the sun gets reflected off surfaces at certain wavelengths, white lights travels through colored filters, etc.)

Activity Embedded Assessment

Discussion: During the activity, pique students’ interest in color and lighting. Ask them how theater lights are used to create certain moods. For example, a yellow gel placed on the white light fixture creates light that suggests a sunset feeling. This helps students see how color is used to augment light.

Recording Designs: During the activity, make sure students are recording in their journals their research, color combinations and measurements. Review their entries to gauge their comprehension of the topic and task.

Post-Activity Assessment

Reflection: After the activity, have students reflect on their designs, and compare and contrast the different models used to decrease the brightness of the light. Expect successful designs to be some combination of non-blue films to make the light less harsh, yet still strongly illuminating over distance.

Activity Extensions

If you have access to quantum dot filters, place them over LED lights to dim their brightness. You may want to review in advance the video listed in the Additional Multimedia Support section about how the technology works. Quantum dot filters can be purchased from QD Vision; company information is given in the video. Have students research the latest advancements made using quantum dot technology.

Additional Multimedia Support

QD Vision uses quantum dot filters to enhance the lighting properties of LED light bulbs. Teachers may want to preview the following video to see how colored acetate paper can mimic the effect of quantum dot filters. Better Lighting with Quantum Dots: A Brilliant Solution by The Economist (7:05 minutes) at https://www.youtube.com/watch?v=VjznErmcLnU.

The Color Vision PHET interactive simulation used in the activity is available to download at https://phet.colorado.edu/en/simulation/legacy/color-vision.
