Hands-on Activity: I Can't Take the Pressure!
Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Summary

Students develop an understanding of air pressure by using candy or cookie wafers to model how it changes with altitude, by comparing its magnitude to gravitational force per unit area, and by observing its magnitude with an aluminum can crushing experiment.

Engineering Connection

Engineering analysis or partial design

Air pressure is a concept that is important for engineers from all fields to understand. For instance, environmental engineers must understand air pressure because it affects the way in which air pollution travels through the air. Especially in highly-populated areas, engineers work with local communities to understand their unique weather and atmospheric conditions, and suggest public and industry behavior and policy changes to keep the air quality at a safe level for breathing. They also create new prevention technologies that address air pollution at the sources.

Contents

  1. Learning Objectives
  2. Materials
  3. Introduction/Motivation
  4. Procedure
  5. Attachments
  6. Safety Issues
  7. Troubleshooting Tips
  8. Assessment
  9. Extensions
  10. Activity Scaling
  11. References

Grade Level: 5 (4-6) Group Size: 4
Time Required: 60 minutes
Activity Dependency :None
Expendable Cost Per Group
Keywords:
My Rating:
Avg Rating:
Not Yet Rated.
Teacher Experiences  |  Share your experience!

Related Curriculum :

Educational Standards :

  •   Colorado: Math
  •   Colorado: Science
  •   Common Core State Standards for Mathematics: Math
  •   International Technology and Engineering Educators Association: Technology
  •   Next Generation Science Standards: Science
Does this curriculum meet my state's standards?

Learning Objectives (Return to Contents)

After this activity, students should be able to:
  • Compare atmospheric pressure (in psi) to the pressure exerted by an object (weight per unit area, in psi).
  • Understand and explain why air pressure changes with altitude.
  • Identify the locations of high pressure and low pressure in an experiment.
  • Recognize that engineers must understand air pressure because it affects the way in which air pollution travels through the air.
  • Identify aspects of pressure that are important to consider in an engineering design.

Materials List (Return to Contents)

Student Activity 1: The Strength of Air Pressure
Student Activity 2: Air Pressure and Altitude
  • Necco or Vanilla Wafers, or colored tiles / blocks, 14 per student
  • Paper, pencil, ruler (for each student)
  • Gallon of water (optional, to show students what 8.5 lbs. of weight feels like)
Demo 1: Aluminum Can Crush
  • 1 aluminum soda can
  • 1 large beaker or bucket
  • 1 hot plate
  • 1 pair of tongs
  • Water (1 cup tap water, a bucket of ice water)
  • 1 trivet (optional, to prevent damage to counter top from heated can)

Introduction/Motivation (Return to Contents)

Pressure is defined as the amount of force applied per unit area or as the ratio of force to area (P = F/A). The pressure an object exerts can be calculated if its weight (the force of gravity on an object) and the contact surface area are known. For a given force (or weight), the pressure it applies increases as the contact area decreases.
To better understand this, have students hold a large book flat on their outstretched hands and notice how much pressure the book puts on it. Then, have them try to balance the book on the tip of their index fingers. How much pressure does it seem to exert now?
It is also important to note that air pressure decreases with increasing altitude (see Figure 1 and Table 1). Table 1 lists the air pressure for specific elevations. See the Air Pressure vs. Altitude Data and Graph Reference Sheet for more detailed comparison.
A line diagram depicts the Earth's surface, troposphere, stratosphere, mesosphere and thermosphere.
Figure 1. Air pressure diagram. Air pressure increases closer to the Earth's surface.

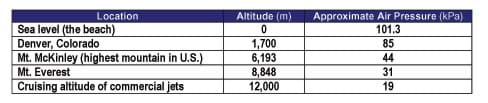

A table provides the altitude and approximate air pressure for five locations: sea level, Denver, Mt. McKinley, Mt. Everest and jet cruising altitude.
Table 1. Air pressure at various altitudes.
Pressure is measured in various units. Scientists and engineers typically use the metric unit Pascal (Pa). A Pascal is defined as the pressure exerted by a 1 Newton weight (1 kg under Earth's force of gravity) resting on an area of 1 square meter. Below is a list of some of the common units used to measure pressure, and their equivalents. Please note that there are many other units that may be used.
At sea level, the atmospheric air pressure can be represented as any of the following:
  • 1.013 x 105 Pa (Pascal or N/m2)
  • 1 atm (atmosphere)
  • 760 mm Hg (millimeters of mercury)
  • 14.7 lb/in2 (psi, pounds force per square inch; if 1-pound weight rests on 1-square inch of surface area, the pressure is 1 psi)
Humans are relatively permeable to air (it can move easily in and out of our bodies) and that is why our internal pressure stays the same as the pressure of the surrounding (ambient) air. This is the same reason why fish are not crushed in the depths of the ocean; they are permeable to water. Although the atmosphere exerts a significant amount of pressure on everything in our environment, the only time most people are aware of air pressure is when it changes (such as changes in altitude, for example, as you drive up a mountain).
As you climb in elevation, the atmospheric pressure decreases while the pressure in your middle ear may remain constant, causing a difference in pressure. This pressure difference causes your eardrums to bulge and possibly produce pain. Yawning relieves the pain because the action opens the small Eustachian tubes between your ear and pharynx allowing air to escape from your middle ear into the atmosphere though your nose and mouth. As the pressure is equalized, your ear "pops" when the eardrum snaps back into its normal position.
Engineers who design airplanes study air pressure. Airplane cabins are "pressurized." This means the inside of the plane maintains a constant pressure of about 14 pounds per square inch regardless of the pressure outside of the cabin. At high altitudes, the air has a very low pressure, which affects the way we breathe. This same effect occurs when people move from sea level locations, such as New York City, to the mountains, such as Denver, CO. Often, it takes a few weeks for their bodies to adjust to the lower pressure.

Before the Activity

  • Gather materials and make copies of the reference sheet and three worksheets (1, 2, 3).
  • If balances and scales are not available in your classroom, determine the mass of the objects before class and provide students with the information.
  • Practice the aluminum can demonstration.

Student Activity 1: The Strength of Air Pressure

  1. Ask students to define air pressure. Remind students of the experiments they did in Air Pollution unit, Lesson 1, Air – Is It Really There? activity, when they learned the properties of air: it has mass, it takes up space, it can move, it exerts pressure (it pushes on things) and it can do work.
  2. Ask the students: How strong is atmospheric air pressure? (Is it as much pressure as an ant standing on 1 square inch would exert? Or, an elephant? Or, 12 elephants?)
  3. Tell students they are going to compare the pressure that different objects exert on the Earth (due to gravity) to atmospheric air pressure.
  4. Divide the class into groups of four students each.
  5. Distribute to each group the activity worksheets, graph paper, index cards and four objects (for one group, the four objects could be themselves).
  6. Have the students determine the mass of their objects and record it on the How Great is Atmospheric Pressure? - Worksheet 1 (see Figure 2). The group that is weighing themselves should stand on one flat foot on the scale.

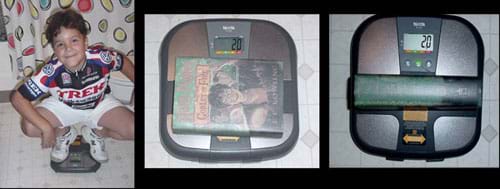

Three photographs. A boy steps on a scale. A book on a scale, lying flat and on edge.
Figure 2. Weighing different objects with different contact areas.
  1. Ask students to place their object on the grid paper in the same orientation as it was when it was on the balance (the position does not affect the mass, but it affects the contact/surface area value and thus, the ultimate pressure). Have students carefully trace around the object, add up the squares and record the contact area on their worksheet. The group that is weighing themselves should trace around the foot they stood on. Students may need some help estimating and rounding for partial squares.
  2. Have each student record on their worksheet the data for every group member.
  3. Ask students to calculate the pressure that each of the objects exerts. (P = F/A, in this case F = weight of the object.)
  4. Have each student write the name of their object and the resulting pressure on an index card and tape it to the blackboard.
  5. Have students rearrange the cards in order of increasing pressure.
  6. On the worksheet, have each student predict which object they think has the closest value to the air pressure around them and explain why. Ask some students to share their predictions.
  7. Share the actual value of the air pressure with the students (about 14.7 psi at sea level). Were they surprised with the results?

Student Activity 2: Air Pressure and Altitude

  1. Ask the students if/how they think air pressure changes with altitude?
  2. Why do they think this happens?
  3. Ask students to build a tower (using Necco or Vanilla Wafers, or colored tiles/blocks). It should be 14 wafers tall (see Figure 3).
Photograph of a stack of 14 Vanilla Wafers.
Figure 3. A tower made from cookie wafers.
  1. Ask students to describe how this model represents air pressure changing with altitude? Explanation: Imagine that the wafers are the air in the atmosphere, and that the bottom wafer is at sea level — the lowest point in the troposphere. The top wafer can be a higher layer in the stratosphere, or some place like the top of Mount Kilomanjaro. Imagine that you are standing at sea level, the level of the bottom wafer. The air pressure at sea level is the highest, because at that point all the air (wafers) is pressing on everything. Now imagine that you are standing on/near the top of the stack, at a higher altitude. Here, there is very little air (wafers) pressing on each other, thus the air pressure is less than at sea level.
  2. Share the sea level air pressure with students (14.7 psi) and the air pressure in your city (for example, Denver, CO, at one mile high, is about 12.4 psi).
  3. Ask students to describe in their own words how air pressure changes with altitude. They can record their information on Worksheet 1.
  4. Variation: Books or pillows could also be stacked in students laps/arms so they could "feel" the different pressures instead of just visualizing with the wafers.
  5. Eat the candy or cookie wafers.
  6. In Denver, the Earth's atmosphere has a force of about 12 pounds per square inch (psi). For reference, a gallon of milk or water weighs about 8 pounds. Show the students what a 1 inch by 1 inch square looks like. Now show the students what a 2 x 2-inch square looks like, and ask them how many pounds would be pressing down on that square. (Answer: 48.) See the Amount of Air Pressure on a Square - Worksheet 2, for a comparison of pressures at the altitudes of Boston, MA, and Denver, CO.
  7. Ask the students how many pounds would be pressing on a 3 x 3-inch square (Answer: 108) A 4 x 4-inch? (Answer: 192) Have the students complete Air Pressure Chart - Worksheet 3.
  8. Do the students see a pattern? What happens every time the square increases by one in2? (Answer: The pounds of force increases by 12.)
  9. The average pressure on a middle school student is 24,000 pounds! See if the students can figure out why they do not feel it. (Answer: Humans are permeable to air. There is air inside the body, too — from breathing, through the skin, ears, etc. — and that air balances out the pressure on the outside of the body.)

Demo 1: Aluminum Can Crush

  1. Fill the bucket with ice water.
  2. Fill the soda can with approximately 1 cm of water.
  3. Place the soda can on the hot plate until the water boils. Do not allow the can to boil dry!
  4. Carefully use the tongs to remove the can from the heat and place it in an upright position on the tabletop (or trivet).
  5. Is there any change in the can? (See Figure 4.) Ask students to record their observations on the How Great is Atmospheric Pressure? Worksheet 1
  6. Repeat the heating process. This time, when you remove the can with the tongs, quickly invert it and submerge the can opening in the bucket of ice water.
  7. Is there change in the can? (See Figure 4.) Ask students to record their observations on Worksheet 1.

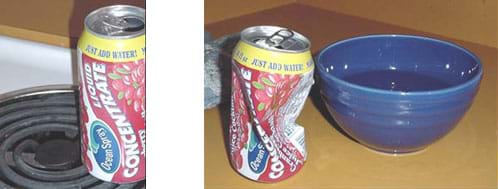

Photographs of an aluminum can being heated on a the coiled burner of an electric stove and the same can crushed after it was inverted over a bowl of cold water.
Figure 4. Aluminum can, before and after the demonstration.
  1. Ask students to draw a diagram of the experimental results. Have them indicate where the pressure must be the highest with a letter H and the lowest with a letter L. (Answer: The L should be inside the overturned can and the H should be the air outside the can and around the experiment.)
  2. Ask the students to explain why they think the can was crushed. Share the explanation with the students. Explanation: Before heating, the pressure inside and outside the can is the same. We assume the pressures on both sides remain approximately the same while heating since the can does not deform. As the water boils, the air that escapes from the can is gradually replaced by water vapor until the internal atmosphere is composed almost completely of water vapor. When the can is removed from the heat, the vapor pressure drops dramatically. It decreases from 101.3 kPa at 100ºC to about 2.3 kPa at room temperature. Therefore, as the temperature drops to room temperature, the pressure inside the can drops 97%. If the can is open to the atmosphere, air flows back into the can as the water condenses and keeps the pressure essentially constant. However, if the opening of the can is submerged, the vapor in the can cannot equilibrate with the atmosphere. In the bucket of water, the temperature in the can decreases and the water vapor condenses, creating a pressure difference of almost 99 kPa. Water is forced in to fill this partial vacuum, but before it does, air pressure on the walls implodes the can. Note that the collapsed can contains water (more than when you started), indicating water entered at the same time the walls collapsed.
  3. Have the students work in pairs to answer the following questions:
  • "The air inside an aircraft is kept at a pressure similar to what humans are used to at the surface of the Earth. Knowing this, what can you say about the pressure difference between the air inside the plane versus the air outside the plane, once the plane is 30,000 ft above the surface of the Earth?" [Answer: The air pressure is much lower outside the plane than inside the plane].
  • "Is pressure pushing from the inside of the plane outwards? Or, is pressure pushing on the outside on the plane inwards?" Perhaps a drawing of a plane with arrows indicating the direction of pressure would be helpful. [Answer: Pressure is pushing from the inside (high pressure) to the outside where there is lower pressure].
  • "How might engineers incorporate this knowledge into their design of airplanes?" [Answer: Engineers design airplanes, jets and the space shuttle to be strong enough so they do not explode when high in the atmosphere. The material needs to be much stronger than an aluminum can!]

Safety Issues (Return to Contents)

  • Make sure that students understand that they could get burned if they touch the hot plate or hot can.
  • Make sure the hot plate is turned off when not in use.

Troubleshooting Tips (Return to Contents)

In English, we use the term "weight" when we actually mean mass. Mass is the amount of matter in an object. Weight is the force of gravity on a particular mass. Students may need some clarification. It does not help that we use the unit of pounds for both, too! (However, mass is measured in pounds-mass and weight in pounds-force.)
During the calculation of contact area, students may need some help estimating and rounding for partial squares. It may help to do a quick example on the chalkboard or overhead projector.
You may want to start the water boiling in the aluminum can while conducting Student Activity 2: Air Pressure and Altitude — just do not forget about it and let it boil dry!
When the can is dunked in the bucket of cold water, it is crushed very quickly. Have the students gather around so they can see what happens. It is highly recommended that you practice this activity in advance.
If calculating pressures exerted at sea level is too difficult, it may be easier to provide the square areas 1-12 or perform the calculations using the air pressure in Denver (12 psi).

Pre-Activity Assessment

Discussion Questions: Solicit, summarize and integrate student responses to the following questions. After the discussion, explain that these questions will be answered during the upcoming demonstrations and activities. Ask the students:
  • What is air pressure?
  • How strong is atmospheric air pressure? Is it as much pressure as an ant standing on 1 square inch would exert? Or, an elephant? Or, 12 elephants?

Activity Embedded Assessment

Activity Sheets: Use the attached three worksheets and reference sheet to help students follow along with the activity.

Post-Activity Assessment

Student-Generated Questions: Ask each student to come up with one question to ask the class, based on the content of the activity. The students may require help in generating the questions. Call on a few students to ask their questions.

Activity Extensions (Return to Contents)

Have students do all their measurements and calculations in metric units. Use the following conversion factors:
1 cm2 = 0.001 m2
1 lb = 0.454 kg
1 in2 = 6.45 cm2 = 0.000645 m2
1 Pa = 1.45 x 10-4 lb/in2
1kg mass weighs 9.8 N
Change the size of the grid students use to calculate the surface area of their foot. For example, use a 1 cm2 grid, or a ½ in2 grid.
Make a graph of how air pressure changes with altitude.
Relate the concepts explored in this activity to water pressure deep in the ocean.

Activity Scaling (Return to Contents)

Student Activity 1: The Strength of Air Pressure

  • For grades 3 and 4, the multiplication and division may need to be modified; they should be able to do the multiplication given a calculator.
  • For grades 1 and 2, it may be easier to conduct this activity as a class. Use tape and an index card to label items with the pressure that they exert, and have each student take a card. Ask the students to arrange themselves (and the cards) in order of increasing pressure.

Student Activity 2: Air Pressure and Altitude

For grade 6 students:
  • Rather than demonstrate the squares to the students, have them measure their own 1 x 1, 2 x 2, 3 x 3, and 4 x 4-inch square and find the pressure.
  • The average surface area for an elementary school student is about 2,000 in2. Rather than telling the students, have them calculate the amount of air pressure pushing down on them (24,000 lbs.).
  • Have students calculate the force for other areas such as one square foot (144 in2), a football field (approx. 8,000,000 in2).
  • Have students plot square inches vs. force on a graph.
  • The average force of the atmosphere at sea level (New York City = 87 ft., San Diego = 13 ft., and Boston = 10 ft. — all close to sea level) is 15 pounds per square inch (almost two gallons of milk). Have the students repeat their calculations for the sea level pressure.
For grade 3 students:
  • The average force of the atmosphere at sea level (New York City = 87 ft., San Diego = 13 ft., and Boston = 10 ft. — all close to sea level) is 15 pounds per square inch (almost two gallons of milk). Have the students repeat their calculations for the sea level pressure.
  • Have students complete the Amount of Air Pressure on a Square Worksheet 2, and make predictions for several other squares such as 100 x 100.
For grade 2 students, consider simplifying the psi (pounds per square inch) from 12 to 10 for easier calculations.

Cunningham, J. and Herr, N. Hands-on Physics Activities with Real-Life Application. West Nyack, NY: The Center for Applied Research in Education, p. 188-210, 1994.

Quarter-Inch Graph Paper (Printable). Copyright 2000-2004. Teacher Vision, Family Education Network, Pearson Education, Inc. (Internet source to print graph paper) http://www.teachervision.com/lesson-plans/lesson-6169.html

Walpole, Brenda. 175 Science Experiments to Amuse and Amaze Your Friends. Random House, p. 72, 1988.

UNESCO. 700 Science Experiments for Everyone. New York, NY: Doubleday, p. 79, 1958.
