Hands-on Activity: Clearing a Path to the Heart
Contributed by: Integrated Teaching and Learning Program, College of Engineering and Applied Science, University of Colorado Boulder

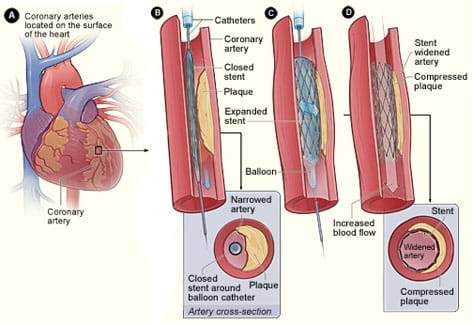

Cut-away diagram shows an expanding balloon and metal mesh stent, entering, pushing out on the walls, and leaving the stent in an artery.
Unblocking an artery with a balloon catheter and stent.

Summary

Following the steps of the engineering design process and acting as biomedical engineers, student teams use everyday materials to design and develop devices and approaches to unclog blood vessels. Through this open-ended design project, they learn about the circulatory system, biomedical engineering, and conditions that lead to heart attacks and strokes.

Engineering Connection

Engineering design

Engineers of all types—biomedical, mechanical, chemical, electrical, materials, computer—work together with medical professionals to apply basic biological and medical science to solving real-world problems. Devices such as catheters, balloon catheters and stents help people avoid or live beyond life-threatening heart attacks and strokes.

Contents

  1. Pre-Req Knowledge
  2. Learning Objectives
  3. Materials
  4. Introduction/Motivation
  5. Vocabulary
  6. Procedure
  7. Attachments
  8. Troubleshooting Tips
  9. Assessment
  10. Extensions
  11. Activity Scaling
  12. Multimedia
  13. References

Grade Level: 7 (6-8) Group Size: 3
Time Required: 45 minutes
Activity Dependency :None
Expendable Cost Per Group
Keywords:
My Rating:
Avg Rating:
Not Yet Rated.
Teacher Experiences  |  Share your experience!

Related Curriculum :

Educational Standards :

  •   Colorado: Math
  •   Colorado: Science
  •   Common Core State Standards for Mathematics: Math
  •   International Technology and Engineering Educators Association: Technology
  •   Next Generation Science Standards: Science
Does this curriculum meet my state's standards?

Pre-Req Knowledge (Return to Contents)

A basic knowledge of the human circulatory system, blood flow and artery clearing, as provided by the associated lesson, Body Circulation

Learning Objectives (Return to Contents)

After this activity, students should be able to:
  • Describe what happens when a blood vessel is blocked.
  • Describe how bioengineering techniques can be used to "open up" a blocked blood vessel.
  • Apply the engineering design process to create solutions to a problem.

Materials List (Return to Contents)

Each group needs:
  • 2 model "blocked arteries" made from about 4 inches (10 cm) of flexible tubing (~1.5-in [3.8-cm] diameter) clogged with play dough (or peanut butter); alternatively, use PVC pipe instead of tubing
  • 2 clown balloons (long and thin)
  • air pump, for clown balloons
  • 2 straws
  • 2 paper clips
  • thin wire
  • 1 pipe cleaner
  • 4 rubber bands
  • tape
  • 1 square of aluminum foil, about 3 x 3 inches [7.6 x 7.6 cm]
  • (optional) strip of metal mesh screen, about 4 x 1 inch [10 x 2.54cm]
  • Clearing Blocked Arteries Measurements Worksheet, one per student
For the entire class to share:
  • water source
  • 2 liter container (from which to pour the same amount of water)
  • large jug, bin or container, to catch poured water
  • timer (such as the classroom clock with second hand or a person's watch or phone)
  • Three Treatment Methods Images, an overhead projector transparency or printouts to show students
Cross-section diagram shows only a small, irregular passageway through thick walls.
A cutaway view shows the reduced open area in a blocked artery due to plaque buildup on its walls.

Introduction/Motivation (Return to Contents)

In 2003, a 14 year old boy in China experienced severe chest pain during exercise. At the hospital, doctors found that he had a clogged artery, and if they were not able to clear it, he would go into cardiac arrest and experience heart failure. Luckily, the doctors were able to use an engineered stent to open his artery and prevent heart failure.
Do you know anyone who has had a heart attack? (Ask students to raise their hands.) Do you think that heart attacks are common? Why or why not? What causes them?
In a properly working human circulatory system, blood vessels are clean and smooth (like clean pipes). However, during the course of a lifetime, sometimes material coats the interior walls of blood vessels. This plaque, whether it hardens and stays in place, or hardens and gets dislodged, can have significant health consequences. Having material blocking the normal blood flow restricts the movement of blood, thus preventing sufficient nutrients and oxygen from reaching all parts of the body. Having plaque material moving though the blood vessels may also result in that material eventually encountering a smaller blood vessel and blocking any blood from going through, which prevents nutrients and oxygen from reaching everywhere they are needed. The problems this can cause are significant, problems such as heart attacks and strokes.
The best way to avoid these medical conditions is prevention via things like healthy eating and exercise. However, at the point when blockage is found, it must be treated to avoid health problems. Engineers and doctors have designed various ways to unclog or unblock plaque-coated blood vessels. That's what we're going to look at today—heart attack and stroke treatment and prevention. How exactly is blood flow restored to the heart when plaque, or a blood clot, is blocking blood flow? Every day biomedical, mechanical, chemical and electrical engineers (and others types, too) work with medical doctors to devise more effective treatments for heart attacks and strokes. Today, we are going to see if we can do the same.
What ideas do you have about how we might unclog a blocked artery? (Listen to and encourage student brainstorming and ideas.) Currently, three primary treatments for clogged arteries are in common use (optional; show students Three Methods to Treat Blocked Arteries as either an overhead transparency or printouts, depending on whether or not you want to show them these ideas or wait until activity end). The first two are types of angioplasty, or recreating of the canal in the blood vessel. The first method is a balloon catheter in which a small balloon is passed through the artery to the clogged area where it is inflated, compressing the plaque and opening the artery to greater flow. The second method is similar to the balloon catheter with the addition of a stent surrounding the balloon, so when the balloon inflates, the stent remains behind to keep the plaque pinned against the walls. The third method is a bypass surgery in which the blocked section of the artery is removed and the artery is reconnected, free of the blockage.

Vocabulary/Definitions (Return to Contents)

balloon catheter: A catheter with an inflatable tip that can be expanded by the passage of gas or liquid; used especially to expand a partly closed or obstructed bodily passage or tube (such as an artery). Also called balloon-tipped catheter.
bioengineering: The use of artificial tissues, organs or organ components to replace damaged or absent body parts, such as artificial limbs and heart pacemakers. Source: The Oxford Pocket Dictionary of Current English, http://encyclopedia.com/doc/1O999-bioengineering.html
biomedical engineer: A person who blends traditional engineering techniques with the biological sciences and medicine to improve the quality of human health and life. Biomedical engineers design artificial body parts, medical devices, diagnostic tools and medical treatment methods.
brainstorming: A method of shared problem solving in which all members of a group contribute many ideas.
catheter: A hollow, flexible tube for insertion into a body cavity, duct or vessel to allow the passage of fluids or expand a passageway.
coronary artery bypass surgery: A surgery that uses a piece of a vein from the leg, or artery from the chest or wrist. The surgeon attaches this to the coronary artery above and below the narrowed area or blockage so blood can bypass the blockage. Some people need more than one bypass. Source: Medline Plus, US National Library of Medicine and National Institutes of Health: http://www.nlm.nih.gov/medlineplus/coronaryarterybypasssurgery.html
engineer: A person who applies an understanding of science and math to creating things for the benefit of humanity and our world.
engineering design process: A decision-making process used by engineers to make something that meets a need or solves a problem. Steps include: brainstorm, design, plan, create, test, improve.
heart attack: Damage to heart muscle that is deprived of oxygen via blood flow, usually due to blockage of a coronary artery. Typically accompanied by chest pain. Often life threatening. Also called myocardial infarction.
model: (noun) A representation of something, sometimes on a different scale. (verb) To simulate, make or construct something to help visualize or learn about something else (such as a living human body, process or system) that cannot be directly observed or experimented upon.
plaque: A deposit of fatty material on the inner lining of an arterial wall.
prototype: A first attempt or early model of a new product, device or creation. Typically revised many times.
stent: A small, expandable tube used for inserting in a blocked vessel.
stroke: When a blockage of a blood vessel to the brain causes inadequate oxygen supply, leading to weakness, paralysis, speech difficulties, loss of consciousness and/or death.

Before the Activity

  • Gather materials and make copies of the Clearing Blocked Arteries Measurements Worksheet, one per student.
  • Make either an overhead projector transparency or printouts of the Three Treatment Methods Images.
  • Make enough model blocked arteries to provide two per team. The representative artery/artery walls, made from either flexible rubber tubing or PVC pipe, are larger than the diameter of real human arteries, but serve as models for this open-ended design project. To simulate plaque buildup inside the model blocked arteries, use play dough or other material (such as peanut butter) that can be wedged inside but is still soft enough to be moved about when students test their device designs (see Figure 1).

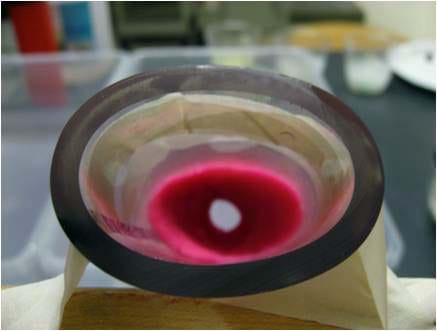

Photo looking into the end of a piece of plastic tubing shows it almost completely blocked by red material, except for a small opening.
Figure 1. Example model blocked artery made from plastic tubing and play dough.

With the Students: Design and Prototype

  1. Divide the class into groups of three students each. Hand out the worksheets.
  2. Demonstrate that blocked arteries have different flow than clear arteries by having the class time how long it takes for two liters of water to flow through a clear piece of piping at a 45° angle versus through a blocked piece of piping at the same angle (see Figure 2). Have students record these measurements on their worksheets.

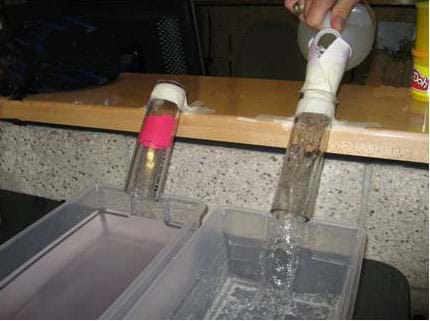

Photo shows two clear tubes, each positioned at 45° angles above separate plastic containers. Water pours through the unclogged "artery" into the bin.
Figure 2. Comparing flow through clogged and unclogged arteries.
  1. Explain the design project to the student teams: Your challenge today is to create a device that could remove or flatten the built-up plaque material inside artery walls. How are you going to go about doing this? What are the steps a design team of engineers would take? (After students have suggested ideas, write on the board the steps all engineers go through in designing and solving problems. Understand the need, brainstorm ideas, design and plan, create and test a prototype, and review and improve.) Well, first engineers must have a problem or a need. Then, they brainstorm creative ideas and solutions to that problem or need. Next, they select the most promising idea and create a design that they can draw or communicate to others. They make a prototype of that design and test it to evaluate whether or not the design is successful.
  1. Continue with the project instructions: Today, you and your team are engineers working together to create a device that could remove or flatten the built-up plaque material inside artery walls. Your team has two identical blocked arteries and a set of materials. Use the materials to develop a device to improve the flow in the artery. Remember, you do not have to use all of the materials. The last step of the design process is to review and improve on your design. You have two model arteries to built, test and then redesign with improvements. Keep in mind that you do not want to just knock the plaque off the wall and leave it in the blood stream, and you do not want to hurt the fragile inside wall of the arteries.
  2. Ask students: What ideas do you have for how to unblock your model arteries? (As necessary, share the ideas that were mentioned during the Introduction/Motivation section of the activity, such as: dissolve the clot or blockage, use a balloon to push the artery open.)
  3. Direct students to brainstorm, design (create a drawing with labeled materials), create a prototype and test their designs. Expect the second design to be an improvement of the first.
  4. Circulate among the groups as they work, observing and asking questions, as provided in the Assessment section. As students are working, challenge them to think about what happens to the plaque they dislodge, move or scrape away. Remind them that we do not want the treatment to hurt the patient!

With the Students: Communication and Testing

  1. Have each team present a description of its two designs and design process to the class.
  2. Measure success by timing how fast 2 liters of water flow through a team's cleared arteries after the treatment method. Hold the arteries at 45° angle while the water flows. Have students record these measurements on their worksheets. Compare data. If desired, award prizes for the best team design.
  3. Have students complete the questions on their worksheets.

With the Students: Conclusion and Reflection

  1. Lead a class discussion:
  • Our model blocked arteries are, of course, not real arteries. What challenges might an engineering team face when creating a similar technology for real arteries? (Possible answers: The real blocked arteries would be in a human body, so they would be hard to get to, slippery, walls might be more elastic, and the plaque would be different.)
  • While the materials may not be the same, the process that you used to develop your prototype devices is the same used by engineers. And while their devices may be different, they share similarities to your solutions. (Show students the three images of current treatment methods.)
  • Look carefully at the mechanics of the balloon catheter (angioplasty), coronary bypass surgery, and catheter with stent (angioplasty). What similarities and differences do you see?

Troubleshooting Tips (Return to Contents)

Make sure students create feasible solutions, for example, make sure their devices fit into the tubes and have a way of removing or flattening the plaque.
Make sure teams incorporate "lessons learned" from their first design/test as they create revised and improved second designs.

Pre-Activity Assessment

Brainstorming: Have students brainstorm different possible ways a clogged artery might be cleared without harming the patient. Do this before explaining current practices. Remind students that brainstorming is the time to be very creative. During brainstorming, no idea or suggestion is "wrong" or "ridiculous." Respectfully listen to all ideas and build on them.

Activity Embedded Assessment

Design Process: Visit each group and ask the following questions, depending on the team's stage in the design process:
  • Why did your group decide on this design?
  • How does this device work?
  • What happens to the plaque after you use the device?
  • Which specific blood vessel in the body might this represent?
  • What would happen if you were able to unblock part, but not all, of the artery?
  • How would having partially blocked blood vessels affect a person's body?
Worksheet: Have students complete the activity worksheet; review their answers to gauge their understanding of the subject.

Post-Activity Assessment

Communicating the Results: Have student teams present their designs to the class. Have them share why they chose that design, what worked, what did not work, and ways in which the design might be improved.

Activity Extensions (Return to Contents)

So that the model designs are more lifelike, have students create catheter devices that could be used while water is flowing through the system.
Have teams create engineering presentations that they would give to manufacturing companies, hospitals or medical personnel highlighting the benefits of their particular medical devices.

Activity Scaling (Return to Contents)

  • For upper grades, do not show them current treatment methods until after they have completed the activity.

Additional Multimedia Support (Return to Contents)

See a good drawing of coronary balloon angioplasty at this National Institutes of Health website: http://www.nhlbi.nih.gov/health/dci/Diseases/Angioplasty/Angioplasty_howdone.html
