Hands-on Activity: Pupillary Response & Test Your Reaction Time
Contributed by: GK-12 Program, Computational Neurobiology Center, College of Engineering, University of Missouri

Images of two blue human eyes, one with a small pupil and the other a much larger pupil.
What can we learn and apply to the design of robots from the human body's many reflexes and reactions?

Summary

Students observe and test their reflexes, including the (involuntary) pupillary response and (voluntary) reaction times using their dominant and non-dominant hands, as a way to further explore how reflexes occur in humans. They gain insights into how our bodies react to stimuli, and how some reactions and body movements are controlled automatically, without conscious thought. Using information from the associated lesson about how robots react to situations, including the stimulus-to-response framework, students see how engineers use human reflexes as examples for controls for robots.

Engineering Connection

Relating science and/or math concept(s) to engineering

Biological engineers and neuroscientists perceive human bodies as functioning, controlled systems, not unlike robots. Research is increasingly revealing that mathematical principles similar to those used in robotics are extremely useful or even necessary for a complete understanding of the human body. As an example of how engineers get ideas from human reflexes, painting robots are designed to take input from vision sensors in order to continuously move the robot sprayer tip so it is always positioned at the right distance from the car body as it paints.

Contents

  1. Pre-Req Knowledge
  2. Learning Objectives
  3. Materials
  4. Introduction/Motivation
  5. Vocabulary
  6. Procedure
  7. Attachments
  8. Assessment
  9. Activity Scaling
  10. References

Grade Level: 6 (5-8) Group Size: 2
Time Required: 35 minutes
Activity Dependency :Reflecting on Human Reflexes
Expendable Cost Per Group
Keywords:
My Rating:
Avg Rating:
Not Yet Rated.
Teacher Experiences  |  Share your experience!

Related Curriculum :

Educational Standards :

  •   International Technology and Engineering Educators Association: Technology
  •   Missouri: Science
Does this curriculum meet my state's standards?

Pre-Req Knowledge (Return to Contents)

Although not required, we suggest students complete the previous unit in the series, Humans Are Like Robots and the previous lessons and activities of this unit, prior to starting this activity.

Learning Objectives (Return to Contents)

After this activity, students should be able to:
  • List typical human reaction times.
  • Explain how the "stimulus-sensor-coordinator-effector-response" loop works in humans and in robots.

Materials List (Return to Contents)

Each group needs:
To share with the entire class:

Introduction/Motivation (Return to Contents)

A reflex is an involuntary and nearly instantaneous movement made by the body in response to a stimulus. In some instances, the body reacts to a stimulus without having to send a signal to the brain. Local nerves process the information from the stimulus and react to it automatically. Reflexes are an automatic defense mechanism from the body.
Can you think of instances in which it would be important for the body to react swiftly in order to protect the body so that it makes sense that it reacts without sending a message to the brain first? (See what scenarios students suggest. Possible answers: Pulling back your hands or limbs quickly from touching something hot, sharp or unknown, to protect the body; changing pupil size as you move from daylight into a tunnel or shady area and back into full sunshine, all the while generating continual vision, making the pupil smaller and/or blinking when objects like balls, branches, dust or other people come too close to the eyes, to protect the eyes.)
What are some human reflexes that you know about or have heard about? (Possible answers, many of them mentioned in the associated lesson: knee jerk reflex [patellar reflex], blinking [corneal reflex], blushing, hands touching hot objects, acoustic reflex, rooting reflex, shivering, vestibule-ocular reflex, sneezing, ankle jerk, biceps reflex, coughing, gag reflex, accommodation reflex [coordinated eye lens shape and pupil size adjustments when looking at a distant object after a near object], and pupillary light reflex.)
Let's do some experimenting to test our own reflexes and reactions.

Vocabulary/Definitions (Return to Contents)

reflex: An involuntary and nearly instantaneous body movement in response to a stimulus, largely for self-defense and self-preservation.
response time: The sum of reaction time and movement time.

Before the Activity

Background

With information provided on the eight presentation slides, oversee students as they conduct two short exercises (10 minutes + 25 minutes) on the pupillary light reflex response and hand reaction times. Have students work in pairs, using the worksheet to guide their testing and data collection.

With the Students

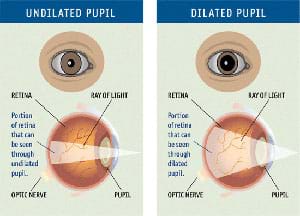

Medical diagram shows dilated and undilated eye pupils in front and side views.
Dilated vs. undilated human eye pupils.
  1. Divide the class into groups of two students each. Hand out the worksheets.
  2. Allow 10 minutes for student pairs to conduct exercise 1, observing their pupillary light reflex responses (slide 2). Instructions (also on the slide and worksheet):
  • Perform this exercise with a partner.
  • Dim the room lights. After a few minutes, look at the eyes of your partner and note the pupil sizes (the black center spots in the middle of the eyes).
  • Turn on the room lights. Check the pupil sizes again. The pupils should now be smaller.
  • This is the pupillary light reflex response. This reflex "automatically" keeps out excessive light that may damage the eyes, and thus protects your eyes for you!
  1. Allow 25 minutes for student pairs to conduct exercise 2, testing reaction times (slides 2-6). Explain the exercise and review the instructions so they are clear to students: In your groups, you will perform four variations of a reaction test. As you collect data, fill in the worksheet data table. Then switch roles and repeat the tests and data collection. As necessary, demonstrate for students the ruler drop-n-catch set-up. Then let the student pairs proceed to conduct their own tests and collect data. Instructions (also on the slides and worksheet):
    A drawing shows a vertical ruler with test administrator hand holding the top and subject hand placed below the end of the hanging ruler.
    How to hold the ruler.
  • For Test A: Hold a meter-long ruler near the end with the highest number and let it hang down. Have your partner put his/her dominant hand at the bottom of the ruler, not touching it, and be ready to grab the ruler when it drops. Tell your partner that you will drop the ruler sometime in the next five seconds with no countdown warning and that s/he is to try to catch the ruler as fast as s/he can after you drop it. Be consistent in where hands are placed at the start of each trial. Record in the data table the point on the ruler (centimeters or inches) at which your partner catches it. Repeat this test with the same subject for a total of three times. Vary the time of dropping within the five-second "drop-zone" so the subject cannot guess when you will drop the ruler.
  • For Test B: Conduct the same test with the addition of a countdown warning. Tell your partner that you will drop the ruler at the count of three and say: 1... 2... 3 and drop it when you say 3. Record in the data table the point on the ruler where the partner caught it for this trial. Repeat this test with a countdown with the same subject for a total of three times.
  • For Test C: Conduct the test with no countdown warning and your partner's eyes closed. Tell your partner that you will drop the ruler any time within a five-second "drop-zone." Record the data.
  • For Test D: Conduct the test with a countdown warning, eyes closed, with the subject using his/her non-dominant hand. Tell your partner that you will drop the ruler at the count of three and say: 1... 2... 3 and drop it when you say 3. Record the data.
  1. Have students share and discuss their exercise 2 findings as a class. Then either have students answer the six worksheet results and analysis questions (slide 7) in writing or lead a class discussion using the questions as prompts.
  2. Conclude by administering the three-question Post-Lesson Quiz (slide 8, and attachment to associated lesson). As a class, summarize and highlight the key concepts:
  • A reflex is an involuntary and nearly instantaneous body movement in response to a stimulus that is largely done for self-defense and self-preservation purposes.
  • Response time is the sum of reaction time and movement time.
  • Human reflexes and robot actions can be described using the "stimulus-sensor-coordinator-effector-movement" framework, which is very useful to understand both human and engineering systems.
Pupillary Response: After the pupillary response exercise, have students discuss their findings in groups, particularly if any differences were observed.
Test Reaction Times: After testing their reaction times, have students share and discuss as a class their findings. Then either have students answer the six Response & Reaction Worksheet results and analysis questions in writing to be turned in for grading or lead a class discussion using the questions as prompts. Consider student answers and/or discussion contributions to gauge their comprehension.
Wrap-Up Quiz: Wrap up the lesson/activity set by administering the three-question post-lesson quiz, provided on slide 8 and as the Human & Robot Reflexes Post-Lesson Quiz attachment to the associated lesson. Answers are provided in the slide 8 notes, and as an attachment in the associated lesson.

Activity Scaling (Return to Contents)

  • For more advanced students, provide additional explanatory material as found at the websites listed in the References section.

Dowshen, Steven. What Are Reflexes? Last updated September 2010. Kids Health from Nemours. Accessed April 16, 2013. http://kidshealth.org/kid/talk/qa/reflexes.html

List of reflexes (alphabetical). Last updated November 3, 2012. In Wikipedia, The Free Encyclopedia. Accessed April 16, 2013. http://en.wikipedia.org/w/index.php?title=List_of_reflexes_(alphabetical)&oldid=521175984

Mental chronometry. Last updated March 2, 2013. In Wikipedia, The Free Encyclopedia. Accessed April 16, 2013. http://en.wikipedia.org/w/index.php?title=Mental_chronometry&oldid=541675578

Your Sense of Touch. The Senses, Oracle ThinkQuest. Accessed April 16, 2013. http://library.thinkquest.org/3750/touch/touch.html

Contributors

Marianne Catanho, Sachin Nair, Charlie Franklin, Satish Nair

Copyright

© 2013 by Regents of the University of Colorado; original © 2012 Curators of the University of Missouri

Supporting Program (Return to Contents)

GK-12 Program, Computational Neurobiology Center, College of Engineering, University of Missouri

Acknowledgements (Return to Contents)

This curriculum was developed under National Science Foundation GK-12 grant no. DGE 0440524. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.
Last Modified: April 18, 2014
