Lesson: Factors Affecting Friction

Contributed by: Engineering K-Ph.D. Program, Pratt School of Engineering, Duke University
photo of airplane on snowy runway
Friction is vital to the safe landing of an airplane. In this photograph, a test pilot is landing on an unplowed runway to see if the plane can come to a stop without skidding off the runway.

Summary

Based on what they have already learned about friction, students formulate hypotheses concerning the effects of weight and contact area on the amount of friction between two surfaces. In the Associated Activities (Does Weight Matter? and Does Area Matter?), students design and conduct simple experiments to test their hypotheses, using procedures similar to those used in the previous lesson (Discovering Friction). An analysis of their data will reveal the importance of weight to normal friction (the friction that occurs as a result of surface roughness) and the importance of surface area to the friction that occurs between smooth surfaces due to molecular attraction. Based on their data, students will also be able to calculate coefficients of friction for the materials tested, and compare these to published values for various materials.

Engineering Connection

Relating science and/or math concept(s) to engineering

Engineers must understand how friction affects a number of situations, from the bottom of skis in which friction is a disadvantage to hiking boots where friction provides traction. Scientists must think like engineers when designing experiments as the students do in both of the associated activities.

Contents

  1. Pre-Req Knowledge
  2. Learning Objectives
  3. Introduction/Motivation
  4. Background
  5. Vocabulary
  6. Associated Activities
  7. Lesson Closure
  8. Assessment
  9. Extensions

Grade Level: 7 (6-9) Lessons in this Unit: 12
Time Required: 3 hours
Lesson Dependency :Discovering Friction, Sliding and Stuttering
Keywords: friction, static friction, kinetic friction, coefficient of friction
My Rating:
Avg Rating:
Not Yet Rated.
Teacher Experiences  |  Share your experience!

Related Curriculum

subject areas Measurement
Physical Science
curricular units The Force of Friction
activities Does Contact Area Matter?
Does Weight Matter?

Educational Standards :

  •   International Technology and Engineering Educators Association: Technology
  •   Next Generation Science Standards: Science
  •   North Carolina: Math
  •   North Carolina: Science
Does this curriculum meet my state's standards?

Pre-Req Knowledge (Return to Contents)

  • Students should be familiar with the information about friction covered in the Discovering Friction lesson, and the experimental method for measuring friction used in the Associated Activity Sliding and Stuttering.
  • It will be helpful if students know how to prepare a line graph from data consisting of two variables.

Learning Objectives (Return to Contents)

  • Students will be able to describe the effects of weight on normal friction, i.e., the friction due to surface roughness.
  • Students will be able to describe the effects of contact area on the friction that occurs as a result of molecular attraction.

Introduction/Motivation (Return to Contents)

In the previous lesson (Discovering Friction) and its Associated Activity (Sliding and Stuttering), students found that friction is a force that impedes motion, and that static friction is greater than kinetic friction. They also found that surface roughness can be an important source of friction, but their experiments should have revealed that a lot of friction could also occur between two very smooth surfaces. The discussion following their experiments should also have raised questions about the roles of weight and contact area in the amount of friction that occurs between two surfaces. To introduce this lesson, remind students of these observations and questions from the previous lesson.
Then, ask them to meet in their groups and formulate two hypotheses. The first hypothesis should state what they think the effect of adding weight to the cup will have as it slides across a surface. Example of such hypotheses might be, "When more weight is added to the cup, more friction will be measured when we slide it across the table," or, "Weight will not affect the friction measured." Ask students also to write the reasoning behind their hypotheses. For the first example, students might say, "We think we will measure more friction because the extra weight will make the cup press down on the surface more, so more of the tiny surface bumps will be in contact." For the second example, students might argue that, "Weight will not affect the amount of friction because the same amount of surface on the bottom of the cup will be in contact with the table's surface. We think that to get more friction, there has to be more surface area in contact."
The second hypothesis each group should make concerns the effect of contact area on the friction measured. Students will probably suggest that, "The more surface area in contact, the more friction we will measure." Their reasoning will most likely be along the lines of, "The more surface area in contact, the more tiny bumps there are to get in each other's way between the two surfaces." Or, if they are familiar with the notion of friction due to molecular attraction, they might also argue that, "The more surface area there is in contact, the more places there are for molecules of the two surfaces to be attracted to each other."
At this point, you need not discuss their hypotheses or their reasoning. However, do check to see that the explanations they give for their hypotheses are reasonably complete.
Once the groups have formulated their hypotheses and explained their reasoning (in writing), let them know that they will be able to test their hypotheses using the same basic method they used in the previous lesson.

Lesson Background & Concepts for Teachers (Return to Contents)

The effects of weight and contact area on friction are complicated because there are two major mechanisms of friction at work. The classical view of friction is that it is caused solely by surface irregularities, called "asperities", and that weight correlates directly with the amount of friction that occurs. For a single object moving across a single surface, when additional weight is added to the object, the frictional force measured is in direct proportion to its total weight. A graph of the friction measured versus the total weight will produce a reasonably straight line such as the one drawn from student data shown below . This will be true for both static and kinetic friction, although the line for static friction should be a little steeper than the line for kinetic friction.

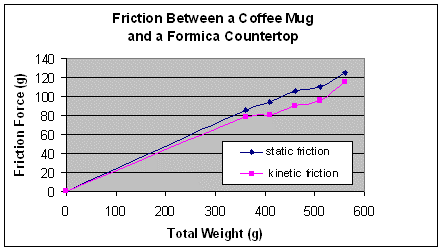

Friction versus total weight
Friction Between a Coffee Mug and a Formica Countertop
The slope of the line corresponds to the coefficient of friction for the two particular surfaces involved. In physics and engineering, the coefficient of friction is denoted by the Greek letter mu (μ), followed by either the subscript s or k. Thus, μs and μk represent the coefficients for static and kinetic friction, respectively. The force F needed to overcome friction and set a body of weight W in motion on a flat surface is given by F = μsW. Likewise, once the body is in motion, the force needed to keep it in motion is F = μkW.
Every pair of surfaces has a unique, empirically obtained set of coefficients. For example, dry steel on dry steel has a static coefficient of about 0.6 and a kinetic coefficient of 0.4. When oil or grease is added, the coefficients drop to about 0.1 and 0.05, respectively. These coefficients were obtained by measuring the force needed to move an object made of steel resting on a flat steel surface, and then dividing that force by the weight of the steel object. In other words, the equation given above was rearranged to give μ = F/W.

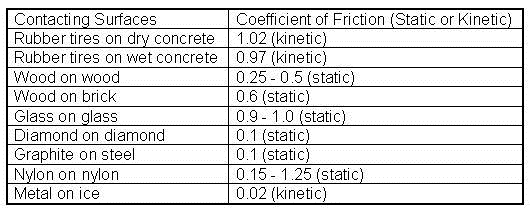

The table below lists some examples of coefficients of friction. Since it is mainly engineers who use these values, most of the ones found in reference materials are related to machinery and automotive applications.
some examples of coefficients of friction.
some examples of coefficients of friction.
Since the frictional force measured varies in direct proportion to the weight of the object being moved, there must be some physical mechanism underlying this observation. Given that this friction is due to surface irregularities, it makes sense that additional weight presses the peaks and valleys of one surface more firmly into the valleys and peaks of the other surface, so more force is required to disengage them and set the body in motion. Similarly, more force is required to keep the body in motion when gravity acting on the added weight tends to re-engage the peaks and valleys.
But what about contact area? How does it affect friction? Returning to the equations for friction given above, F = μsW and F = μkW, we can see that friction only depends on the weight of the object being moved and the coefficient of friction that exists between the two surfaces. The amount of surface area in contact does not appear in the equations anywhere. So, the amount of area in contact doesn't seem to matter when it comes to friction.
This might not seem to make sense at first. However, consider that as long as there are some surface imperfections present on one or both surfaces, friction will occur. And as long as a few peaks and valleys are getting hung up on each other, it makes no difference if other peaks and valleys are also getting hung up simultaneously  as long as these additional peaks and valleys aren't bigger than the original set of some peaks and valleys. The force required to free up any number of peaks and valleys is the force needed to free up the largest of the peaks and valleys. No matter how many smaller peaks and valleys there are, the larger force is enough to free up all of them. The coefficient of friction between two surfaces, because it is empirically derived and based on numerous experiments, reflects the largest peaks and valleys typical of the two surfaces involved. So, as long as the surfaces are relatively uniform, meaning they don't change in microscopic texture from one region to another, the amount of area in contact doesn't affect the frictional force.
At least that's the theory, and in fact, it holds true for the classical type of friction, sometimes known as "normal" friction, that is the result of surface roughness. However, in the last several decades a whole new class of very smooth, lightweight, synthetic materials have been invented and manufactured for a variety of applications. And while they may be very smooth, even on a microscopic level, some of these modern materials (mostly plastics) show an astonishing amount of friction. For these materials, the classic view of friction does not apply in its entirety. Although the amount of friction measured can still be affected by weight, friction due to molecular attractions between the two surfaces appears to be just as important. For these materials, the amount of friction that occurs can, in fact, be affected by the amount of surface area in contact, although at this point the nature of the molecular attractions involved is poorly understood. An example of a graph created from student data showing the effects of contact area on friction between two smooth, synthetic surfaces is shown below.

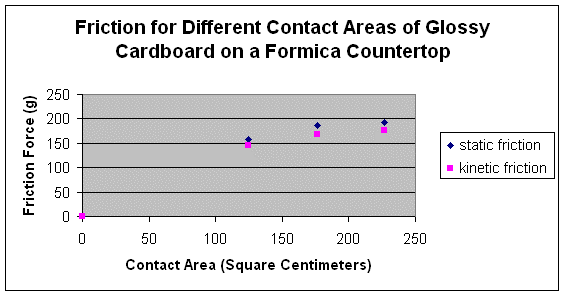

friction between two smooth, synthetic surfaces
friction between two smooth, synthetic surfaces friction between two smooth, synthetic surfaces

Vocabulary/Definitions (Return to Contents)

friction: a resistance to motion that occurs when two surfaces are in contact with each other
static friction: the resistance to motion that must be overcome in order to allow one surface to begin sliding against another surface
kinetic friction: the resistance to motion that occurs once one surface is in motion, sliding against another surface
coefficient of friction: an empirically derived quantity for a pair of surfaces that is equal to the amount of friction measured divided by the weight of the object being moved

Associated Activities (Return to Contents)

  • Does Weight Matter? - Working in small groups, students design and conduct simple experiments to test for the effects of weight on friction.
  • Does Contact Area Matter? - Working in small groups, students design and conduct simple experiments to test for the effects of contact area on friction.

Lesson Closure (Return to Contents)

Also, have students calculate the coefficients of friction between surfaces they tested using the method explained in the Lesson Background & Concepts for Teachers section above. Show students a copy of the coefficients of friction table included in this section for comparison. Be sure to point out how the coefficient of friction between a car's tires and the pavement is reduced when the pavement is wet; this is why safe drivers slow down on wet roads to avoid skidding. Advise your students to remember this fact after they get their driving licenses!
Students may find some of the other friction coefficients surprising, such as the comparison between glass and diamond. Ask your students to speculate on why these two materials, which are similar in appearance, have such different coefficients of friction. They might want to do a little library research in an effort to find out why. They should easily be able to find information about what these materials are made of, but it is unlikely they will be able to find out much about how they behave with respect to friction. Point out to students that many aspects of friction are still poorly understood and are being researched by scientists and engineers throughout the world. Nevertheless, the similarities and differences between glass and diamond are such that students should be able to come up with some plausible explanations, or hypotheses, especially since they are armed with knowledge about the importance of molecular attractions in smooth-surface friction.
  • Students may be asked to write paragraphs explaining how and why weight affects normal friction, and how and why contact area affects friction due to molecular attraction.
  • Students can be given data consisting of the weights and frictional forces measured for several pairs of surfaces, and asked to calculate the coefficient of friction of each.

Lesson Extension Activities (Return to Contents)

Rolling friction is another type of friction, and it is generally much lower than the sliding friction students experimented with in this and the previous lesson. Students can conduct additional research, both in the form of library/internet research and experimental research, to learn about this type of friction.
