Lesson: Digestion Simulation
Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado at Boulder
 |
Using a cellular model to simulate stomach digestion. click for copyright |
Summary |
Engineering Connection |
Contents
|
| Grade Level: 4 (4-7) | Lesson #: 5 of 10 |
Lesson Dependency  :None |
|
| Keywords: acid, aspirin, base, bioengineering, biomedical, biomedical engineering, biotechnology, body, demo, demonstration, digestion, digestive system, dissolve, enteric-coated, food, gastric, human, human body, simulation, stomach, tablet | |
| Reviews: Read Reviews | Be the First to Write a Review | |
Related Curriculum
| subject areas |
Science and Technology Biology Chemistry Life Science |
| curricular units |
Biomedical Engineering and the Human Body |
| activities |
Protect That Pill |
Pre-Req Knowledge (Return to Contents)
A basic knowledge of the parts of the digestive system and how they interact, as provided in the Teacher Background section or in the Introduction/Motivation section of the TeachEngineering Digestive System lesson.
Learning Objectives (Return to Contents)
After this lesson, students should be able to:
- Define "simulation" and explain its importance in the science and engineering fields.
- List several ways in which engineers can help people with medical problems.
- List several of the fluids our bodies use to digest food and understand how engineers simulate these fluids to perform experiments.
Introduction/Motivation (Return to Contents)
(In advance, gather materials for a class demonstration: 1 uncoated aspirin tablet [really inexpensive "uncoated" generic aspirin works best] and 1 enteric-coated aspirin tablet, two clear plastic cups, 1 cup vinegar, 1.5 teaspoons baking soda, pinch of salt, half cup water.)
Did you know that biomedical engineers recently created the world's first artificial stomach? It mimics many of the activities that take place in your body and can even throw up! You might be wondering what anyone would want to do with a machine that works like a digestive system and throws up on occasion. In reality, this machine is expected to be very beneficial to scientists, doctors and pharmacists who want to know more about how our bodies work. What happens to your food or medicine after you swallow it? How does your body absorb food or medicine into your system? This is very important to know!
Have you ever heard of a disease called diabetes? You may know someone with this disease. When a person has diabetes, they are unable to process sugar when it gets into their blood, and this can lead to shock or even death if it is not regulated. One way this new machine benefits people is by helping doctors and researchers understand how fast certain foods are digested by the body and absorbed into the blood stream. This could lead to improvements in the understanding and treatment of diabetes.
Biomedical engineers are continually researching and designing new types of medical devices to help doctors and other medical professionals help people. Many of the most revolutionary medical devices were developed by biomedical engineers. Today, we want to think specifically about what types of environments biomedical engineers might try to simulate (imitate) in order to better understand what happens in our bodies. Can you think of some examples? (Possible examples: simulating blood flow around a blocked artery; simulating the digestion of a food or medicine; simulating the mending of a broken bone; simulating the absorption of a poison or harmful substance by your skin, lungs or digestive system; simulating the healing of a wound; etc.)
Let me demonstrate how a biomedical engineer might use simulation (mimicking real life processes) to better understand how a medication is processed by the body. Let's use a simple model of the digestive system and represent the stomach by a cup filled with vinegar and the small intestine by a cup filled with water and baking soda. We use vinegar to represent the stomach because it is an acid similar to the gastric acid that is squirted on food by our bodies while it is in the stomach. We use baking soda and water to represent the small intestine because together they form a base similar to bile, one of the main digestive juices squirted on food while it is in the small intestine. Let's test a medication that is commonly used to relieve pain or fever — aspirin. Unfortunately, aspirin can also make your stomach hurt. To keep this from happening, researchers developed several different types of coatings to keep aspirin from being digested until after it has passed through the stomach and into the small intestine. Let's do a quick test on one of these coatings to see how well it works.
 |

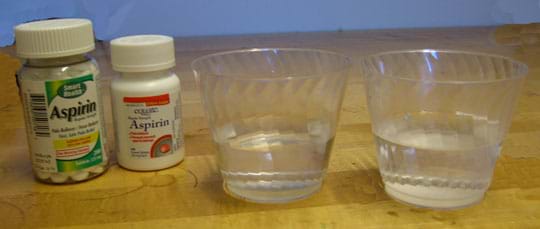

Demo materials and set up. click for copyright |
(Demo procedure: Fill a clear plastic cup with vinegar. Fill a second clear plastic cup with a mixture of 1.5 teaspoons baking soda, a pinch of salt, and half a cup of water.)
This is a regular, uncoated aspirin tablet. (Show the students.) This is an enteric-coated aspirin tablet. (Show the students. Then drop both tablets into the cup containing vinegar.) This demonstration represents what happens in our stomachs, because the acidity of vinegar is similar to that of stomach acid. (Expect the uncoated aspirin tablet to dissolve in about 10 seconds, while the enteric-coated tablet remains unchanged [the outside coating might start to dissolve a little].).
 |

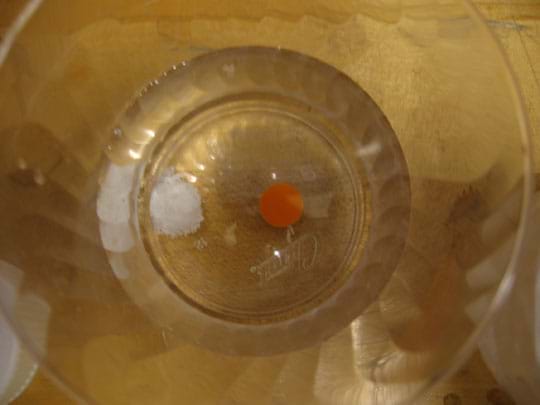

Uncoated aspirin dissolving in vinegar. click for copyright |
(After a short amount of time has passed, take the enteric-coated aspirin out of the vinegar-filled cup and place it in the baking soda / water mix.) Now I'm moving the coated aspirin out of the vinegar and into a baking soda and water mixture. This simulates the moving of food and the gastric acid mix from your stomach into your small intestine. Watch the outside coating of the aspiring tablet. (The outside coating dissolves immediately in a cloud of bubbles — the acid and base reacting. The entire tablet might take 10-15 minutes to dissolve, but students get the point from seeing the coating dissolve.) The baking soda and water mix represents an environment similar to that of the small intestine.
 |
Enteric-coated aspirin after in the baking soda and water mix. click for copyright |
How is this demonstration similar to the human digestive system? (Listen to student explanations.) From seeing this demonstration, where in the body would you expect each table to be likely to dissolve? And why? (Answer: Expect the uncoated aspirin to dissolve in the stomach in the acidic environment; expect the coated aspirin to not dissolve in the stomach, but later, past the stomach, in the small intestine.) Why might it be a good idea to test new medicines in a simulated environment rather than on a real person?
Lesson Background & Concepts for Teachers (Return to Contents)
The first step in the human digestive process occurs in the mouth and involves the grinding of food by the teeth and exposure of the food to the digestive enzymes in saliva. From here, food passes through the esophagus into the stomach. Food is moved along during digestion through involuntary muscular actions called peristalsis.
The human stomach is a J-shaped organ that is hollow and muscular. The churning and squeezing actions of the stomach break the food into even smaller pieces and mix it with the gastric acid and enzymes secreted by the stomach lining. The environment of the stomach is acidic, about pH 1.5, which is due to the low pH of gastric acid (which contains hydrochloric acid). While the acid helps to break down food to some degree, its primary function is to create an environment in which the food can react with the various enzymes that are also present. The artificial stomach does a much better job of simulating the environment of the stomach than the simple class demo due in part to the fact that all of the various enzymes and secretions are included in the right proportions. While some nutrients are absorbed in the stomach, most nutrients are absorbed in the small intestine.
 |
Position of the human stomach and small intestine. click for copyright |
The small intestine is the next organ encountered by food on its way through the digestive tract. Here, food is mixed with a variety of new excretions including bile. Bile is created by the liver and stored in the gallbladder prior to being excreted into the small intestine. Bile is alkaline in nature, and therefore neutralizes the gastric acid and creates a basic environment (~ pH 9). This basic environment promotes the reaction of a whole new set of enzymes that are produced by the pancreas and the small intestine lining. Most of the nutrients your body needs for survival are absorbed from the food during this process.
After the small intestine, food passes through the large intestine and eventually out of the body. While simplistic, the demo/simulation presented in the Introduction/Motivation section provides a basic introduction to the digestion process as well as a general understanding of the concept of simulation.
For more information about the digestion process see the National Institute of Health's National Digestive Diseases Information Clearinghouse (NDDIC) about "Your Digestive System and How it Works" at: http://digestive.niddk.nih.gov/ddiseases/pubs/yrdd/
For more information about the human digestive system, see the Enchanted Learning page (requires $20 per year subscription) at: http://www.enchantedlearning.com/subjects/anatomy/digestive/
For more information about simulation, see Wikipedia's description at: http://en.wikipedia.org/wiki/Simulation
Vocabulary/Definitions (Return to Contents)
| bile: | A bitter, alkaline, yellow or greenish liquid, secreted by the liver, which aids in absorption and digestion, especially of fats. |
| biomedical engineering: | The application of engineering techniques to the understanding of biological systems and the development of therapeutic technologies and devices. Kidney dialysis, pacemakers, synthetic skin, artificial joints, and prostheses are some products of biomedical engineering. Also called bioengineering. |
| diabetes: | A disorder of carbohydrate metabolism characterized by inadequate production or use of insulin, resulting in high glucose levels in the blood and urine, excessive urination and persistent thirst, as well as other complications such as infection and blindness. |
| digestion: | The process by which food is converted into substances that can be absorbed and assimilated by the body. |
| enteric-coated aspirin: | Aspirin that has been treated to pass through the stomach unaltered and dissolve in the intestines. |
| gastric acid: | Digestive secretions of the stomach glands consisting chiefly of hydrochloric acid, mucin and several enzymes. |
| peristalsis: | Involuntary muscular actions that moves food along during digestion. |
| simulation: | Imitating the behavior of some situation or process, especially for the purpose of study or experimental testing. |
| small intestine: | The long, narrow, coiled section of the intestine that extends from the stomach to the beginning of the large intestine. Nutrients from food are absorbed into the bloodstream from the small intestine. In mammals, the small intestine is composed of the duodenum, jejunum and ileum. |
| stomach: | The enlarged, saclike portion of the alimentary canal, one of the principal organs of digestion, located in vertebrates between the esophagus and the small intestine. |
Associated Activities (Return to Contents)
- Protect that Pill - Student teams each design a protective coating for a piece of candy and test its performance by using clear soda to simulate stomach acid.
Lesson Closure (Return to Contents)
In many situations it is helpful to simulate an activity before it is actually carried out. Simulation has saved a lot of human lives and provided engineers and researchers with much valuable information. Hopefully, the artificial stomach will continue this process by providing us with information about how certain medications and foods are processed by our digestive systems. Can you think of any other examples of simulation being used by engineers as a research tool? (Possible examples: Simulating car crashes with dummies that represent people, testing bridge and building designs, testing strength of rope [or other materials] before using it for rope climbing [or other purposes], testing airplane designs in wind tunnels before they are built, etc.)
Assessment (Return to Contents)
Pre-Lesson Assessment
Drawing: Test students' prior knowledge of the digestive system by asking them to draw and label a simple diagram including all of the major digestive organs in sequence. If necessary, allow them to use their textbooks or other source of information for help. If more digestive system background is needed, review material in the TeachEngineering Digestive System lesson.
Post-Introduction Assessment
Disscussion: Lead a classroom discussion about the importance of using simulation to do experiments rather than performing tests on humans. On the board, make a list of the advantages and disadvantages of using simulation.
Lesson Summary Assessment
Artificial Organ Design: Have students draw their own design for a machine that simulates one of the major organs in the human digestive system. Remind student to label areas in which a distinguishing organ characteristic is simulated (for example, a simulated stomach might include an apparatus that mixes food with acid and enzymes).
Lesson Extension Activities (Return to Contents)
Have students use the internet to find several examples of simulation being used to perform experiments, and present their coolest finding to the class.
To further students' understanding of the human digestive system, conduct Bobbin Cave's kinesthetic class activity in which students act out each digestive function of the organs, tissues and cells in the tract as the food particles come to them, as described at: http://www.accessexcellence.org/AE/AEC/AEF/1995/cave_digest.php
References (Return to Contents)
Dictionary.com. Lexico Publishing Group, LLC. Accessed December 20, 2008. (Source of some vocabulary definitions, with some adaptation) http://www.dictionary.com
Eisenberg, Anne. "What's Next? The Virtual Stomach (No, It's Not a Diet Aid)." Published October 31, 2002. The New York Times. Accessed December 20, 2008. http://query.nytimes.com/gst/fullpage.html?res=9807EFDC103FF932A05753C1A9649C8B63
The Human Gastrointestinal Intestinal (GI) Tract. Last updated July 30, 2007. Kimball's Biology Pages. Accessed December 20, 2008. http://users.rcn.com/jkimball.ma.ultranet/BiologyPages/G/GITract.html
"Scientists Create Artificial Gut: UK scientists have built an artificial stomach to simulate human digestion." Last updated November 10, 2006. BBC News: Health. Accessed December 20, 2008. http://news.bbc.co.uk/2/hi/health/6136546.stm
