Lesson: On the Move
Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado at Boulder
Summary |
Engineering Connection |
Contents
|
| Grade Level: 5 (4-6) | Lesson #: 5 of 10 |
Lesson Dependency  :None |
|
| Keywords: air pollution, air, environment, pollutant, pollution, transport, water cycle | |
| Reviews: Read Reviews | Be the First to Write a Review | |
Related Curriculum
| subject areas |
Earth and Space Physical Science Science and Technology |
| curricular units |
Air Pollution |
| activities |
Dangerous Air How Predictable! Moving without Wheels |
Learning Objectives (Return to Contents)
After this lesson, students should be able to:
- Understand and explain how a simple water cycle model can be used to model pollution transport.
- Understand and explain how the weather and water cycles are related to air pollution.
- Understand some different ways that engineers use and interact with the weather and water cycles.
- Describe and predict cause and effect relationships of pollution moving through the air or water.
- Discuss the local and global issues of pollution moving through the weather and water cycles.
Introduction/Motivation (Return to Contents)
Remind students of the Air - Is It Really There? activity (Air Pollution unit, Lesson 1), in which they ran with the paper on their stomachs. Ask the students: If the air is strong enough to push the piece of paper, is it strong enough to move air pollutants?
Ask the students to describe some ways in which they think pollution is transported in the air. Can they give some examples? Record student brainstorming ideas on the board.
Explain to the students that environmental engineers are concerned with air and how it moves because it can transport air pollution a great distance. An example of this occurs occasionally when dust kicked up in China is blown all the way across the Pacific Ocean and affects the air quality in states in the U.S. Midwest. Or, have you ever noticed changes in the air quality when the wind blows the air from a large forest fire towards your community? Another example of air transport of pollution was the 1986 explosion at the Chernobyl nuclear power station (see Figure 1 and the Dangerous Air activity associated with this lesson).
 |

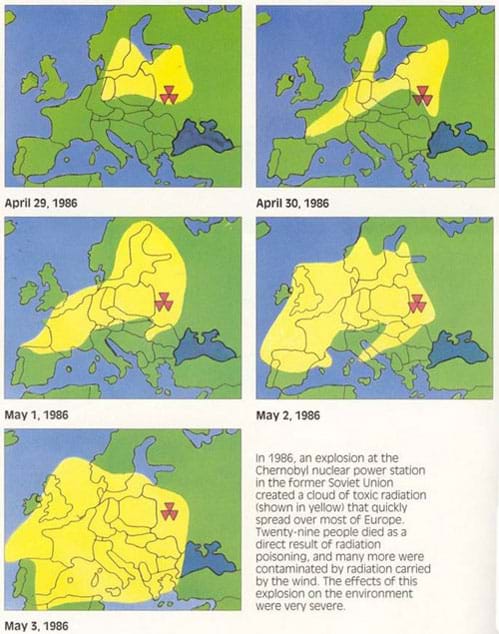

Figure 1. A series of maps shows the quick movement of toxic radiation from Chernobyl over the entire content of Europe in just a week. The radiation was created when a nuclear power plant exploded. click for copyright |
Engineers must understand weather and water cycles to be able to control air pollution and clean it up. Wind carries air pollution hundreds of miles away from its source and precipitation washes air pollution out of the air and transfers it to the ground, polluting the soil and water.
Lesson Background & Concepts for Teachers (Return to Contents)
Pollution is a problem everywhere today. Our air, water and soil all are contaminated as a result of our way of life. The effect of these contaminants ranges from irritating (smog on a sunny day) to deadly (toxins in drinking water). This pollution has many sources, including large manufacturing plants and coal-fired power plants. Through natural transport systems such as weather and the water cycle, the damage caused by the pollution from these major point sources can extend far beyond the immediate vicinity.
Because of this, companies spend billions of dollars to limit pollution (mainly to fulfill legislative requirements, and sometimes, due to a sense of environmental responsibility demanded by concerned customers). Many engineers are employed solely to research, design and implement procedures that minimize pollution. Little can be done to stop pollutant transport once a pollutant is introduced into an ecosystem, so engineers focus on stopping pollution before it starts.
Engineers at the Ford Motor Company are a good example. They developed a system for transporting oil using reusable carts, which eliminates the wasting of thousands of oil drums. The coolant used in the air conditioning systems of their cars contains no chlorofluorocarbons (CFCs), which destroy the ozone layer. (CFC usage in refrigerants is now banned.) Machining equipment that requires no oil has been implemented to minimize oil disposal, and the painting process is being revamped to eliminate harmful chromium compounds. For more information on Ford Motor Company's efforts to decrease air pollution, refer to their website at: http://www.ford.com/en/goodWorks/default.htm.
Vocabulary/Definitions (Return to Contents)
| Condense: | The change from a gas or vapor into a liquid. The opposite of evaporation. |
| Evaporate: | The change from a liquid into a gas or vapor. The opposite of condensation. |
| Precipitate: | When water condenses from water vapor and becomes rain, snow, sleet, hail, dew, frost, etc. |
| Water cycle: | The natural cycle of water in our environment: water vapor collects and condenses into liquid water, which in turn heats up, evaporates and returns to a water vapor state. The movement of water from the Earth's surface, to the atmosphere, and back to the surface again. |
Associated Activities (Return to Contents)
- Moving without Wheels - Students observe a simple water cycle model to better understand its role in pollutant transport.
- Dangerous Air - Students see how air pollution, like particulate matter, can become a global issue by tracing the movement of radiation released during an accident at the Chernobyl nuclear power plant.
- How Predictable! - Students follow weather forecasts to gauge their accuracy and produce a weather report for the class. They develop skills of observation, recording and reporting.
Lesson Closure (Return to Contents)
Pollution is a problem everywhere today. Our air, water and soil all are contaminated as a result of our way of life. What is an example of pollution transport? (Answer: Water and air transport.) What other types of pollution do engineers help to clean up? (Possible answers: Acid rain, ozone, indoor air pollutants, factory and car emissions, and global warming. Tell the students they will learn more about these types of pollution in the next few lessons.)
Assessment (Return to Contents)
Pre-Lesson Assessment
Brainstorming: In small groups, have the students engage in open discussion. Remind students that in brainstorming, no idea or suggestion is "silly." All ideas should be respectfully heard. Encourage wild ideas and discourage criticism of ideas. Ask the students to:
- Describe some ways that pollution is transported in the air. Give some examples.
Post-Introduction Assessment
Voting: Ask a true/false question and have students vote by holding thumbs up for true and thumbs down for false. Count the votes and write the totals on the board. Give the right answer.
- True or False: Engineers must understand weather and water cycles to be able to control air pollution and clean it up. (Answer: True)
- True or False: Air pollution always stays in the area in which it was created. (Answer: False. Air pollution can be blown for hundreds of miles by the wind.)
Lesson Summary Assessment
Concept Reflections / Journal Writing: Have the students reflect on the air pollution around them, and write a journal entry on their thoughts.
- Sit outside somewhere this evening and observe your community. Can you see examples of pollutant transport around you? How will you know if invisible pollutants are involved? What is the likelihood that pollutants are being transported inside your school? Are the pollutants traveling outside of your state? How does this make you feel?
Lesson Extension Activities (Return to Contents)
Research instances in which toxic pollution was transported long distances. Activities and information on acid rain may be found in Air Pollution unit, Lesson 6.
Connect as e-mail pen pals with another classroom in an area affected by pollution from distant sources. How does the pollution affect the daily lives of your pen pals?
References (Return to Contents)
Hazardous Material Reduction. Ford Motor Company. Accessed July 14, 2004. http://www.ford.com/en/goodWorks/environment/cleanerManufacturing/hazardousMaterialReduction.htm
Woodburn, Judith. Environment Alert! - The Toxic Waste Time Bomb. Milwaukee, WI: Gareth Stevens Publishing, 1992.
Contributors
Amy Kolenbrander, Janet Yowell, Natalie Mach, Malinda Schaefer Zarske, Denise CarlsonCopyright
© 2004 by Regents of the University of Colorado.The contents of this digital library curriculum were developed under a grant from the Fund for the Improvement of Postsecondary Education (FIPSE), U.S. Department of Education and National Science Foundation GK-12 grant no. 0226322. However, these contents do not necessarily represent the policies of the Department of Education or National Science Foundation, and you should not assume endorsement by the federal government.
Supporting Program (Return to Contents)
Integrated Teaching and Learning Program, College of Engineering, University of Colorado at BoulderLast Modified: September 26, 2008
