Hands-on Activity: Engineer a Coin Sorter

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Quick Look

Grade Level:
6 (5-7)
Time Required:
120 minutes
Expendable Cost/Grp :
US$ 5
Group Size:
3
Activity Dependency :
None

Related Curriculum

Subject Areas:
Science and Technology

Teacher Reviews

Average Rating:
Not Yet Rated.
My Rating:


Photo shows stacks of coins.
What's the best coin sorter?

Summary

Students learn about the engineering design process and how it is used to engineer products for everyday use. Students individually brainstorm solutions for sorting coins and draw at least two design ideas. They work in small groups to combine ideas and build a coin sorter using common construction materials such as cardboard, tape, straws and fabric. Students test their coin sorters, make revisions and suggest ways to improve their designs. By designing, building, testing and improving coin sorters, students come to understand how the engineering design process is used to engineer products that benefit society.

Engineering Connection

Engineers use the engineering design processes to create products we use daily. Everything from milk cartons to cars and toys were engineered using the steps of the engineering design process: design, build, test and improve.

Educational Standards

  •   Colorado: Math
  •   Common Core State Standards for Mathematics: Math
  •   International Technology and Engineering Educators Association: Technology
  •   Next Generation Science Standards: Science

Pre-Req Knowledge

Students should be able to accurately measure the diameters of the coins.

Learning Objectives

After this activity, students should be able to:
  • Explain that the engineering design process is iterative and explain how it improves the final product.
  • Explain that design is driven by function; form is secondary.
  • Suggest areas of improvement for the product (coin sorter) they create.

Materials List

Each group needs:
For the whole class to share:
  • a large jar of coins

Introduction/Motivation

(Hand out the What Do You Think? Pre-Assessment Worksheet and have students individually complete it before beginning the activity.)
A group of students ran a lemonade stand on their block all summer long. They called their company Cold & Tasty and charged 58 cents a glass. They accumulated buckets of change. Cold & Tasty wants to hire you as aspiring engineers to design a coin sorter to help them sort their buckets of change.
(Bring out a really large jar of coins.) Who wants to sort this jar of change?
(Divide the class into groups of two or three students each. Give each group a handful of change and ask them to sort and count it using a reliable method. Ask them to summarize their processes [how they did it] on blank paper or whiteboards.)
How would we go about designing a device to automatically sort these coins for us? (Use this as an introduction to the design process. Draw the engineering design process diagram on the board.)
As engineers, we first ask what the problem is and then imagine solutions. Next, we plan our design by drawing it out on paper and building it. Engineers always try to improve their designs so we will test our coin sorters and improve our designs to provide our customer, Cold & Tasty, with the best product possible.
(Bring out buckets of coins from Cold & Tasty.) Today, you're going to "put on your engineering hats," and design devices to sort the change for Cold & Tasty. Let's get started.

Vocabulary/Definitions

engineering design process:
 		An iterative, step-by-step process used in engineering to design and improve technologies, objects and systems: 1) ask, 2) imagine, 3) plan, 4) create, and 5) improve.

Procedure

Background

Engineers use the engineering design process to invent and improve technologies, objects and systems. The engineering design process includes five basic and important steps:
  1. Ask: What is the problem? What have others done?
  2. Imagine: What is the best solution? Brainstorm ideas.
  3. Plan: Draw a diagram. List the materials you need.
  4. Create: Follow your plan and test it out.
  5. Improve: How can you improve your design? Go back to step 1.

Before the Activity

With the Students

1. Have students complete the Pre-Assessment Worksheet (as described in the Assessment section).
2. Divide the class into groups of two or three students each.
3. Conduct the Introduction/Motivation section. Bring out a really large jar of coins, saying "Who wants to sort this jar of change?" Engage the students in the simple sorting activity by asking each group to sort and count a handful of change. Ask students to summarize their processes (how they did it) on blank paper or whiteboards.
4. Introduce the design cycle. Draw the engineering design process diagram on the board. Explain that the engineering design process consists of five basic steps and is used by engineers around the world to invent and improve products, technologies, objects and systems that we use every day.

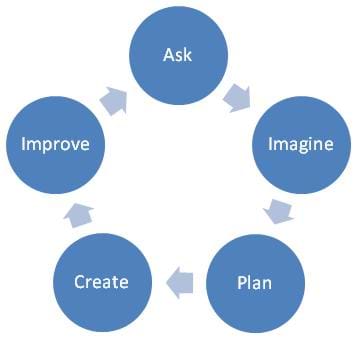

Diagram of five blue circles arranged in a circle with arrows pointing to the next circle with the following words in the circles: ask, imagine, plan, create, improve.
The steps of the engineering design process.
5. Bring out buckets of coins from Cold & Tasty. Ask students to "put on their engineer hats" to design devices that can reliably and quickly sort the change.
6. The first step is to identify the problem. What is the problem we are trying to solve with the coin sorter? Tell students to spend about five minutes with their group asking each other what the problem is they are trying to solve. Have them imagine various solutions by talking about their ideas.
7. Hand out one math worksheet to each student. Have students prepare for their design by measuring the sizes of the various coins. Have them figure out which measurements they will need, make the measurements and record them on the worksheet. (The worksheet asks students to calculate the differences between measurements. Some students may require prompting that "difference" means subtraction.)
8. Hand out one design worksheet to each student. Explain that the worksheet contains two sides: the front is to be completed BEFORE building begins and the back is to be completed AFTER the coin-sorter has been built.
9. Have students complete the front of the worksheet by planning their coin sorters. Have them share ideas and draw their designs with labels indicating material choices. Allow enough time (~15-20 minutes) for students to complete detailed drawings.
10. While students are working, ask the following questions to the groups:
  • How will your coin-sorter work?
  • What properties of the coins can you use to sort them?
  • What materials will you use for each part of your design?
11. Be sure students have completed drawings before handing out materials.
12. Direct groups to begin creating their designs. Encourage students to test their designs during the building process.
13. Once students are done building their coin sorters, have them test and improve their designs.
14. Allow enough time for students to complete the worksheet (back side) and clean up.
15. Conclude with the post-activity assessments (see Assessment section) — individual design cycle reflections and class presentations by groups.
Photo shows a shoe box standing up vertically, with a funnel opening cut through the top and cardboard levels taped inside the box with variously-sized holes, and coins caught at every level.
Example student designed and built coin sorter.

Troubleshooting Tips

Students new to the design process often get hung up on what "it" is going to look like (form) before they focus on how "it" works (functions). Address this if you see it happening. Use guiding questions to prompt students to focus on function—form follows function. Aesthetics is an important part of the design process, but no one wants a "pretty" product that does not perform.
Students also often forget about the iterative nature of design. Engineers go through many brainstorm-create-test-improve cycles before arriving at a final product.
The diameters of the different coins have minimal variation (at the mm level). But, if students use size to sort the coins, they must be precise; otherwise, they might run into the problem of larger coins plugging up the smaller holes. Help them trouble shoot this issue. Doing this is all part of the engineering process, so it can be a great teaching moment.

Assessment

Pre-Activity Assessment

Accessing Prior Knowledge: Have students complete the What Do You Think? Pre-Assessment Worksheet. Use this assessment to understand students' ideas about how everyday products are designed by engineers. It is not meant to test whether or not students can memorize and recite the steps of the engineering design cycle.
  • Write a one sentence statement about what engineers do.
  • Write the steps you think engineers take when they design a new product.

Activity Embedded Assessment

Worksheet: Have students complete the front of the Engineer a Coin Sorter Design Worksheet before they begin building and the back of the worksheet after they have built their coin sorters, to document their activity. Review their answers to gauge their mastery of the subject.

Post-Activity Assessment

Design Cycle Reflection: What steps do engineers take to design new products? Write (or draw)—in your own words—the steps engineers take. For each step, write one sentence about why that step helps engineers create better products. The goal of this assessment is identify student thinking about the design process. Probe them to express their experiences and ideas about the process rather than parroting back the exact language of the design process steps. (Possible answers: Engineers first identify the problem or need they are solving and ask what has already been done to make sure they learn everything they can about the issues, and to not re-invent the wheel. Then they brainstorm (or imagine) as many options as possible to incorporate ideas from many points-of-view so as to increase creativity and innovation. Next, engineers pick the best solution and plan their designs. Planning leads to smart use of materials, time and funding, thereby increasing efficiency and helping to optimize performance under these constraints. After they plan, engineers iteratively create and improve. Testing makes sure it works and brings up problems and issues that weren't thought of before. Many iterations help to make the final product a better product.)
Class Presentation: Have students discuss the following topics within their groups. Assign one topic to each group and have students present their answers to the class.
  • Describe what questions your group asked at the beginning of this activity. (Possible answer: Expect students to explain the problems they are trying to solve and what other solutions already exist.)
  • What did your group imagine before you started planning? (Possible answer: Expect students to explain the different ideas they discussed before drawing their designs.)
  • Describe your group's plan. (Possible answer: Expect students to show their diagram and explain the materials they planned to use and why.)
  • How did you create your design? Did your plan change at all? (Possible answer: Expect groups to explain their building processes and what changed from their initial designs.)
  • Suggest changes that would improve the coin sorter. (Possible answer: Expect students to explain ways to redesign their coin sorters to improve their function.)

Activity Extensions

Encourage students to make a "business" using their coin sorters. Have students offer to sort a parent, sibling, neighbor or friend's loose change jar. Students could "charge" a 5% fee on however much money they count with their sorters. Ask students who do this activity extension to report their results to the class.

Activity Scaling

  • For lower grades, provide a lot of guidance during the planning and creating steps.
  • For upper grades, have students create a design that not only sorts coins, but also stacks them in paper coin tubes.

References

Coin Sorter. Activities from the Show, Engineering: Design It, ZOOM by kids, for kids, PBS Kids. Accessed February 3, 2010. (activity inspiration) http://pbskids.org/zoom/activities/sci/coinsorter.html

The Engineering Design Process. Engineering is Elementary, Boston Museum of Science, Boston, MA. Accessed February 17, 2010. http://www.mos.org/eie/engineering_design.php

Contributors

Megan Schroeder, Stephanie Rivale
