Students learn that math is important in navigation and engineering. Ancient land and sea navigators started with the most basic of navigation equations (speed x time = distance). Today, navigational satellites use equations that take into account the relative effects of space and time. However, even these high-tech wonders designed by engineers cannot be created without pure and simple math concepts — basic geometry and trigonometry — that have been used for thousands of years. In this lesson, these basic concepts are discussed and illustrated in the associated activities.
Engineering plays a part in the design and creation of navigational devices that are used for safety and recreation. Math is an essential engineering tool (you don't have to love math, but you do have to know how to "do" math to "do" engineering). Navigational satellites designed and tested by engineers use equations that take into account the relative effects of space and time. Since these satellites often use the sun's energy to power electronics, engineers must accurately calculate the optimal angle to orient a satellite's solar array using mathematical concepts such as the Pythagorean Theorem. Engineers use their math skills to calculate the future relative positions of these objects since they are continuously in motion.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standard Network (ASN), a project of JES & Co. (www.jesandco.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
Click on the standard groupings to explore this hierarchy as it applies to this document.
6. Solve real-world and mathematical problems involving area, volume
and surface area of two- and three-dimensional objects composed of
triangles, quadrilaterals, polygons, cubes, and right prisms. (Grade 7)  ...show
7. Apply the Pythagorean Theorem to determine unknown side lengths
in right triangles in real-world and mathematical problems in two and
(Grade 8)  ...show
7. Explain and use the relationship between the sine and cosine of
(Grades 9 - 12)  ...show
8. Use trigonometric ratios and the Pythagorean Theorem to solve right
triangles in applied problems.<sup>★</sup> (Grades 9 - 12)  ...show
F. Knowledge gained from other fields of study has a direct effect on the development of
technological products and systems. (Grades 6 - 8)  ...show
C. Many inventions and innovations have evolved using slow and methodical processes of
tests and refinements.
(Grades 6 - 8)  ...show
After this lesson, students should be able to:
Describe how navigation and engineering are based on mathematics
Describe how the Pythagorean Theorem solves real-world problems.
Explain the difference between accuracy and precision
How important is math in navigation? (Possible answer: It depends on the goal of the traveler.) If you have unlimited time and your destination is visible from miles away, you may not need math. But if you want to get somewhere as fast as possible or the destination is not visible until you are on top of it, math is an essential component to get you where you're going. Engineering is another important factor in navigational technology. Imagine how navigation allows us to explore unknown (or known) territories with a small, portable device that works almost everywhere — we can thank engineers for the amazing technology.
You can navigate to your home without doing any math because there are visual clues to guide you. You can even drive from one city to another, and within a new city, without math because signs have been put up to direct drivers. On the other hand, if you try to cross an ocean where there are no landmarks, you could not navigate accurately without math. For the Polynesians crossing the Pacific Ocean, approximate methods worked because they could use visual clues (such as birds, waves, stars) once they were within 100 miles or so of their destination. Even then, however, they had to imagine angles, count multiples of the distances between stars, and visualize vectors of wind and water currents. Essentially, these early Polynesian sailors were doing geometry in their heads.
As the world grows more complex and engineering provides new technologies, we want to navigate faster and know exact distances and times of travel. How did people first determine distances between cities? Or, how about the size of the Earth? (Answer: They measured the distance between two cities and then used trigonometry to extrapolate that to the size of the Earth.) Is it possible to determine the width of a river without crossing it? (Answer: Yes, but it requires that you understand, and use, trigonometry.)

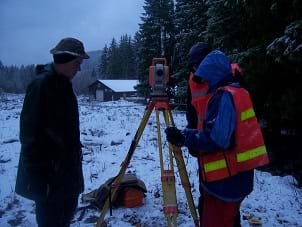

This is all possible using relationships of simple shapes and angles. These principles can be applied to determine almost any distance or height given appropriate reference points. At the heart of both navigation and engineering is the art and science of measuring on, near, or beneath the surface of the Earth — known as surveying. Surveyors are able to determine very exact relative distances and heights, and this allows precise positioning of anything being built, greatly improving strength, accuracy, and even the safety of the final product. A survey engineer is needed in many career areas, including: the forest service, city and road planning, building construction, cartography (map making), mining, and even building satellites.
Lesson Background and Concepts for Teachers
The sum of the angles in any triangle is always 180°.

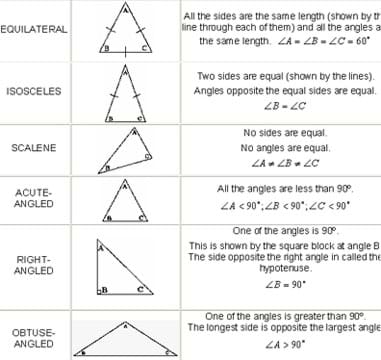

Types of triangles:
