Acoustic Mirrors
Figure 1. A sound mirror.Copyright 2009 Bodacea, Wikimedia Commons https://commons.wikimedia.org/wiki/File:Round_acoustic_mirror_-Denge_-Kent_-England-19July2009.jpg
Students play and record the “Mary Had a Little Lamb” song using musical instruments and analyze the intensity of the sound using free audio editing and recording software. Then they use hollow Styrofoam half-spheres as acoustic mirrors (devices that reflect and focus sound), determine the radius of curvature of the mirror and calculate its focal length. Students place a microphone at the acoustic mirror focal point, re-record their songs, and compare the sound intensity on plot spectrums generated from their recordings both with and without the acoustic mirrors. A worksheet and KWL chart are provided.
Acoustic engineering is a branch of engineering that deals with the analysis and control of sound and vibration (such as, sound reduction or noise control) in designs, including noise barriers and sound absorbers, as well as other sound applications, such as concert hall acoustics, medical applications of ultrasound, and public announcement systems. During World War I, the British army depended on acoustics to protect its country from German aircraft; and scientists used acoustics mirrors to detect enemy planes approaching England. In this activity, students use acoustic mirrors and study their impact on the sound intensity of a song.
After this activity, students should be able to:
- Determine the radius of curvature of a concave mirror.
- Calculate the focal length of a concave mirror.
- Analyze the sound intensity of plot spectrums.
- CCSS.Math.Content.HSG-MG.A.3 Apply geometric methods to solve design problems (e.g., designing an object or structure to satisfy physical constraints or minimize cost; working with typographic grid systems based on ratios).
Grades 9-12
Do you agree with this alignment?
- SP4 Students will analyze the properties and applications of waves.
Grades 9-12
Do you agree with this alignment?
- Information and communication systems can be used to inform, persuade, entertain, control, manage, and educate.
Grades 9-12
Do you agree with this alignment?
- HS-PS4-1 Use mathematical representations to support a claim regarding relationships among the frequency, wavelength, and speed of waves traveling in various media.
Grades 9-12
This resource focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices- Use mathematical representations of phenomena or design solutions to describe and/or support claims and/or explanations.Do you agree with this alignment?
Disciplinary Core Ideas- The wavelength and frequency of a wave are related to one another by the speed of travel of the wave, which depends on the type of wave and the medium through which it is passing.Do you agree with this alignment?
Crosscutting Concepts- Empirical evidence is required to differentiate between cause and correlation and make claims about specific causes and effects.Do you agree with this alignment?
Do you agree with this alignment? - Use mathematical representations of phenomena or design solutions to describe and/or support claims and/or explanations.
Each group needs:
- computer
- microphone, such as the Cyber Acoustic CVL-1064 Desktop Microphone at Amazon
- Audacity software, free audio editing and recording software; downloaded from https://www.audacityteam.org/download/
- musical instrument, such as a clarinet, recorder, violin, viola, tuning fork or “boomwhackers,” available at https://boomwhackers.com/
- 12-inch hollow Styrofoam dome/half-sphere, used as an acoustic mirror; see Figure 8; available at craft stores such as the 12-inch Smoothfoam Half Ball at JOANN; domes are reusable for future classes
- 12 x 12-inch piece of cardboard, for the base of the acoustic mirror; size may vary
- 4 x 2-inch piece of Velcro tape; available at craft and hardware stores such as https://www.homedepot.com/; alternatively, use another type of tape or adhesive to attach the Styrofoam dome to the cardboard
- meter stick
- KWL Chart (PDF), one per student
- Acoustic Mirrors Analysis Worksheet (PDF), one per student
Students should be familiar with waves, sound and concepts associated with concave mirrors, including reflection, and calculating the radius of curvature, vertex, focal point and focal length.
Different types of waves occur in nature, such as sound waves, radio waves and microwaves. A wave is a vibration that can travel through a material. Sound is a mechanical wave that is created by vibrating an object, and acoustics is the study of sound. Mirrors are devices that reflect waves, including sound waves.
Acoustic engineers apply the science of acoustics to practical design needs, such as the control of sound and noise reduction using noise barriers and sound absorbers. In other cases, engineers apply their understanding of acoustics to increase sound intensity. For example, during World Word I, scientists and engineers in England used their knowledge of waves, sound and mirrors to create acoustic mirrors—curved surfaces that concentrate sound waves to the focus of the mirror—that, with the use of microphones, can pick up the sound of enemy aircraft as an early warning system (see an example sound mirror in Figure 1).
(optional) (Show students the following six-minute video, Sound Reflecting Mirrors, about the application of sound mirrors in the history of Britain’s defense system at https://www.youtube.com/watch?v=K5k7GqG3psM). Artists have also created aesthetically pleasing acoustic mirrors (see Figure 2).
During this activity, you will work as acoustic engineers to set up an acoustic mirror and measure the sound intensity at its focus. You will compare your measurements to those you take without the use of the acoustic mirror to see their impact on sound intensity.
Figure 2. A sound mirror at the High Museum of Art in Atlanta, GA.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology
Before the Activity
- Gather materials and make copies of the KWL Chart (PDF) and Acoustic Mirrors Analysis Worksheet (PDF).
- If students have access to instruments, divide the class into groups in advance and request that each group bring in a musical instrument to use for the activity, such as a clarinet, recorder, violin, viola, tuning fork, etc. Alternatively, provide a musical instrument for each group.
- Have each group download the free Audacity audio editing/recording software from http://www.audacityteam.org/download/ onto their computers. If students will be using school computers that prevent them from downloading the software, download it onto the teacher’s flash drive(s) in advance and then run the program from the flash drive(s).
- Have students complete the first two columns of the KWL Chart (PDF) by writing down what they know about acoustic mirrors and what they want to know about sound and mirrors. Review their answers to ensure that they have the necessary pre-requisite knowledge to successfully work through the activity.
With the Students—Part 1: Recording Music with Audacity Software
- Divide the class into groups of three students each.
- Have each group practice playing “Mary Had a Little Lamb” (or another song) using its musical instrument(s). If students need help with this step, direct them to find the notes and hear the song at: https://abcnotation.com/tunePage?a=trillian.mit.edu/~jc/music/abc/mirror/musicaviva.com/england/mary-had-a-little-lamb-f/mary-had-a-little-lamb-f/0000. Once the group can play the song, they are ready to go to the next step.
- Direct students to connect the microphone to the computer and open the Audacity software (see Figure 3).
- Hand out the worksheets and explain to the students that they will:
A. Press the “Record” button (see Figure 4).
B. Play the song.
C. Then, press the “Stop” button (Figure 5).
D. Choose “Analyze” on the main menu (Figure 6).
E. Select “Plot Spectrum” (see Figure 7).
F. Use the plot spectrum to answer the questions in Part 1 of the worksheet.
Figure 3. To open, click on the Audacity software desktop icon.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 4. Location of the Audacity software “Record” button.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.

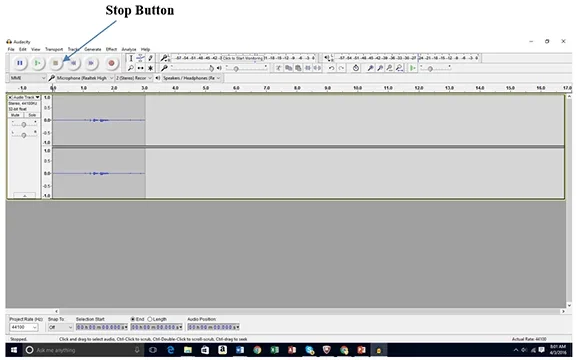

Figure 5. Location of the Audacity software “Stop” button.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 6. Location of the Audacity software “Analyze” feature.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 7. Location of the “Plot Spectrum” choice in the Audacity software.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
With the Students—Part 2: Recording Music with Audacity Software and the Acoustic Mirror
- Direct each group to set up its acoustic mirror by using the Styrofoam dome, cardboard, microphone and Velcro tape, as shown in Figure 8. (Note that the Figure 8 example does not show the microphone at the focal point, which is where students need to place it.) Tell students they need to:
A. Determine the radius of curvature (C) of the mirror by using the meter stick to measure the distance from the vertex to the center of curvature (it will be a point in space).
B. Calculate the focal length (f) of the mirror. (As needed, remind students that f = ½C.)
C. Place the microphone at the focal point of the mirror.
D. Open the Audacity software.
E. Press the “Record” button on the menu bar.
Figure 8. The activity setup: acoustic mirror, microphone, computer with audio editing software.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
- After everything is set up, direct the groups to play “Mary Had a Little Lamb” using their musical instruments near the microphones. Have students:
A. Click “Analyze” on the menu and choose “Plot Spectrum.”
B. Use the plot spectrum to answer the questions in Part 2 of the worksheet.
C. Choose “File” on the menu bar (Figure 9).
D. Select “Export Audio” (Figure 10).
E. Save the file on the computer (Figure 11).
F. (optional) Have students experiment with playing the song from various locations near the microphone and see how the location impacts the plot spectrum.
Figure 9. Location of the “File” menu.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 10. Location of the “Export Audio” choice in the Audacity software.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 11. Save your Audacity software file.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
With the Students—Part 3: Adding Effects with Audacity Software
- Explain to students that the Audacity software has features that enable users to add effects to an audio file, much like what sound engineers can do. In this part of the lab, have students add effects to the audio file they created in Part 2 of the activity. Direct students to:
A. Choose “Effects” on the menu bar (Figure 12).
B. Add effects of their choosing to their audio files from Part 2 (Figure 13).
C. When finished, save a copy of the file.
D. Answer the questions in Part 3 of the worksheet.
Figure 12. Location of the “Effects” menu.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
Figure 13. The many effects options in the Audacity software.Copyright 2015 Steven C. Thedford, PRIME RET, Georgia Institute of Technology.
- Have students complete the KWL chart by writing down what they learned about acoustic mirrors in the third column.
- Conclude with a class discussion. Guide students to reflect on the impact that sound mirrors have on sound intensity and other ways in which engineers have applied knowledge about sound to technology and design features (such as ultrasound for medical applications, sonar, and architectural noise reduction or enhancement strategies for libraries, churches, recording studios, events stadiums, auditoriums and concert halls).
