Designing a Mars Thermos

Thermal engineers design and analyze systems that control heat flow to keep equipment, instruments, and astronauts within safe operating temperatures. At NASA, they play a critical role in designing spacecraft, rovers, landers, and habitats for extreme environments like Mars, where temperatures can swing dramatically between day and night. Thermal engineers develop insulation systems, thermal coatings, heaters, radiators, and protective layers that regulate temperature, prevent overheating or freezing, and ensure reliable performance of sensitive electronics and scientific instruments. By applying principles of heat transfer and thermodynamics, thermal engineers help ensure mission success, protect valuable equipment, and enable long-term exploration of Mars and other worlds.

After this activity, students should be able to:

• Explain how heat transfer (conduction, convection, and radiation) and thermal equilibrium affect temperature changes in materials and systems.
• Investigate and compare the insulating properties of different materials through controlled experimentation.
• Collect, record, graph, and analyze temperature data to evaluate the effectiveness of design solutions.

Students should have familiarity with:

• Temperature and thermometers, understanding what temperature measures and how to safely and accurately read a thermometer.
• Recording measurements in tables or charts.
• Creating and interpreting basic line graphs.
• Adding, subtracting, and calculating temperature change.

Today, we are going to do an exciting hands-on activity where you become engineers designing a solution for Mars!

On Mars, temperatures can swing dramatically—sometimes extremely cold at night and warmer during the day. NASA engineers face a big challenge: They must protect important instruments, electronics, and even samples from these extreme temperature changes. If things get too hot or too cold, they could stop working or get damaged. That is where thermal engineers come in. Thermal engineers design insulation and temperature-control systems to keep things safe, so missions to Mars can succeed.

In our activity, you will work in teams to design and build your very own “Mars Thermos” using everyday materials. You will conduct an experiment to see how heat moves between objects and how materials can slow that movement. Your goal is to keep a small amount of water from changing temperature by more than 5 degrees over 10 minutes. First, you will do a test with an uninsulated cup as a control, and then you’ll investigate different materials to see which ones make the best insulation. You’ll collect temperature data, graph your results, and see which designs work best.

Insulated thermoses are designed to maintain the initial temperature of liquids, keeping them either hot or cold for extended periods.CopyrightCopyright Photo by Katherine Marchena on Unsplash https://unsplash.com/@kathmz?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText

This activity will let you practice important skills that engineers use every day: designing solutions, testing ideas, analyzing data, and improving your designs. You’ll also explore science concepts such as heat transfer, thermal equilibrium, and thermodynamics, while using math to record and analyze your results.

Remember, safety is important: Hot water will not be hotter than 120 degrees Fahrenheit, and ice water will be handled carefully. Work with your team, share ideas, and have fun testing and improving your Mars Thermos.

By the end of this activity, you’ll see how engineers think, experiment, and solve problems—just like NASA engineers!

Background (Teacher's Guide)

Thermal Concepts

Heat transfer is the movement of thermal energy from a warmer object to a cooler one, and it occurs in three main ways: conduction, which happens through direct contact between materials; convection, which occurs when heat moves through fluids like air or water; and radiation, the transfer of energy through electromagnetic waves, such as sunlight. Thermodynamics is the study of energy and how it moves and changes form, including the rules that govern heat flow. One important concept is thermal equilibrium, which occurs when two objects of different temperatures come into contact and heat flows from the warmer object to the cooler one until their temperatures are equal. In this activity, students observe these principles in action as heat moves into or out of water and explore how insulation slows that process, helping to maintain the water’s temperature over time.

Thermal and Aerospace Engineering

This activity connects directly to real-world engineering, particularly thermal and aerospace engineering. Engineers at NASA designing spacecraft, rovers, and landers for Mars must protect sensitive instruments and collected samples from extreme temperature swings, which can damage electronics or compromise experiments. To solve this, they create insulation systems, thermal coatings, and temperature-control components that keep equipment within safe operating ranges. In this activity, students simulate this process by acting as engineers: They test different materials, build prototypes, collect temperature data, and iteratively improve their designs. Understanding this connection allows you to present the activity as a meaningful, hands-on example of how engineers solve real-world problems in extreme environments.

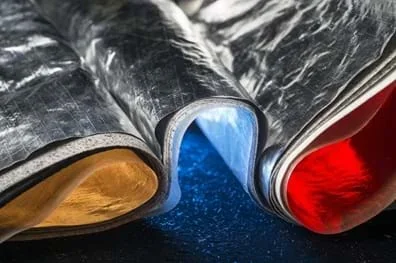

This is an example of multi-layer insulation material, which NASA and the Forest Service National Technology and Development Center are investigating for use in protecting firefighters. This project is layering heat-resistant materials together to achieve the most effective personal figure shelter possible.CopyrightCopyright NASA Langley/Sandie Gibbs

Before the Activity (Preparation)

• Make copies of the Mars Thermos Worksheet (PDF)(1 per student)
• Gather materials
• • Collect various insulating materials (bubble wrap, paper, cloth, sand, water, foil, Styrofoam, etc.)
  • Heat water to no warmer than 120°F and place it in a well-insulated commercial thermos or carafe.
  • Fill the pitcher with ice and pour water over the ice to fill the pitcher. Mix and allow the water to become ice cold.
  • Have paper towels readily accessible to all teams in case of spills.
• Optional: To expedite the experiment, set up one control (un-insulated) set of cups for which you (or a designated student) will record temperatures.

During the Activity

1.  Introduce the activity by explaining the objective: Teams must keep water from changing temperature more than 5°F in 10 minutes.

Artist's concept of a Mars thermos.CopyrightCopyright NASA/JPL-Caltech

2. Quick concept check: Ask students to answer the following questions individually or in pairs:

• • What is the difference between heat and temperature? (Potential answers: Heat is the transfer of energy from a warmer object to a cooler object; temperature is a measure of how hot or cold an object is. Heat is energy in motion, while temperature tells us how much energy the particles in an object have.)
  • Name two ways heat can move from one object to another. (Potential answers: Conduction is when  heat moves through direct contact between materials (e.g., a metal spoon in hot water); convection is when heat moves through fluids like liquids or gases as warmer particles rise and cooler particles sink (e.g., warm water circulating in a cup); radiation is when heat moves as electromagnetic waves, without needing direct contact (e.g., sunlight warming your skin).)
  • What do you think will happen to hot water if it is left in an uninsulated cup at room temperature? Why? (Potential answers: The hot water will cool down until it reaches the same temperature as the room (thermal equilibrium). This happens because heat flows from the warmer water to the cooler air around it.)
  • What materials do you think could keep water hot or cold longer? Why? (Potential answers:  Materials that slow heat transfer work best, such as foam, plastic, bubble wrap, or cloth. These materials trap air, resist conduction, and act as insulators, keeping hot water hot and cold water cold for a longer time.)

3. As a class, discuss the definitions and real-world applications of heat, temperature, thermal equilibrium, and thermal energy transfer:

• • Heat
  • • Definition: The transfer of thermal energy from a warmer object to a cooler one.
    • Real-world application: Engineers design insulation in spacecrafts, buildings, and thermoses to control heat flow and keep objects or environments at safe temperatures.
  • Temperature
  • • Definition: A measure of how hot or cold an object is; it reflects the average energy of particles in a substance.
    • Real-world application: Thermometers measure temperature to monitor weather, cooking, body health, and scientific experiments. NASA engineers monitor spacecraft temperatures to ensure instruments operate safely.
  • Equilibrium
  • • Definition: The state in which two objects in contact reach the same temperature and heat no longer flows between them.
    • Real-world application: Hot coffee cools to room temperature over time because it eventually reaches thermal equilibrium with the surrounding air. Engineers use thermal equilibrium calculations to design temperature-controlled systems for electronics or spacecraft.
  • Thermal Energy Transfer
  • • Definition: The movement of energy from one object or system to another due to a temperature difference.
    • Real-world application: Thermal energy transfer explains why ice melts in warm water or why buildings use insulation. NASA engineers design spacecraft to manage thermal energy transfer to protect instruments from Mars’ extreme temperatures.

4. Distribute one Mars Thermos Worksheet (PDF) to each student.
5. State the activity challenge: Today you will conduct an experiment to demonstrate the movement of atoms and molecules through temperature measurements and engineer a design that can slow down that movement.
6. Give students 5 minutes to write definitions of the above terms in their own words on their copies of the Mars Thermos Worksheet (PDF).
7. Ask students to thoroughly read through the procedure on their Mars Thermos Worksheet (PDF)(also listed below.)

• • Emphasize hot water safety protocols. (Reference Image 6 for the Time/Temperature Relationship in Scalds.)

Color-coded guide showing how water temperature affects the time it takes to cause a third-degree burn, highlighting safe temperatures for handling and bathing.CopyrightCopyright https://bushkilltownshipfireco.com/burn--scald-injuries.html

• • Before beginning, ask students to predict how the temperature will change in each cup of water (cold and hot) and then, using the vocabulary defined previously, write a hypothesis about what they think will happen in the experiment.
  • Optional: Instruct students on the use of thermometers and have them announce, compare, and record the temperature of the room in degrees Fahrenheit.
  • Ask each group to decide how much water they should use in each cup. Ask them to write their justification for their chosen amount. Students should use their prior knowledge and thought processes to consider that a greater amount of water will change temperature more slowly than a smaller amount of water.
  • Ask each group to decide how often they will record the temperature for each cup of water. More frequent measurements will yield more accurate graphs but may not be feasible. A reasonable compromise should be reached that will allow an accurate graph without undue burden of manual data collection.
  • Have student teams use graduated cylinders to obtain ice water (with no ice) and hot water (no warmer than 120°F) samples, place the samples in their control cups, and perform the control experiment.
  • Have students investigate the insulative properties of the materials available and then design and build a Mars Thermos for the cold and hot cup. Remind them to make sure they are able to easily obtain temperature measurements.
  • Have teams perform the experiment with their Mars Thermos designs, then graph their data.
  • Circulate the classroom during the activity asking questions about students’ designs.

8. Optional: Have teams design a second set of Mars Thermoses, improving upon their original design, and then redo the experiment.
9. Have teams share their data with the class. Note: A successful Mars Thermos prevents water from changing temperature more than 5°F in 10 minutes. An accurate graph and explanation for the design should accompany each Mars Thermos. (See the Engineering Challenge Rubric (PDF).)
10. Wrap up the activity with the following questions:

• • How did the temperature of the hot water change? Cold water?
  • How do your experiment’s data compare to the control experiment?
  • Do you think the temperatures in the cup will reach equilibrium with the air in the room? If so, predict how long this would take.

Pre-Activity Assessment

Quick Concept Check: Students are asked a few short questions individually or in pairs before the activity starts. Student answers show you their baseline understanding of heat transfer, insulation, and everyday materials.

• What is the difference between heat and temperature? (Potential answers: Heat is the transfer of energy from a warmer object to a cooler object; temperature is a measure of how hot or cold an object is. Heat is energy in motion, while temperature tells us how much energy the particles in an object have.)
• Name two ways heat can move from one object to another. (Potential answers: Conduction is when heat moves through direct contact between materials (e.g., a metal spoon in hot water); convection is when heat moves through fluids like liquids or gases as warmer particles rise and cooler particles sink (e.g., warm water circulating in a cup); radiation is when heat moves as electromagnetic waves, without needing direct contact (e.g., sunlight warming your skin).)
• What do you think will happen to hot water if it is left in an uninsulated cup at room temperature? Why? (Potential answers: The hot water will cool down until it reaches the same temperature as the room (thermal equilibrium). This happens because heat flows from the warmer water to the cooler air around it.)
• What materials do you think could keep water hot or cold longer? Why? (Potential answers: Materials that slow heat transfer work best, such as foam, plastic, bubble wrap, or cloth. These materials trap air, resist conduction, and act as insulators, keeping hot water hot and cold water cold for a longer time.)

Activity Embedded (Formative) Assessment

Activity Observations: The formative assessment for this activity is ongoing and occurs as you observe and question students while they predict, design, test, collect data, graph results, and reflect on their Mars Thermos performance. Check for understanding of heat transfer concepts, proper use of scientific reasoning, accurate data collection, and the ability to draw evidence-based conclusions.

Data Analysis and Graphing: Students graph their temperature data and compare it to the control, demonstrating their ability to organize and visualize results. Assess the accuracy of their data collection and their ability to identify trends and draw evidence-based conclusions.

Post-Activity (Summative) Assessment

Class Discussion and Reflection: Each team shares their results and discusses how their designs performed, explaining their reasoning and observations. Listen for correct use of vocabulary and concepts and ask reflective questions, such as why one design worked better or how changes in insulation or water volume could affect the outcome.

Wrap Up Discussion Questions: Wrap up the activity with the following questions:

• How did the temperature of the hot water change? Cold water?
• How do your experiment’s data compare to the control experiment?
• Do you think the temperatures in the cup will reach equilibrium with the air in the room? If so, predict how long this would take.

• Water should NEVER be more than 120°F for students. See scald table below.
• Scalds can cause serious injury. If in doubt about your students' ability to follow proper safety precautions, perform the cold-water portion of the experiment only.
• Use an electric teapot to heat water safely away from students and mix with cooler water in a commercial insulated thermos to the appropriate temperature (120°F) and then pour for students. Note: BE CAUTIOUS of using a microwave oven to heat the water—scalds can happen very easily by way of super-heating.

• This experiment works best when the temperature in your classroom is moderate (i.e., not on a cold winter day when the heater is broken).
• Use ice to pre-cool the water only. DO NOT transfer any ice to student cups.
• If there's more than 100 ml of hot or cold water, the temperature will not change as quickly.
• Instruct students to start their measurements immediately upon receiving their water samples.

This resource was adapted with permission from NASA’s Jet Propulsion Laboratory (JPL) Mars Thermos activity, with minor modifications.

Modified from https://www.jpl.nasa.gov/edu/resources/lesson-plan/mars-thermos
