Get Your Charge Away from Me!

The properties of and interactions between polar and non-polar molecules have long been studied and applied in engineering science. Chemical engineers must understand the properties of oil and water and the role that surfactants play in how they act together. The ability to mix such molecularly different substances is extremely important. For instance, engineers often use surfactants to remove oily waste from polluted environments, such as waste dumps and oil spills.

After this activity, students should be able to:

• Explain that oil and water differ in polarity and because of this difference they do not mix favorably, allowing water to form a phase-separated sphere in oil.
• Explain that when soap, a type of surfactant, is added to the oil-water system, the surface tension between them is reduced and mixing occurs.

Knowledge of polar, non-polar molecules and the chemistry responsible for repulsive and attractive (non-mixing and mixing) forces in fluid systems, and an understanding of the concept of surface tension.

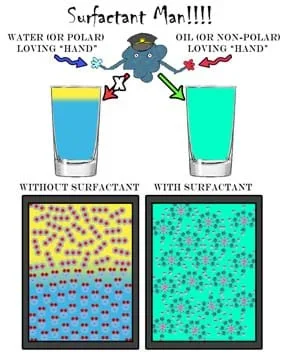

Show students Figure 1 either by overhead projection or handouts. The same image is provided in the attached Surfactant Man Visual Aid (PDF). Lead a class discussion that includes a short explanation of the polar properties of oil and water that prevent them from mixing, and soap's ability to lower surface tension. As needed, provide a brief review of surface tension. See associated lesson for extensive background information.Figure 1. Surfactants allow for mixing of oil and water by "grabbing" on to the molecules.CopyrightCopyright 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Background

This activity helps students visualize the interactions of polar and non-polar molecules and the concept of surface tension.

Oil is hydrophobic, "water fearing," and when water is added to an oil bath it forms into spheres that fall to the bottom due to the forces of gravity. This result conveys two messages: oil and water do not mix and when in contact, they configure their interface to limit contact area (the surface area between the two substances) and since water is denser than oil, water relocates to the bottom of the container.

With the addition of a surfactant to an oil-water system, it is immediately evident that this liquid has unique properties, as it does not fall through the oil in spheres but does so in a more disordered, stream-like fashion. After adequate time for diffusion (natural mixing of the liquids), the effects of lowered surface tension are visually reinforced as the oil and water interfaces become less defined. Show students the general cartoon explanation provided in Figure 1 that uses "surfactant man" to aid in understanding what is occurring at the molecular level.

As suits the level of the students, have students do the calculations or do as a class, to compare the surface areas of a sphere and cube, and circle and square. Refer to the associated lesson for extensive background information on surfactants.

Before the Activity

• Gather materials.
• Divide the class into teams of four students each.
• Conduct the pre-activity assessment discussion, as described in the Assessment section. Have students make their experiment hypotheses and predictions.

With the Students

1. Fill the vessels with oil.
2. Mix a few (2 or 3) drops of food coloring with 10 mL of tap water. Repeat this step for as many different colors as you want to use.
3. Place a drop of dyed water from each of the colored aliquots into the oil vessel.
4. Note the behavior of the water as it falls to the bottom of the oil system.

• The shape it forms while falling through the oil.
• The fact that it falls to the bottom.
• The speed at which it falls.
• What happens when the water reaches the bottom?

5. Add a few more drops and continue to observe.

• What happens to all of the water drops when they reach the bottom?

6. After several water drops have been added, add a small amount of dish soap to each aliquot of colored water.
7. Place a drop of the soapy colored water into the oil vessel.
8. Note the behavior of the soapy colored water as it passes through the oil system.

• Is the shape the same as previously seen?
• Does it move through the oil at a different speed?
• What happens when it reaches the bottom?
• How does it affect the previously deposited water drops?

9. Observe how the water phase acts as the soapy colored water drops contact the previously deposited colored water drops.
10. Conduct the embedded activity assessment about the water bubbles, as described in the Assessment section.
11. Discuss with students the importance of a surfactant (such as soap) in real-world applications such as:

• Washing hands
• Removing (or dispersing) oil in large bodies of water (such as ocean oil spills)
• Removing (or dispersing) oil on surfaces to keep traction for vehicles, such as cars on roadways or airplanes on runways

12. Lead a class discussion to attempt to explain why water forms spheres in the oil, as opposed to other geometric shapes. (The explanation is below) This might also be accomplished by talking about the shape that bubbles take when blown. Why are they only spherical? Why not other shapes? This is due to surface energy. We won't go into much detail on this subject, but suffice it to say that if a surface is not energetically favorable, then the water is repulsed (it tends toward a spherical shape). Conversely, if the surface energy is favorable, the liquid mixes (it increases its contact with surrounding molecules). Depending on students' math abilities, have them do the following calculations (or do as a class) to compare the surface areas of a sphere and cube, and circle and square.

Surface Area Calculation (Sphere vs. Cube)

Figure 2. Cube and sphere of equal volume.CopyrightCopyright 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Take a sphere and a cube of the same volume of 10 units. After doing some quick back calculation using equations for volume, we find the following radius and side length (Remember that π = 3.14, approximately). Once the radius and side length have been calculated, use these lengths to determine the amount of surface area a specific shape (in this case a sphere and a cube) has for the same volume (see Figure 2). As we can see, the surface area of the sphere is less than that of a cube of the same volume. In fact, the cube has almost 30% more surface area than the sphere! This example also works with 2D figures. The circle has the least surface area of all shapes. As the calculations show, the "surface area" of a sphere is less than a cube, and this is why water forms spheres!Example 3-D surface area calculations comparing a sphere and a cube.Example 2-D surface area calculations comparing a circle and a square.

13. Conduct the post-activity assessments — further discussion and an engineering problem — as described in the Assessment section.

Pre-Activity Assessment

Why Don't Oil and Water Like One Another?: Before beginning the activity, discuss at length with the students the interaction of oil and water, and have them make their hypotheses for the experiment. Establish the difference of density between the two fluids and the role of gravity. Have students predict how soap will behave when it is introduced into the oil system.

Activity Embedded Assessment

Why Do the Water Bubbles Stack Up When Soap is Not Added?: This would be a great place to discuss and predict the long term activity of the stacked, separate water bubbles. Will they mix over time? Why don't they mix right away? What could be done to force them to mix? What will happen if soap is added to the mixture? (Answer: They will mix over time and their mixing is dependent on the temperature of the system, the viscosity of the fluids, and the degree of difference in the hydrophobicity. Essentially, they do not immediately mix because the water spheres are completely surrounded by oil molecules. When two water spheres get close to one another, a thin layer of oil molecules still exists between them. It takes energy to break this barrier. Energy can be added by mixing or via thermal energy. If left to sit, the thermal energy in the room will eventually allow for breaking of this barrier, but it takes some time.)

Post-Activity Assessment

Is Soap the New Icebreaker?: Discuss with the students why surface tension kept the water bubble separated, why they mixed over time, and the effects that soap played on their interface and surface tension.

Let's Play Engineer: Have students develop a solution to the following engineering problem based on what they have learned about oil and water:

• On airplane runways, a lot of oil accumulates due to normal use of the runway. Excess oil on the runway can be dangerous for planes that are taking off or landing. This is because the oily runway can cause a plane to slip and prevent good acceleration for takeoff, or make it difficult for the plane to slow down during landing. Hot water alone does a poor job of removing the built up oil. What could be a good solution to this problem?

When re-using clear vessels, be sure to wash them thoroughly. Any residual surfactant will greatly affect the oil-water interface.

We recommend using water-based food coloring. Some food colorings are alcohol-based, which may slightly alter results. It is strongly recommended that this experiment be performed in advance, for good measure.

• This activity is suitable for all grade levels. Adjust the depth of content material from that provided in the associated lesson.
• For upper grades (grades 11-12), this activity can be better applied in the form of a higher level lab in which students perform calculations to find terminal velocity and time for different density spheres and/or different polar solvents in the oil system.
