Elasticity & Young's Modulus for Tissue Analysis

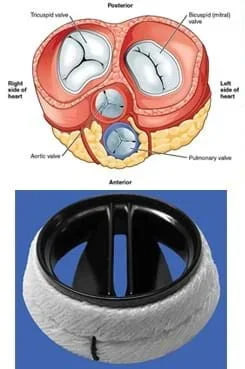

Materials are an important aspect of new technology and new product designs created by engineers. When biomedical engineers design objects and devices to serve as replacement parts and organs in the human body, materials are especially important because the artificial parts must reliably perform inside living people. So, engineers study and analyze real body parts, such as heart valve tissue, in order to understand their structures, properties and behavior. They also research and test (and sometimes design new) materials that are suitable to fabricate artificial parts that function as close as possible to real parts. To do this, they determine the forces that body parts must withstand in the body, how the tissues respond, and other factors and measured characteristics such as stress, strain, elasticity and Young's modulus.

After this lesson, students should be able to:

• Describe the forces encountered in the human body to open and close aortic valves.
• Define Young's modulus and how it relates to the properties of valve tissues.
• Determine the Young's modulus for a material by calculating the materials' stress and strain and creating a stress vs. strain graph.
• Calculate Young's modulus for various materials and use the Young's modulus, stress and strain equations to calculate unknown values, such as force.

Students should have an understanding of:

• Heart anatomy, heart valve structure and how heart valves, specifically the aortic valve, function, such as presented in the What Do I Need to Know about Heart Valves? previous lesson and its associated activity.
• Graphing data with Microsoft Excel® (or similar software application) to make line graphs or scatter plots and determining a line of best fit and its equation.
• Given an equation of a line, identify the slope.

The following information is provided as a lecture guide; it is also on the student handout, which you may want to give to students at the beginning of the lesson. Once the lesson's content on forces, elasticity, stress, strain, valve structure and tissue properties, and Young's modulus is covered with students, distribute the practice problems so they can reinforce the concepts on their own. Following the lesson, have students reinforce their learning with the Does My Model Valve Stack up to the Real Thing? activity where they research, test and select suitable materials that best mimic heart valve tissue with their own prototype.

Lesson Schedule

• Administer the pre-test.
• Students learn about the specific forces exerted on heart valves as blood flows through vessels, as well as information about tissue elasticity, via lecture and a handout.
• Students complete practice problems to solidify their understanding of Young's modulus and the concepts presented.

Forces Exerted on the Aortic Valve during Blood Flow

When the heart is pumping during systole, blood is forced through the heart and the various vessels associated with blood flow. As the blood exits the left ventricle, it passes through the aortic semilunar valve. The flow of blood, coupled with the mechanical structure of the heart valve, causes the valve to open. Essentially, the flow of blood and the forces associated with it cause the elastin in the ventricularis layer to "relax," permitting the valve to recoil to the open position. When the valve is open, it experiences laminar flow across the ventricularis layer of the heart valve (see Figure 1).Figure 1. When the aortic valve is open, blood flow exerts laminar shear on the valve and walls of the vessel.CopyrightCopyright 2012 Michael Duplessis, Vanderbilt University

During diastole, the ventricles relax, allowing the flow of blood to change. During this time, the backflow of blood into the heart applies a force on the aortic semilunar valve and causes it to close. The force that is now exerted on the aortic side of the heart valve (the fibrosa layer of the valve) causes the collagen in that layer to move slightly to reinforce the valve. This rearrangement of the collagen causes the elastin in the ventricularis layer to stretch out some, allowing the three leaflets of the valve to meet in the middle and completely seal the valve and prevent blood regurgitation. This change in blood flow means that the valve is no longer experiencing laminar flow. However, the movement of the blood creates some different currents on the aortic side of the valve (see Figure 2); this flow is oscillatory in nature.Figure 2. When the aortic valve is closed, blood flow stops through the vessel and the valve experiences oscillatory shear.CopyrightCopyright 2012 Michael Duplessis, Vanderbilt University

Elasticity and Young's Modulus

Elasticity describes a material property in which the material returns to its original shape after stress has been applied and then removed. When thinking about elasticity, think about a coiled metal spring or a rubber band. Imagine applying stress to a rubber band by pulling on it. Once the stress is removed (you stop pulling on it), the rubber band recoils to its original shape. The exception to this when too much stress is applied to the rubber band, causing permanent deformation (the rubber band breaks or does not return to its original shape).

So, what is stress? In this situation, stress is an amount of force applied to an object. The stress applied to the rubber band temporarily changes its shape, until the stress is removed.

All materials experience some change with the application of force. However, different materials respond differently to stress. For example, a steel beam reacts differently to stress than a bungee cord. A measurement of the elasticity of a material is called the Young's modulus, and is determined as a ratio of stress to strain:

Young's modulus (Y) = stress/strain

Young's modulus can be used in the following equation:

F = Y(∆L/L₀)A

In this equation, F is equal to the force applied to the structure, Y is the Young's modulus for the material, ΔL is the change in length of the material when the force is applied to it, L₀ is the initial length, and A is the cross-sectional area of the material.

Example Young's modulus for some different materials:

• Pig heart valve: 1.2 X 10⁶ Pascal (Pa)
• Rubber: 1.0 X 10⁸ Pa
• Tooth enamel: 8.3 X 10⁹ Pa
• Steel: 2.0 X 10¹¹ Pa
• Carbon nanotube: 1.0 X 10¹² Pa

Young's Modulus Practice Problem

As a class, go through the following practice problem, writing each step on the classroom board.

Problem: A steel cable with an initial length of 20 meters and a diameter of .05 m suspends an elevator car in its shaft. Three people, having a total mass of 238 kg, enter the elevator car. Given the elevator cable is made of steel, what is the amount of stretch that the cable experiences when the three passengers enter the elevator?

Solution: We already know:

L₀ = 20 m (given)

Y = 2 X 10¹¹ Pa = 200000000000 Pa (given)

A = πr² = 3.14(.025 m)² = .002 m² (using given diameter of .05 m)

F = ma = 238 kg X 9.8 m/s² = 2332 N (using given mass of people and the Earth's gravitational acceleration)

ΔL = unknown

Using what we know, we can do the following calculations:

F = Y(∆L/L₀)A

2332 N = (200000000000 Pa) (x/20 m) (.002 m²)

2332 = (x/20) (400000000)

0.0000058 = (x/20)

0.00012 = x

Thus, the cable will stretch .00012 m (or .12 mm) when the three passengers enter the elevator.

Stress and Strain

Stress (force divided by cross-sectional area) can be expressed as: σ= F/A

Strain (change in length divided by initial length) can be expressed as: ɛ=∆L/L₀

Remember the equation covered earlier: F = Y(∆L/L₀)A

This equation can be rewritten by dividing both sides by A to look like: F/A= Y(∆L/L₀)

This shows that stress (F/A) is proportional to strain (ΔL/L₀ ), in the elastic region of the stress/strain curve, and can thus be graphed. When these are graphed, with the stress on the y-axis and the strain on the x-axis, the slope of the resulting best-fit line is equal to the Young's modulus of the material (see Figure 3).Figure 3. Using stress and strain data for a given material, engineers can determine the Young's modulus for the material.CopyrightCopyright 2012 Michael Duplessis, Vanderbilt University

(In advance, make copies of the Heart Functioning Pre-Test (PDF); Forces, Elasticity, Stress, Strain and Young's Modulus Handout (PDF); and Young's Modulus Practice Problems (PDF), one each per student. Administer the pre-test before beginning the lesson to verify student understanding of the concepts.)

At this point in our unit, we have learned all about the heart and even dissected real (sheep) hearts. We have also discussed the specific anatomy of aortic valves and how they function. Now, we need to focus on designing model heart valves. The materials we use for model heart valves need to represent the organic tissue that composes real heart valves, so first it is important that we learn about how blood flows through the valves and the forces exerted on the valves, as well as the elasticity of the valves.

What have you learned in this lesson? (Listen to student responses.) You have learned about aortic valve structure and tissue properties and behavior, and the forces heart valves encounter due to blood flow (stress, strain, laminar and oscillatory flow). You have learned about elasticity and how to calculate Young's modulus. Whew! Your understanding of the mathematical functions that relate to the functioning of the human heart will help you to design a solution for the unit's engineering challenge problem.

Why do biomedical engineers care so much about the materials they use in their designs for replacement body parts? (Listen to student ideas.) That's right. The devices and parts they design need to work reliably because peoples' health depends on it, and the new parts often reside inside a body, so the materials must function in those conditions. How do they figure this out? (Listen to student ideas.) Well first they research heart valve anatomy and function, and then research to find (and sometimes design new) materials that are suitable to fabricate artificial replacement valves. Once appropriate materials have been identified, they develop valve designs that mimic the function of real valves. To help ensure that artificial valves are as close to their natural analogues, the materials must have similar properties and behavior to real heart valve tissue.

In the coming activity, your goal is to determine what materials to use for your model heart valves, so you will gather information on heart valve tissue properties, test possible materials, and then design and create prototypes and make modifications to them, so that they behave similarly to real heart valves. Your final task is to pull together all of the information that you have learned into a portfolio presentation for your client to examine before they start using your models.

Pre-Lesson Assessment

Pre-Test: Administer the four-question Heart Functioning Pre-Test (PDF)at the beginning of the lesson. The pre-test reviews the functions and locations of the aorta and the aortic valve, and asks students to consider the forces that act on these organs due to blood flow. Students must understand these concepts before starting the lesson.

Lesson Summary Assessment

Practice Problems: Have students complete the Young's Modulus Practice Problems (PDF) to assess their ability to calculate Young's modulus using the equations presented in the lesson. Question 2 asks them to create a Microsoft Excel® graph of the provided data (four data points), but the graph may be created by hand as well. Review their work to assess their comprehension of the lesson concepts.

Campbell, N., Reece, J., Urry, L., Cain, M., and Wasserman, S. Biology. Eighth edition. San Francisco, CA: Benjamin-Cummings Publishing Co., 2007.

Nagatomi, Jiro. Mechanobiology Handbook. Boca Raton, FL: CRC Press, 2011.
