Flame Test: Red, Green, Blue, Violet?

Before beginning to design a solution to a problem, engineers must research the concepts involved. As part of their research, chemical engineers use the flame test to identify an element based on the color it emits when placed in a flame—a low-tech and reliable method of identification. This unit's challenge question includes aspects of environmental engineering (effect of pollution on the Earth's ozone layer and consequences to public health) and biomedical engineering (use of nanoparticles in medical technologies).

After this activity, students should be able to:

• Explain that energy received by electrons to move them to an excited state is quantized.
• Explain that some wavelengths of light are in the visible light range while others are not, but nonetheless can cause chemical reactions.
• Calculate the number of grams of three ionic salts needed to make the appropriate molarity of solution.

Information about the electromagnetic spectrum and the Grand Challenge for this curricular unit are provided in the associated lesson, Electromagnetic Radiation, which should be taught previous to this activity.

Today we will look closer at the electromagnetic spectrum and how radiant energy in the form of heat causes a jump from an electron's ground state to an excited state. Then, we will build on this information to study how the energy of ultraviolet radiation can cause cancer in humans and how that same kind of energy can, in turn, be used to treat cancer. We will also practice the important skill of making solutions of the correct molarity. Remember, engineers cannot begin designing solutions before researching the concepts surrounding a problem, which is an early stage of the engineering design process. So, in this activity we will be researching.

By placing atoms of a metal into a heat source, electrons can be induced to absorb energy and jump to excited energy states. Then, by emitting photons of light, they return to their ground states. The amount of energy in the photon determines its color; red for the lowest energy visible light, increasing energy through the rainbow of orange, yellow, green, blue, indigo and violet for the highest energy visible light. Photons outside the visible spectrum may also be emitted, but we cannot see them. Remember that ultraviolet follows violet as the spectrum increases in energy. Chemical engineers use this low-tech and very reliable flame test to identify an element based on the color it emits when placed in a flame.

The arrangement of electrons in an atom determines the sizes of the quantum jumps, and thus the energy and colors of photons emitted.

In this lab, we will prepare .2 M solutions of strontium chloride, copper II chloride and potassium chloride. We will test the solutions to identify the distinct color each metal ion produces when placed in a Bunsen burner flame. Then we will calculate the approximate frequency and energy of each wavelength of visible light. With what we learn from this collected data, we will identify the metal in a solution of unknown identity.

Before the Activity

• Gather materials and make copies of the Flame Test Student Handout (PDF), one per student.
• Either print color copies (one per group) or display in the classroom the Figure 1 color scale to help students identify wavelengths based on flame color.Figure 1. The visible light spectrum and corresponding colors-to-wavelengths in nanometers (nm).CopyrightCopyright 2008 Gringer, Wikimedia Commons http://commons.wikimedia.org/wiki/File:Linear_visible_spectrum.svg
• Overnight, the night before the activity, soak all the wooden splints in distilled water. Just before the activity begins, pour out the water and rinse the splints with clean water.
• Choose one of the three chemicals to use for the "unknown solution." Prepare 100 ml of .2 M following the same instructions that students will follow in step 2, below. Label the beaker with masking tape and a marker as "unknown solution." Just before the activity, place wooden splints to soak in the unknown solution, one per group.

With the Students

1. Hand out the worksheets and give students a few minutes to answer the pre-lab questions (also listed in the Assessment section, with answers), which includes their calculations of how much of three chemicals are needed to make three specific molarity solutions for the lab.
2. Divide the class into groups of two or three students each. Have each group prepare the 100 ml each of .2 M strontium chloride, .2 M copper II chloride and .2 M potassium chloride, by doing the following:

• • Place a piece of paper on the electronic balance and tare the balance. Add one of the chemicals (such as the strontium chloride) little by little using a clean spoon until the mass shown by the electronic balance is equal to the mass, in grams, of the chemical needed, calculated in question 4 of the worksheet pre-lab questions.
  • Lift up the paper carefully with the appropriate quantity of the chemical and pour the chemical into a clean 400-ml beaker.
  • Use the graduated cylinder to measure 100 ml of distilled water and add the water to the 400 ml beaker.
  • Stir the beaker contents with the spoon used earlier to add the chemical to the electronic balance.
  • Label the beaker by placing a piece of masking tape on the beaker and using a marker to write the name of the chemical used to make the solution.
  • Discard the spoon and paper. Do not reuse them when making the other chemical solutions because they will contaminate the solutions.
  • Repeat these steps to make solutions with the two remaining chemicals.

3. Let two wooden splints soak in each solution for 10 minutes. (Suggested procedure: Have each group make one solution at a time, then add the wooden splint to the solution, and then make the next solution while the splint soaks.)
4. Light the Bunsen burner with a lit match and adjust it to produce a moderately sized flame.
5. Place the soaked end of the wooden splint into the hottest part of the Bunsen burner flame (the top of the inner cone).
6. Record the observed flame color.
7. Determine the approximate wavelength of the visible light corresponding with each observed flame color. Have students refer to Figure 1 to identify the wavelength based on the flame color. Remind students that the unit of length for wavelengths is nanometers (nm).
8. Place a wooden splint soaked with the unknown solution in the Bunsen burner flame. Record the color and identify the metal ion in the solution, based on previous data collection results.
9. Have students write a lab report that includes the five criteria listed on the worksheet, and explained in the Assessments section with answers).

Pre-Activity Assessment

Pre-Lab Questions: Have students individually answer the following questions, which are provided on the Flame Test Worksheet (PDF). Review their worksheet answers to gauge their comprehension.

1. List the electromagnetic spectrum from lowest to highest energy. (Answer: Radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, x-rays, gamma rays.)
2. Of visible light, what color is lowest in energy? What is highest? (Answer: Lowest energy of visible light is red; highest energy of visible light is violet.)
3. List all the cations and anions with charges present in this lab. (Answer: Anion is Cl^-; cations are Sr²⁺, Cu²⁺, K⁺.)

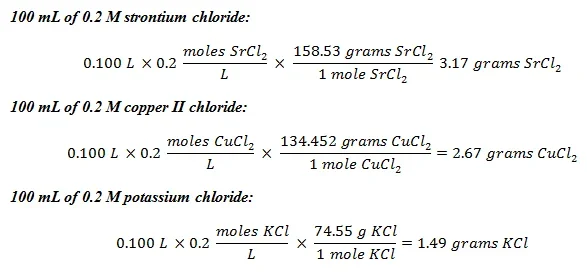

4. Perform the appropriate calculations for preparation of the three solutions: 100 ml of .2 M strontium chloride, 100 ml of .2 M copper II chloride and 100 ml of .2 M potassium chloride. (Answer: In order to prepare the solutions, students must determine how many grams of each compound must be added to 100 ml of distilled water to create the appropriate molarity solution. Refer to Figure 2 for the answer.)Figure 2. The molarity calculations for making the experimental solutions.

Activity Embedded Assessment

Experiment Conclusions: As directed in the Flame Test Worksheet (PDF), have students write typed lab reports that include the following information. If students do not finish within the class period, have them complete the assignment as homework to submit the following class period. Review their answers to assess their comprehension.

1. Is it the metal or the non-metal that produces the flame test color? What brought you to this conclusion? (Answer: Flame tests show the color of the metal, or the positive ion [cation] in the chemical solution. Expect students to be able to come to this realization because the three chemicals had different metal atoms, but they all had the same non-metal anion, chloride.)
2. The identity of the unknown (it is one of the metals you tested) (The answer depends on which chemical the teacher chose to use for the "unknown solution.")
3. Show the calculations for the preparation of the three solutions. (Calculations shown in Figure 2.)
4. Calculate the approximate frequency of energy given off by the emitting element in each of the three solutions. (Answers: Students should first estimate the wavelength of light produced when each solution burns, based on comparing the color of the flame to an image of the visible light spectrum, such as Figure 1. Images of flames produced using some of the chemicals in this activity, as well as others, are shown at: https://en.wikipedia.org/wiki/Colored_fire. Expect students to approximate the following wavelengths: for strontium chloride: around 700 nm; for copper II chloride: around 515 nm; and potassium chloride: around 450 nm. Then they should use the equation taught in lesson 3: ν = c/λ, where c = 3.0 x 10⁸ m/s. The approximate answers for frequencies of energy are as follows: for strontium chloride: ν = 4.3 x 10¹⁴ hertz (Hz) = 430 terahertz (THz); for copper II chloride: 5.8 x 10¹⁴ Hz = 580 THz; for potassium chloride: 6.7 x 10¹⁴ Hz = 670 THz.)
5. How does the flame test investigation relate to the engineering design process? (Answer: The flame test is part of the research phase of the engineering design process, which is important so that engineers understand all of the science and math involved in the problem they are trying to solve.)

Post-Activity Assessment

Going Further: As directed in the Flame Test Worksheet (PDF), have students answer the following problem on a separate sheet of paper: The energy you observed was given off in the visible light range. Where is ultraviolet light on the electromagnetic spectrum? Does it still contain energy even though it is not in the visible light range? Support your answer. (Answer: Ultraviolet light is next to violet visible light on the electromagnetic spectrum. This means that it has a smaller wavelength than violet light, a higher frequency, and thus contains more energy than violet light, as well as all other colors of visible light.)

The lab work in this activity requires the use of Bunsen burners, and thus open flames. School and class policies vary on the use of open flames. Adjust the procedures accordingly, for example, if only adults are permitted to work with open flames. Some of the chemicals can cause skin and eye irritation, and are hazardous if ingested. Have students wear safety goggles, lab coats and gloves while conducting the activity.
