From Lake to Tap

Every community's source of water is unique since it may come from rivers, lakes, aquifers, snowmelt or some combination. Engineers design unique treatment plants, depending on the quality of the water that enters the plant, to remove the harmful visible and invisible particles from our drinking water.

After this activity, students should be able to:

• Describe technologies developed by engineers for drinking water treatment.
• Assess the importance of each process used to treat water.
• Identify which process takes place at each point in a water treatment facility.

Where does water originate? Water may be treated differently in different communities depending on the quality of the original water that enters the plant. Groundwater is water located underground and typically requires less treatment than water from lakes, rivers and streams. Why do you think this is? Engineers design complex water treatment facilities to get all of the visible and invisible particles out of our drinking water. Some of these treatments include coagulation (adding a powdery chemical, called a coagulant to the water), and flocculation (a mixing process that makes particles stick together in clumps called flocs), sedimentation (the settling process that removes most of the big particles from the water), and disinfection (the removal of harmful microorganisms from the water). Disinfection is often performed by adding chlorine to the water to kill germs; this method is specifically called chlorination. After all this, it is finally clean enough to drink! To be sure that the water is clean enough, environmental engineers will test the water for different chemicals of concern before distributing the water to people for drinking! In the US, the Environmental Protection Agency (EPA) sets limits on the maximum allowable concentration of a particular chemical in drinking water, based on the toxicity of each chemical. You can learn more about the limits for different chemicals on this EPA website: https://www.epa.gov/laws-regulations.

In this activity, we will follow a drop of water from its source through the treatment process on the computer.

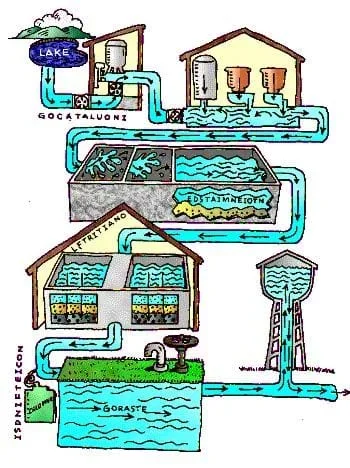

Figure 1. The many steps of water treatment.CopyrightCopyright http://www.epa.gov/safewater/kids/treat.html

1. Figure 1 contains five scrambled words. Try to unscramble the words, which label each treatment point. You can check your answers and learn about the processes at https://www3.epa.gov/safewater/kids/index.html.
2. Complete the Water Treatment Path Worksheet (PDF).

Pre-Activity Assessment

Vocabulary: Ask the students to write down the following vocabulary words and definitions on a sheet of paper or in their science journals: coagulation, sedimentation, filtration, chlorination, and disinfection.

Ask students how environmental engineers can be sure that the water is safe enough to drink after the disinfection step? (Answer: Engineers will take a sample of effluent water (water coming out of the treatment plant) and test it for different chemicals of concern.)

Activity Embedded Assessment

Worksheet: Have the students complete the Water Treatment Path Worksheet; review their answers to gauge their mastery of the subject.

Post-Activity Assessment

Discussion: Ask the students where in the water treatment plants can an environmental engineer deal with a situation where water is contaminated with pathogens. Have students point out the different points in the plant where viruses and bacteria can be removed (i.e., coagulation, chlorination).

Discussion: If we think about the design water treatment plants as an engineering design problem, what is the goal or purpose of designing a water treatment plant? (Answer: To treat our water for drinking!) How do engineers know that their design is working well enough? In other words, what are some criteria or constraints for this design problem? (Answers: There are many possible answers here, but one key idea is that the water has to be treated until it is safe enough to drink, and the effluent water can be tested to make sure it is safe.) What are some consequences for people if the water treatment plant does not meet the design criteria? In other words, what happens if the water is not treated enough to be safe for drinking? (Answer: People could get sick!)

If students are not used to working with a computer, they should partner with a student who does know how to use the Internet. Students should be supervised when they are working on computers to ensure they stay on task.

Students can participate in other water games and online activities at https://www3.epa.gov/safewater/kids/kids_4-8.html

U.S. Environmental Protection Agency, Drinking Water and Groundwater Kids Stuff. https://www3.epa.gov/safewater/kids/kids_4-8.html
