Hands-on Activity: Earthquakes Living Lab: Geology and the 1906 San Francisco Earthquake

Contributed by: Civil and Environmental Engineering Department, Colorado School of Mines

Two old black and white photographs: Two neighboring three-story urban houses are leaning back from the street. Rubble surrounds a destroyed stone building with a damaged domed tower.
Damaged homes and the ruins of the San Francisco City Hall after the 1906 earthquake.
copyright
Copyright © (top) Wikimedia Commons, (bottom) U.S. Library of Congress http://commons.wikimedia.org/wiki/File:SanFranHouses06.JPG http://www.loc.gov/pictures/resource/det.4a25729/

Summary

Students examine the effects of geology on earthquake magnitudes and how engineers anticipate and prepare for these effects. Using information provided through the Earthquakes Living Lab interface, students investigate how geology, specifically soil type, can amplify the magnitude of earthquakes and their consequences. Students look in-depth at the historical 1906 San Francisco earthquake and its destruction thorough photographs and data. They compare the 1906 California earthquake to another historical earthquake in Kobe, Japan, looking at the geological differences and impacts in the two regions, and learning how engineers, geologists and seismologists work to predict earthquakes and minimize calamity. A worksheet serves as a student guide for the activity.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Because San Francisco sits on the San Andreas Fault, it has experienced some devastating earthquakes during the past few centuries. One in particular, the 1906 earthquake, caused significant damage and killed ~3,000 people. In an attempt to avoid such catastrophes, engineers try to predict earthquakes and prepare accordingly. Predicting earthquakes exactly is difficult, if not impossible, but by working together to examine a region's geology, engineers, geologists and seismologists can determine the probability of a certain magnitude earthquake occurring in a given timeframe.

Scientists and engineers around the globe gather data through observation and experimentation and use it to describe and understand how the world works. The Earthquakes Living Lab gives students the chance to track earthquakes across the planet and examine where, why and how they are occurring. Using the real-world data in the living lab enables students and teachers to practice analyzing data to solve problems and answer questions, in much the same way that scientists and engineers do every day.

Learning Objectives

After this activity, students should be able to:

  • Explain how engineers use soil and rock data to anticipate and design for earthquakes.
  • Describe the basic subsurface geology in the San Francisco region.
  • Describe factors that influenced the destruction resulting from two historical earthquakes.

More Curriculum Like This

Earthquakes Rock!

They make a model of a seismograph—a measuring device that records an earthquake on a seismogram. Students also investigate which structural designs are most likely to survive an earthquake.

Elementary Lesson
Earthquakes Living Lab: Geology and Earthquakes in Japan

Students study how geology relates to the frequency of large-magnitude earthquakes in Japan. Using the online resources provided through the Earthquakes Living Lab, students investigate reasons why large earthquakes occur in this region, drawing conclusions from tectonic plate structures and the loc...

Seismic Waves: How Earthquakes Move the Earth

Students learn about the types of seismic waves produced by earthquakes and how they move the Earth. Students learn how engineers build shake tables that simulate the ground motions of the Earth caused by seismic waves in order to test the seismic performance of buildings.

Earthquakes Living Lab: Finding Epicenters and Measuring Magnitudes

Students learn how engineers characterize earthquakes through seismic data. Then, acting as engineers, they use real-world seismograph data and a tutorial/simulation accessed through the Earthquakes Living Lab to locate earthquake epicenters via triangulation and determine earthquake magnitudes.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Analyze and interpret data on natural hazards to forecast future catastrophic events and inform the development of technologies to mitigate their effects. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Many inventions and innovations have evolved using slow and methodical processes of tests and refinements. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The specialization of function has been at the heart of many technological improvements. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The design and construction of structures for service or convenience have evolved from the development of techniques for measurement, controlling systems, and the understanding of spatial relationships. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Gather, analyze, and communicate an evidence-based explanation for the complex interaction between Earth's constructive and destructive forces (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Identify, interpret, and explain models of plates motions on Earth (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use maps to locate likely geologic "hot spots", using evidence of earthquakes and volcanic activity (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

Introduction/Motivation

Earthquakes can cause houses to crumble, bridges to fall and buildings to catch on fire. An historic 1906 earthquake shook for about a minute and resulted in San Francisco falling victim to all these consequences, causing widespread destruction, injuries and an estimated 3,000 deaths.

Following this earthquake, the U.S. saw a surge in scientific research surrounding earthquakes. With an increased understanding of earthquakes and their potential for disaster, scientists and engineers began working to try to predict earthquakes and take steps to mitigate their destruction in the future. This includes early warning systems and building codes that establish standards for earthquake-resistant structures.

Precisely predicting earthquakes is not possible, but by examining an area's seismic history and existing geology, engineers can determine the probability of a certain magnitude earthquake occurring in a given timeframe. For example, forecasters might say: "We see a 99% chance of a magnitude 6.7 quake within the next three decades, and 46% chance of a 7.5 or greater earthquake, with Southern California the likely center."

In this activity, we examine the San Francisco bay area in Northern California, where that magnitude ~7.8 earthquake took place more than 100 years ago, to find out how engineers, geologists and seismologists work to forecast future seismic events and prevent earthquake damage.

Vocabulary/Definitions

geology: The scientific study of the origin, history and structure of the Earth or a specific region of the Earth's crust.

liquefaction: A process by which water-saturated sediment temporarily loses strength and acts as a fluid. It occurs when vibrations or water pressure within a mass of soil causes the soil particles to lose contact with one another.

magnitude: A measurement to describe the relative amount of energy released in an earthquake. Based on the maximum seismic wave motion recorded by a seismograph. Typically measured on the Richter magnitude scale or moment magnitude scale.

Procedure

For this activity, have students follow the worksheet instructions, making sure they keep adequate notes in their journals of what they learn.

Before the Activity

With the Students

  1. Divide the class into student pairs, and have them assemble at their computers with journals/paper and writing instruments.
  2. Hand out the worksheets to the groups and direct them to read through the instructions. Encourage them to explore all of the Earthquakes Living Lab, especially if they need more information to complete the worksheet.
  3. Before looking at the Earthquakes Living Lab, have pairs complete the Engage section of the worksheet, one question: What factors do they think contribute to the magnitude of earthquakes?
  4. Then guide the teams to the Earthquakes Living Lab via the living lab website at http://www.teachengineering.org/livinglabs/index.php. Have them scroll down to the Earthquakes Living Lab section (see Figure 1). Tell students that this activity is designed around the Earthquakes Living Lab, a resource and online interface that uses real-time, real-world seismic data gathered from around the world.

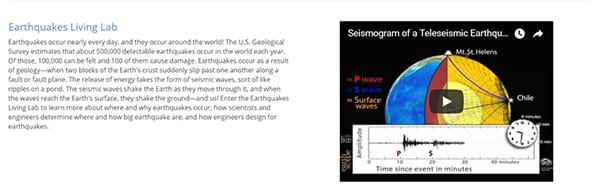

    Screen capture image of a website page shows a paragraph of text, an embedded video and a hot link to "enter the Earthquakes Living Lab."
    Figure 1. The entry web page for the Earthquakes Living Lab.
  5. Have students select the Earthquakes Living Lab hyperlink in the top left or right in the earthquakes section. Now on the main page of the Earthquakes Living Lab website (see Figure 2), note the focus on four active seismic areas. .

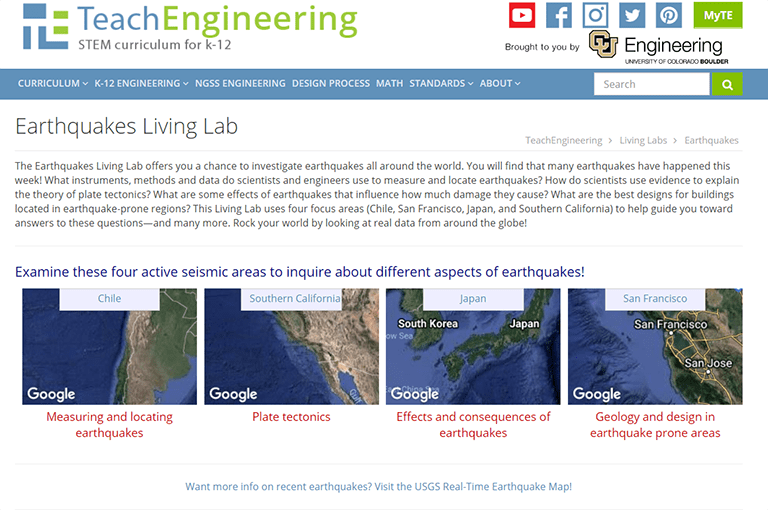

    Screen capture image of a website page shows maps of four active seismic areas (Mexico, Southern California, Japan, San Francisco). All maps show a scattering of yellow, orange and red dots of various sizes. Dot placement indicates the locations of recent earthquakes. Dot size indicates magnitude (2-7+). Dot color indicates how long since occurred (past hour, past day, past week).
    Figure 2. The main page of the Earthquakes Living Lab website.
  6. Direct students to complete the Explore section of the worksheet.
  • Of the four Earthquakes Living Lab seismic areas, select the "San Francisco" box.
  • Once there, click the third link on the right side of the page about how scientists and engineers use geology to study earthquakes. This opens a new window at the USGS website at http://earthquake.usgs.gov/regional/nca/soiltype/. Explore this page and answer the worksheet questions:

a. Was the soil type one of the factors you listed in the Engage section?

b. What makes this an important variable in the resulting magnitude of earthquakes?

c. Record a specific example of how geology has an effect on earthquakes.

d. Which soil type has the strongest amplification of shaking?

e. How might engineers use this data?

  • In the left corner of the USGS web page, select "Earthquakes." Find two earthquakes of the same magnitude or that are within .2 magnitude of each other. Then answer the worksheet questions:

a. Compare and contrast two earthquakes with the same magnitudes but different locations in the world. Use the links to view where on the map these earthquakes occurred.

b. Looking at the two earthquakes you chose, record information from the "Tectonic Summary" for both locations. The "Tectonic Summary' information is below the map for each location. Are any variables the same in both locations?

a. Read about the 1906 San Francisco earthquake and explore the different links on the left side of the page.

b. Record at least five observations, including at least one from the 1906 earthquake photos.

a. Read through this information, paying special attention to the photographs, and record at least five observations about this earthquake

b. How are the effects of these two earthquakes the same? How are they different? What are some possible reasons for the differences between these earthquakes and the damage they caused?

  1. Have students move on to the Explain section of the worksheet:
  • What patterns did you notice between geology and magnitude?
  • How do you think engineers might use this information?
  1. Direct students to complete the Elaborate worksheet section. Remind them to explore other areas on the Earthquakes Living Lab page and USGS pages as needed.
  • How do you think seismologists and geologists might work together to create maps of where earthquakes are most likely to occur (probability maps) of earthquake areas?
  1. Have students complete the Evaluate worksheet section. Suggest students use PowerPoint slides, videos, songs or skits to deliver their PSAs.
  • Your engineering team is hired to create a public service announcement (PSA) about the soils found in the San Francisco area and the hazards related to earthquakes. Create a one-minute announcement that informs people about these hazards. Use any information found on the Earthquakes Living Lab and USGS pages.
  1. Conclude the activity with class presentations of the PSAs, as described in the Assessment section.

Attachments

Assessment

Pre-Activity Assessment

Important Factors Intro: Before student pairs look at the Earthquakes Living Lab, have them complete the Engage section of The Great 1906 San Francisco Earthquake Worksheet, thinking about possible factors that might contribute to an earthquake's magnitude. Review their answers to assess their base knowledge of the subject matter.

Activity Embedded Assessment

Exploring Historic Earthquakes: Students follow the Earthquakes Living Lab and USGS links in the worksheet instructions to explore the effect of soil types on magnitude and amplification and answer the worksheet questions. Specifically, students examine the 1906 San Francisco and 1995 Kobe earthquakes, comparing geology and impacts in both regions. At class end, have students (or groups) turn in their journals. Review their Explore, Explain and Elaborate answers for comprehension and completeness.

Post-Activity Assessment

Sharing Information through PSAs: In the Evaluate worksheet section, students are asked to create public service announcements to warn citizens about soil types and potential earthquakes dangers. Have groups share their PSAs with the class using PowerPoint slides, videos, songs or skits.

Activity Extensions

Have students explore other historical earthquakes that happened in San Francisco or Japan. Or assign students to explore the geological issues for historic earthquakes that happened in the other two regions in the Earthquakes Living Lab (Southern California and Mexico).

A photograph of a National Park Service sign near the under-construction steel truss and concrete north end of the Golden Gate Bridge in San Francisco. The sign title is "Strengthening an Icon: Golden Gate Bridge Seismic Retrofit," and it shows two photographs and a labeled side-view diagram of the full bridge.
The more than 75-year-old Golden Gate Bridge has undergone years of seismic retrofit so that it is able to better resist seismic events.
copyright
Copyright © 2013 Denise W. Carlson. Used with permission.

Have students research and report back to the class about the engineering efforts that have been/are being made around the world to prepare for the inevitability of future big earthquakes. Start by researching "seismic retrofit" for bridges in San Francisco. Also search for seismic early warning systems, seismic building codes, and earthquake-resistant structures in known active seismic regions.

Activity Scaling

  • For lower grades, eliminate the Elaborate and Explore sections of the worksheet.
  • For upper grades, have students work individually, look at three or four earthquakes of similar magnitude or two different pairs in the Explore section, making data tables, and looking at other historical earthquakes to compare their geologies.

References

The Great 1906 San Francisco Earthquake (5:12AM, April 18, 1906). Last modified July 23, 2012. Earthquake Hazards Program, U.S. Geological Survey, U.S. Department of the Interior. Accessed August 7, 2012. https://earthquake.usgs.gov/earthquakes/events/1906calif/18april/

Henderson, Peter. "Special Report: Big California Quake Likely to Devastate State." Posted March 15, 2013. Thomson Reuters News Agency. Accessed August 7, 2012. http://www.reuters.com/article/2011/03/15/us-quake-california-idUSTRE72E06220110315

Other Related Information

This activity is designed around the Earthquakes Living Lab, a resource and online interface that uses real-time U.S. Geological Survey seismic data from around the world. The living lab presents earthquake information through a focus on four active seismic areas and historic earthquakes in those areas. The real-world earthquake data is viewable via a graphical interface using a scaling map.

Contributors

Mike Mooney ; Minal Parekh; Scott Schankweiler; Jessica Noffsinger; Karen Johnson; Jonathan Knudtsen

Copyright

© 2013 by Regents of the University of Colorado; original 2013 Colorado School of Mines

Supporting Program

Civil and Environmental Engineering Department, Colorado School of Mines

Acknowledgements

This curriculum was created with the support of National Science Foundation grant no. DUE 0532684. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.

Last modified: December 7, 2017
