Hands-on Activity: The Grid

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Animation of sparks from the wires of three tall electrical transmission towers.
High-voltage power transmission towers and lines are part of the national power grid that carries electricity from power plants to homes, schools and businesses.
copyright
Copyright © 2004 Microsoft Corporation, One Microsoft Way, Redmond, WA 98052-6399 USA. All rights reserved.

Summary

The class forms a "presidential task force" for a week, empowered by the president to find answers and make recommendations concerning the future of the national power grid. Task force members conduct daily debriefings with the research team and prepare a report and presentation of findings for the president, using a real policy document as a guide. Although this activity is geared towards fifth-grade and older students and Internet research capabilities are required, some portions may be appropriate for younger students.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

An obstacle in using wind energy is getting it connected to the national power grid. Most sites that are good for wind power production are far away from the existing power grid and it costs more to install the transmission lines to connect to the grid than to build the wind turbines. Knowing the location of existing grid lines helps engineers to site new wind farms in areas with affordable accessibility.

Pre-Req Knowledge

A basic understanding of electrical energy (charge, voltage, current, resistance), and its pervasiveness in our way of life (lights, heat, safety, appliances, computers, medical equipment, transportation, entertainment).

Learning Objectives

After this activity, students should be able to:

  • Use a full range of strategies to comprehend technical writing.
  • Write stories, letters and reports with greater detail and supporting material.
  • Choose vocabulary and figures of speech that communicate clearly.

More Curriculum Like This

Windmill of Your Mind — Distributed Energy Goes to School

Students research the feasibility of installing a wind-turbine distributed energy (DE) system for their school. They write a proposal (actually, an executive summary of a proposal) to the school principal based on their findings and recommendations.

Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

High School Lesson
Let the Sun Shine!

Students learn how the sun can be used for energy. They learn about passive solar heating, lighting and cooking, and active solar engineering technologies (such as photovoltaic arrays and concentrating mirrors) that generate electricity.

Elementary Lesson
Renewable Energy Design: Wind Turbines

Students apply real-world technical tools and techniques to design their own aerodynamic wind turbines that efficiently harvest the most wind energy. Specifically, teams each design a wind turbine propeller attachment

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Obtain and combine information to describe that energy and fuels are derived from natural resources and their uses affect the environment. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Represent real world and mathematical problems by graphing points in the first quadrant of the coordinate plane, and interpret coordinate values of points in the context of the situation. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Identify and describe the variety of energy sources (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use multiple resources – including print, electronic, and human – to locate information about different sources of renewable and nonrenewable energy (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Introduction/Motivation

Have you ever thought about how much your life depends on electricity? What would it be like to live without electricity? What would it be like if blackouts and brownouts happened every week or even every day? That's how people already live in some locations where the electrical power delivery system is unreliable and cannot keep up with demand. Could that happen in the U.S.? It could if the warning of the 2014 report (http://www.eia.gov/forecasts/aeo/er/pdf/0383er(2014).pdf), is not taken seriously.

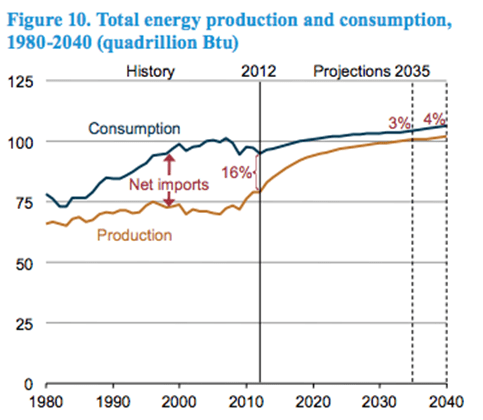

A graph of energy consumption (blue line) vs energy production (red line) for the years 1980-2040. Energy consumption is 16% above the production in 2014, however this gap is projected to fall to only 4% by 2040.
During the next 20 years, growth in U.S. energy consumption is expected to continue to outpace U.S. energy production.
copyright
Copyright © Eia.gov http://www.eia.gov/forecasts/aeo/er/pdf/0383er(2014).pdf

U.S. energy consumption is outpacing production, which is from the overview of that energy policy report. The space between the blue line, representing energy consumption, and the orange line, representing the energy production rate from 1980-2040, indicates the "energy shortfall." We already do not produce enough energy to meet demand, and need to make changes to the way we use energy in years to come to avoid a problem. The energy crisis in California in recent years and the general increase in electrical rates are a strong indication of existing problems and a sign of worse to come. When supply falls short of demand, brownouts occur, which are temporary reductions in electrical power (voltage) for short periods until demand gets back in line with supply. If the demand is so great it puts a strain on the system, the system is disrupted and blackouts occur.

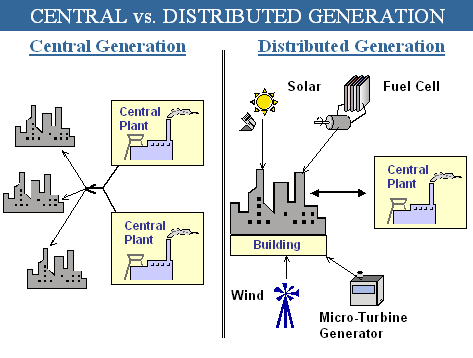

A graphic comparing a central distribution system with a power plant sending power out to users, to a distributed distribution system in which power is both consumed and generated (via solar, fuel cells, wind energy and micro-turbine generator) at the users sites.
Figure 2. "Distributed generation is often contrasted to central generation. In the case of central generation, power is generated in a large plant (gigawatts in size) and electricity is transmitted over transmission and distribution lines (collectively referred to as the power grid) to buildings where the power is consumed. In the case of distributed generation, the potential exists to provide generation at the building where the power is consumed AND feed excess power back into the power grid as well as take power from it."
copyright
Copyright © National Fuel Cell Research Center, University of California, Irvine, CA, http://www.nfcrc.uci.edu/2/default.aspx. Used with permission.

What is the best way to increase the supply of power to the level of demand? Should we build more central power plants? Should we develop alternative sources of power and a more decentralized (distributed) system of energy delivery? Or, should we do both? Or, is there any way to reduce the growing demand? These are questions to explore in this activity. You will form a Presidential Task Force to find answers and make recommendations concerning the future of the national power grid. In this activity, you will not be considering the related issue of developing sources of fuel used to generate the electricity. Your focus is on the electrical power distribution system, the power grid itself. Explore the topics of distributed energy (see Figure 2) and alternative energy (see Figure 3) before completing your task force recommendations.

A diagram shows a house and electrical power towers surrounded by the names of various conventional and alternative electricity sources.
Conventional and alternative sources of electricity. Electricity is produced from a variety of conventional sources of fuel (coal, oil, natural gas) and power (nuclear, high-impact hydropower) and from a number of alternative sources (wind, solar, geothermal, low-impact hydropower, biomass) and distributed through the electrical power grid to your home.
copyright
Copyright © 2005 Denise W. Carlson, ITL Program, College of Engineering, University of Colorado Boulder, using Microsoft clipart © 2004 Microsoft Corporation, One Microsoft Way, Redmond, WA 98052-6399 USA. All rights reserved.

Task force members have daily debriefings with their research team over the course of a week and prepare a report and presentation of their findings for the president. Use the policy document, U.S. National Energy Policy: Reliable, Affordable and Environmentally Sound Energy for America's Future, as a guide.

Vocabulary/Definitions

blackout: Lack of illumination caused by an electrical power failure; the failure of electric power for a general region.

brownout: A reduction or cutback in electric power, especially as a result of a shortage, a mechanical failure, or overuse by consumers.

commodity: A resource (such as electricity) that can be turned to commercial or other advantage.

connotation: An idea or meaning suggested by or associated with a word or thing; the set of associations implied by a word in addition to its literal meaning.

debriefing: Report of a mission or task.

denotation: The most specific or direct meaning of a word, in contrast to its figurative or associated meanings.

electrical distribution and transmission system: The power grid.

generate: To produce.

infrastructure: The basic facilities, services, and installations needed for the functioning of a community or society, such as transportation and communications systems, water and power lines, and public institutions including schools, post offices, and prisons.

literal and figurative language: Literal: Limited to the simplest, nonfigurative, or most obvious meaning of a word or words. Figurative: Based on or making use of figures of speech; metaphorical.

power grid: A network of electric power lines and associated equipment used to transmit and distribute electricity over a geographic area. The network of transmission lines that link all generating plants in a region with local distribution networks to help maximize service reliability.

power plant: A complex of structures, machinery and associated equipment for generating electric energy from another source of energy, such as nuclear reactions or a hydroelectric dam. Also called a powerhouse or power station.

power substation: A subsidiary station at which electricity is transformed for distribution by a low-voltage network.

task force: A legislative committee authorized by legislative leadership to study a specific subject for a specified period of time. A task force may contain lay members (regular citizens) and is different from a committee in that it typically considers a narrow subject within a broader topic area. Source: www.leg.state.or.us/glossary.html

transformer: A device used to transfer electric energy from one circuit to another, especially a pair of multiply wound, inductively coupled wire coils that effect such a transfer with a change in voltage, current, phase or other electric characteristic.

Procedure

Divide the class equally between Task Force (TF) members, researchers and presidential staff roles, including the president. The researchers do the background work and present their findings to the TF. The job of the TF is to prepare and present the recommendations. The presidential staff hears the presentation and challenges the findings of the TF. The class as a whole prepares the final summary of recommendations.

Observing

First, let's do some background reading and research. Start with the basics: How does the power grid actually work? Research on the Internet at the following two sources that provide clear explanations of the fundamentals: U.S. Department of Energy's page on Electricity Grid: How the Grid Works, http://www.eere.energy.gov/de/electricity_grid.html , and How Power Grids Work, http://www.howstuffworks.com/power.htm.

Next, find out how the power grid does not work. While the links provided under the References section include some helpful information, the following two sources are especially useful on the problems associated with the power grid and what needs to be done: "What's wrong with the electric grid?" http://www.aip.org/tip/INPHFA/vol-9/iss-5/p8.html , and Power Grid of the Future, http://www.ornl.gov/info/ornlreview/v35_2_02/power_grid.shtml.

Become familiar with the presidential policy statement, U.S. National Energy Policy: Reliable, Affordable and Environmentally Sound Energy for America's Future, http://www.whitehouse.gov/energy/. For a summary, read Overview of U.S. National Energy Policy, or google Overview of U.S. National Energy Policy to ge the background knowledge on the national energy policy . You may wish to work just from the Overview rather than the full document.

Thinking

Twenty years from now, will the entire world be sharing electricity through one grid?

"Some 30 years ago, Buckminster Fuller came up with a plan to plug all the world's continents into the same electrical grid. The idea was to let power flow between, say, Siberia and the northwestern US, or Norway and Laos. Energy companies dismissed the notion as pie in the sky — and then proceeded to build such a grid. To get the most use of their generation capacity and to maintain an emergency reserve, power companies found it efficient to connect their grids to their neighbor's, who then connected to their neighbor's.

"The result, according to Peter Meisen of the Global Energy Network Institute, is that the electricity grids of all the nations of North and South America should be interconnected within the next 10 years.

"...Once the [international] grid is fully functional, the only excuse for power shortages will be greed. When demand is high in one region, it's almost certain to be low in another. By making electric power as easily transferrable as data, analysts expect a global grid to smooth the market spikes out of the world's most useful commodity."

Source: Power Up!, http://www.wired.com/wired/archive/11.09/start.html?pg=17

What do you think? How will the development of the international power grid affect your recommendations concerning the U.S. power grid? What will be the advantages and disadvantages of such a system? Should we be concerned that, "...the only excuse for power shortages will be greed"?

Writing

The written report for this activity can be as simple as a list of recommendations with a rationale (reasons) for each recommendation. Or, the class can write a more formal report, using the Overview of National Energy Policy, U.S. National Energy Policy: Reliable, Affordable and Environmentally Sound Energy for America's Future documents as models.

Attachments

Safety Issues

In this activity, students become aware of the infrastructure of the national power grid, which links their own homes to the central power station. Students should be strongly warned to be cautious if they become curious about any of the associated equipment and to stay away from it. Such warnings could effectively be given on the Power Hike suggested under the Activity Extensions section.

Assessment

Pre-Activity Assessment

Call-Out Questions and Quiz: Use call-out questions and a vocabulary quiz to reinforce basic concepts and vocabulary as they are introduced during the Observing activity.

Activity Embedded Assessment

Call-Out Questions: During the Thinking discussion, use call-out questions to test students' understanding of the concepts.

Post-Activity Assessment

Presentations/Writing: The students' presentations of research findings and written report demonstrate their understanding of the concepts.

Activity Extensions

Power Hike: Take a class hike or field trip to identify elements of the transmission system, such as: high voltage transmission lines, transmission substation, power pole (three-wire), regulator bank, taps, transformer drum, fuses and circuit breakers, and outlet. Remember to stay at a safe distance from high voltage power lines and other dangerous equipment.

Figuratively Speaking: A "grid" is a "framework of crisscrossed or parallel bars; a grating or mesh." When the term is used to describe the electrical power grid, it is being used as a metaphor. Metaphors have certain psychological and emotional associations or connotations. What does the "grid" metaphor suggest to you about the power grid? How does it affect how people think about it? What are some of the positive connotations of the word? What are some negative connotations? (Possible answers: Being connected in a grid can be both positive and negative in the sense that the system is efficient in some respects and inefficient in others. It is efficient because it allows for load-sharing and independent distributors can sell energy to the system. The system is inefficient when brownouts and blackouts occur because the very interconnectedness of the grid makes it vulnerable to terrorism. People can feel as though they are too dependent on the grid, even to the extent that they are at its mercy, a strong negative in the minds of some. The mesh suggested in the metaphor of the grid can feel like a wire cage. Electric towers can look like ominous metal giants striding across the landscape; see the introductory image.)

Activity Scaling

As suggested under the Writing section, the written report can range from a simple list of recommendations or a full written report.
