# Hands-on ActivityFalling Water

### Quick Look

Grade Level: 4 (3-5)

Time Required: 45 minutes

Expendable Cost/Group: US \$0.25

Group Size: 3

Activity Dependency: None

Subject Areas: Data Analysis and Probability, Earth and Space, Measurement, Physical Science, Science and Technology

NGSS Performance Expectations:

 4-PS3-1 MS-PS3-2

### Summary

Students drop water from different heights to demonstrate the conversion of water's potential energy to kinetic energy. They see how varying the height from which water is dropped affects the splash size. They follow good experiment protocol, take measurements, calculate averages and graph results. In seeing how falling water can be used to do work, they also learn how this energy transformation figures into the engineering design and construction of hydroelectric power plants, dams and reservoirs.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

### Engineering Connection

Engineers design hydroelectric dams to take advantage of the conversion of water's potential energy to kinetic energy, and then mechanical energy to electrical energy. Since the force of kinetic energy is dependent on the height and mass of the falling water, civil engineers take this into consideration when designing dam turbines. High kinetic energy (caused by a great amount of water or falling from a high distance) results in incredible force on the turbine blades, so engineers design the blade and the assembly to withstand this force. Engineers use this same understanding of energy transfer when they design roller coasters.

### Learning Objectives

After this activity, students should be able to:

• Describe an object's varying potential energy as being dependant on its height above the Earth's surface.
• Explain the path of potential energy converted into kinetic energy as objects fall.
• List ways that the energy of falling water is used to do work.
• Describe how engineers use the potential and kinetic energy measurements of water to design reservoirs and hydroelectric power plants.

### Educational Standards Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards. All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org). In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

###### NGSS: Next Generation Science Standards - Science
NGSS Performance Expectation

4-PS3-1. Use evidence to construct an explanation relating the speed of an object to the energy of that object. (Grade 4)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Use evidence (e.g., measurements, observations, patterns) to construct an explanation.

Alignment agreement:

The faster a given object is moving, the more energy it possesses.

Alignment agreement:

Energy can be transferred in various ways and between objects.

Alignment agreement:

NGSS Performance Expectation

MS-PS3-2. Develop a model to describe that when the arrangement of objects interacting at a distance changes, different amounts of potential energy are stored in the system. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Develop a model to describe unobservable mechanisms.

Alignment agreement:

A system of objects may also contain stored (potential) energy, depending on their relative positions.

Alignment agreement:

When two objects interact, each one exerts a force on the other that can cause energy to be transferred to or from the object.

Alignment agreement:

Models can be used to represent systems and their interactions—such as inputs, processes and outputs—and energy and matter flows within systems.

Alignment agreement:

###### Common Core State Standards - Math
• Model with mathematics. (Grades K - 12) More Details

Do you agree with this alignment?

• Represent and interpret data. (Grade 4) More Details

Do you agree with this alignment?

• Perform operations with multi-digit whole numbers and with decimals to hundredths. (Grade 5) More Details

Do you agree with this alignment?

###### International Technology and Engineering Educators Association - Technology
• Energy comes in different forms. (Grades 3 - 5) More Details

Do you agree with this alignment?

###### Colorado - Math
• Fluently add and subtract multi-digit whole numbers using standard algorithms. (Grade 4) More Details

Do you agree with this alignment?

• Visual displays are used to represent data. (Grade 4) More Details

Do you agree with this alignment?

###### Colorado - Science
• Identify and describe the variety of energy sources (Grade 4) More Details

Do you agree with this alignment?

Suggest an alignment not listed above

### Materials List

Each group needs:

• plastic drinking straw; clear is best
• cup or glass, to hold colored water for dipping the straw
• meter stick
• pencil or pen
• marking pens
• newsprint, newspaper or blank paper; minimum of 12-16 sheets per team

For the entire class to share:

• 1 or 2 plastic, gallon-size (3.78 liter-size) milk containers to distribute water
• water, preferably colored with food coloring
• Falling Water Worksheet, one per team

### Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/cub_energy2_lesson08_activity1] to print or download.

### Introduction/Motivation

What is energy? (Answer: Something that can do work). Have you ever heard of potential or kinetic energy? Well, potential energy is simply the "stored" energy of an object. An object's potential energy depends partly on its height and gravity. Kinetic energy is the energy of the object in motion. As an object falls, or moves down an incline, its potential energy is converted into kinetic energy. So, a falling object (or one rolling or sliding down a hill) loses its potential energy as it increases its kinetic energy.

When we think of water, potential energy is the energy of the water as it sits calmly in a reservoir or lake. The kinetic energy of water is when it is rushing through a river, down a waterfall or through a hydroelectric power plant. The force of the kinetic energy is dependent on the height and mass of the falling water. Hydroelectric is when water is used to produce electricity. Civil engineers design and build dams and hydroelectric power plants that use the energy of falling water to turn the blades of turbines to generate electricity that we can use in our homes. So, it is actually the kinetic energy of water moving through a power plant that can produce electricity.

In this activity, we are going to drop water from different heights to demonstrate how the kinetic energy of water changes when it hits the floor. Engineers must understand how height affects the amount of kinetic energy so they create a reservoir that holds the correct amount of water and design a hydroelectric power plant that produces the necessary amount of electricity. Since water falls too fast for us to measure the velocity (or kinetic energy) of the water directly, we will measure the size of the splash produced to show us how much kinetic energy exists.

### Procedure

Before the Activity

• Gather materials and make copies of the Falling Water Worksheet.
• Fill the containers with water. Color the water with several drops of food coloring.

With the Students

1. Divide the class into teams of three or four students each.
2. Show the students how to use a straw like a water dropper (see Figure 1). Stick the straw in a glass of water. Place a finger on the top of the straw. Pull the straw out of the glass, while still holding your finger over the top. Hold the straw over a piece of paper and remove your finger.
3. Ask the students how they can all be sure to use the same amount of water for each trial. (Answer: By marking a line on the straw and always refilling it to that point.)

1. Discuss with students methods for measuring the diameter of a splash. Have the students agree on a standard class method for determining the diameter of a splash. Have students use a pencil or pen to outline the splash, and label it with their name, the drop height, and the splash diameter.
2. Have student teams describe on the worksheet what they predict will happen to the splash as it is dropped from increasing heights. Do they expect the size of the splash to increase or decrease with higher drop heights?
3. Have the class agree on four heights from which to drop the water, such as 30 cm, 60 cm, 90 cm and 1 m (note this on the worksheet). Teams measure the diameter of the water splash for all four heights. Each team member drops the water once from each height. Thus, teams with three members have 12 data points and teams with four members have 16 data points.
4. Students take turns doing each part of the activity. One student holds the meter stick. One student drops the water using the straw. A third student measures the splash diameter.
5. Hold the bottom of the straw at the height by first placing it next to the correct height on the meter stick and then moving it several centimeters away, being careful to keep the straw at the same height. On the paper, write the height, diameter and team member name, and record the data on the worksheet.
6. After one person drops the water, the team members switch places and repeat the process. The student measuring the diameter of the splash moves the paper so the water falls on a dry piece.
7. After teams have finished their drops, have them complete the worksheet by calculating averages and creating a graph of their average data.
8. Conclude with a class-wide comparison of each team's results (table data and graphs) and a concluding discussion, as described in the Assessment section.

### Vocabulary/Definitions

diameter: The straight-line distance across a circular area, through its center point.

energy: The ability to do work.

hydroelectric power plant: A power plant that uses water turbines to generate electricity.

hydroelectricity: Electricity produced by the energy of running water.

kinetic energy: The energy of motion. For example, a spinning top, a falling object and a rolling ball all have kinetic energy. The motion, if resisted by a force, does work. Wind and water both have kinetic energy.

mechanical energy: Energy that can be used to do work. It is the sum of an object's kinetic and potential energy.

potential energy: Potential energy is the energy stored by an object as a result of its position. For example, a roller coaster at the top of a hill, or water being held behind a dam.

renewable energy: Energy that is made from sources that can be regenerated. Sources include solar, wind, geothermal, biomass, ocean and hydro (water).

turbine: A machine in which the kinetic energy of a moving fluid is converted into mechanical energy by causing a series of buckets, paddles, or blades on a rotor to rotate.

### Assessment

Pre-Activity Assessment

Voting: Ask a true/false question and have students vote by holding thumbs up for true and thumbs down for false. Tally the votes and write the totals on the board. Give the right answer.

• True or False: An object's potential energy depends on its height above the Earth's surface. (Answer: True)
• True or False: Kinetic energy is the energy of something staying very still. (Answer: False. Kinetic energy is the energy of an object in motion.)
• True or False: An object's kinetic energy increases as its speed increases. (Answer: True)

Discussion Question: Ask a discussion question to get students to think about the upcoming activity. After soliciting answers, explain that these questions will be answered during the activity. Ask the students:

• What makes a good experiment? Only one variable can be changed at a time in a good experiment. Why?

Activity Embedded Assessment

Prediction: Ask students to predict the outcome of the activity before the activity is performed. What will happen to the splash as it is dropped from increasing heights? Do you expect the size of the splash to increase or decrease with higher drop heights?

Design Decisions: As a class, design the parameters for your experiment, including determining standard methods to ensure experimental consistency in the following:

• Amount of water being dropped
• Measurement of the splash diameter
• Height from which to drop water

Worksheet: Have teams record measurements, answer questions, make calculations and graph data on the worksheet. Review their answers to gauge their mastery of the subject.

Post-Activity Assessment

Concluding Discussion: Ask the students and discuss as a class:

• What patterns do we see in the results? How might we have altered the experiment or our methods to make a better experiment? What conclusions can we draw?
• What happens when we increase the height from which the water is dropped? What if a light bulb is dropped from 1 cm off the floor? From 2 meters off the floor? How does the potential energy and the resulting force (kinetic energy) change in these two cases? What if you dropped a glass into the sink? Does the height at which it is dropped make a difference in whether it breaks or not? How is a short waterfall different from a very high waterfall?
• How would engineers use this understanding to design hydroelectric power plants? How would engineers use this understanding to design roller coasters? How is the force you feel on a roller coaster different if you are coming down a steep section compared to a level section?

Diagramming: Ask students to illustrate the concept of energy transfer through drawing.

• Draw the transformations of energy that occur when an object is dropped. (Answer: Potential energy due to the object's height above the Earth is converted to kinetic energy as it falls. Note: Point out to students that when the object strikes the Earth, the kinetic energy is converted into other forms of mechanical and potential energy, such as sound or heat energy. It may be appropriate to explain that energy may change its form, but there is no net change to the amount of energy. This is called conservation of energy.)
• Draw the transformations of water energy as it goes from a reservoir through a hydroelectric plant.

Engineering Application: Have students reflect on the following engineering applications for kinetic and potential energy. This assignment is suitable for a class discussion or a journal entry.

• Use your understanding of kinetic energy to explain why engineers place some hydro generators in fast-moving waters. (Answer: Fast moving waters have more kinetic energy to transfer to the blades of a turbine, making them spin faster than they would in slow moving waters.)
• Use your understanding of potential and kinetic energy to explain why engineers build large dams for hydroelectric power plants. (Answer: The dams hold back large amounts of water. The water is higher than the turbines so it has potential energy. As the water moves downward to the turbines, its potential energy is transformed to kinetic energy, turning the blades of the turbine.)

### Safety Issues

Remind students that wet floors can be slippery and to be careful in areas in which water is being used.

### Troubleshooting Tips

Make sure students fill their straw to the mark before each trial, otherwise the amounts will be inconsistent.

This activity works best if the teams drop the water onto a hard, flat surface.

Shorter students may require chairs or stools on which to stand when they drop the water.

### Activity Extensions

Test how changing the mass of the water drop affects the size of the splash produced. Try different sized drops for each height.

Math Problem Solving: Present the class with the following problems and ask the students to determine which case has the greater kinetic energy when it hits the ground. (Note: Greater height or mass = greater kinetic energy.)

• A 2-ml drop of water dropped from 2 meters, or a 2-ml drop of water dropped from 1 meter? (Answer: The 2 ml drop of water dropped from 2 meters.)
• A 4-ml drop of water dropped from 3 meters, or a 2-ml drop of water dropped from 3 meters? (Answer: The 4-ml drop of water dropped from 3 meters.)
• A 1-liter bottle of water dropped from 2 meters, or a 1-liter bottle of water dropped from 6 meters? (Answer: The 1-liter bottle of water dropped from 6 meters.)

Test how the angle at which water falls affects the size of the splash produced. See the Foundation for Water and Energy Education's Turning to Hydropower activity, "Will changing the slope of falling water affect how fast it flows?" at: http://www.fwee.org/TG/unit_2c.pdf.

### Activity Scaling

For upper grades: Using their graph results on the worksheet, have students make and test predictions for what would happen at intermediate heights and heights greater than 1 meter. Are their predictions correct?

### Subscribe

Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!
PS: We do not share personal information or emails with anyone.

### More Curriculum Like This

Upper Elementary Lesson
A River Ran Through It

Students learn how water is used to generate electricity. They investigate water's potential-to-kinetic energy transformation in hands-on activities about falling water and waterwheels. During the activities, they take measurements, calculate averages and graph results.

High School Lesson
Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

Upper Elementary Lesson
Clean Energy: Hydropower

Hydropower generation is introduced to students as a common purpose and benefit of constructing dams. Through an introduction to kinetic and potential energy, students come to understand how a dam creates electricity.

Upper Elementary Lesson
Powering the U.S.

This lesson provides students with an overview of the electric power industry in the United States. Students also become familiar with the environmental impacts associated with a variety of energy sources.

### References

The Artist with a Camera. Tennessee Valley Authority. Accessed October 31, 2005. (Story of TVA photographer Charles Krutch) http://www.tva.gov/heritage/camera/

The Nature of Water Power, Curriculum Units. Foundation for Water and Energy Education. Accessed October 27, 2005. (Activity adapted from this source.) http://www.fwee.org/TG/curriculum.html

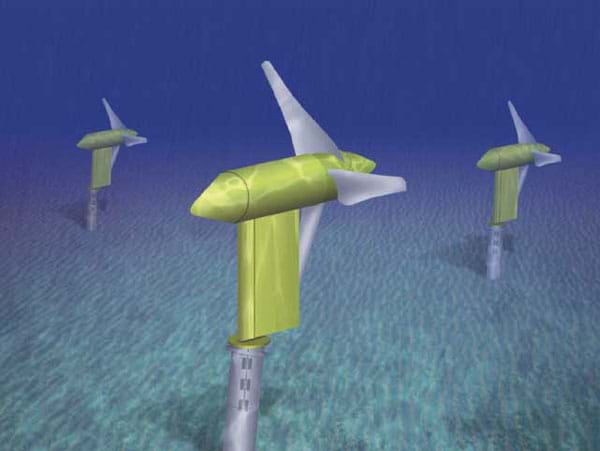

Verdant Power, LLC. Accessed October 27, 2005. (Engineers who design underwater turbine power generating systems) http://www.verdantpower.com
