Hands-on Activity: Distorted Disturbances

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Photo shows five youngsters around a table, busy writing and passing papers to each other.
Students simulate GPS occultations
copyright
Copyright © Jonah Kisesi, ITL Program, College of Engineering, University of Colorado Boulder

Summary

Students pass around and distort messages written on index cards to learn how we use signals from GPS occultations to study the atmosphere. The cards represent information sent from GPS satellites being distorted as they pass through different locations in the Earth's atmosphere and reach other satellites. Analyzing GPS occultations enables better global weather forecasting, storm tracking and climate change monitoring.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers and scientists use GPS satellites and low-Earth orbit (LEO) satellites to study the atmosphere to better understand weather, climate, pollution, ozone, and solar radiation. Although GPS satellites designed by engineers are most commonly used for navigation, a technique called GPS occultations gathers atmospheric data 24/7 from around the globe. The satellite information received using this technique enables us to learn more about our weather and climate and how the various layers of our atmosphere work and interact with one another.

Pre-Req Knowledge

Students should have mastered the content introduced in the associated lesson.

Learning Objectives

After this activity, students should be able to:

  • Describe how we can analyze disturbed GPS signals in order to understand the type of weather they passed through.
  • Compare actual results to expected results to find the reasons for any differences.
  • Describe how GPS satellites are used for more than navigation.

More Curriculum Like This

Mind Bending GPS Occultations

Students learn about the remote sensing radio occultation technique and how engineers use it with GPS satellites to monitor and study the Earth's atmospheric activity.

Keep in Touch: Communications and Satellites

In this lesson, students explore the role of communications and how satellites help people communicate with others far away and in remote areas with nothing around—that is, no obvious telecommunications equipment. Students learn about how engineers design satellites to benefit life on Earth.

GPS on the Move

During a scavenger hunt and an art project, students learn how to use a handheld GPS receiver for personal navigation.

Middle School Lesson
Weather Forecasting

Students consider how weather forecasting plays an important part in their daily lives. They learn about the history of weather forecasting — from old weather proverbs to modern forecasting equipment — and how improvements in weather technology have saved lives by providing advance warning of natura...

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop and use a model to describe that waves are reflected, absorbed, or transmitted through various materials. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Various relationships exist between technology and other fields of study. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • A product, system, or environment developed for one setting may be applied to another setting. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Weather conditions change because of the uneven heating of Earth's surface by the Sun's energy. Weather changes are measured by differences in temperature, air pressure, wind and water in the atmosphere and type of precipitation (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Weather is a result of complex interactions of Earth's atmosphere, land and water, that are driven by energy from the sun, and can be predicted and described through complex models (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each student needs:

  • 2 index cards (alternative: use half sheets of paper) (Note: students will write on one card; the other will be given to them already marked by the teacher)
  • pen or pencil

To share with the entire class:

  • (optional) overhead projector to show the class examples of how to alter and make notations on the index card messages, and share the resulting altered messages at activity end

Introduction/Motivation

What happens to the radio when you are in a car driving on a road surrounded by mountains? What about when it is raining outside? In both cases, it is likely that your radio would not be able to receive the radio signal clearly. Both the mountains and the stormy weather act as barriers that weaken (and sometimes entirely block) the signal being sent. Do you think that a blizzard would create more of a disturbance (more static) to the radio signal than the average rainy day?

Two images: A diagram of the Earth shows five pink lines from an orbiting GPS satellite, arcing as they pass through the Earth's atmosphere, being received by a LEO satellite. An oval map of the Earth and its continents is nearly completely covered with green dots.
Figure 1. With the GPS occultations technique, signals are transmitted from one satellite and received by another, passing through the Earth's atmosphere where they are delayed and distorted due to gravity and atmospheric conditions. Analysis of thousands of received signals (the map shows a typical example of data locations from one day) conveys atmospheric states.
copyright
Copyright © (top) UCAR and (bottom) Bill Schreiner, UCAR

Now, imagine that you are far away from the radio station and you know the weather is perfect around you and the station too, but for some reason the song you are listening to still has a lot of static. Since you cannot see or hear far enough to know if any bad weather exists somewhere between you and the station, could you use the amount of static generated to find out what is happening?

Let's take this another step further. Picture what it would be like if you were in outer space on a satellite 800 km above the Earth's surface. Instead of a radio signal, your satellite receives GPS signals and the GPS satellite is in a location such that the signal it sends passes through the atmosphere (see Figure 1; draw the basics of this image on the classroom board). Even though you definitely cannot see what the weather is between you and the satellite, you still want to know if something might be making the signal weaker than what you expect it to be. You might also find that the signal takes longer to arrive than expected. Well, using a technique called GPS occultations, engineers can analyze GPS signals to find out what kind of weather is taking place between the GPS satellite and the satellite receiving the signal.

A GPS occultation event takes place when the GPS signal passes through the atmosphere before reaching the receiver. If you know how strong the signal should be and how quickly it should reach you, this information can tell you a lot about atmospheric activity between you and the GPS satellite. This is the kind of information engineers use when they study the atmosphere all around our planet.

Vocabulary/Definitions

GPS: Acronym for global positioning system. A satellite constellation consisting of a minimum of 24 satellites orbiting Earth at altitudes of 20,000 km. They are commonly used by citizens for navigation purposes.

LEO: Acronym for low-Earth orbit. Satellites in orbits up to 2,000 km above the Earth's surface

occultation: An event in which a GPS signal is bent as it passes through the Earth's atmosphere and is received by a LEO satellite. More generally: The act of blocking or hiding from view, as in an eclipse.

tomography: Imaging by sections using a penetrating wave (signal). For example, if you used sonar to take data of what is straight ahead of you (two dimensional) while moving to your side a few inches between measurements (sectioning), you can combine the measurements to form a three-dimensional model of what was in front of you as you moved sideways from your start to end point.

Procedure

Background

Introduce students to the concept of GPS occultations through the information presented in the associated lesson.

Three images: Photo shows three satellites with reflective solar panels and long antennae floating above the curved surface of the Earth. A digital weather map shows a spiral shape of Hurricane Frances with color gradations from dark blue at the eye to yellow and orange at the outer edges. A drawing shows a satellite device with eight solar panels above a powerful ocean wave, representing its ability to monitor sea level changes and stormy weather.
The GPS occultations technique involves sending GPS signals from one satellite to another through the Earth's atmosphere, then analyzing the signals for disturbances and delays that tell us about the atmospheric conditions encountered along the way.
copyright
Copyright © (left) UCAR/NASA, (middle) NASA/JPL, and (right) NOAA http://www.nasa.gov/vision/earth/lookingatearth/cosmicf-20061130.html http://www.noaanews.noaa.gov/stories2008/20080520_jason.html

Activity Recap and Tips

In groups of four or five, students send and receive messages written on index cards. Depending on the assigned level of atmospheric disturbance they represent, students make changes to the messages before passing them on, somewhat reminiscent of the game of telephone (and often resulting in funny, nonsensical messages).

Two photos: Five youngsters around a table writing on index cards. An index card with the handwritten information on it: Evan La Rosa, arrow to the right, We captured our (added: dog's) family vacation by taking (photos crossed out and replaced with showers) every day at lunch, count = 4 tally marks, add = 6 tally marks.
An example scrambled sentence index card from the activity. Like GPS occultations , analysis of the distorted messages tells us where the sentences (signals) have been.
copyright
Copyright © (left) 2012 Denise W. Carlson, College of Engineering, University of Colorado Boulder, and (right) 2004 Microsoft Corporation, One Microsoft Way, Redmond, WA 98052-6399 USA. All rights reserved.

Each index card has a message and two tracking sections to help keep track of the changes made to the message. The "count" category signifies how long it would have taken for the signal to be sent from the GPS satellite to the LEO satellite had perfect weather existed for communication, thus allowing for the signal to travel directly to the LEO satellite. The "add" category represents how long it actually took for the signal to travel between the satellites due to delay-inducing events such as storms that slow the signal down and increase its bending.

Note: The two sections are named "count" and "add" because in the count section, students just count up by ones, whereas in the add section, they add numbers depending on which category they are assigned. The categories are explained later in this section. However, if you would like to more closely relate the "count" and "add" sections to occultations, rename them "direct" and "bent," since the count signal would travel directly (in a straight line) to the satellite as if the Earth was not in the way, while the add side represents the actual signal that bends around the planet before reaching the LEO satellite.

At activity end, the instructor picks up the cards from the transmitters and reads aloud to the class the resulting messages, which often turn out to be quite amusing. Comparing the original messages to the received messages is helpful in determining the level of disturbance that occurred upon the signal. This is akin to knowing what the received GPS signal should look like compared to the actual received signal. Engineers use geometry, timing and other advanced techniques such as tomography to determine the location of these disturbances around the Earth.

In order to correctly represent the concept of occultations to students, make sure they clearly understand the activity rules. The most important rules are:

  • Know how many changes your assigned disturbance category makes on each card.
  • Make the correct number of tally marks under the "count" and "add" sections on each card.
  • Transmitters make sure not to pass on a card once it reaches them (otherwise messages end up being so distorted that no humor is in the results).

Before the Activity

  • Of the two index cards each student receives, one is blank, and the other states the student's assigned disturbance classification. Prepare the disturbance cards by making about 60% 1D, 30% 2D, and 10% 0D. These categories indicate the number of changes (disturbances) students are to make to the cards that pass by them. A 0D makes no changes, a 1D makes one change, and a 2D causes two disturbances. A "change" means the student either crosses out or adds a word. For example, crossing out a word and replacing it with another word counts as two changes. Alternatively, you can entirely omit 0Ds so every student has the opportunity to make message changes. If you do this, make the split 70% 1D and 30% 2D.
  • Write Table 1 on the board so the students can reference it throughout the activity.

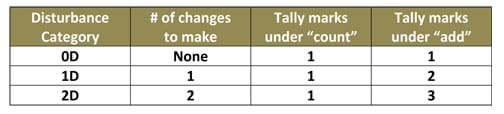

    A three-row table with column headers of: disturbance category (0D, 1D, 2D), # of changes (none, 1, 2), tally marks under "count" (1, 1, 1), and tally marks under "add" (1, 2, 3).
    Table 1. Disturbance categories for the activity.

With the Students

  1. Have students prepare their blank index cards (see the template in Figure 2), writing their names at the top and "count" and "add" in the lower two corners, leaving space underneath for tally marks. It may help to draw the template card on the classroom board, or show an example using an overhead projector. Have students start to think about a 10-word (or more, preferably no longer than 16 words) sentence.
    A lined card with Student's Name, direction to pass card (left or right), sentence of ~ 10 words, and the words "Count" and "Add" in the lower left and lower right card corners.
    Figure 2. Example index card for students to prepare.
  2. Explain the disturbance classifications in Table 1 and the significance of the "count" and "add" tracking sections.
  • Your disturbance classification indicates the number of changes (disturbances) you are permitted to make to a card. A 0D makes no changes, a 1D makes one change, and a 2D causes two disturbances. A "change" means you can either cross out or add a word. For example, crossing out a word and replacing it with another word counts as two changes
  • The count and add sections help us track how many changes a signal goes through. The count section tells us how many students the card was passed across between the sender and the receiver. The add section keep track of the number of changes that took place as the message was passed along. No matter what your disturbance category (refer to Table 1), you will always make one tally mark under "count" when it is your turn with a card. Also depending on your assigned disturbance category, you will make one, two or three marks under "add."
  1. Run through an example round with the students.
    Photo shows two index cards, one with "2D" written on it and the other with: Joy Brown; On sunny days, our kitty sleeps in the flowerpot on the porch; Count; Add.
    Example student index cards. One indicates the disturbance category. The other contains a message and tracking sections.
    copyright
    Copyright © 2012 Denise W. Carlson, College of Engineering, University of Colorado Boulder
  • A transmitter is the person who sends the message; this person also acts as the receiver, where the message stops. Everyone else acts as the atmosphere between.
  • Start with the teacher as the transmitter. Write a 10-word (or longer) sentence on an index card.
  • Choose three students sitting next to each other. Give each student a disturbance category card.
  • Hand the message card to the first student and have him make his changes. A change means the student either crosses out a word, or adds a word. If a student is a 2D, he either adds two words, cross out two words, or crosses out one word and adds another word. If a student is a 1D, he can only cross out one word or add one word, but not both. A 0D can make no changes to the sentence. Then, the student adds tally marks under the count and add sections (refer to Table 1). When crossing out a word, instruct students to make a line through the word, so that it can still be read.
  • When the student is done, review the card with the class to make sure that the student made the right number of changes according to his classification and correctly added his tally marks to the "count" and "add" sections. It is helpful to show the card on an overhead projector so everyone can see.
  • Repeat the previous step with the second and third students, stopping each time to verify the card changes and notations as a class.
  • After the third student has made her changes, have her return the card to the teacher who makes changes based on his/her disturbance category. Point out that as the transmitter, you (the teacher) did not make any changes—you only passed on the card to get the signal started—but when receiving the card, you did make changes.
  • Show that the total number of changes matches the difference between the add section and the count section.
  1. Give students a few minutes to come up with sentences about 10 words long and write them on their index cards. Remind them that their sentences must be school appropriate.
  2. Gather all the students' message cards. Use this time to quickly scan each sentence to make sure it is appropriate.
  3. Divide the class into groups of four or five students each. Assign one student in the group to be the transmitter/receiver. Have each group sit in a circle at a table or a cluster of desks, or on the floor. Remind students that the transmitter student serves as the GPS satellites (transmitting source) and LEO satellites (receiving source), and the other students represent the atmosphere. (Thus, transmitters also serve as receivers.)
  4. Randomly, pass out the disturbance category cards (with 0D, 1D or 2D written on them), one per student (including transmitters).
  • As a reminder, ask students to tell you what constitutes a "change," and how many changes each disturbance category is permitted to make to a message (refer to Table 1).
  • What kind of atmospheric activity (or more simply, weather) do we expect to result in a 0D disturbance? (Answer: 0D = no disturbance = clear skies.) What about 1D or 2D disturbances? (Answer: 1D = moderate disturbances = overcast, rain, light snow; 2D = significant or severe disturbances = thunderstorm, blizzard.)
  • Verify that students understand how many tally marks to make under the "count" and "add" tracking sections (refer to Table 1).
  1. Give one message card (index card with a student-made sentence written on it) to each transmitter.
  2. Tell the transmitters to mark the cards with an arrow to the left or right and pass them in that direction without making any changes since they are the message sources. Remind transmitters that once cards reach them, they can modify them but they do not pass them on; they hold onto them until the end of the activity when the teacher picks up all messages from the transmitters (so, each student in a group gets to change a card only once). Also, they do not pass cards to other groups; it is best to keep the cards within the small groups of 4-5 students.
  3. Once a transmitter passes a message card to a student, that student makes any changes (adds a word or crosses out a word, depending on his/her disturbance category) to the message passed to him/her, makes tally marks in the tracking sections (according to his/her disturbance category), and gives it to the next student. Remind students to cross out words by making one horizontal line through the words, so that they can still be read.
  4. After each group has started on a message, give each transmitter another message card on which to add an arrow and pass to a student (switch the direction the card is passed from the previous round so that more students are engaged simultaneously). Continue doing this until all message cards have been "sent."
  5. When ~15 minutes are left in the period, wait for all messages to reach the transmitters. Then have all the transmitters/receivers give you all the scrambled messages and ask one student to collect all the disturbance category cards.
  6. Read out the scrambled messages to the class. (Scan them first to be sure they are class appropriate.) If available, use an overhead projector to show the message cards, so students can read along and see the changes that occurred to the original message. If the instructor is willing, read each crossed out word as a static-y "chhhhh" sound.
  7. Examine the tracking sections with the class to find out how many changes (delays) occurred as the messages (signals) travelled across students (atmosphere) between transmitters/receivers (satellites). Tell them that a 0D represents clear skies, a 1D may be some rain, and a 2D could be taken as a thunderstorm or snowstorm.
  8. Continue the discussion with students to make the real-world connection. Make sure students realize that GPS satellites do send messages that are received by other satellites and people on the ground, however, they are not simple sentences, but rather are a series of 0s and 1s that form binary code that is deciphered in order to obtain useful information. So, having words added or scratched out on the sentences in this activity represents having incorrect (added), or missing (scratched out) data that distorts the original code sent by satellites.

Safety Issues

  • Remind students to write school-appropriate sentences on their message index cards.
  • Make sure that message changes made by students do not result in inappropriate phrases.

Troubleshooting Tips

The significance of the tracking sections ("count" and "add") is important; take time to explain these clearly so students know how to mark them.

Assessment

Pre-Activity Assessment

Review: Orally quiz students on content from the associated lesson to ensure mastery of the content at activity start.

Activity Embedded Assessment

On Track: Watch to see that students are correctly completing the activity. Continually ask various students what they represent in this activity, as well as what their disturbance cards represent.

Post-Activity Assessment

Reflection: Ask the following questions to the students as a class discussion, or have students answer them in small groups and report back to the class.

  • How do engineers use GPS to study the weather? (Answer: Engineers create satellites and satellite control systems that maneuver the satellites to orbit the Earth and send, receive and collect GPS signals, which are analyzed to figure out the atmospheric conditions that caused the transmissions to be delayed and altered. The systems measure the bending and slowing of signals (occultations) as they pass through the Earth's atmosphere. By precisely measuring, to a few trillionths of a second, the time delays from this bending, they can infer information on atmospheric conditions such as air density, temperature, moisture, refractivity, pressure and electron density. This makes GPS radio occultation a powerful tool for weather and climate forecasting and space weather research. The captured satellite data is distribute to weather and climate forecasters who monitor ocean-born storms and phenomena such as El Niño/La Niña and global sea-level changes.)
  • What are some advantages to using radio GPS occultation? (Answer: GPS occultation can probe with extreme precision the Earth's atmosphere from the Earth's surface to the top of the stratosphere [50 km/30 mi up]. It can operate in all weather conditions, penetrating the thickest clouds, and is relatively inexpensive. GPS receivers, comparable in size and complexity to notebook computers, can be built for a fraction of the cost of traditional space borne sensors and placed unobtrusively on many low-orbiting spacecraft.)
  • Typically, would you expect more delay between satellites that are close to one another or satellites farther apart? (Answer: Farther apart.)

Explain It to a Relative: Imagine that you are an engineer studying occultations. Now, imagine that the person next to you is one of your cousins. S/he is curious about working with occultations, too. Explain to him/her how an occultation works. Then, repeat and switch to act as the listening cousin for a different student.

Activity Extensions

Divide the class into groups of four or five students each. Tell them they are at a conference giving a presentation on occultations. Inform them that they have one minute to give their presentations to the class. Give them 5-10 minutes to prepare. Require that each person in the group speak an equal amount of time. Suggest they prepare brief notes (a script) for each speaker. They can also try to act out how an occultation works as the background to the speaker. Suggest that students incorporate into their presentations what they learned in this activity as well as what they learned from the associated Mind Bending GPS Occultations lesson. To help them recall the lesson, give each group a copy of the lesson's GPS Occultations Worksheet Answers.

Activity Scaling

  • For lower grades, eliminate the tracking sections as they may be too difficult for students to comprehend. But, be sure to speak to them about how we can use delays to help determine the causes of disturbances.
  • For upper grades, while in their small groups, give each group a few scrambled index cards to analyze themselves. Have each group select two of their favorites to share with the rest of the class, while explaining how the message was changed and how much delay occurred. Ask students to think of phenomena other than weather that might affect signals (Possible answers: ionospheric [electron/charged] activity, solar activity, magnetic [polar] activity).

Additional Multimedia Support

"Jason-2 Satellite Data to Help NOAA Track Global Sea Level." Posted May 20, 2008. NOAA, US Department of Commerce. The Jason-2/Ocean Surface Topography Mission (OSTM) satellite monitors the rate of sea-level rise and helps measure the strength of hurricanes. http://www.noaanews.noaa.gov/stories2008/20080520_jason.html

References

COSMIC Visuals and Multimedia Gallery. Visuals illustrating December 11, 2006 news release. Innovative Satellite System Proves Its Worth with Better Weather Forecasts, Climate Data. University Corporation for Atmospheric Research, National Center for Atmospheric Research, Boulder, CO. Accessed April 4, 2012. http://www2.ucar.edu/news/cosmic-visuals-multimedia-gallery

Purveyors of the Cosmic "Occult." Last updated November 30, 2006. Jet Propulsion Laboratory, NASA, Pasadena, CA. Accessed April 4, 2012 http://www.nasa.gov/vision/earth/lookingatearth/cosmicf-20061130.html

Contributors

Jonah Kisesi; Penina Axelrad; Marissa H. Forbes

Copyright

© 2011 by Regents of the University of Colorado.

Supporting Program

Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Acknowledgements

The contents of this digital library curriculum were developed under a grant from the Fund for the Improvement of Postsecondary Education (FIPSE), U.S. Department of Education and National Science Foundation GK-12 grant no. 0338326. However, these contents do not necessarily represent the policies of the Department of Education or National Science Foundation, and you should not assume endorsement by the federal government.
