To display the results from the previous activity, each student designs and constructs a mobile that contains a duplicate of his or her original box, the new cubeshaped box of the same volume, the scraps that are left over from the original box, and pertinent calculations of the volumes and surface areas involved. They problem solve and apply their understanding of seesaws and lever systems to create balanced mobiles.Engineering Connection
Students think like engineers as they design balanced mobiles composed of boxes.
Learning Objectives
After this activity, students should be able to:
 Make a balanced mobile that displays their work and communicates with others their mathematical observations.
 Apply previous knowledge of lever systems to creative problem solving that involves spatial relationships.
More Curriculum Like This
The application of engineering principles is explored in the creation of mobiles. As students create their own mobiles, they take into consideration the forces of gravity and convection air currents. They learn how an understanding of balancing forces is important in both art and engineering design....
Students are introduced to three of the six simple machines used by many engineers: lever, pulley, and wheelandaxle. In general, engineers use the lever to magnify the force applied to an object, the pulley to lift heavy loads over a vertical path, and the wheelandaxle to magnify the torque appl...
Students review how to determine the surface area and volume of a rectangular prism, that all dimensions are equal in cubes so the volume of cubes are the length of any side raised to the third power, or cubed. This prepares them for two associated activities.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards  Science

Define the criteria and constraints of a design problem with sufficient precision to ensure a successful solution, taking into account relevant scientific principles and potential impacts on people and the natural environment that may limit possible solutions.
(Grades 6  8 )
More Details
Do you agree with this alignment?
This Performance Expectation focuses on the following Three Dimensional Learning aspects of NGSS:Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts Define a design problem that can be solved through the development of an object, tool, process or system and includes multiple criteria and constraints, including scientific knowledge that may limit possible solutions. Alignment agreement:
The more precisely a design task's criteria and constraints can be defined, the more likely it is that the designed solution will be successful. Specification of constraints includes consideration of scientific principles and other relevant knowledge that is likely to limit possible solutions. Alignment agreement:
All human activity draws on natural resources and has both short and longterm consequences, positive as well as negative, for the health of people and the natural environment. Alignment agreement:
The uses of technologies and any limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions.Alignment agreement:
Common Core State Standards  Math

Fluently add, subtract, multiply, and divide multidigit decimals using the standard algorithm for each operation.
(Grade 6 )
More Details
Do you agree with this alignment?

Solve realworld and mathematical problems involving area, volume and surface area of two and threedimensional objects composed of triangles, quadrilaterals, polygons, cubes, and right prisms.
(Grade 7 )
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Design is a creative planning process that leads to useful products and systems.
(Grades 6  8 )
More Details
Do you agree with this alignment?

Requirements for design are made up of criteria and constraints.
(Grades 6  8 )
More Details
Do you agree with this alignment?

Apply a design process to solve problems in and beyond the laboratoryclassroom.
(Grades 6  8 )
More Details
Do you agree with this alignment?
State Standards
North Carolina  Science

Explain the effects of balanced and unbalanced forces acting on an object (including friction, gravity and magnets).
(Grade
7 )
More Details
Do you agree with this alignment?
Materials List
 boxes and leftover scraps from the New Boxes from Old activity
 ~20 36inch dowel rods, 3/16ths of an inch diameter; available in hardware stores and hobby shops for ~30 cents each
 2 or 3 utility knives, or inexpensive paring knives
 1 or 2 singlehole punches
 2 or 3 spools of regular sewing or heavy thread
 white glue and/or clear nail polish, a few bottles
 several sheets of poster paper, in a variety of colors
Introduction/Motivation
Today you will be making mobiles! (Show students a completed mobile that you made yourself. Looking at a model gives them a clearer idea of what the finished product might look like, as well as establishing a standard for neatness and craftsmanship.)
(Give students a brief, informal review of levers, which may be helpful as they try to balance the different components of their mobiles.) Have you ever played on the seesaws at a playground? What happens if a child (or an adult) on one end of the seesaw is a lot heavier than the child on the other side? (Listen to student stories.) How could they be evened out? (Listen to student ideas.) To make it more balanced, the heavier person could move closer to the center point (the fulcrum), while the lighter person remains at the far end of the seesaw.

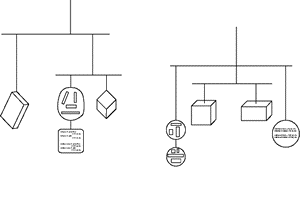

Take a look at this. (Show students two boxes of different weights suspended from the ends of one dowel.) See how these boxes are unbalanced in this mobile. Do you see how this is similar to the two children on the seesaw. But, unlike the seesaw, in our mobiles, the fulcrum can be moved along the dowel rod. It does not have to stay in the center. So, if we hang boxes or other items at either end of the dowel, the balance point can be somewhere besides the center of the dowel, and the hanging points of the components can be moved closer or farther away from the center of the dowel as well.
