# Hands-on ActivityHumidity? Build a Psychrometer!

### Quick Look

Time Required: 45 minutes

Expendable Cost/Group: US \$0.50

Plus an optional ~\$30 non-expendable cost for a psychrometer.

Group Size: 4

Activity Dependency: None

Subject Areas: Algebra, Data Analysis and Probability, Earth and Space

NGSS Performance Expectations:

### Summary

Using thermometers, cotton balls, string and water, students make simple psychrometers—a tool that measures humidity. They learn the difference between relative humidity (the ratio of water vapor content to water vapor carrying capacity) and dew point (the temperature at which dew forms). Teams collect data using their homemade psychrometers and then calculate relative humidity inside and outside, comparing their results to an off-the-shelf psychrometer (if available). A lab worksheet is provided for data collection and calculation. As a real-world connection, students learn that humidity and air density is taken into consideration by engineers for many design projects. To conclude, they answer and discuss analysis and application questions.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

### Engineering Connection

Weather can affect many aspects of engineering, from flight dynamics to the efficiency of wind turbines and cooling systems. Humidity is a key concept in understanding weather. Having an understanding of relative humidity and dew point is useful when designing products. Humidity and air density is taken into consideration by engineers for design projects such as wind turbines and kites, and solar panels used for electricity generation.

Many engineers are involved in measuring, collecting, sorting, analyzing and drawing conclusions from real-world data. To correctly interpret data requires an understanding of how engineers consider and account for instrument error (instrument accuracy) and observational error (human misreading or incorrect instrument use).

### Learning Objectives

After this activity, students should be able to:

• Define and explain relative humidity and dew point.
• Use thermometers to calculate relative humidity and dew point.
• Put together a simple device for data collection.
• Collect data, make calculations and analyze experimental results.
• Make the real-world connection that humidity and denser air impact the design of engineered technologies.
• Describe the operation of a psychrometer.

### Educational Standards Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards. All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org). In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

###### NGSS: Next Generation Science Standards - Science
NGSS Performance Expectation

MS-ESS2-5. Collect data to provide evidence for how the motions and complex interactions of air masses results in changes in weather conditions. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Collect data to produce data to serve as the basis for evidence to answer scientific questions or test design solutions under a range of conditions.

Alignment agreement:

Use mathematical representations to describe and/or support scientific conclusions and design solutions.

Alignment agreement:

Analyze and interpret data to determine similarities and differences in findings.

Alignment agreement:

The complex patterns of the changes and the movement of water in the atmosphere, determined by winds, landforms, and ocean temperatures and currents, are major determinants of local weather patterns.

Alignment agreement:

Because these patterns are so complex, weather can only be predicted probabilistically.

Alignment agreement:

Cause and effect relationships may be used to predict phenomena in natural or designed systems.

Alignment agreement:

###### Common Core State Standards - Math
• Use appropriate tools strategically. (Grades K - 12) More Details

Do you agree with this alignment?

• Make sense of problems and persevere in solving them. (Grades K - 12) More Details

Do you agree with this alignment?

• Reason abstractly and quantitatively. (Grades K - 12) More Details

Do you agree with this alignment?

• Investigate patterns of association in bivariate data. (Grade 8) More Details

Do you agree with this alignment?

###### International Technology and Engineering Educators Association - Technology
• Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study. (Grades K - 12) More Details

Do you agree with this alignment?

• Use instruments to gather data on the performance of everyday products. (Grades 6 - 8) More Details

Do you agree with this alignment?

###### North Carolina - Math
• Reason abstractly and quantitatively. (Grades K - 12) More Details

Do you agree with this alignment?

• Make sense of problems and persevere in solving them. (Grades K - 12) More Details

Do you agree with this alignment?

• Use appropriate tools strategically. (Grades K - 12) More Details

Do you agree with this alignment?

• Investigate patterns of association in bivariate data. (Grade 8) More Details

Do you agree with this alignment?

###### North Carolina - Science
• Understand how the cycling of matter (water and gases) in and out of the atmosphere relates to Earth's atmosphere, weather and climate and the effects of the atmosphere on humans. (Grade 7) More Details

Do you agree with this alignment?

Suggest an alignment not listed above

### Materials List

Each group needs:

To share with the entire class:

• water
• (optional) a commercial psychrometer, for ~\$30 such as from Amazon

### Pre-Req Knowledge

Students should be familiar with sunlight and wind as renewable energy sources.

### Introduction/Motivation

Solar and wind energy can be converted into electricity using technologies like photovoltaic panels and wind turbines. These clean, renewable forms of energy have the potential to make a huge impact on reducing our planet’s air pollution problem if the necessary technologies are designed and implemented effectively.

Air density affects the efficiency of wind and sunlight at generating energy. How? For example, air density can make turbine blades more or less effective, make a kite have more or less lift, and make the atmosphere more or less penetrable by solar radiation. Engineers who design wind turbines, solar panels, and kite-based (airborne) electric power generators need to understand everything about humidity—and that higher humidity means denser air.

Today, you will collect and analyze data on relative humidity in order to understand its impact on designing clean forms of energy generation.

### Procedure

Background

Air is composed of various gases in different concentrations; one of the gaseous components is water vapor. Water vapor is comprised of water molecules in a high-energy state. They can be forced out of air and into a liquid state if the temperature drops, thus forming condensation on a cold surface—or clouds in the air. Air can hold a specific amount of water vapor based on the temperature in that area. Warmer air holds more water vapor, while colder air is denser, with less space for water vapor. Temperature changes can influence air density and the ability of air to move and generate electricity in wind energy systems.

Humidity is the measurement of moisture in the air based on a wet bulb and dry bulb thermometer reading. Comparing these two values enables engineers to understand how much water is in the air. Humidity is reported in two ways: relative humidity and dew point.

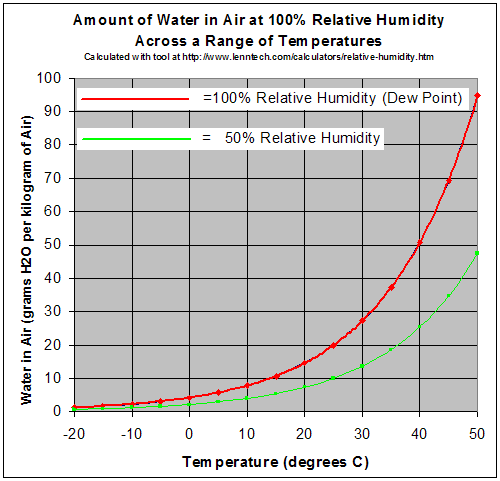

Relative humidity is a comparison of how much water the air is currently holding to the amount of water vapor the air could hold at saturation—the point of maximum capacity. Thus, at 100% humidity, the air is fully saturated with water vapor and therefore denser. A problem with using relative humidity to measure humidity is that the amount of water vapor air can hold increases with temperature. Therefore, 50% humidity is not the same amount of water vapor in 50 °F weather as it is in 100 °F weather. For example, the condition of 100 °F and 50% humidity is much more humid than the condition of 50 °F and 50% humidity.

The dew point is another measure of humidity that describes the temperature at which dew forms on a surface. If the dew point is equal to the current temperature, then the air is fully saturated with water vapor (100% relative humidity). The dew point is not affected by the current temperature and so a dew point of 50 °F is the same humidity whether it is 50 or 100 degrees. Most people find dew points from 50-70 degrees to feel comfortable, while dew points higher than 70 degrees feel humid and dew points lower than 50 degrees feel dry.

If humidity is high, it reduces the air movement because the air requires more energy to flow; this has a direct effect on wind energy systems.

Although not required for conducting this activity, if desired, provide students with additional background by showing them The Atmosphere Presentation, a PowerPoint® file. In 11 slides, the presentation answers the following questions and covers the topics listed below:

• How does energy move in the atmosphere? Topics: radiation, conduction, convection
• From what is our atmosphere composed? Topics: gases, solids, ozone
• How is our atmosphere organized? Topics: gravity, structure, layers (5), air pressure, density

Before the Activity

With the Students

1. To gauge students’ prior knowledge about humidity, conduct the pre-activity discussion described in the Assessment section.
2. Then present the Introduction/Motivation content to the class.
3. Divide the class into groups of four students each.
4. Give each group 2 thermometers, 2 cotton balls, 1 piece of string, and a datasheet.

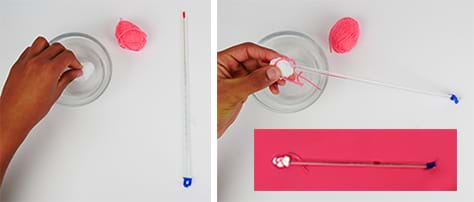

5. Direct the teams to moisten the cotton ball with room-temperature water and use the string to tie it to the end of one thermometer. Be sure the moist cotton ball completely covers the bulb of the thermometer. Doing this serves as a wet bulb thermometer. The second, dry thermometer serves as a dry bulb thermometer.

1. In the classroom, have students spin or wave both thermometers for 60 seconds to collect accurate indoor temperatures. Have them record these values on their datasheets.
2. Measure the in-classroom humidity using the purchased psychrometer (if available) and record the measurement to compare with the class data later.
3. Outside, have students repeat this procedure to collect and record data for later comparison purposes.
4. Once groups have completed the data table, direct them to use the relative humidity chart on the datasheet to calculate the percentages.
5. Remind students that atmospheric conditions directly affect the efficiency of wind and solar energy systems.
6. To conclude, lead a class discussion and have students answer the following questions based on analysis of their collected data:
• How do your relative humidity measurements for inside and outside compare? (Answers will vary, but expect that students might find that indoor humidity is less than outdoor humidity in warm/humid climates, or indoor humidity might be higher than the outdoor humidity in cold/dry climates.)
• Why did we use two thermometers to calculate relative humidity? (Example answer: The amount of water the air can hold changes with temperature. We needed two thermometers, one to measure the actual air temperature [dry bulb] and the other to measure how much water was evaporating from the cotton ball [wet bulb].)
• How might relative humidity impact air density? (Example answer: Humid air is denser than dry air.)
• What might have contributed to your error when compared to the psychrometer reading? (Example possible answers: Construction/lab instrument accuracy errors such as thermometer bulbs that are not fully covered by cotton balls, and observational/measurement errors [human error] such as difficulty in accurately reading the thermometer lines or incorrect instrument use.)
• Looking at the pulled-together class data, how did the average humidity reading compare to the psychrometer reading? (Example answer: The average humidity reading was closer to the actual reading than many of the individual readings, or the average humidity reading was higher/lower than the actual reading.)

### Vocabulary/Definitions

dew point: The temperature at which dew condenses on a surface.

dry bulb temperature: The temperature measured by a thermometer that is freely exposed to the air but shielded from radiation and moisture.

humidity: The amount of water vapor in the air.

psychrometer: A tool used to measure relative humidity and dew point. Consists of two thermometers, one dry and one kept moist with water.

relative humidity: The amount of water vapor in a gas compared to the maximum amount of water vapor the gas can hold at a given temperature.

wet bulb temperature: The temperature measured by a thermometer wrapped in a wet material. Due to evaporation, the wet bulb temperature is always less than or equal to the dry bulb temperature.

### Assessment

Pre-Activity Assessment

Prior Knowledge: During the initial discussion, ask students the following questions:

• What is humidity? (Example answer: Humidity is how moist the air is.)
• How does humidity affect the atmosphere, and in turn, renewable energy sources? (Humidity influences air density, which influences energy production.)
• Are all locations as humid as where we live? What about other regions globally? (Some places have dry heat. Not all states or regions have the same humidity, and it varies at all locations.)
• What aspects of atmospheric conditions have the greatest impact on these energy systems? (High wind velocity, higher air density produces more energy.)

Activity Embedded Assessment

Observe: As students complete their calculations, walk around to observe and ask:

• How does humidity affect dry bulb and wet bulb measurements? (Example answer: Humidity does not affect the dry bulb temperature; the more humid it is, the closer the wet bulb temperature is to the dry bulb temperature; the less humid it is, the lower the wet-bulb temperature will be.)

Post-Activity Assessment

Closing Discussion: As a class, discuss the analysis questions provided at the end of the Procedure section. Make sure that everyone understands the concept of relative humidity.
