Hands-on Activity Using Microcontrollers to Model Homeostasis

Learning Objectives

After this activity, students should be able to:

• Define homeostasis.
• Give an example of homeostasis within the body.
• Relate the microcontroller experiment to homeostasis.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

Common Core State Standards - English

International Technology and Engineering Educators Association - Technology

State Standards

Materials List

See the Buying Guide for more details on what and where to buy materials for this activity.

Each group needs:

• Arduino^TM Uno Development Board or equivalent
• breadboard
• computer with Arduino IDE software loaded; download the Arduino software from https://www.arduino.cc/en/Main/Software
• USB cable, for powering Arduino/uploading code
• 10 wires to connect components, such as 6- or 7-inch jumper wires for Arduino boards
• 3 LEDs
• TMP36 temperature sensor
• 3 220 ohm (Ω) resistors; alternatively, use 330 ohm resistors
• 1-megaohm (MΩ) resistor
• IRF510 n-channel MOSFET (metal-oxide-semiconductor field-effect transistor)
• 12V computer cooling fan
• 12V AC adapter, to power the fan
• Circuit Building Instructions Sheet, one per student
• science notebook, journal or paper, and pen or pencil, for each student

Worksheets and Attachments

Pre-Req Knowledge

A basic understanding of human body organ systems and their functions. Ability to build circuits from circuit diagrams.

Introduction/Motivation

What happens to your body when it is really hot outside? How do you feel? How does your body react? Our bodies are incredible, but also very sensitive. Like Goldilocks in the Goldilocks and the Three Bears story, everything has to be “just right.” If we get too hot or too cold, our bodies don’t work correctly. If we are dehydrated or overly hydrated, we can get sick. Luckily, our bodies know how to keep everything in balance. We call this balance, “homeostasis” (Wikipedia, 2016). To stay healthy, it is critical that we maintain homeostasis. This is why we shiver when it’s cold; moving around generates heat in our bodies. When we eat a lot of sugar, the pancreas releases insulin to help store the sugar. This physical response to bodily disturbances is known as “feedback.” Today we are going to model the concept of homeostasis by creating a feedback system with an Arduino board.

Engineers often model living systems in order to better understand how they work. The principles that govern biological systems can even be applied to engineering designs. This practice, known as “biomimetics” (also called biomimicry), has resulted in the creation of technologies like Velcro^®, tire tread and even nanoscale surface features that imitate the hydrodynamic skin of sharks (Wikipedia, 2016).

The system that we construct today will resemble a biological system used to maintain thermal homeostasis. Much like the panting of a dog, our fan will provide convective cooling to the temperature sensor once a specified temperature range has been exceeded.

Procedure

Background

In this activity, students follow the Circuit Building Instructions Sheet to complete the feedback system for modeling homeostasis. The system consists of a temperature sensor, three LEDs and a computer fan. Once the circuit has been built (according to the instruction sheet), students upload a pre-written Arduino “sketch” to the circuit board. (Programs written using Arduino software [IDE] are called sketches. These sketches are written in the text editor and are saved with the file extension, ino.)

The “sketch,” or code, controls the LEDs and computer fan using temperature inputs from the temperature sensor. A baseline temperature is set, below which the fan and all LEDs remain off. Students adjust the baseline temperature, along with the temperature ranges for each LED, and the activation temperature for the computer fan [see the Code Instruction Sheet (LoveMeterCode.pdf) with highlighted sections].

Using their hands, students heat the temperature sensor, causing the LEDs to light up in sequence before the fan is activated. As students remove their hands from the sensors, the fan cools the temperature sensor, causing the LEDs and fan to switch back off.

Once students have refined the code and tested their feedback systems several times, they are asked to each write an essay that addresses how the feedback circuit relates to the physical property of homeostasis. Students can also brainstorm ways that the system could be improved to better model biological homeostasis experienced by the human body.

Before the Activity

• Gather materials and make copies of the Circuit Building Instructions Sheet, one per student.
• Review and complete the steps outlined on the Pre-Activity Preparation Process Sheet. As part of this process, install Arduino IDE software on all the computers, and make accessible for student groups the code file, Code Instruction Sheet (LoveMeterCode.ino).
• Turn on the computers and make sure the Arduino IDE programs are open.

With the Students

1. Divide the class into groups of three students each.
2. Hand out copies of the instructions sheet.

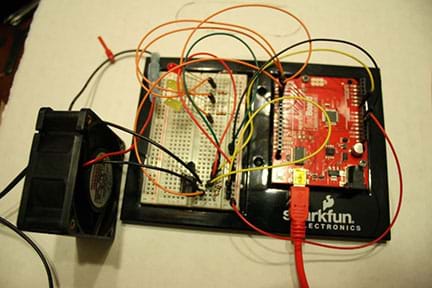

3. Explain that teams are to independently construct the circuits following the steps on the instruction sheet and then bring them to the teacher for review/approval before proceeding. (See Figure 1.)

4. With teacher approval, students proceed to connect the Arduino to the IDE to import the code.
5. Have students test the effects of applying heat by covering the sensor with their fingers, and observe as the LEDs light up in sequence.
6. Instruct students to edit the code to modify the temperature range; then observe the effect on the Arduino. [Refer to the Code Instruction Sheet (LoveMeterCode.pdf) with temperature range code highlighted.]
7. Conclude by assigning students to write one-paragraph summaries that relate the microcontroller demonstration to homeostasis.

Vocabulary/Definitions

biomimetics: The inspiration from and imitation of concepts and principles from nature to create new materials, devices and systems. Also called biomimicry. (Source: Wikipedia)

feedback: Output from a system that is routed back as input to the system. For example, a process for regulating the body and maintaining homeostasis by responding to a disturbance.

homeostasis: Maintaining an internal balance or steady state; equilibrium or regulation of bodily systems. (Source: Wikipedia)

Assessment

Pre-Activity Assessment

Lists: Before starting the activity, in pairs or as an entire group:

• Have students make a list of at least three things needed to be controlled in the human body to maintain homeostasis. (Possible answers: Hydration, blood sugar, blood pH, CO₂ levels.)
• Ask students what types of devices engineers have created to help regulate biological functions. (Possible answers: Insulin pumps, medical respirators, heaters/coolers, etc.)

Activity Embedded Assessment

Check-In: Circulate from group to group, checking on circuit construction and code alterations.

Post-Activity Assessment

Written Summary: Assign students to individually write one-paragraph summaries (or longer essays, if you like) in their science notebooks/journals explaining the analogy between maintaining homeostasis and the function of the temperature sensor in the circuit system (the model). To earn bonus points, have students suggest ways that the system could be improved to better model biological homeostasis experienced by the human body.

Safety Issues

Some risk is always present when working with electricity; remind students to be careful and closely follow instructions.

Troubleshooting Tips

Most of the electrical components used in this activity are inexpensive and relatively easy to break. If difficulties arise, first check the code and wiring. If this does not solve the problem, attempt to replace malfunctioning components with new components.

After installing the IDE software, be sure to restart the computer to avoid any uploading issues.

Activity Extensions

• For lower grades, pre-build the circuits and give students time to experiment with them to observe how a feedback system functions. Ask them to explain how this electrical system might be related to biological systems that maintain homeostasis.
• For higher grades, have students generate their own Arduino code to run the system; this approach may require substantially more time, depending on students’ coding experience.
