Hands-on Activity: Testing Software Programs with JUnit

Contributed by: IMPART RET Program, College of Information Science & Technology, University of Nebraska-Omaha

A photograph shows four teens around a computer, looking at the monitor and working on a project.
In this activity, students experience the test-driven development approach to software testing, a sub component of the software/systems design process.
copyright
Copyright © National Institute on Drug Abuse http://teens.drugabuse.gov/sites/default/files/NDFW-SBB-in-Schools.jpg

Summary

JUnit is a testing method that is included with NetBeans (Java) installs or can be downloaded from the web and included in the Java build. In this activity, students design tests for a provided Java class before the class methods are constructed using a process called test-driven development. To create a design, the software/system design process, which is a specific case of the engineering design process, is followed. After students create a design, it is implemented and tested and if necessary, the design undergoes editing to make sure it functions by testing the Java class correctly. To conclude the activity, students write the methods in the Java class using their tests to debug the program.

Engineering Connection

This activity is a problem-based learning experience that is designed to give students practice with the design process. Testing computer software (in this case Java classes) is a critical step in the design process that is often overlooked by students. If software engineers do not properly test their software they may produce a poor product with unhappy users at best, or a program that does not function at worst. Both of these situations are unacceptable. Testing is critical to good software development. This activity specifically focuses on this testing. The testing of computer software is actually a mini design cycle inside of the larger design cycle. To properly test, students must analyze, implement, test and edit their products to ensure that they function correctly.

Pre-Req Knowledge

Students should have a working knowledge of Java. This lesson/activity set is intended to supplement a programming class to help students understand the importance of the testing phase in the design process, and teach them how to design tests to properly test Java classes. The teacher should have a working knowledge of Java and JUnit testing. In addition, have students complete the associated lesson prior to this activity.

Learning Objectives

After this activity, students should be able to:

  • Discuss the requirements for the code to be written.
  • Create JUnit tests that check the requirements.
  • Write code that implements the requirements.
  • Run JUnit tests and verify that the code passes the tests.

More Curriculum Like This

Using JUnit to Design Software Testing Programs

Students focus on the testing phase of the design process by considering how they have tested computer programs in the past and learning about a new method called JUnit to test programs in the future. JUnit is a testing method that is included with NetBeans (Java) installs or can be downloaded from ...

Java Code: Does It Work? Test and Test Again

Students focus on the testing phase of the software/systems design process. They start by exploring existing examples of program testing using the CodingBat website, which contains a series of problems and challenges that students solve using the Java programming language. Working in teams, students...

Do You See What I See?

Students explore the concept of optical character recognition (OCR) in a problem-solving environment. They research OCR and OCR techniques and then apply those methods to the design challenge by developing algorithms capable of correctly "reading" a number on a typical high school sports scoreboard....

High School Lesson
Curiosity Killed the App

Students gain experience with the software/system design process, closely related to the engineering design process, to solve a problem. The lesson culminates in a hands-on experience with the design process as students simulate the remote control of a rover.

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • The design process includes defining a problem, brainstorming, researching and generating ideas, identifying criteria and specifying constraints, exploring possibilities, selecting an approach, developing a design proposal, making a model or prototype, testing and evaluating the design using specifications, refining the design, creating or making it, and communicating processes and results. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • The design needs to be continually checked and critiqued, and the ideas of the design must be redefined and improved. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Established design principles are used to evaluate existing designs, to collect data, and to guide the design process. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • The process of engineering design takes into account a number of factors. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop and produce a product or system using a design process. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • judge the reasonableness of numerical computations and their results (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • know the characteristics of well-designed studies, including the role of randomization in surveys and experiments (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

Introduction/Motivation

Today's activity will provide you with experience in the implementation of the software/systems design process. This process is cyclical and provides a series of steps that you must work through to create a product that fits predefined criteria and functions correctly. The steps are: requirement analysis, design, implementation, testing, and evolution. The activity is an implementation of this process.

You will be given a Java class, called BowlingGame, with some instructions, and you will create JUnit tests for the class. This activity is also an experience in test-driven development, in which you create your test cases for the Java class before the class has actually been written. By writing tests first, a programmer can focus on what the code should do. By considering expected results in advance, most programmers write better code with fewer errors. After your tests are written, you will fill in the methods in the BowlingGame class and run your tests to help refine the code you are writing.

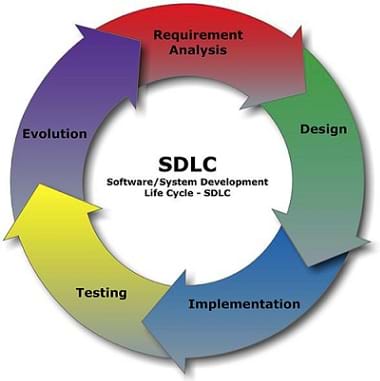

A circular diagram shows the following steps: requirement analysis, design, implementation, testing, and evolution. In the center: SDLC Software/System Development Life Cycle.
The steps of the software development cycle.
copyright
Copyright © 2012 Cliffydcw, Wikimedia Commons http://commons.wikimedia.org/wiki/File:SDLC_-_Software_Development_Life_Cycle.jpg

Vocabulary/Definitions

edge case: A test case whose input is near a "boundary" where the program changes from one behavior to another. For example, if a game allows a character to hold four items at a time, then edge cases include collecting the fourth item (the last item that the character can hold) and collecting the fifth item (an item that would exceed the character's carrying capacity).

error case: A test case whose EXPECTED result is an error. For example, for a program that divides two numbers, dividing by zero is an error case. A well-written program has a plan in place to handle unexpected data in a reasonable manner; error cases test this plan.

test case: A specific set of input for a program or part of a program, along with the expected results of running the program with that input. Note that a test case MUST contain both the input and the output! A test can only help to verify a program's correctness if the expected output can be compared to the actual output of the test case.

test suite: A collection of test cases that is intended to fully "exercise" a section of a program. A complete test suite should include edge cases and error cases as well as a representative selection of "normal" cases.

test-driven development: The software designer creates test cases for a section of code FIRST, before writing the program itself. While to many programmers this seems "backwards," writing tests first helps programmers to focus on what the code SHOULD do. By considering expected results in advance, most programmers write better code with fewer errors.

Procedure

Background

Test-driven development in software design is a method that is foreign and/or uncomfortable for many programmers. It designs the tests first, and then the code is written. The goal is to have programmers focus on what the code should do before designing the code. Essentially, it is a design process starting with the testing phase to help analyze the problem. The creation of test cases is a design process in itself. This activity provides students with experience in design and test-driven development through the vehicle of JUnit.

Before the Activity

  • Make hard (paper) copies of the Test Case Organizational Chart and Testing with JUnit: Performance Assessment.
  • Prepare computers and software for student use, including downloading the MS Word versions of BowlingGame Java Class and Counter Java Class on each computer so digital versions of those doc files are available for students to use during the activity. The previous sentence provides easily viewable PDF versions of the files; the MS Word (doc) versions are available in the Attachments section.
  • Be sure that JUnit has been installed as part of your Java installation. This is likely the case if you taught the associated lesson, Using JUnit to Design Software Testing Programs, prior to this activity (which is highly recommended).
  • Refer to the following resources for installation and resource documents:

JUnit home: http://junit.org/

JUnit documentation: https://github.com/junit-team/junit/wiki

JUnit Downloads (current version is 4.11): https://github.com/junit-team/junit/wiki/Download-and-Install

Writing JUnit tests in NetBeans: https://netbeans.org/kb/docs/java/junit-intro.html

Using JUnit with Eclipse: http://onjava.com/pub/a/onjava/2004/02/04/juie.html

With the Students

  1. Divide the class into small groups of two or three students each, unless you chose to have students work individually.
  2. Tell students that during the activity they will practice creating code in a test-driven style, which means that they will write tests for the code first and then writing the corresponding code.
  3. Show students the description of the BowlingGame class, included in BowlingGame Java Class.
  4. Once students have a chance to examine the class requirements, have them discuss what tests are required to ensure that the class does what it is supposed to do.
  5. As students plan tests to write, have them complete the first two columns of the chart. (Expand the table with more rows as needed.) Table 1 shows the columns and the first few rows of this chart, as well as example data to get students started.
    A four-column table with the titles: Requirement, Brief Description of the Test Case, Test Function, and Passed? Example data in the first row: The requirement is that it "Start on frame 1, ball 1." the brief description of the test case is "Create a new BowlingGame, test that frame and ball are both 1," and the test function is "testStartGame." The cell in the final column, Passed?, is blank (not yet not completed).
    Table 1. Example data in the test case organizational chart used in this activity.
    copyright
    Copyright © 2012 Ryan Stejskal, University of Nebraska Omaha
  6. Once students have planned their test cases, have them implement them.
  7. As students create each test, direct them to fill in the organizational chart with the names of the JUnit test functions they write. An example test function is provided in the first row of the chart.
  8. Then have students run the JUnit testing tool for their test cases. Remind them that all their test cases are expected to fail at this point since the corresponding code is not written yet—this is normal! Every new test case should fail when it is first created.
  9. After students write their test cases, direct them to fill in the methods of the BowlingGame class.
  10. As students write code for the class, ask them to run the tests frequently. Expect them to find that as they progress, their JUnit tests begin to pass. (As students work, remind them that if they expected a test case to pass, but it does not, then they should check both the tested code and the test case itself for errors.
  11. When students finish the BowlingGame class, have them exchange their classes with each other, and verify that their classes pass each other's tests.
  12. Conclude by administering the post-activity assessment, as described in the Assessment section.

Attachments

Assessment

Pre-Activity Assessment

  1. Question students about their knowledge of JUnit as a mechanism for testing Java classes. Example questions:
  • How does Java identify a test case in a JUnit class? (Answer: Java identifies a test case in a JUnit class with the @Test annotation.)
  • What functions are used to verify that things we expect to be true are actually true? (Answer: Assertion functions, such as assertEquals and assertTrue.)
  • Does the fact that a program passes its tests guarantee its correctness, and does it failing its tests guarantee its incorrectness? (Answer: No in both cases. A program that fails one or more tests indicates that either the program or the test is definitely incorrect. Passing all tests provides a degree of confidence in the program, depending on the quality and thoroughness of the test set, but cannot guarantee the correctness of the program.)
  1. Question students about how the design process relates to creating and using tests for software.
  • What are the parts of the software/systems design process? (Answer: Problem/requirement analysis, design, implementation, testing and evolution.)
  • How do these relate to program testing? (Answer: Program testing is really just a mini design cycle. The programmer must analyze how to test the program. Then the tests must be designed and written. The programmer needs to test and evaluate the program and its tests to see if they performed correctly. Finally, they might be able to be used elsewhere or improved.)
  • Why does the design process work well in the testing phase? (Answer: Properly testing a program is critical to developing a successful software application. It is a difficult to develop proper tests and the design process provides steps that can be followed to solve the problem of developing test cases.)

Activity Embedded Assessment

Observation Questions: As students work through the activity, ask yourself these questions to assess students' progress and comprehension:

  1. Are students able to identify the tests that need to be created to properly test the BowlingGame class?
  2. Do students understand how the design process fits into this activity?
  3. Were students able to properly implement the tests using JUnit?

Post-Activity Assessment

Performance: Hand out to each student the Testing with JUnit: Performance Assessment and Counter Java Class. Evaluate students' comprehension of the subject matter through this assessment that asks them to write JUnit test cases for the Counter class, which counts objects. This performance assessment is based on the Counter class, included in Counter Java Class. (Teacher note: The MS Word document version of the Counter Java Class is available in the Attachments section, while the previous link provides an easily viewable PDF version of the file.) See example answers in the Testing with JUnit: Performance Assessment Answers.
