Hands-on Activity What’s Your Angle? Assessing Wave Refractions

Quick Look

Grade Level: 11 (10-12)

Time Required: 1 hours 30 minutes

(or two 45-minute sessions)

Expendable Cost/Group: US $0.00

Group Size: 3

Activity Dependency: None

Subject Areas: Measurement, Physics

NGSS Performance Expectations:

NGSS Three Dimensional Triangle

Students perform the experiment. One student shines a laser through a glass of water, and another uses a pen to draw the path of the light on the placemat.
Students shine the laser light as part of the experiment.
Copyright © Gunjan Gupta, 2023. Picture taken in the classroom during the lab activity.


Students observe wave refraction in different mediums. They trace the path of light waves of a laser entering a medium and exiting the medium. Then they measure the angle of the refracted ray using a protractor to get an understanding of the concepts of how refraction works in different mediums. By the end of the lesson, students will be able to identify which substance refracted light the most and hypothesize a pattern of refraction based on the densities of the substance.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

In engineering, it is not enough to merely understand the concepts or ideas behind physical phenomena such as refraction. If engineers want to take a physical law of the universe and turn it into a product that performs a task, then the phenomenon must be quantifiable—they must be able to assign a mathematical function or equation to it that accurately predicts an outcome if the input parameters are manipulated purposefully. In a way, engineers are dictating the setup and letting nature take its course to a conclusion that the engineers can foresee from the start. Similarly, students play the role of engineers in this lesson when they use an equation for refraction (Snell's law) to predict what light will do given a specific scenario. They further act as engineers when they use this equation to define what a biosensor can be made to do under given conditions. In order to create workable products, engineers need more than basic information about physical concepts and how to manipulate them to perform tasks. More specifically, the information must be quantified or measurable in numerical form through precise analysis in order to ensure that exact inputs produce exactly the same outputs every time a task is performed. In this activity, students tackle this aspect of engineering as they solve problems for precise angles and speeds, and predict data output when samples are altered.

Learning Objectives

After this activity, students should be able to:

  • Explain that light refracts differently in different mediums.
  • Accurately measure the angle of refraction in different mediums.
  • Find the index of refraction using Snell’s law.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • CCC.4.9-12.10. Models (e.g., physical, mathematical, computer models) can be used to simulate systems and interactions—including energy, matter, and information flows—within and between systems at different scales. (Grades 9 - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

NGSS Performance Expectation

HS-PS4-1. Use mathematical representations to support a claim regarding relationships among the frequency, wavelength, and speed of waves traveling in various media. (Grades 9 - 12)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Use mathematical representations of phenomena or design solutions to describe and/or support claims and/or explanations.

Alignment agreement:

The wavelength and frequency of a wave are related to one another by the speed of travel of the wave, which depends on the type of wave and the medium through which it is passing.

Alignment agreement:

Empirical evidence is required to differentiate between cause and correlation and make claims about specific causes and effects.

Alignment agreement:

  • investigate behaviors of waves, including reflection, refraction, diffraction, interference, resonance, and the Doppler effect; (Grades 9 - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:

  • 100-ml beakers (6 per group)
  • 20 ml water
  • 20 ml ethyl alcohol
  • 20 ml clear dish soap
  • 20 ml corn syrup
  • 20 ml vegetable oil
  • What’s Your Angle? Worksheet
  • What’s Your Angle? Placemats (3 per group)
  • one laser (prefer green laser)
  • one protractor
  • one ruler
  • a dry-erase marker or masking tape (to label beakers)
  • safety goggles (one pair per student)

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/uoh-2792-wave-refractions-angle-activity] to print or download.

Pre-Req Knowledge

Student are expected to know:

  • The basic properties of light, such as reflection, refraction, absorption, transmission and scattering.
  • How to plot data points and determine the slope from the graph.
  • How to use a protractor to measure angles.


(To get started, show students Figure 1 and ask them whether the pencil is really broken. Ask them to google the reason why the pencil looks broken. Ask them which behavior of the light phenomenon is demonstrated in this example. (Answer: Refraction)

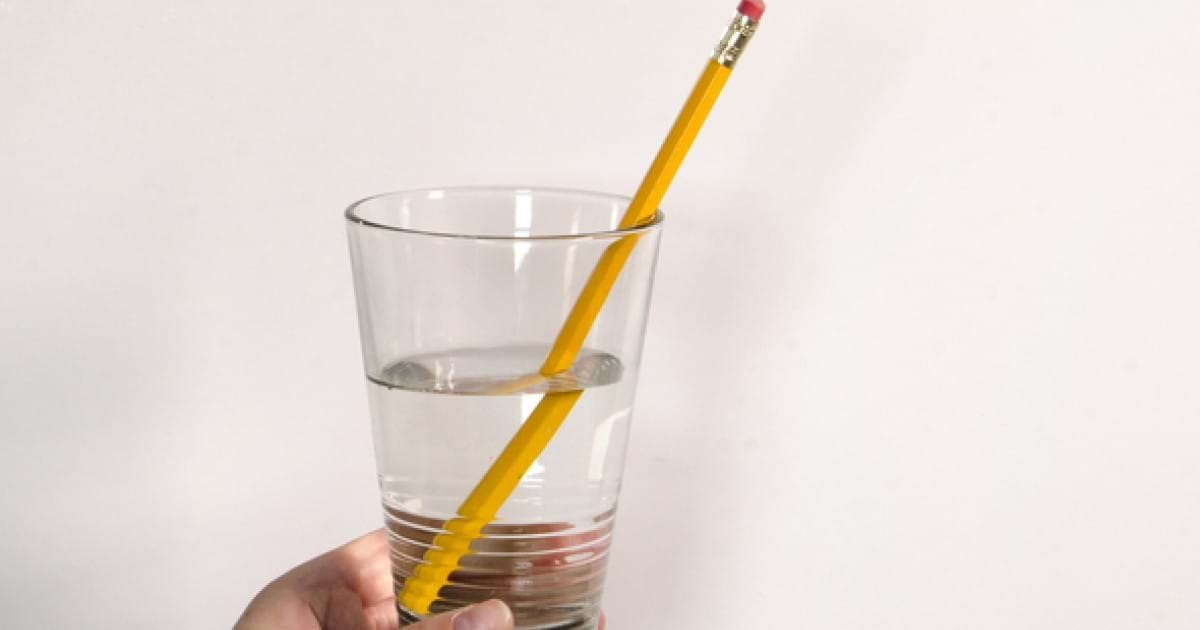

A photo of a pencil sitting upright inside a clear glass half filled with water. The pencil appears broken at the water/air interface.
Figure 1. A pencil looks broken when placed in a glass of water.
Copyright © Canada Science and Technology Museum, https://ingeniumcanada.org/scitech/education/try-this-out/broken-pencil-illusion

Then show one of these videos:

(2:35 minutes long): https://www.youtube.com/watch?v=lkv0uZTP_zo&t=82s

(4:52 minutes long): https://www.youtube.com/watch?v=zarxpu43-ls

(2:25 minutes long): https://www.youtube.com/watch?v=sv8-y7N0Ryw

(1:40 minutes long): https://www.youtube.com/watch?v=dPjvgYXJjzw)

When light passes from one medium to another, it changes speed. For example, when light passes from air to glass, it slows down. If light strikes a sheet of glass at a 90° angle, or perpendicular to the glass, it slows down but still passes straight through the glass. However, if light enters the glass at an angle other than 90°, the light bends as it slows down. The bending of light as it changes speed in a new medium is called refraction.

(Then show the students Figure 2.)

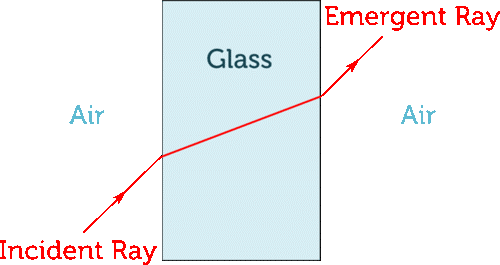

A diagram showing a light ray traveling through air, into a square of glass, and back into air. The incident ray bends as it enters the glass; the emergent ray bends again as it leaves the glass.
Figure 2. Light bends as it travels through different mediums.
Copyright © Canada Science and Technology Museum, https://ingeniumcanada.org/scitech/education/try-this-out/broken-pencil-illusion

Figure 2 shows how refraction occurs. Notice that the speed of light changes again as it passes from the glass back to the air. In this case, the speed increases, and the ray of light resumes its initial direction.

But do you know that light bends differently in different mediums?

If I experiment in two different beakers, where in one light travels from air to water and in another light travels from air to corn syrup, where do you think light will bend more: the corn syrup or the water? Let’s find out!


Before the Activity

With the Students

  1. Divide the class into groups of three or four students each.
  2. Introduce the activity using the Introduction/Motivation section.
  3. Give class instructions for the activity. Distribute copies of the What’s Your Angle? Worksheets and What’s Your Angle? Placemats.
  4. Remind everyone to follow lab safety precautions since chemicals and glassware will be used.
  5. Give each group lab materials. Have students mark the beakers with the liquid name and carefully place them on the placemats.

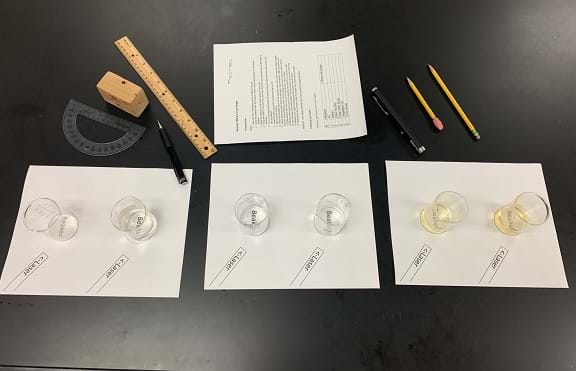

    Materials for the activity are laid out on the table. There are three paper placemats with two glasses sitting on each one. The activity worksheet, a protractor, ruler, laser, and pencils are also on the table.
    These are placeholders for the beakers to guide students where to place beakers and the lasers. It also shows which direction they should project the laser light.
    Copyright © Gunjan Gupta, 2023. Picture taken in the classroom during the lab activity.
  6. As students work through the What’s Your Angle? Worksheet, walk around and check on their progress. Ensure that students are working together and discussing their findings as a group. As appropriate, ask students the Investigating/Essential Questions to check on their understanding. The instructions on the worksheet are reproduced below for reference.

Instructions: Refraction Lab

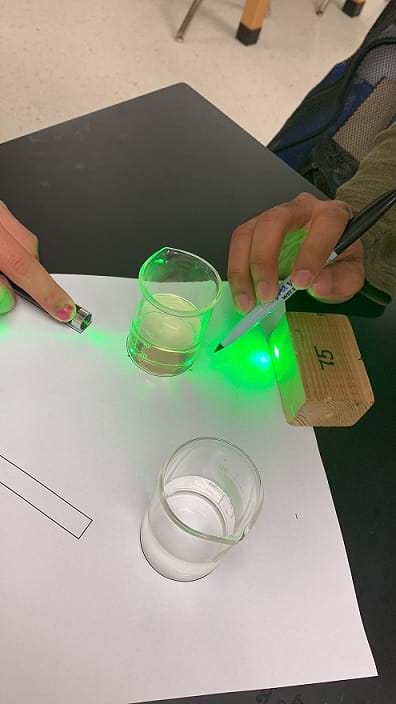

Students perform the experiment. One student shines a laser through a glass of water, and another student observes the experiment.
Students shine the laser light and mark the angles as part of the experiment.
Copyright © Gunjan Gupta, 2023. Picture taken in the classroom during the lab activity.


  1. Take six 100-ml beakers.
  2. Label the beakers with the medium name using masking tape or dry-erase markers as described below.

i)  Beaker 1 - air (leave the beaker empty)

ii)  Beaker 2 - water

iii) Beaker 3 - ethyl alcohol

iv) Beaker 4 - clear dish soap

v) Beaker 5 - vegetable oil

vi) Beaker 6 - corn syrup

  1. Add 20 ml of the labeled liquid to beakers 2 through 6.
  2. Keep the six beakers in the circles on the placemats.
  3. Search for the densities of the known liquids online.
  4. Place the laser on the placemat. Note the laser should always stay flat on the table.
  5. Turn on the laser and aim it toward beaker 1 at an angle.

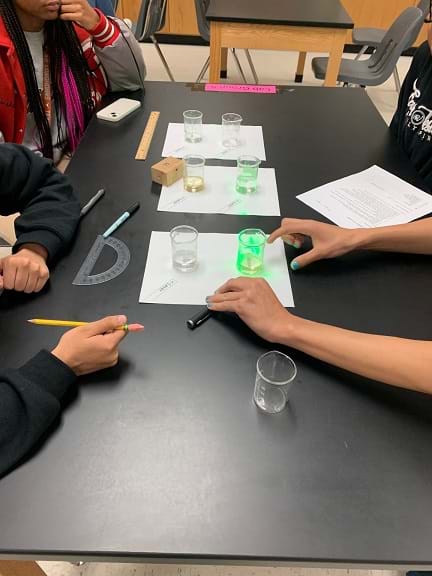

    Students perform the experiment. One student shines a laser through a glass of water, and another uses a pen to draw the path of the light on the placemat.
    Students shine the laser light as part of the experiment.
    Copyright © Gunjan Gupta, 2023. Picture taken in the classroom during the lab activity.
  6. Using a protractor, measure the angle the light from the beaker makes with the normal line (horizontal line).
  7. On the opposite side, ask one member to measure the angle of the refracted light with the normal line.

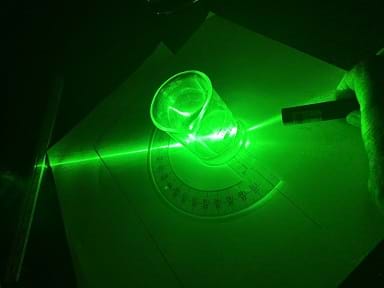

    A photograph of a laser shining through a glass of water with a protractor sitting on the table next to the glass. The path of the laser’s light appears to bend as it enters and exits the glass of water.
    Students use the marked points to draw the lines and record their angles using protractors as part of the experiment.
    Copyright © Gunjan Gupta, 2023. Picture taken in the classroom during the lab activity.
  8. Enter your data into the data table.
  9. Repeat the procedure for the rest of the beakers, pointing the laser toward the liquid. Use the same angle of entry for each liquid.
  10. Compute the index of refraction for each liquid using the angles from the data using the following formula:

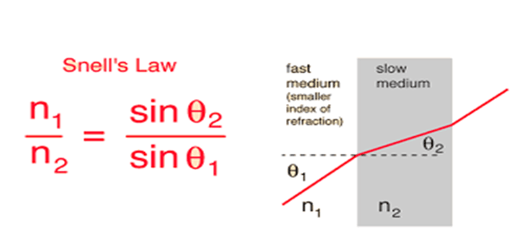

    Snell's Law
  11. Find the indices of refraction of the liquids used and enter them into the data table. Remember, because air is the first medium, the index of incidence (n1) will be 1.00.


electromagnetic wave: A wave that does not require a medium to travel; for example, it can travel through a vacuum. Also called an EM wave.

incident ray: A ray of light falling on the surface separating two mediums.

index of refraction: The value calculated from the ratio of the speed of light in a vacuum to that in a second medium of greater density.

medium: The material through which a wave travels. Gas (such as air), liquids (such as water), and solids (such as ropes) all act as mediums.

refracted ray: A ray of light traveling in another medium, with a change in direction.

refraction: The bending of waves as they enter a new medium at an angle, caused by a change in speed.

Snell’s law: A scientific equation that relates the index of refraction of a substance to the angle at which light bends in that substance. The mathematical form is n1sinθ1 = n2sinθ2, where n is the index of refraction (for substances 1 and 2) and θ is the angle at which light is refracted, as measured from a line perpendicular to the surface of the material (again for substances 1 and 2).

transverse wave: A wave that moves the medium at right angles to the direction in which the wave travels.

wave: A disturbance that carries energy from one place to another.

wavelength: The distance between one point on a wave and the exact same place on the next wave.


Pre-Activity Assessment

Open-class discussion: Open the discussion by asking questions related to the wave phenomenon. Ask students to think about why a straw looks bent or broken in water and why objects viewed through a glass bottle appear distorted. Remind them that no idea is “silly.” All thoughts should be respectfully heard.

Activity Embedded (Formative) Assessment

Group Activity: Have students work in groups of three or four on the lab activity. Have them spread the What’s Your Angle? Placemats (three copies per group) on the desk and place the beakers on the spots. Each placemat has a spot for two beakers, and thus makes space for a total of six beakers. These placemats give a visual of where to place beakers but are optional to use.

Recording Data: Then students will take and record the data as per the instructions given in the What’s Your Angle? Worksheet.

Post-Activity (Summative) Assessment

Compare and Summarize: Students will utilize the What’s Your Angle? Worksheet to compare their data and observations. Then they will write the summary of the experiment as a conclusion.

Investigating Questions

Should a fisherman aim at the fish? In front of the fish? Or beyond the fish? Think carefully!!

Answer: We know that a light ray traveling from air to water will be refracted (change direction), and so will a light ray from water to air.

A cartoon image of a fisherman aiming to throw a spear at a fish in water. A dotted line shows the anticipated path of the spear to hit the fish. A label next to the fish reads, “Fish appears here.” A large red “X” is on the image.
Figure 3. Where should the fisherman aim to hit the fish?
Copyright © Mammoth Memory, https://mammothmemory.net/physics/refraction/refraction-and-spearing-a-fish/refraction-and-spearing-a-fish.html

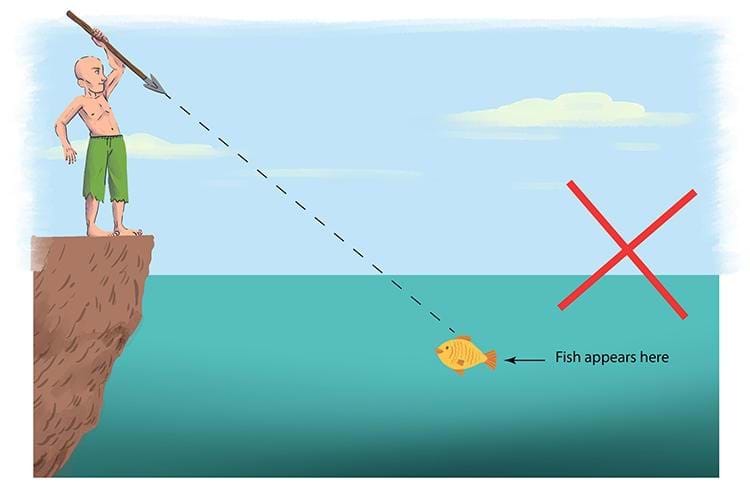

A cartoon image of a fisherman aiming to throw a spear at a fish in water. A solid line shows the anticipated path of the spear to hit the fish. A label next to the fish reads, “Fish appears here.” A second fish labeled, “Fish is actually here” is slightly to the left of the fish. A large green check mark is on the image.
Figure 4. The fish appears to be in a different position than where it actually is.
Copyright © Canada Science and Technology Museum, https://ingeniumcanada.org/scitech/education/try-this-out/broken-pencil-illusion

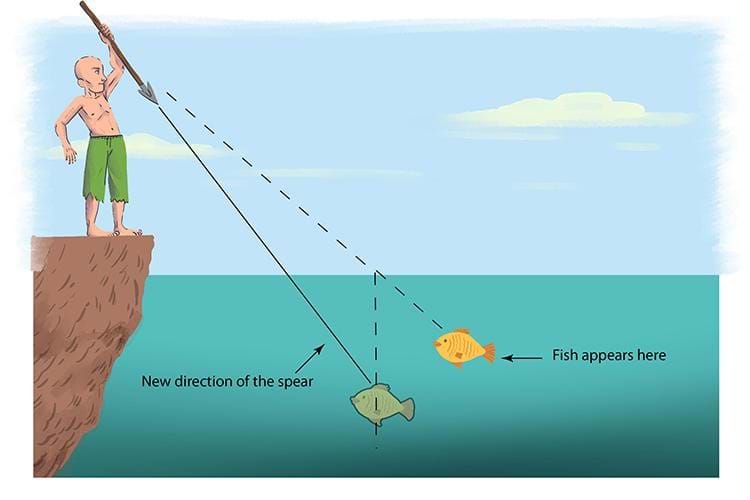

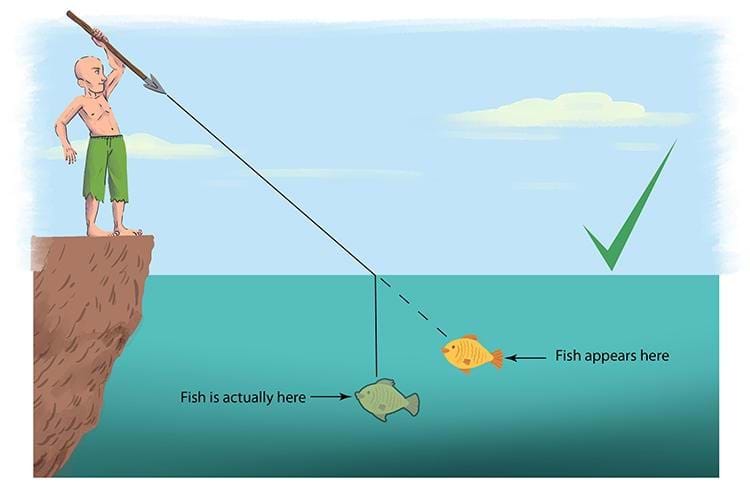

A cartoon image of a fisherman aiming to throw a spear at a fish in water. A solid line shows the anticipated path of the spear to hit the fish where it actually is; it is labeled “New direction of the spear.” A dotted lines shows the path of the spear to hit where the fish appears; a label next to the fish at the end of the dotted line reads “Fish appears here.”
Figure 5. The fisherman adjusts the direction of the spear to hit the fish.
Copyright © Canada Science and Technology Museum, https://ingeniumcanada.org/scitech/education/try-this-out/broken-pencil-illusion

How should he adjust the angle of throw? (Answer: The fisherman should aim in front of the fish and throw the spear at a smaller angle.)

The refraction of light at the surface of water makes ponds and swimming pools appear to be a lot shallower than they really are.

Safety Issues

  • Use safety goggles during this activity.
  • Be extra careful while using lasers.
  • Never stare directly into a laser, and never aim a laser beam at people.
    • Write the following safety reminder on the board: Do not look directly into the laser.
  • Wash hands with soap and water after the experiment.

Troubleshooting Tips

As needed, explain the Snell’s law formula and the diagram to students.

It may be necessary to briefly turn off the lights so students can see the path of the laser’s light through different mediums.

Activity Extensions

A prism is a great example to demonstrate refraction application. When light passes from air to the glass of the prism, the change in speed causes the light to change direction and bend. Because of the differences in the refraction index between the air and the glass, light bends once it enters the prism.

Prisms are made in many different forms and shapes, depending on the application. Have students search for the type of prisms used in binoculars, monoculars, periscopes etc., and how each affects the movement of light.

Additional Multimedia Support



“What is Refraction of Light” video (2:35-min long): https://www.youtube.com/watch?v=lkv0uZTP_zo&t=82s.

Possible other videos:
