Lesson: What's Up with All This Traffic?

Contributed by: STARS GK-12 Program, College of Engineering, University of South Florida

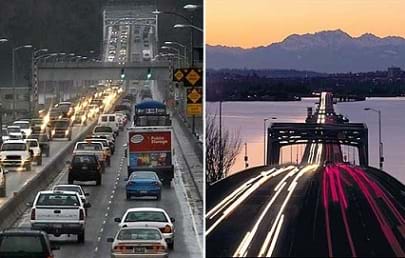

Two photos show traffic passing over bridges in Washington state.
Engineers analyze traffic and congestion to make important decisions on where to spend construction funds.
copyright
Copyright © Washington State Department of Transportation http://www.wsdot.wa.gov/Projects/SR520Bridge/Photos/Daily.htm

Summary

Expanding on the topic of objects in motion covering Newton's laws of motion, acceleration and velocity, which are taught starting in third grade, students are introduced to new concepts of speed, density, level of service (LOS) (quality of roadways), delay and congestion. Every day we are affected by congestion—even if we do not step out of our homes. For example, the price we pay for goods increases due to increases in shipping costs caused by congestion delays. A congestion metric would help us to compare roadways and assess improvement methods. A common metric used to measure congestion is called level of service (LOS).
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

It is estimated that traffic congestion caused roughly 700 million person hours of delay per year in the early 1980s, more than 2 billion hours of delay in the 1990s, and nearly 3.5 billion hours of delay by 2000. The costs of congestion from time delay, reduced productivity, lost opportunity and environmental emissions are approaching $100 billion a year. Continuing growth in the nation's population and economic activity ensures that these costs will continue to rise. LOS is used by engineers to determine priorities for allocating funding for roadway improvements to reduce congestion.

Learning Objectives

After this lesson, students should be able to:

  • Explain that an object in motion changes its position.
  • Explain that speed is a measurement of motion.
  • Calculate speed given distance traveled and time.
  • Describe the graphical relationship of distance vs. time for constant speed.
  • Describe congestion and its levels.
  • Identify the impacts of congestion.
  • Explain the responsibilities of engineers to reduce congestions and its associated costs.

More Curriculum Like This

Grading Congestion

Students construct a model roadway with congestion and apply their knowledge of level of service (LOS) to assign a grade to the road conditions.

Middle School Activity
Timing a Speedbot!

Students strengthen their communicate skills about measurements by learning the meaning of base units and derived units, including speed—one of the most common derived units (distance/time). Working in groups, students measure the time for LEGO® MINDSTORMS® robots to move a certain distance.

Elementary Activity
Keeping Our Roads Smooth

Students learn how roadways are designed and constructed, and discuss the advantages and limitations of the current roadway construction process. This lesson prepares students for the associated activity in which they act as civil engineers hired by USDOT to research through their own model experime...

High School Lesson
Crash! Bang!

Students also investigate the psychological phenomenon of momentum; they see how the "big mo" of the bandwagon effect contributes to the development of fads and manias, and how modern technology and mass media accelerate and intensify the effect.

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Fluently divide multi-digit numbers using the standard algorithm. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Fluently add, subtract, multiply, and divide multi-digit decimals using the standard algorithm for each operation. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use ratio reasoning to convert measurement units; manipulate and transform units appropriately when multiplying or dividing quantities. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Identify trends and monitor potential consequences of technological development. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Recognize that an object in motion always changes its position and may change its direction. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Investigate and describe that the speed of an object is determined by the distance it travels in a unit of time and that objects can move at different speeds. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Measure and graph distance versus time for an object moving at a constant speed. Interpret this relationship. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

Have you ever noticed times when the roads are filled with cars and other times when the roads are free of vehicles? Has anyone noticed that the more cars on the road, the slower speeds your parents drive or the longer it takes for you to arrive at your destination? Has an accident or a car with a blown tire on the side of the road ever caused your parents to slow down, allowing surrounding cars to get closer? These are all descriptions of congestion, which you may have heard your parents talk about. It is simply roads full of cars, trucks and buses. The more vehicles that are on a roadway the more congested it is, and usually it leads to stopped or stop-and-go movement. Engineers like to describe congestion as an excess of vehicles on a portion of roadway at a particular time resulting in speeds that are slower than normal. Also, one roadway may be congested while another one nearby may not be. The amount, location and time of congestion are always changing.

So, why do you think it is important to understand congestion? Well, who likes to be stuck in traffic when you can be doing something else? We call the time lost by sitting in traffic due to congestion "time delay." It is estimated that traffic congestion caused roughly 700 million person hours of delay per year in the early 1980s, more than 2 billion hours of delay in the 1990s, and nearly 3.5 billion hours of delay by 2000. The costs of congestion—time delay costs, reduced productivity and opportunity, environmental impacts, etc.—are approaching $100 billion a year, and these costs continue to rise. Every day you are impacted by the effects of congestion even if you do not step out of your home. Increased inventory and shipping costs due to delay caused by congestion are incorporated into the prices of items you buy at the store.

Lesson Background and Concepts for Teachers

How do we measure congestion? Engineers use a common metric (or measurement tool) called level of service or LOS. LOS is a measure of the effectiveness by which traffic engineers determine the quality of travel on roadways. Roads are assigned letters from A through F, with A being the best and F being the worst. LOS A is when traffic flows at or above the speed limit and occurs late at night in urban areas and frequently in rural areas. LOS F is when traffic is forced to a stop or forced to move extremely slow. Really bad bumper-to-bumper travel is an example of LOS F. Figure 1 shows the progression of congestion from LOS A to F.

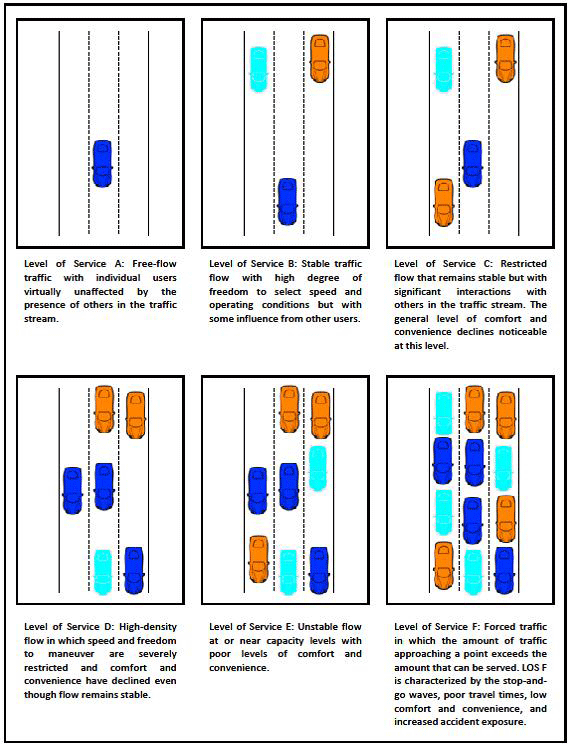

A progression of six drawings all show a three-lane roadway from above. LOS A shows one car (free-flow traffic), LOS B shows three cars (stable traffic flow), LOS C shows four cars (restricted flow), LOS D shows six cars (high-density flow), LOS E shows eight cars (unstable flow or near capacity) and LOS F with 12 cars (forced traffic or grid lock).
Figure 1. Level of service (LOS) characteristics.
copyright
Copyright © 2010 Jorge Fuentes, STARS, University of South Florida

LOS can be determined in two ways. The first is through the use of densities, the number of vehicles per mile per lane. Essentially, you can take a snapshot of a roadway, measure its length, and count the number of lanes and vehicles it has going in one direction. With those values, density can be calculated and compared to the Figure 2 chart to find the roadway's corresponding LOS. The units of measurement for traffic density are passenger cars per mile per lane (pc/mi/ln). However, who wants to take pictures every hour and count vehicles?

A table lists LOS, Max Density and Range: LOS A, 11, 0-11; LOS B, 18, 11-18; LOS C, 26, 18-26; LOS D, 35, 26-35; LOS E, 45, 35-45; LOS F, >45, >45.
Figure 2. Determining LOS by density levels.
copyright
Copyright © 2010 Jorge Fuentes, STARS, University of South Florida

The second method uses automatic traffic counters, which are those black wires that are stretched across a road. They help to gather data on flow and average vehicle speed along particular roadway sections. Flow is the number of vehicles passing along a point on the road in one hour. Speed is the measurement of how quickly an object moves by measuring the distance the object traveled and dividing it by the amount of time it took the object to travel. If we do not have a traffic counter, we can calculate flow by knowing the average speed of the vehicles and the density of the road. Then, by looking at the Figure 3 graph and using our average speed and flow values, we can determine the LOS level.

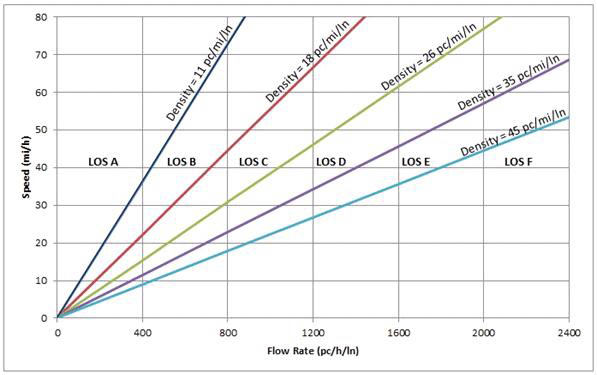

A graph of flow rate vs. speed shows five density lines radiating out from the 0, 0 point. These lines define areas of LOS used for determining LOS through flow and speed.
Figure 3. LOS for freeway segments.
copyright
Copyright © 2010 Jorge Fuentes, STARS, University of South Florida

The Figure 3 graph is composed of a horizontal axis showing flow rates and a vertical axis showing speed. The variously colored diagonal lines provide an additional source of information; they are density levels that correspond to flow rates and speeds. They serve to outline areas of LOS levels. For example, if vehicles on a roadway are driving with an average speed of 50 miles per hour (mph) and have a flow rate of 800 passenger cars per hour per lane (pc/h/ln), what LOS would the roadway have? Looking on the graph, the coordinate of (800, 50) falls between density lines 18 and 26 pc/mi/ln, which is in the LOS C area. Therefore, if vehicles are traveling on a roadway with a flow rate of 800 pc/h/ln and average speed of 50 mph, the roadway LOS is C.

Following is the mathematical procedure to derive density using the units of measurement for speed and flow:

Mathematical calculation starts with flow = # of vehicles / (lane) (hr) and speed = mphr and ends with flow = speed x density.

Vocabulary/Definitions

congestion: An excess of vehicles on a portion of roadway at a particular time resulting in slower than normal speeds.

delay: The time lost by sitting in traffic due to congestion.

density: The number of vehicles per mile per lane.

destination: The end location of a person's trip.

flow: The number of vehicles per hour per lane.

level of service (LOS): A measure-of-effectiveness by which traffic engineers determine the quality of travel on roadways.

speed: The measure of an object's change in position during a unit of time.

traffic: The movement of vehicles along a roadway.

Associated Activities

  • Grading Congestion - Students use basic tools (stopwatches, measuring wheels and calculators) to determine LOS on a modeled track using both flow and density procedures. To mimic roadway congestion, a few students walk around a track outlined with cones or ropes while the rest of the students collect data and perform the calculations to determine the track's LOS.

Assessment

Pre-Lesson Questions: Ask students the following questions:

  • Have you ever noticed times when there are a lot of cars on the road and other times when there are not so many?
  • What are some examples? When have you noticed the roads filled with cars? (Possible examples: Mornings on the way to school, evening "rush hour" around 5 pm, etc.)
  • Do you remember a time of day when very few cars were on the road? (Possible examples: Late at night, very early in the morning, on Super Bowl Sunday, etc.)
  • When more cars are on the road, what happens to the speed your parents drive? Or to the amount of time it takes to arrive at your destination? (Answers: Parents drive slower; it takes longer to reach the destination.)
  • What types of events might cause your parents to slow down while driving, allowing surrounding cars to get closer? (Possible answers: Traffic accidents, a car with mechanical problems on the side of the road, a spill or debris on the roadway, etc.)

During the Lesson Questions: Ask students the following questions:

  • Ask students to define the vocabulary words that were introduced, such as destination, speed and level of service. (See the Vocabulary section for definitions.)
  • What roadways are filled with lots of cars most of the time? (Possible answers: Boulevards, highways, interstates, freeways.)
  • What roadways do not usually have as many cars on them?(Possible answers: Lanes, drives, neighborhood streets.)
  • During what times does congestion seem to be the worst? (Answer: 7:30 am–9:30 am and 4:30 am–6:30 am, considered to be "rush hour" periods.)

Summary Questions: Ask students the following questions:

  • When density increases, what happens to LOS? (Answer: It decreases.)
  • When the roads are filled with cars, does it take them more or less time to get to their destinations? (Answer: More time.)
  • What tools are needed to determine speed? (Answer: A stopwatch and a distance measuring device such as a measuring tape or measuring wheel.)

Data Gathering Homework: Assign students to count cars and observe vehicle speeds the next time they ride in cars or buses. Count and record on paper the number of vehicles seen around them that are heading in the same direction and ask the driver the speed s/he is driving. At a later class period, have students share and discuss their findings. (Example answer: 20 cars and 20 mph.)

References

Winston, Clifford, and Ashley Langer. "The Effect of Government Highway Spending on Road Users' Congestion Costs." Journal of Urban Economics (2006). AEI-Brookings Joint Center. Web. 13 Oct. 2009. http://www.brookings.edu/views/papers/winston/200605-aeijc.pdf

Harrington, Winston, Alan J. Krupnick, and Anna Alberini. "Overcoming Public Aversion to Congestion Pricing." (1998). Resources for the Future. Web. 13 Oct. 2009. http://www.rff.org/rff/Documents/RFF-DP-98-27.pdf

Transportation Research Board. (2000). Highway Capacity Manual 2000. National Research Council, Washington, DC
