Lesson: Microfluidic Devices and Flow Rate

Contributed by: VU Bioengineering RET Program, School of Engineering, Vanderbilt University

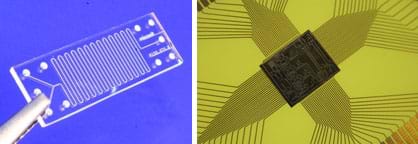

Two images: Photo shows a pair of silver tweezers holding a rectangular piece of clear glass with etched lines and 10 holes—a glass microreactor made by Micronit Microfluidics. Second image looks like a multi-shaded wide cross shape with protruding roughly parallel lines and a center rectangle engraved with fine straight and curved lines—a microelectromechanical systems chip.
Figure 1. Example lab-on-chip microfluidic devices designed to simulate the behavior of new medicines in the body, with the eventual goal to help us diagnose a wide range of medical conditions.
copyright
Copyright © (left) Micronit, Wikimedia Commons. {PD}; (right) 2003 Maggie Bartlett, National Human Genome Research Institute {PD} http://en.wikipedia.org/wiki/File:Glass-microreactor-chip-micronit.jpg http://www.genome.gov/pressDisplay.cfm?photoID=20017

Summary

Students obtain a basic understanding of microfluidic devices, how they are developed and their uses in the medical field. After conducting the associated activity, they watch a video clip and learn about flow rate and how this relates to the speed at which medicine takes effect in the body. What they learn contributes to their ongoing objective to answer the challenge question presented in lesson 1 of this unit. They conclude by solving flow rate problems provided on a worksheet.

Engineering Connection

Biomedical, medical, chemical, electrical, mechanical, materials and computer engineers are all involved in assisting biologists and physicians in developing devices that enable us to observe microscopic cell interactions and reactions. Engineers design microfluidic devices to simulate how the body works and reacts. Engineers design artificial environments that simulate the body, and aid in the growth of cells. Other engineers create all sorts of devices and tools used in experiments.

Pre-Req Knowledge

Students must be able to solve one- and two-step equations with variables (pre-algebra/algebra 1 level work).

Learning Objectives

After this lesson, students should be able to:

  • Describe how microfluidic devices work.
  • Determine flow rate.

More Curriculum Like This

How Antibiotics Work

Students are introduced to a challenge question. Towards answering the question, they generate ideas for what they need to know about medicines and how they move through our bodies, watch a few short videos to gain multiple perspectives, and then learn lecture material to obtain a basic understandin...

High School Lesson
Exploring Nondestructive Evaluation Methods

Students learn about nondestructive testing, the use of the finite element method (systems of equations) and real-world impacts, and then conduct mini-activities to apply Maxwell’s equations, generate currents, create magnetic fields and solve a system of equations. They see the value of NDE and FEM...

Changing Fields

Students induce EMF in a coil of wire using magnetic fields. Students review the cross product with respect to magnetic force and introduce magnetic flux, Faraday's law of Induction, Lenz's law, eddy currents, motional EMF and Induced EMF.

High School Lesson
Get in My Body: Drug Delivery

Students are challenged to think as biomedical engineers and brainstorm ways to administer medication to a patient who is unable to swallow. They learn about the advantages and disadvantages of current drug delivery methods—oral, injection, topical, inhalation and suppository—and pharmaceutical desi...

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Rearrange formulas to highlight a quantity of interest, using the same reasoning as in solving equations. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use units as a way to understand problems and to guide the solution of multi-step problems; choose and interpret units consistently in formulas; choose and interpret the scale and the origin in graphs and data displays. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Throughout history, new technologies have resulted from the demands, values, and interests of individuals, businesses, industries, and societies. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Established design principles are used to evaluate existing designs, to collect data, and to guide the design process. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Rearrange formulas to highlight a quantity of interest, using the same reasoning as in solving equations. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use units as a way to understand problems and to guide the solution of multi-step problems; choose and interpret units consistently in formulas; choose and interpret the scale and the origin in graphs and data displays. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

(In advance, prepare to show students a short video clip [attached; also available on the internet]. Make copies of the attached Flow Rate Worksheet, one per student.)

You have already identified which form of a medication works the fastest. Now we want to determine if anything else can be done to make the medicine work even faster once it has entered the body. I wonder what you'll predict will be the solution!

(Remind students of the Challenge Question that was introduced in lesson 1 of this unit.) One morning you don't feel very well, so your parents take you to see a doctor. The doctor suggests a generic antibiotic, and asks whether you would like to have the prescription filled in one of three ways: as a pill, in liquid form, or as a shot. Which delivery method should you choose? And, is there anything else you can do to feel better more quickly?

(Continue with a class discussion of microfluidic devices and how they are used in the development of medicine.) What is a microfluidic device? (Use lecture information provided in the Lesson Background section.)

(For the Test Your Mettle stage, lead in to the associated activity, in which students make model microfluidic devices at a larger than real-life scale.) While we do not have the materials necessary to create a true lab-on-a-chip device in the classroom, we can replicate the process using different materials on a much larger scale.

(After creating the devices, as described in the associated activity, continue on with the video and math worksheet.)

Now that we have created and tested our devices, let's watch a video of particles flowing through a microfluidic device. (For the Generating Ideas stage, show the attached 31-second video clip, Microfluidic Device Particle Flow Video. It shows particles moving through a lab-on-a-chip microfluidic device at various speeds, depending on the size of the channels.) Pay attention to what is occurring in each of the channels, and how that affects where the particles drop. (Then, ask the students:)

  • What do you notice about the movement of the particles? (Possible answers: Slower particles fall to the bottom of the channel quickly, the faster particles all end up in the "pit" at the end.)
  • How would these different flow rates affect the delivery of medicine? (Answer: Flow rate determines the amount of fluid that flows, and determines how particles are distributed.)
  • What is the most effective flow rate (slow, medium, fast)? (Answer: A medium flow rate leaves the particles well dispersed on the bottom of the channel.)
  • How is flow rate increased/decreased? (Answer: Flow rate is altered by the size of the channel and/or pressure of the fluid.)
  • How can we increase/decrease the "flow rate" in a human body? (Answer: Increasing heart rate increases how fast blood moves through the veins.)

(Introduce students to the flow rate equation and how to determine flow rate. Solve several example problems, as provided in the Lesson Background section. Conclude by handing out the Flow Rate Worksheet for students to complete as homework).

Lesson Background and Concepts for Teachers

Legacy Cycle Information: This lesson continues the Generate Ideas, Multiple Perspectives, Research and Revise stages of the legacy cycle. Students are reminded of the Challenge Question and learn about microfluidic devices and how they are used in the development of medicine, before beginning the associated activity. The next day, they complete the activity, watch the video and learn about flow rates, concluding with a worksheet of flow rate problems to solve.

Lecture Information: Microfluidic devices (see examples in Figure 1) are used in experiments called lab-on-a-chip experiments. In these experiments, the entire procedure is performed and viewed on a microscopic level. Lab-on-a-chip experiments usually take place on glass slides used with standard microscopes. The microfluidic device is irreversibly sealed to the glass slide.

Using this method enables us to understand what happens at the molecular level in the body and to any type of cell. For example, we can view how a disease affects cells in the body. In one instance, two groups of molecules were separated by a microscopic barrier. Then a scientist was able to collapse the barrier and observe how one group of molecules moved and was attracted to the other group. Then the scientist re-closed the barrier and observed the disease begin to take over (whether it killed the cells, attached to the cells, etc.). Because the molecules are in an environment similar to conditions in the body, we are able to view changes, often in real-time, as fluids, chemicals and/or cells pass through specially designed channels. These experiments are important because they enable testing of new medicines before using on animals and humans.

To design microfluidic devices, engineers must research how particles move in the body. Biologists describe what natural occurrences they wish to re-create for their experiments and the engineers develop channels, barriers and other passages that produce effects similar to those that occur in the body (a simulation). For instance, to see how molecules "mix" in the blood, we could design multiple channels that merge and then zigzag many times; the zigzagging route would cause the liquids to combine. If engineers have limited background in biology, they research the specific topic so they fully understand it. Microfluidic devices are often made using a soft-polymeric system that allows scientists and biomedical engineers to create a single master from which they can develop an infinite number of copies. This method is cost effective and allows for the simple and quick production of many devices. When exposed to oxidized plasma, the material used, polydimethylsiloxane (called PDMS), produces irreversible bonding to glass surfaces, such as microscope slides.

Example Problems: Students should be able to solve one- and two-step equations with variables. Go through a few examples with them:

Figure shows an equation which would read "Q is equal to V times pi times D squared all divided by 4".

where D is the inside diameter, and V is the velocity.

The figure would read "1. Solve for h, A = one-half times b times h (Answer is h = 24 divided by b) and 2. Solve for l, V = l times w times h (Answer: l = A divided by (w times h).

Also have students solve for variables when given information.

  1. The area of a triangle is 36 inches, with a base of 4 inches. Find the height, using the information from #1, above. (Answer: h = 18 inches)
  2. The volume of a rectangular box is 268 cm, with a length of 16 cm. The width is the same as the length. Find the height of the box. (Answer: h = 1.047 cm)

Vocabulary/Definitions

flow rate: The amount of fluid that flows in a given time.

lab-on-a-chip (LOC): A device that combines one or more laboratory functions on a single chip that is less than a few square cm in size and handles extremely small fluid volumes.

microfluidic device: A device that deals with the behavior, precise control and manipulation of fluids that are geometrically constrained to a small, often sub-millimeter, scale.

Associated Activities

  • Making Model Microfluidic Devices Using JELL-O - Students make large-scale models of microfluidic devices using a bonding process similar to that used in the creation of lab-on-a-chip devices. They use disposable foam plates, bendable plastic straws, tape and JELL-O mix. From what they learn, students are able to answer the challenge question presented in lesson 1 of this unit.

Attachments

Assessment

Pre-Lesson Assessment

Discussion Questions: Ask the students the following questions and discuss as a class.

  • What do you do after you take medicine?
  • What types of advice have your parents offered to help you feel better?

Post-Introduction Assessment

Discussion Questions: After conducting the first half of the associated activity, and then watching the video, ask the students the following questions and discuss as a class.

  • How might flow rate be seen in the body? (Answer: In our blood streams, through veins and arteries.)
  • How might flow rate be used in the body? (Answer: To measure blood flow.)
  • How might the particles shown in the lab-on-a-chip video relate to medicine?

Lesson Summary Assessment or Homework

Worksheet: Have students complete the problems on the attached Flow Rate Worksheet. Review their answers to gauge their comprehension of the subject

Additional Multimedia Support

The attached 31-second video clip, called "0.5microL_fast.avi," is also available on YouTube at http://youtu.be/YDD0WAAYw4s.
