Hands-on Activity: Renewable Energy Living Lab: Smart Solar

Contributed by: Civil and Environmental Engineering Department, Colorado School of Mines

Two images. A screen image shows a red and orange map the Los Angeles metro area with a zoom tool. Photo shows a field of angled shiny solar panels surrounding a tower.
The color-coded map shows high solar power potential in southern California, such as the location of this field of solar panels in Barstow, CA.
copyright
Copyright © (left) 2012 Renewable Energy Living Lab, Colorado School of Mines; (right) 1996 Sandia National Laboratories via US Dept. of Energy https://www.eeremultimedia.energy.gov/solar/photographs/solar_two_tower_system

Summary

Students use real-world data to evaluate whether solar power is a viable energy alternative for several cities in different parts of the U.S. Working in small groups, they examine maps and make calculations using NREL/US DOE data from the online Renewable Energy Living Lab. In this exercise, students analyze cost and availability for solar power, and come to conclusions about whether solar power is a good solution for four different locations.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Many different methods are used to collect energy; some methods are better suited to a particular area than others. Engineers use data to understand the problem and evaluate viable solutions. When designing systems to produce or transmit sustainable energy, or power, engineers look at opportunities to harness renewable resources such as wind, sunlight, biofuels, geothermal heat and flowing water. Two important factors in analyzing the feasibility of a renewable energy source are cost and availability, which engineers routinely consider as they evaluate potential solutions.

Scientists and engineers around the world gather data through observation and experimentation and use it to describe and understand how the world works. The Renewable Energy Living Lab gives students a chance to evaluate U.S. renewable energy sources. Using the real-world data in the living lab enables students and teachers to practice analyzing data to solve problems or answer questions, in much the same way that scientists and engineers do every day.

Learning Objectives

After this activity, students should be able to:

  • Use the Renewable Energy Living Lab to collect data.
  • Describe the factors (cost, availability, others?) limiting renewable energy.
  • Perform a basic economic analysis.

More Curriculum Like This

Renewable Energy Living Lab: Exploring Regional Resources

Students become familiar with the online Renewable Energy Living Lab interface and access its real-world solar energy data to evaluate the potential for solar generation in various U.S. locations. Through this activity, students and teachers gain familiarity with the living lab's GIS graphic interfa...

Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

High School Lesson
Renewable Energy Living Lab: Energy Experts

Students use real-world data to evaluate various renewable energy sources and the feasibility of implementing these sources. Working in small groups, students use data from the Renewable Energy Living Lab to describe and understand the way the world works.

Renewable Energy Living Lab: The Bright Idea

Students use real-world data to evaluate the feasibility of solar energy and other renewable energy sources in different U.S. locations. Working in small groups, students act as engineers evaluating the suitability of installing solar panels at four company locations.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Fluently divide multi-digit numbers using the standard algorithm. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve unit rate problems including those involving unit pricing and constant speed. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Fluently add, subtract, multiply, and divide multi-digit decimals using the standard algorithm for each operation. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use ratio reasoning to convert measurement units; manipulate and transform units appropriately when multiplying or dividing quantities. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • The design process is a purposeful method of planning practical solutions to problems. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • The management of waste produced by technological systems is an important societal issue. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Decisions to develop and use technologies often put environmental and economic concerns in direct competition with one another. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Throughout history, new technologies have resulted from the demands, values, and interests of individuals, businesses, industries, and societies. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Social and cultural priorities and values are reflected in technological devices. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Design is a creative planning process that leads to useful products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Requirements for design are made up of criteria and constraints. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Energy can be grouped into major forms: thermal, radiant, electrical, mechanical, chemical, nuclear, and others. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Energy resources can be renewable or nonrenewable. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Earth's natural resources provide the foundation for human society's physical needs. Many natural resources are nonrenewable on human timescales, while others can be renewed or recycled (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • computer with internet access (or printed or projected renewable energy potential maps as found on the Renewable Energy Living Lab website)
  • Smart Solar Worksheet, one per student

Introduction/Motivation

(Lead a class discussion.) To understand how energy affects our lives, let's consider some questions.

  • Why do we need to generate energy? (Listen to student ideas. Example answers: We need energy to power our industries, to move from place to place, to grow and cook our food, to warm or cool our homes.)
  • From where do we get our power/electricity currently? (Example answers: Petroleum/oil, coal, solar, wind, hydropower.)

Let's consider different sources of energy.

  • What does "renewable" mean? (Example answer: One definition is that renewable sources are those that will never dwindle or be used up because of use or overuse. Renewable energy comes from natural resources such as wind, plant material, water [rain or tides], geothermal and sunlight, and is naturally replenished.)
  • How is "renewable" the same and how is it different from "green energy"? (Points to make: "Green energy" commonly means that no pollution or environmental hazards are created during the energy generation process. All energy sources require energy to generate and have some impact, so the definition of "green" is debatable. For example, solar energy can be collected passively, but energy and materials are required to produce the panels, and that production may generate waste products.)

Today, we will focus on determining whether solar energy is a feasible source of renewable energy for cities across the country.

  • To consider whether solar energy is feasible, what questions would you ask? (Listen to student suggestions. Example questions: How does it work? How much power potential exists? How much does it cost? What is its environmental impact? Is the resource available in the area where we need it?)

We will learn more about renewable energy potential sources using the online Renewable Energy Living Lab. We will look at data acquired and presented by the Department of Energy National Laboratories.

Vocabulary/Definitions

biomass: Biological (organic) material from living or dead organisms (especially plants) used as an energy source. Biomass used for electricity generation varies widely by region. Examples: Forest and wild plant growth (trees, branches, stumps), industrial wastes (such as from lumber and paper mills), urban waste (park trimmings, yard clippings, municipal solid waste, animal matter, sewage, food scraps), agricultural residues and fuel crops (corn, sugarcane, bamboo, hemp, wheat, straw, rice husks, grasses, algae, seaweed, animal fats, vegetable oils), etc.

fossil fuel: A type of fuel formed by the decay and decomposition process of dead organisms buried in the Earth for millions of years. Examples: Petroleum, natural gas, coal.

geothermal energy: Thermal (heat) energy from heat present under the Earth's surface.

hydropower: Power created from the movement (falling) of water. Dams are often used to create hydropower that can be converted to electricity.

renewable energy: Energy obtained from natural resources that are continually replenished, for example, regardless of how much of the Sun's heat energy is "used" today, more is received by the Earth tomorrow. Examples: Sunlight (solar energy), water (hydropower), geothermal, biomass.

wind turbine: A device similar to a windmill that moves with the wind to convert the kinetic energy created by the wind to mechanical energy. This mechanical energy can be converted to electrical energy as well.

Procedure

Before the Activity

  • Prepare the computers and make copies of the Smart Solar Worksheet.
  • Divide the class into groups of two or three students each. Small groups work best so each student has a chance to explore the living lab data.

With the Students

  1. Provide students with background for the activity, and the challenge: Many people assume that building solar panels is always a smart idea. But is it? Your engineering task is to analyze solar energy data from the living lab to determine if solar panels are always a smart choice. To solve this problem, we'll use real data hosted on a website called "a living lab."
  2. Hand out the worksheets as a guide for the activity. Review the worksheet with the class.
  3. Show students how to use the Renewable Energy Living Lab, as described in the next steps.
  4. Navigate students to http://www.teachengineering.org/livinglabs/index.php> click on Renewable Energy Living Lab.
  5. Review the five renewable energy icons; discuss why each icon is appropriate for the energy type it represents (wind, biomass, hydro, geothermal, solar).
  6. As an introduction to renewable energy, review the descriptive paragraphs about each energy source the page. Visit each "How It Works" link to explore the engineering.

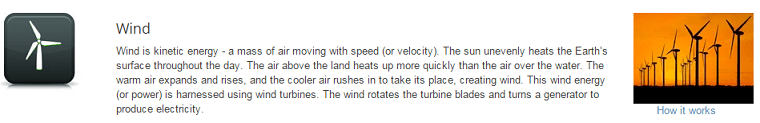

    Wind is kinetic energy—a mass of air moving with speed. The Sun unevenly heats the Earth's surface throughout the day. The air above the land heats up more quickly than the air over the water. The warm air expands and rises, and the cooler air rushes in to take its place, creating wind. This wind energy (or power) is harnessed using wind turbines. The wind rotates the turbine blades and turns a generator to produce electricity.
    A brief description of wind energy, as found on the Renewable Energy Living Lab introduction page. Note the "How It Works" hot link.
    copyright
    Copyright © 2012 Renewable Energy Living Lab, Colorado School of Mines
  7. Choose age group K-12.
  8. Zoom in on your state by double clicking on the map and/or using the mouse hand and the zoom and pan tool.
  9. Check the boxes under the Resources folder (located on the left under the Data Layers tab) to switch between the maps depicting the potential for the five different forms of renewable hydropower, biomass, geothermal, wind and solar. Use the icons in the lower left corner to read more information about each form of energy.

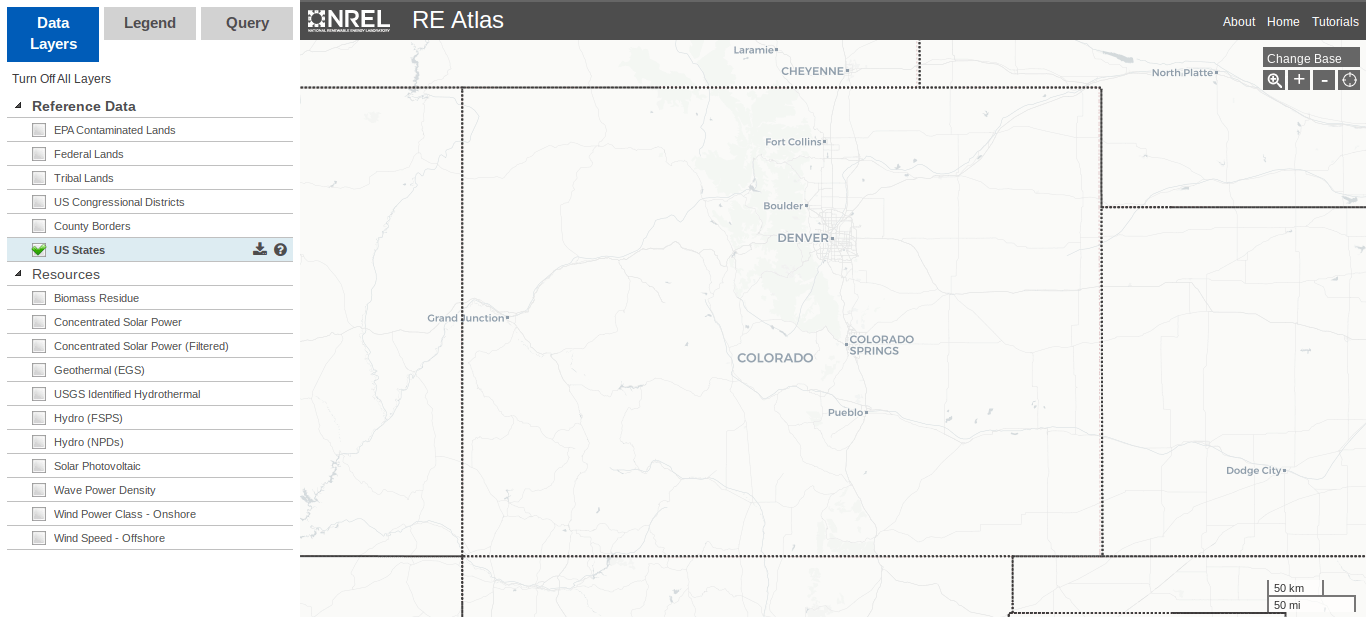

    A map of Colorado.
    On the map, use the zoom and pan tool to find locations.
    copyright
    Copyright © 2016 Renewable Energy Living Lab, Colorado School of Mines.
  10. Guide students to complete the "Engage" section of the worksheet. Show them the links about how solar works and direct them to explore the links to improve their understanding.

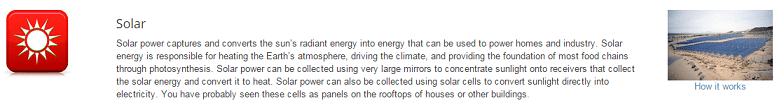

    Solar power captures and converts the sun's radiant energy into energy that can be used to power homes and industry. Solar energy is responsible for heating the Earth's atmosphere, driving the climate, and providing the foundation of most food chains through photosynthesis. Solar power can be collected using very large mirrors to concentrate sunlight onto receivers that collect the solar energy and convert it to heat. Solar power can also be collected using solar cells to convert sunlight directly into electricity. You have probably seen these cells as panels on the rooftops of houses or other buildings.
    A brief description of solar energy, as found on the Renewable Energy Living Lab introduction page. Note the "How It Works" hot link.
    copyright
    Copyright © 2012 Renewable Energy Living Lab, Colorado School of Mines

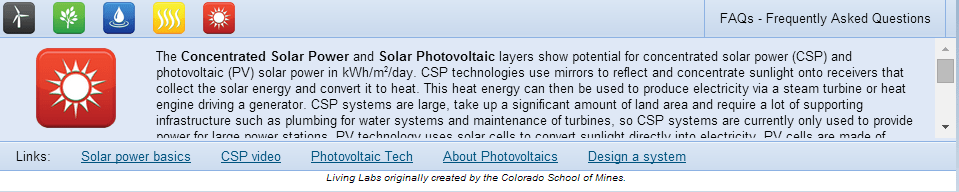

    Screen capture shows solar power info and links to further info.
    Example Renewable Energy Living Lab screen showing solar power information and additional links.
    copyright
    Copyright © 2012 Renewable Energy Living Lab, Colorado School of Mines
  11. Guide students to complete the "Explore" and "Elaborate" sections of the worksheet.
  12. Guide students to complete the "Evaluate" section of the worksheet. Answers may vary, but the obvious best energy source choices for the targeted cities are listed below:
  • Minneapolis: biomass or solar
  • Las Vegas: geothermal or solar
  • Portland: biomass
  • San Antonio: solar, biomass, geothermal
  1. Conclude by facilitating a class discussion to share results and conclusions, as described in the Assessment section. Have students turn in their worksheets for grading.
