Quick Look
Grade Level: 3 (35)
Time Required: 1 hour
Expendable Cost/Group: US $0.00
This activity requires the use of nonexpendable (and highly reusable) LEGO® MINDSTORMS® kits that contain sensors and other supplies; see the Materials List for details.
Group Size: 4
Activity Dependency: None
Subject Areas: Physical Science
NGSS Performance Expectations:
3PS22
Summary
Students learn about gear ratios and power by operating toy mechanical cranes of differing gear ratios. They attempt to pick up objects with various masses to witness how much power must be applied to the system to oppose the force of gravity. They learn about the concept of gear ratio and practice calculating gear ratios on worksheets, discovering that smaller gear ratios are best for picking objects up quickly, and larger gear ratios make it easier to lift heavy objects.Engineering Connection
Gears are incorporated into almost all mechanical machines. From cars to cranes, different gear ratios provide ways to increase or decrease torque depending on the task at hand. Engineers figure out what torque is needed for each situation and the corresponding gear ratio for a fixed power.
Learning Objectives
After this activity, students should be able to:
 Measure gear diameters.
 Compute gear ratios used in a simple machine.
 Describe the characteristics of different gear ratios, including speed and torque.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards  Science
NGSS Performance Expectation

3PS22. Make observations and/or measurements of an object's motion to provide evidence that a pattern can be used to predict future motion. (Grade 3) Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices  Disciplinary Core Ideas  Crosscutting Concepts
Make observations and/or measurements to produce data to serve as the basis for evidence for an explanation of a phenomenon or test a design solution. Alignment agreement: Science findings are based on recognizing patterns.Alignment agreement:  The patterns of an object's motion in various situations can be observed and measured; when that past motion exhibits a regular pattern, future motion can be predicted from it. (Boundary: Technical terms, such as magnitude, velocity, momentum, and vector quantity, are not introduced at this level, but the concept that some quantities need both size and direction to be described is developed.) Alignment agreement:  Patterns of change can be used to make predictions. Alignment agreement:
Common Core State Standards  Math

Multiply and divide within 100.
(Grade
3)
More Details
Do you agree with this alignment?

Multiply or divide to solve word problems involving multiplicative comparison, e.g., by using drawings and equations with a symbol for the unknown number to represent the problem, distinguishing multiplicative comparison from additive comparison.
(Grade
4)
More Details
Do you agree with this alignment?

Use the four operations with whole numbers to solve problems.
(Grade
4)
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Design solutions by safely using tools, materials, and skills.
(Grades
3
5)
More Details
Do you agree with this alignment?
State Standards
New York  Math

Multiply and divide within 100.
(Grade
3)
More Details
Do you agree with this alignment?

Use the four operations with whole numbers to solve problems.
(Grade
4)
More Details
Do you agree with this alignment?

Multiply or divide to solve word problems involving multiplicative comparison, e.g., by using drawings and equations with a symbol for the unknown number to represent the problem, distinguishing multiplicative comparison from additive comparison.
(Grade
4)
More Details
Do you agree with this alignment?
New York  Science

Make observations and/or measurements of an object's motion to provide evidence that a pattern can be used to predict future motion.
(Grade
3)
More Details
Do you agree with this alignment?
Subscribe
Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!Materials List
Each group needs:
 The Claw Worksheet, one per student
To share with the entire class:

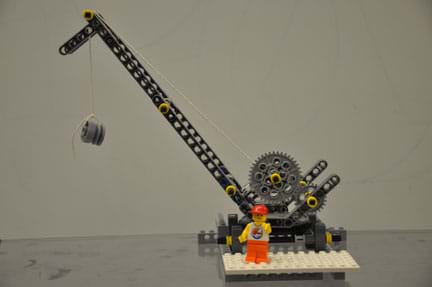

 LEGO parts to make three cranes with differing gear ratios (See Figures 1 and 2)
 9 objects with varying masses (for the cranes to lift)
 string
 3 hooks
Worksheets and Attachments
Visit [www.teachengineering.org/activities/view/nyu_claw_activity1] to print or download.More Curriculum Like This
Students are introduced to gear transmissions and gear ratios using LEGO® MINDSTORMS® EV3 robots, gears and software. They learn how to build the transmission part of a vehicle by designing gear trains with different gear ratios. Once students learn the principles behind gear ratios, they are put to...
Student teams are challenged to design a gear set that will lift a given load as quickly as possible. They test and refine their designs to find the ideal gear ratio, one that provides enough torque to lift the weight while still achieving the fastest speed possible.
Students are introduced to an important engineering element—the gear. Different types of gears are used in many engineering devices, including windup toys, bicycles, cars and nondigital clocks. Students learn about various types of gears and how they work in machines.
Students work as engineers and learn to conduct controlled experiments by changing one experimental variable at a time to study its effect on the experiment outcome. Student groups assemble LEGO® MINDSTORMS® EV3 robots with variously sized gears in a gear train and then design programs using the EV...
PreReq Knowledge
A familiarity with the mathematical operation of division, the concepts of speed and energy, and how to use measuring tools, such as rulers.
Introduction/Motivation
Who has been to Chucky Cheese's or a fair? If you have been to an arcade, carnival or Chucky Cheese's, you know about the crane game! Picture that game with the big glass box that contains toys, stuffed animals, or loads of candy, and gives kids a chance to win any prizes they can grasp by maneuvering a metal claw.
Who has seen the movie "Toy Story?" That movie includes a similar toy called The Claw. The Claw is quite the mystical device to the Pizza Planet Aliens, but does anyone know how it works? (Listen to student ideas.)
The crane that picks up candy and other objects uses pulleys and gears. (Draw a diagram on the classroom board of two gears, and show how one can make the other rotate.) These simple machines enable an operator to use different amounts of power, depending on the rigging, to pick up an object. Imagine power as the amount of energy put in to crank the gears over a certain amount of time.
Today, we will experiment with small cranes that can pick up objects like those in "Toy Story" or an arcade! By using the cranes, we can find out how different setups of gears lift objects differently. Then, we will learn to calculate gear ratio, which is the ratio of diameters of the gears, and see which ratios work best for specific tasks. We can then see which setup helps you lift objects the fastest or makes it the easiest to crank the gears!
Procedure
Background
Using three LEGO cranes with differing gear ratios, students pick up objects of different masses and make observations about speed and the amount of effort it takes to crank the gears. They learn about the concept of gear ratio and practice calculating gear ratios on worksheets. Students find out that smaller gear ratios are great for picking objects up quickly, and larger gear ratios can make it easier to lift heavy objects.
Before the Activity
 Build three basic LEGO cranes with differing gear ratios (see Figure 2). A simple design consists of two gears, with each gear containing an axle through its center. Have one gear have a spool connected to the axle, and the other gear have a handle that allows it to be turned easily. Placing the axles in the holes of the long LEGO channel pieces ensures a strong hold and easy means of rotation. Anchor the channels to a base structure. Make sure the base structure sits evenly on a surface and can provide stability. Consider using a turntable LEGO piece so that students can rotate the crane. If not enough pieces, make a handheld crane like a fishing rod. Crane designs can vary and need not be complicated. Use long channels jutting from the base as a guide for the string wrapped around the spool.
 Find three each of three different objects with differing masses that can be used to demonstrate a substantial change in power when picked up by a LEGO crane. For example, objects that are 3, 6 and 9 grams work well.
 Put one of each object at each crane station.
 Make copies of The Claw Worksheet, one per student.
With the Students
 Review the terms associated with gears (input and output gear, idler, ratio).
 Teach students how to compute gear ratio: Establish input and output gear, measure diameter or number of teeth on each gear, compute ratio (output/input).
 Explain the basic meaning of power in terms of torque and angular velocity: power = torque x angular velocity.
 Review other background information with students. Make sure students understand the diameter of the circle to be a straight line passing through the center of the circle between two points on the circle or d = c/π, where, c, is the circumference. Make sure they understand the concept of a ratio, meaning a comparison of the magnitude of quantities relative to one another. Also make sure students are familiar with the concept of power and its relation to work, P = W/t, where t is time and W is work.
 Have students practice drawing circles and measuring their diameters.
 Direct students to draw a circle and then cut a piece (onefourth) out of it. This gives them a sense of the ratio of the piece they just cut out compared to the entire circle. Show them that the piece they cut out can be seen as another circle, so they see that the ratio still pertains to two circles.
 Direct students to complete the worksheets to practice what they learned so far.
 Draw two gears with differing diameters interlocked by teeth.
 Explain that if one gear is turned, the other gear turns as a result.
 Explain the setup of the cranes (handle connected to one gear, another gear connected to a spool that changes the size of the rope hanging off the crane).
 Divide the class into three groups, assigning each to one of the three crane stations.
 Allow enough time for students in each group to pick up the three objects at their station with the crane.
 Have students write down observations about lifting masses with the crane. Was there a difference in speed when lifting the various masses? How much effort did it take to crank the gears?
 Have groups rotate to another crane station and pick up the three objects at that station.
 Have students write down observations about lifting masses with the second crane.
 Have groups rotate to the third crane station and again pick up the three objects.
 Have students write down observations about lifting masses with the third crane.
 After students finish documenting their observations, instruct them to measure the gear diameters.
 As a class, compute gear ratios for the three cranes.
 Using student observations, come up with a class list of characteristics for each gear ratio (speed, energy used to turn gear).
Vocabulary/Definitions
angular velocity: Rotational speed about a point.
crane: A machine for hoisting and moving heavy objects by means of cables.
diameter: A straight line passing through the center of a circle or sphere and meeting the circumference or surface at each end.
gear: A disc or wheel with machined teeth on the circumference that transfer force and movement when meshed with other gears.
gear ratio: The ratio of the diameters or teeth of any two meshing gears.
idler gear: Gear that transfers power between input and output gear.
input gear: Gear that is driven by the motor.
output gear: Gear that is driven by the input gear and does work.
power: Work done or energy transferred per unit of time.
speed: The rate at which position is changed.
torque: Applied force multiplied by a distance from a specific point.
work: An applied force multiplied by the distance an object moves in the same direction.
Assessment
PreActivity Assessment
Discussing Terms: Ask students to tell you what they know about gears and gear ratios. Listen to their answers to gauge their familiarity with the terms.
Activity Embedded Assessment
Worksheet: Have students complete the activity worksheet; check their answers to gauge their levels of understanding.
Evaluating Observations: Circulate the classroom while students are working and look at the observations they made about the various cranes.
PostActivity Assessment
Concept Understanding: At activity end, ask the students:
 Give students reallife situations in which they would need to choose a specific gear ratio. Ask them what gear ratio they would choose and why. What could happen if they used another ratio?
 If I want to pick something up fast, what gear ratio do I use? (Answer: Gear ratio smaller than 1:1, such as 1:2.)
 If I want to pick something up easily, what gear ratio do I use? (Answer: Gear ratio larger than 1:1, such as 2:1.)
 Can I have a lot of speed and torque when using a gear ratio? (Answer: No. A gear ratio increases torque and decreases speed at the same time and vise versa, but never both.)
Safety Issues
 Do not let youngsters put crane pieces in their mouths.
 Remind students not to swing the crane arm excessively, as it could injure surrounding students.
