Hands-on Activity: States of Matter

Contributed by: AMPS GK-12 Program, Polytechnic Institute of New York University

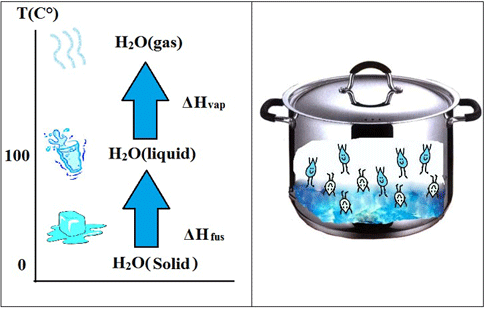

A diagram shows the three states of matter changing with increasing temperature, highlighting the change from solid (ice) to liquid (water) to gas (water vapor). An illustration of water molecules being heated in a metal pot.
Chemical engineers apply their understanding of the three states of matter
copyright
Copyright © (right) Rhannosh (own work) [CC-BY-SA-3.0 http://creativecommons.org/licenses/by-sa/3.0] via Wikimedia Commons, (left) USGS and Wikimedia Commons http://ga.water.usgs.gov/edu/vapor-pressure.html http://commons.wikimedia.org/wiki/File%3AWater_phase_diagram.png

Summary

Students act as chemical engineers and use LEGO® MINDSTORMS® robotics to record temperatures and learn about the three states of matter. Properties of matter can be measured in various ways, including volume, mass, density and temperature. Students measure the temperature of water in its solid state (ice) as it is melted and then evaporated.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Matter is all around us and found in just about any application in science, education, technology and engineering. When matter changes states, its physical properties also change. Chemical engineers are often interested in vapor liquid equilibrium data (the amount of species in equilibrium in a liquid and gas phase simultaneously). This type of data is found experimentally and is usually needed for product manufacturing and power plants. Mechanical engineers make measurements on solid materials such as composites or structural aspects in designs of airplanes and cars. Chemical engineers measure temperature and density in order to make everyday products such as toothpaste and medicines. All science and engineering fields deal with matter changing from one state to another.

Pre-Req Knowledge

Familiarity with the three states of matter, physical properties of matter, using the five senses to identify matter, and measuring temperature.

Learning Objectives

After this activity, students should be able to:

  • Describe the three states of matter.
  • Explain that physical properties of matter can be measured (such as temperature, mass, volume, density, etc.).
  • Explain the concept of evaporation.
  • Identify the temperature at which water boils.

More Curriculum Like This

Chemical Wonders: Materials and States of Matter

Students are introduced to chemical engineering and learn about its many different applications. An associated hands-on activity gives students a chance to test their knowledge of the states of matter and how to make observations using their five senses: touch, smell, sound, sight and taste.

Make Your Own Temperature Scale

Students learn about the difference between temperature and thermal energy. They create thermometers using simple materials and develop their own scales for measuring temperature. They compare their thermometers to a commercial thermometer, and get a sense for why engineers need to understand the pr...

To Heat or Not to Heat?

Students are introduced to various types of energy with a focus on thermal energy and types of heat transfer as they are challenged to design a better travel thermos that is cost efficient, aesthetically pleasing and meets the design objective of keeping liquids hot.

High School Activity
How Cold Can You Go?

Students explore materials engineering by modifying the material properties of water. Using either a simple thermometer or a mechatronic temperature sensor, students learn about the lower temperature limit at which liquid water can exist—such that even if placed in contact with a material much colde...

Elementary Activity

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Obtain information to identify where water is found on Earth and that it can be solid or liquid. (Grade 2) Details... View more aligned curriculum... Do you agree with this alignment?
  • Measure and graph quantities to provide evidence that regardless of the type of change that occurs when heating, cooling, or mixing substances, the total weight of matter is conserved. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to describe that matter is made of particles too small to be seen. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The process of experimentation, which is common in science, can also be used to solve technological problems. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Obtain information to identify where water is found on Earth and that it can be solid or liquid. (Grade 2) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to describe that matter is made of particles too small to be seen. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Measure and graph quantities to provide evidence that regardless of the type of change that occurs when heating, cooling, or mixing substances the total amount of matter is conserved. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

To share with the entire class:

Introduction/Motivation

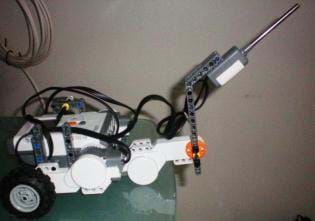

Photo shows a LEGO NXT robot with a temperature sensor attached.
Temperature-bot for this activity.
copyright
Copyright © 2010 Akim Faisal, Polytechnic Institute of NYU

Today, we will act as employees of a chemical engineering company and explore the various properties of water in different forms. Chemical engineers often deal with water (a liquid), ice (a solid) and water vapor (a gas) in their everyday work life. Most of our electricity comes from power plants that use the energy of steam (water vapor) to generate electricity. Steam is obtained by heating liquid water to very high temperatures to boil water.

As chemical engineers, we must know the temperature at which water boils and produces steam. Therefore, we will study how different forms of water behave under hot temperatures in order to discover the temperature at which water boils.

We will start with ice and observe how it behaves when exposed to a heat source (an electrical stove). Since we work for an engineering company, we would like to measure the temperature of our matter in an efficient way. We won't use a thermometer because thermometers cannot be used in a chemical plant where water is boiled in large quantities. In real-world industrial applications, thermometers are not used because that requires a person to manually take temperature readings. Imagine if your job was to sit a read a thermometer all day long? That doesn't sound like fun! Instead, temperature sensors are used and connected to computers and robots to automatically take temperature readings and record them. This is a far more efficient process.

For our activity, we wish to be safe and away from fire. Therefore, just like in a real chemical plant, we will use a robot to monitor the temperature and give us continuous temperature readings.

Today we will visually confirm the three states of water. We will start with water in its solid state (also known as ice), then apply heat to melt the ice. As the ice melts, our temperature-bot will monitor the temperature. What is your prediction? Will the temperature increase or decrease as ice is melted? We will continue melting the ice until it all melts and turns into liquid water. Then you will monitor the temperature as the liquid water begins to boil. How can you tell the water is boiling? You will be able to see the steam and recognize that steam is the third form of matter (gas).

Remember - our goal in this activity is to identify the boiling temperature of water from the temperature-bot reading in order for our steam power plant to operate successfully.

Vocabulary/Definitions

condensation: The process of gas changing into liquid.

evaporation: The process of liquid changing into a gas.

freezing: The process of liquid changing into solid.

gas: Matter that has no definite shape or volume.

liquid: Matter that has a volume that stays same, but a shape that can change.

matter: Anything that takes up space.

melting: The process of solid changing into gas.

physical property: Anything that you can observe about matter by using one or more of your senses.

solid: Matter with a volume and shape that stays the same.

Procedure

Background

Students act as "chemical engineers" at a power plant facility that produces steam continuously by melting ice to water and then boiling liquid water to produce steam. The steam provides power to a motor, which in turn provides electricity for our homes. The engineering challenge for students: The engineers need to find out the temperature at which water boils and it is our responsibility to solve this problem by running an experiment. Students collect and analyze data from a temperature sensor that continuously displays temperature readings for them to closely monitor. Determining properties of matter plays a crucial role in industrial applications and these properties usually vary with different types of matter. For example, water and milk boil at different temperatures. It is important to pay close attention to these physical properties of matter since they are used in real-life applications.

Matter exists in three states: solid, liquid or gas. Students are introduced to matter by using their five senses to identify matter. They can also identify matter by its physical properties (such as shape, size, color, weight, etc.) except for certain types of gases. Students are shown that states of matter can be easily changed from solid to liquid to gas by melting ice on a stove, then by boiling water to change liquid to gas. A temperature sensor on a LEGO NXT robot enables students to determine the physical property of ice, liquid water, and water vapor, as well as identify the boiling point of water.

Before the Activity (for instructors)

With the Students

  1. Give students 10 minutes to complete the pre-assessment handout. Then collect them.
  2. Discuss the experimental set-up and give students a rundown of the procedure.

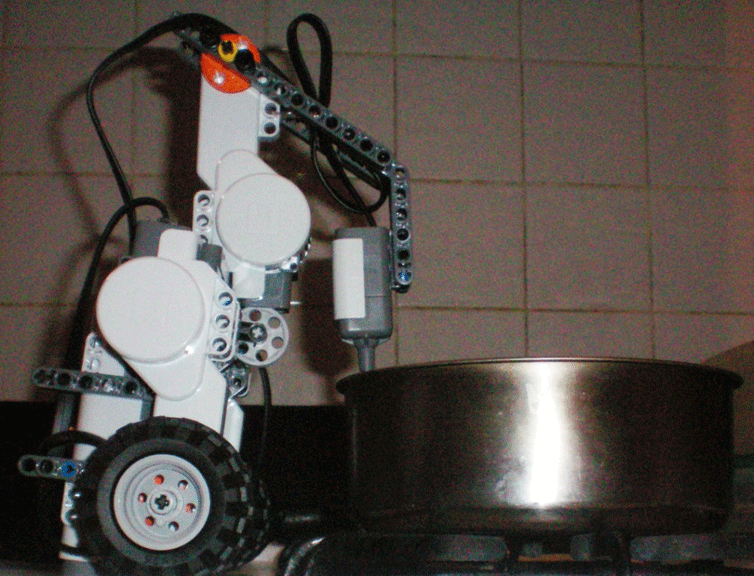

    Photo shows the robot along with the temperature sensor recording the data on top of a stove.
    Experimental set-up to collect data with a temperature sensor and LEGO NXT robot.
    copyright
    Copyright © 2010 Akim Faisal, Polytechnic Institute of NYU
  1. Review the pre-assessment with the entire class.
  2. Review with students the different states of matter and properties. What is the definition of a solid, a liquid, a gas? Review keywords and their definitions.
  3. Ask the students: How can the physical properties be measured in each state? (Solids and liquids can be weighed easily; gases cannot. Temperature can also be measured easily using temperature sensors. Physical dimensions can be measured for solid objects, such as ice cubes.)
  4. Introduce the temperature sensor and demonstrate how it will be used during the experiment. (A temperature sensor works similar to a thermometer but can give digital reading through the NXT once it is connected to the device. To demonstrate how the temperature sensor is used, download and run Temp_sensor_display.rbt on to the NXT brick.)
  5. Place the ice into a pot (about three pounds or 1.4 kg of ice)
  6. Identify the state of matter of ice. (solid)
  7. Place the pot on a hot plate or stove.
  8. Place the temperature sensor inside the pot. Then, turn on the heat.
  9. Turn on the NXT brick and use the NXT 2.0 data logging program to collect data.

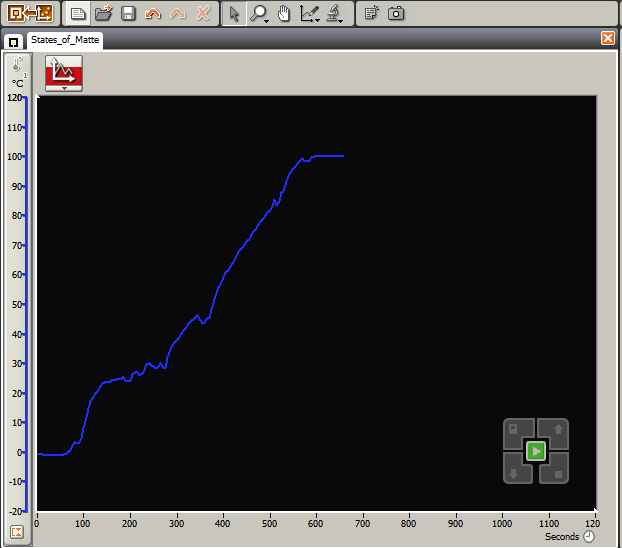

    A graph shows temperature vs. time, a blue line that starts at lower left and rises to the right. Temperature ranges from solid ice to when water vapor formed.
    Data collection with temperature sensor of the three states of matter.
    copyright
    Copyright © 2010 Akim Faisal, Polytechnic Institute of NYU
  • The NXT data logging program automatically displays the data in a temperature vs. time graph on the computer, therefore no programming is required. The data logging software must be configured to the correct port that the temperature sensor is connected to in the NXT brick. Set the temperature unit to Celsius.
  • Once the data logging software is running, the graph on the computer should give a temperature reading of 0° C.
  1. Once the NXT is continuously recording data, turn on the heat source.
  2. Once all the ice is melted, identify this state of matter. (liquid)
  3. Note that the temperature rises as the water is heating up.
  4. Once the water starts to boil and steam is observed rising, identify the state of matter of this water vapor. (gas)
  5. Record the temperature of the boiling point of water.
  6. The temperature of boiling water can be identified from the graph and stays constant at 100° C.
  7. After students record the correct boiling point of water (100° C) and identify the three states of matter (solid, liquid, gas), review the key activity point: You have now correctly identified the temperature at which water boils, which is necessary to know in order for the steam plant to operate.
