Hands-on Activity: Is It Shocking?

Contributed by: RESOURCE GK-12 Program, College of Engineering, University of California Davis

A photograph shows two young girls at a playground. One has just come down a plastic tube slide, and due to static electricity, her fine blond hair stands up in all directions around her head.
"What's going on with your hair?" Contact with the plastic slide has left this child's hair positively charged so that individual hairs repel one another. The hair may also be attracted to the negatively charged slide surface.
copyright
Copyright © Ctd 2005, Flicker http://www.flickr.com/photos/49196923@N00/48616367/

Summary

To better understand electricity, students investigate the properties of materials based on their ability to dispel static electricity. They complete a lab worksheet, collect experimental data, and draw conclusions based on their observations and understanding of electricity. The activity provides hands-on learning experience to safely explore the concept of static electricity, learning what static electricity is and which materials best hold static charge. Students learn to identify materials that hold static charge as insulators and materials that dispel charge as conductors. The class applies the results from their material tests to real-world engineering by identifying the best of the given materials for moving current in a solar panel.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Electrical engineers must understand the electrical properties of materials in order to select appropriate materials to use in designing devices and projects. One everyday example is a typical electrical cord: the inside of the cord and the prongs are conductors in order to permit the flow of electricity while the outside is an insulator in order to protect people touching the cord from electric shock. In the activity, students act as engineers tasked to find materials that do not hold static charge and permit electricity to flow easily. Based on what they learned in the associated lesson, students understand that they are looking for a conductor; an analysis of their testing observations determines the best conductor out of the provided materials.

Pre-Req Knowledge

Students should be familiar with different forms of energy and have an understanding of matter and the structure of atoms (including electrons, protons and neutrons). Students must also have an introductory understanding of electricity, conductors, insulators, current and static charge, such as presented in the associated lesson.

Learning Objectives

After this activity, students should be able to:

  • Explain that static electricity is the buildup of a charge (either net positive or net negative) over a surface.
  • Correlate the buildup of static electricity in a material to its properties (identify whether it is a conductor or insulator).
  • Explain why it is important for engineers to choose the best material for electrical jobs.

More Curriculum Like This

What Is Electricity?

Students are introduced to the concept of electricity by identifying it as an unseen, but pervasive and important presence in their lives. They compare conductors and insulators based on their capabilities for electron flow. Then water and electrical systems are compared as an analogy to electrical ...

Middle School Lesson
Take Charge! All About Static Electricity

Students come to understand static electricity by learning about the nature of electric charge, and different methods for charging objects. In a hands-on activity, students induce an electrical charge on various objects, and experiment with electrical repulsion and attraction.

Go with the Flow

Students gain an understanding of the difference between electrical conductors and insulators, and experience recognizing a conductor by its material properties. In a hands-on activity, students build a conductivity tester to determine whether different objects are conductors or insulators.

Elementary Lesson
Lights Out!

This lesson introduces the concept of electricity by asking students to imagine what their life would be like without electricity. Students learn that electrons can move between atoms, leaving atoms in a charged state.

Elementary Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop a model to describe that matter is made of particles too small to be seen. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop models to describe the atomic composition of simple molecules and extended structures. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Knowledge gained from other fields of study has a direct effect on the development of technological products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to describe that matter is made of particles too small to be seen. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop models to describe the atomic composition of simple molecules and extended structures. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Compare and contrast the information gained from experiments, simulations, video or multimedia sources with that gained from reading a text on the same topic. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Make observations and measurements to identify materials based on their properties. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs (*reusable items):

  • small pieces of paper confetti or 1 piece of wrapping tissue
  • 2 cloths or towels, for rubbing objects*
  • 1 balloon, inflated
  • 1 empty plastic bottle*
  • 1 plastic bottle filled with water*
  • 1 wooden pencil or dowel*
  • 1 rubber eraser*
  • 1 metal tube or dowel, preferably made of copper*
  • Electricity Review, one per student
  • Is It Shocking? Worksheet, one per student
  • access to the Internet for worksheet research

Introduction/Motivation

For most of human existence, the available ways to communicate were either by speaking or writing on paper or stone. Then came the telegram, telephone and Internet—which all rely upon electricity.

The invention of the electrical telegraph was in 1837 by William Fothergill Cooke and Charles Wheatstone. Next, the invention of the telephone was a culmination of work done by many people in the last half of the 1800s. Today it seems that the Internet is the favorite method of communication. The U.S. government's Advanced Research Projects Agency (ARPA) developed the Internet and the first computer-to-computer communication happened in 1969. All of these forms of communication and information transfer happen through electrical signals.

Imagine what your life would be like without rapid electronic-based communication. How would this change your communication with other people? With whom would you have less communication? (Listen to student answers; possible examples: relatives and friends that live far away, access to newspapers and new information on the Internet.)

Do you know how computers talk to each other? (See what students know.) Computers send information through electrical signals, which is really the movement of electrons.

Today we're going to explore static charge and we will learn what materials are good for sending electrical signals (conductors) and which materials are good for storing electrical charge (insulators). Working in teams, you are going to act as if you are electrical engineers. Your challenge is to find a material that does not hold a static charge and permits electricity to flow easily.

Vocabulary/Definitions

atom: The basic unit of all elements of matter.

conductor: A substance that allows the easy movement of electricity.

current: Something that flows, such as a stream of water, air or electrons, in a definite direction.

electricity : The presence or movement of electric charges. Electric charge occurs when a net difference in charged particles (such as proton or electrons) exists.

electron : A particle in an atom that has a negative charge, and acts as the primary carrier of electricity.

insulator : A substance that does not allow the easy movement of electricity.

proton: A particle located in the nucleus of an atom that has a positive electrical charge.

static electricity: A stationary electric charge buildup on an insulating material.

Procedure

Background

During this activity, student groups look for conductors by testing the following materials: inflated balloon, empty plastic bottle, plastic bottle filled with water, wooden pencil or dowel, rubber eraser, metal tube or dowel (preferable made of copper). They are guided in their experimentation by a worksheet, which provides tables for data collection and questions for results analysis.

Before testing begins, prompt students to make predictions. Make sure students can correctly charge the items by rubbing the items with a cloth or on their hair. Let students know that not all objects may hold static charge; these are the conductors. Of the test materials, the conductor is the metal tube. The rest are insulators. The wooden pencils/dowels are very hard to charge and the bottle filled with water will not charge well, so these are insulators. As a class and as necessary, help students review their results and formulate conclusions.

Before the Activity:

  • Gather materials and make copies of the Electricity Review and Is It Shocking? Worksheet, one each per student.
  • Consider administering the five-question electricity review before the activity begins so you have a chance to look at student answers and be ready to clarify any misconceptions or knowledge gaps at the beginning of the activity.

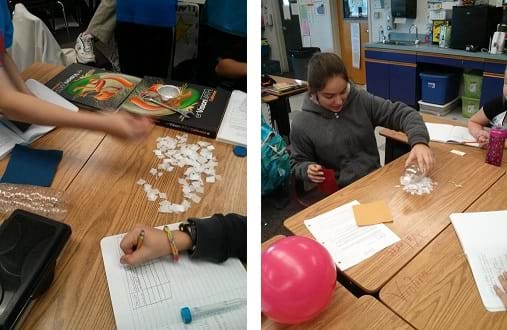

    Two photographs show students working at tables actively engaged in the activity, holding objects over paper confetti and writing down data in a table.
    copyright
    Copyright © 2013 RESOURCE GK-12 Program, College of Engineering, University of California

With the Students

  1. Administer the five-question pre-activity electricity review to verify students' understanding of the pre-requisite concepts related to electricity, electrons, charge, conductors and insulators. Clarify any misconceptions or knowledge gaps.
  2. Present the Introduction/Motivation content to the class.
  3. Divide the class into groups of four to six students each. Hand out a worksheet to each student.
  4. State the engineering challenge: As if you are engineers, work together with your classmates to find a material that permits electricity to flow. This material will be used for making solar panels that conduct electricity.
  5. Direct students to answer the first two worksheet questions based on the introduction content and their understanding of the activity. Have a few students share their answers to make sure that everyone in the class understands that they are looking for a conductor. Make sure they also understand that a conductor is a material in which electrons flow easily.
  6. Before any testing begins, direct students to record on the worksheet (on page 1, first column of the table) their predictions about which materials they expect will move the tissue paper.
  7. Then prior to handing out supplies, demonstrate the activity by following these steps with a random item in the classroom, one that is not on the Materials List:
  • Rub the material with the cloth/towel.
  • Float the material over the tissue paper or confetti.
  • If the tissue paper moves, the material still holds static electricity; thus, it is an insulator.
  1. Distribute the lab materials to each lab group.
  2. Have students rub each object thoroughly with a cloth or their hair to create a static charge on the material. Then have them hover the charged object over the tissue paper (or confetti) to see if the paper moves.
  3. For each experiment, record observations in the worksheet table. Did it move the tissue paper? Is it a good conductor?
  4. As a class, have students share their observations and postulate why some objects were better at moving the paper/confetti than others, based on their conductivities. Which material do you identify as the best one for moving current in a solar panel?
  5. Have students finish the remaining sections of the worksheet, writing a conclusion and answering the application questions, which requires some Internet research.

Attachments

Safety Issues

Warn students to not apply static charge to electrical devices such as phones and computers.

Troubleshooting Tips

The wooden pencil/dowel and plastic bottle are often hard to charge. Objects will charge particularly well if the weather is dry and windy.

Investigating Questions

While students are working on the activity, some good questions to ask groups include:

  • What is happening when you rub the object?
  • How could you predict if an object is a conductor or an insulator before you start rubbing it?
  • Why does the paper move?
  • If I wanted a good conductor, which type of material/object would you suggest?
  • If I wanted a good insulator, which type of material/object would you suggest?
  • Show me the conductor and the insulator on an electrical cord.

Assessment

Pre-Activity Assessment

Concept Review: Have students complete the Electricity Review to verify their understanding of pre-requisite topics learned in the associated lesson, including electricity, electrons, charge, conductors and insulators. Answers are provided in the Electricity Review Answer Key.

Activity Embedded Assessment

Worksheet and Questions: To guide the activity, have students use and complete the Is It Shocking? Worksheet. In addition, ask groups the Investigating Questions during the activity.

Post-Activity Assessment

Discussion: As a class, review students' observations, results and answers from the Is It Shocking? Worksheet. Have students share their predictions and explain whether they were correct or not. If their results were not correct, discuss why they got those results and how they would modify their responses. Review students' completed worksheets to gauge their depth of comprehension.

Application of Principles: Ask students to respond to the following scenarios to test their ability to apply newfound knowledge. Conduct as an in-class exercise or take-home assignment.

  • Based on your knowledge of static electricity from the activity, how would you test household items? Write how you would test the items and describe how you would know if an item was a conductor or insulator.
