Hands-on Activity Using Jupyter Notebooks to Explore Waves

(0 Ratings)

Quick Look

Grade Level: 8 (8-10)

Time Required: 1 hours 15 minutes

(60-85 minutes)

Expendable Cost/Group: US $0.00

Group Size: 1

Activity Dependency: None

Subject Areas: Biology, Computer Science, Data Analysis and Probability, Science and Technology

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
MS-PS4-1

This activity requires the resource(s):

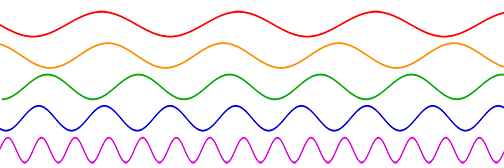

A photograph shows 5 sine waves of varying colors and frequencies. From top to bottom, the colors are: red, orange, green, blue, purple.
Waves colored like the frequencies of the visible spectrum. The bottom waves have higher frequencies than those above. The horizontal axis represents time.
copyright
Copyright © 2007 LucasBV, Public Domain, Wikimedia Commons, https://es.wikipedia.org/wiki/Sonido#/media/Archivo:Sine_waves_different_frequencies.svg

Summary

As an introduction to analyzing sinusoidal waves, students learn how to use a Jupyter Notebook. They learn how to identify the frequency, wavelength, amplitude, period, and phase of a simple sinusoidal waveform. As they learn how to label the parts and properties of the waves, they connect these characteristics of waves to various real-world wave examples such as ocean waves, visible light, and sound. Students will examine a mathematical model of a sinusoidal waveform and connect each variable to its corresponding wave property. They will manipulate each variable of the model using Python code in a Jupyter Notebook and examine the effect of changing each variable on the resulting waveform.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

Understanding the properties of waves is important for engineers who design anything from solar panels to EEG monitoring devices. For waves, it is important for engineers to understand the distinctions between different frequencies of waves and what they mean. This knowledge will help engineers to better design machines and tools to both measure and regulate waves. Using a Jupyter Notebook and Python coding also helps students learn how to employ programming into their designs.

Learning Objectives

After this activity, students should be able to:

  • Identify the parts of a wave (inflection point, period, etc.).
  • Describe the effect of changing a wave’s frequency or amplitude on the wave’s graph.
  • Describe the physical effect of changing a light or sound wave’s frequency or amplitude.
  • Recognize that scientists and engineers need knowledge of waves to design useful products.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

MS-PS4-1. Use mathematical representations to describe a simple model for waves that includes how the amplitude of a wave is related to the energy in a wave. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Use mathematical representations to describe and/or support scientific conclusions and design solutions.

Alignment agreement:

Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Alignment agreement:

Analyze data using tools, technologies, and/or models (e.g., computational, mathematical) in order to make valid and reliable scientific claims or determine an optimal design solution.

Alignment agreement:

A simple wave has a repeating pattern with a specific wavelength, frequency, and amplitude.

Alignment agreement:

Graphs and charts can be used to identify patterns in data.

Alignment agreement:

Models (e.g., physical, mathematical, computer models) can be used to simulate systems and interactions—including energy, matter, and information flows—within and between systems at different scales.

Alignment agreement:

  • Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each student needs:

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/umo-2547-jupyter-notebook-explore-waves-activity] to print or download.

More Curriculum Like This

Middle School Lesson
Seismic Waves: How Earthquakes Move Through the Earth

Students learn about the types of seismic waves produced by earthquakes and how they move through the Earth. Students learn how engineers build shake tables that simulate the ground motions of the Earth caused by seismic waves in order to test the seismic performance of buildings.

Middle School Lesson
Waves and Wave Properties

Students learn about the types of waves and how they change direction, as well as basic wave properties such as wavelength, frequency, amplitude and speed. During the presentation of lecture information on wave characteristics and properties, students take notes using a handout.

Pre-Req Knowledge

A familiarity with graphing functions.

Introduction/Motivation

When you think of the word “wave,” what comes to mind? You might think of the waves in the ocean, or a sea of hands waving around at a baseball stadium. You may even think of light waves or sound waves—waves we can’t see! Waves are everywhere, and they carry important information about the environment. We can examine what this information is based on the wave’s characteristics. If we’re looking at a light wave, we can figure out what color the wave is based on the wave’s frequency or wavelength. If we’re listening to a sound wave, we can determine how loud and what pitch the sound is based on its amplitude and frequency, respectively!

A photograph showing the crashing of a wave.
This picture provides just one of many examples of a wave, what other kinds of waves can you think of?
copyright
Copyright © 2004 Malene Thyssen (CC BY-SA 3.0), Wikimedia Commons, https://commons.wikimedia.org/wiki/File:Boelge_stor.jpg

Understanding waves and the information they carry, whether it’s a sound or light, is critical to designing instruments for using and manipulating sound and light. Do you listen to rock music? The electric guitar has several components that were engineered to make the sound loud and clear. Do you wear glasses? Your lenses were crafted to bend the light onto your eyes in a way that makes your sight clearer!

In this activity, we will discuss the background information that the scientists and engineers of your favorite band’s instruments and you or your friend’s glasses used when creating these designs. You will learn about what makes an airplane so loud and the ocean so blue. After this activity, you will have learned about how waves are modeled mathematically, and how changing the variables of the equation change the resulting wave.

Present the What Is A Wave? PowerPoint Presentation. See slide notes below.

  1. Slide 1: Ask students to name different kinds of waves—they do not have to be “scientific”
    1. Examples: ocean waves, sound waves, light waves, hand waves, etc.
  2. Slide 4: Make sure you point to the inflection point on the wave shown in the figure.
  3. Slide 5: Show different ways of measuring period (crest to crest, trough to trough) on the wave shown in the figure.
  4. Slide 7: Mention that different frequencies in light waves make different visible colors (shorter wave = purple, longer wave = red).
  5. Slide 8: This slide contains an image that shows the different wavelengths of light and their associated colors.
  6. Slide 11: This slide contains a GIF that shows the effect of changing the amplitude, wavelength, and phase of a sine wave.

Procedure

Background

Jupyter Notebooks are interactive coding guides with pre-written Python code that students and teachers may run with the press of a button. This activity requires the use of a Jupyter Notebook using Google Colaboratory—a free-to-use program that may be used with a Google account. To learn how to use Jupyter Notebooks, see our Jupyter Notebook Guide.

Before the Activity

  • Hand out the Pre-Assessment to students and have them complete it independently. Remind them that this assignment is NOT graded and that they are NOT expected to know the correct answers.
  • Review the Jupyter Notebook Guide and complete the tutorials referenced in the guide.
  • Make copies of the Activity Sheet.
  • Make sure students have access to the What Is A Wave? Notebook File. They will use it in Google Colaboratory.
    • You can either post a link on a classroom website or email them the file.

With the Students

  1. Introduce the activity with the Introduction and present the PowerPoint Presentation.
  2. Have students work individually (optional: Divide class into groups of 2 – 4 students).
  3. Hand out a copy of the Activity Sheet to each student. Each student should turn in their own copy, even if they are in groups.
  4. Demonstrate how to open and run a Jupyter Notebook as shown in the Jupyter Notebook Guide. Check if students have any lingering questions about Jupyter and encourage them to explore other tutorials in Google Colaboratory.

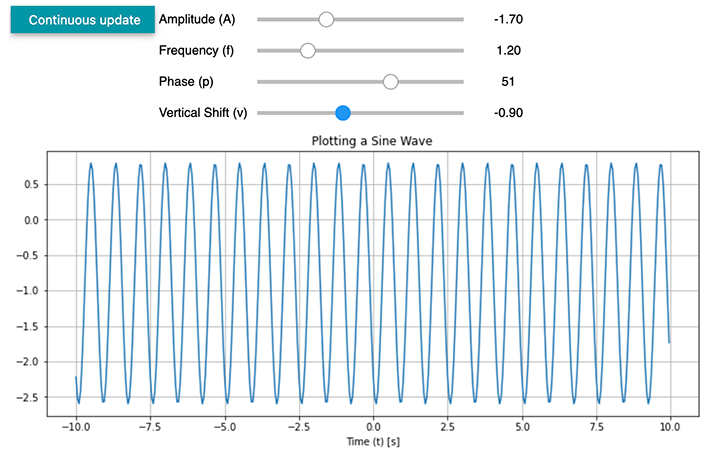

Screen capture showing a customized plot of a sinusoidal wave.
Jupyter Notebooks may be used to create customizable wave plots, like this one!
copyright
Copyright © 2020 Shappell, Nair, Welch, Banks, Opsal, & Menker, University of Missouri RET

  1. Students run the What Is A Wave? Notebook File and modify the values, recoding the results on their worksheets. If students are working in groups, encourage them to help each other if they get stuck. If students are working individually, they may ask their neighbors for help.

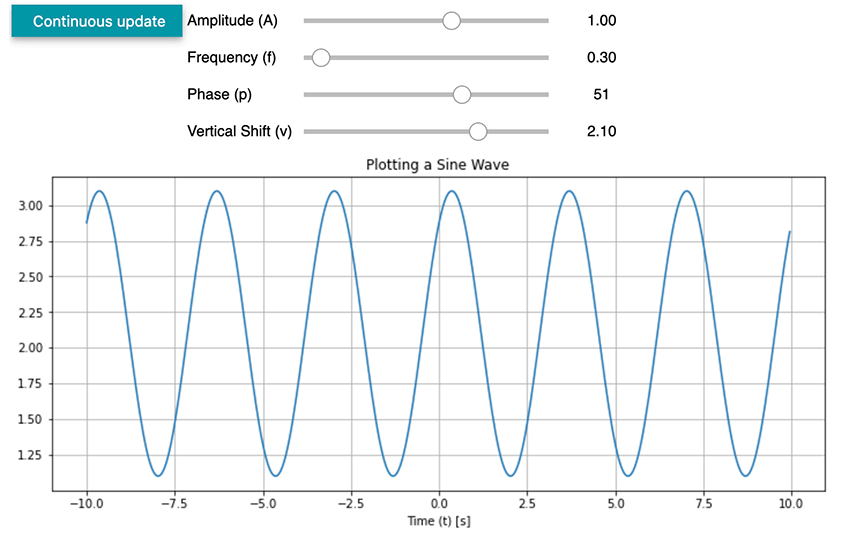

Screen capture showing a customized plot of a sinusoidal wave.
In this activity, try creating your own sinusoidal wave—then, ask a partner if they can try to recreate it without looking at your slider settings!
copyright
Copyright © 2020 Shappell, Nair, Welch, Banks, Opsal, & Menker, University of Missouri RET

  1. As students work, remind them that scientists and engineers often look at waveforms to assist them in design projects. Ask students to brainstorm how a scientist or engineer might apply their knowledge about waves. Prompt students’ thinking by sharing that waves are important to the design of radios, cell phones, Bluetooth, infrared cameras, Wi-Fi, televisions, etc.
  2. Hand out the Post-Assessment to students and have them complete it independently.

Assessment

Pre-Activity Assessment

Pre-Assessment: Hand out the Pre-Assessment to students and have them complete it independently. Remind them that this assignment is NOT graded and that they are NOT expected to know the correct answers.

Embedded (Formative) Assessment

Activity Sheet: To ensure students are reading the waveform correctly and engaging in the activity, have students complete the Activity Sheet.

Post-Activity (Summative) Assessment

Post-Assessment: Hand out the Post-Assessment to students and have them complete it independently.

Investigating Questions

  • What is a wave? (Answer: A wave can be described as a disturbance that travels through a medium from one location to another location.)
  • What kinds of waves can you name? (Potential answers: ocean waves, hand waves, light waves, sound waves, etc.)

Activity Extensions

Have students research examples of how scientists and engineers use waves and share their findings with the class in short presentations.

Activity Scaling

For younger students: After students complete the Jupyter Notebook activity, put students in small groups of 3-5 and have each group create a unique waveform. Then, display each group’s waveform and have all other groups try and recreate the wave.

Additional Multimedia Support

Attention: This Activity requires a Google account and use of Google Colaboratory: Google Colab

Copyright

© 2020 by Regents of the University of Colorado; original © 2019 University of Missouri

Contributors

Erin Shappell; Dr. Satish Nair; Keegan Welch; Isabel Banks; Nathan Opsal; Adam Menker

Supporting Program

CyNeuro Lab, College of Engineering, University of Missouri

Acknowledgements

This activity was developed under National Science Foundation grant no. EEC 1801666—Research Experiences for Teachers in Neural Engineering, CyNeuro Lab at the University of Missouri. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.
