Hands-on Activity Get the Materials Down the Hill!

Learning Objectives

After this activity, students should be able to:

• Analytically and experimentally describe the kinematics and dynamics of the mass being transported.
• Calculate the acceleration of the mass being transported downhill.
• Experimentally prove that acceleration is directly proportional to the mass of the system.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

Common Core State Standards - Math

Materials List

For the entire class to share:

• laptop or computer with projector to display videos.
• minga work video #1 (2:01 minutes): The Essence of the Minga
• minga work video #2 (0:37 minutes): Minga work video
• 1 wooden plank 1.905 cm x 30.48 cm x 91.44 cm

Each student needs:

• Pre/Post Quiz (2 copies)
• Pre-/Post Reflection (2 copies)

Each group needs:

• Get the Materials Down the Hill! Worksheet
• laptop or computer to do research.
• access to The art of Minga and why we should be more like Ecuador article

Suggested building materials for each group:

• 1 0.15 cm x 5971 cm twisted jute rope
• 3 cups
• 3 sealable plastic bags (e.g., sandwich bags)
• 3 carabiners
• 1 pulley
• 1 spool
• 1-2 clamps
• 1 scissors
• 1 timer (can be a cell phone)
• dirt, rocks, organic material, or something to be the test load

Worksheets and Attachments

Pre-Req Knowledge

Students should:

• Be able to solve algebraic systems of equations.
• Have full knowledge of Newton’s second law of motion.

Introduction/Motivation

Can you think of a physical task you have done that completely drained your energy or felt risky to do? What are some different ways you could accomplish that task? Can you think of an easier or safer method? (Give students time for reflection.) Now turn to your shoulder partner and discuss how the work could have been made less tiring or safer.

In many remote locations, people must be creative with the resources and tools they have to complete physical tasks. In the town of Yambiro, near Otavalo, Ecuador, there is an ancestral practice known as “minga” where community members of all ages collaborate on projects that benefit their entire community. The group is referred to as the minga only when they come together to work for the good of their community.

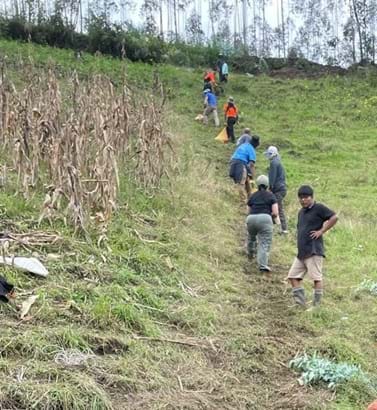

For example, in one minga project, the community needed to move dirt, rocks, and sand in large, heavy-duty plastic bags down a steep and slippery hill. These materials would form the foundation and concrete walls of a new irrigation reservoir tank. When filled, each bag weighed more than 40 pounds. To complete the job, the minga organized themselves into a line along the hillside, passing or dragging the heavy bags from person to person. This collective effort required more than 300 hours of hard, exhausting work, but it succeeded because of teamwork and collaboration.

Here is your challenge: Your task is to move a large amount of material down a hill using only the limited tools and resources provided. You have 5 minutes to move as much material as possible. How will you transport the materials efficiently with the resources available to you? Let’s get started!

Procedure

Background

Newton’s second law of motion states that an object’s acceleration depends on the net force acting on it and its mass (Fnet=mass x acceleration). This means that the more force applied to an object, the more it accelerates, and the heavier the object, the more force is needed to achieve the same acceleration. For example, pushing an empty shopping cart is easier and makes it accelerate faster than pushing a full cart because the full cart has more mass. This law helps us understand how forces affect the motion of objects in everyday life and in physics problems.

A free body diagram (FBD) is a visual tool used in physics to show all of the forces acting on an object. The object is usually represented as a simple shape, like a dot or a box, and arrows are drawn to represent each force acting on it. Each arrow is labeled to indicate the type of force, such as gravity (weight), normal force from a surface, friction resisting motion, tension in a rope, or any applied force. FBDs help identify all forces acting on an object, making it easier to apply Newton’s second law (Fnet=mass x acceleration) to calculate acceleration, force, or mass, and solve physics problems systematically.

In this activity, students use Newton’s second law to determine the maximum amount of mass per unit time (or load per unit time) a mechanism is able to move material during a 5-minute period. Civil engineers and construction managers do optimization problems like this in their jobs. This activity allows students to practice these skills in a scaled and approachable model within the classroom by devising a solution with the objective of transporting the maximum amount of mass down a hill.

To determine the net force acting on each mass, students draw FBDs and apply Newton’s second law to calculate mass, acceleration, or individual forces as needed. Each component of the system is analyzed using either a FBD or the net mass of the system. From this analysis, students create a system of equations describing the relationships between mass, acceleration, and forces, which allows them to optimize their design.

Before the Activity

• Make copies of the Get the Materials Down the Hill! Worksheet (1 per group).
• Make copies of the Pre/Post Quiz (2 per student).
• Make copies of the Pre/Post Reflection (2 per student).
• Optional: Prepare the wooden plank by using available tools (e.g., power tools) to drill holes into the wood to allow students to anchor dowels or wooden sticks to work with their design.
• Prepare a testing area.

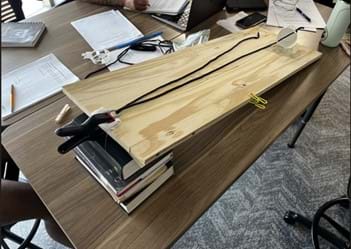

• Option 1: Place one end of a 1.905 cm x 30.48 cm x 91.44 cm wooden plank atop a safe and stable surface. Suggested surfaces include a table or a chair in the classroom.
• Option 2: Find a location (e.g., playground, slope, or hill) where an inclined plane already exists. Determine the angle of the hill or slope ahead of time by taking measurements of the hypotenuse and base of the hill/slope to determine the angle of it.
• Note: The angle of the inclined plane is chosen by you based on the class level. It is suggested for a lower-level physics course to use a 45-degree angle. Higher level physics courses can use other degrees, but they should be less than 45 degrees.
• Gather building supplies (e.g., ropes, containers, bags, wheels, pulleys, carabiners, spools, and other supplies at your discretion, which students can use to create a transportation mechanism) for each group.

During the Activity

Day 1

Ask (25 minutes)

1. Give each student a Pre/Post Quiz.
2. Give students 10 minutes to complete the Pre/Post Quiz.
3. Give each student a Pre/Post Reflection.
4. Give students 5 minutes to complete the Pre/Post Reflection.
5. Show students the minga work video #1 (2:01 minutes): The Essence of the Minga.
6. Show students the minga work video #2 (0:37 minutes): Minga work video.
7. Pose the scenario and challenge: You are trying to move a large amount of material (dirt, rocks, sand) down a hill. You have limited tools and resources for your use: plastic bags, ropes, aluminum foil, and 1 gallon plastic jugs.
8. Show students the testing area. (Note: The scaled model of the hill is a plank of wood, or you can recreate a scaled model using clay. Also, suggest to reference/show Figure 1.)

9. Remind students of the Motivation/Introduction questions:

• Can you think of a physical task you had to do that drained all your energy or was risky to do?
• Can you think of different ways you can accomplish the given task?
• Can you think of an easier way to accomplish such a task?
• Are there any machines (simple or complex) that could help with the task?

Research (15 minutes)

10. Give students time to research different methods of moving materials up and down hills or slopes with and without technology across the world.

Imagine (40 minutes)

11. Give each group a Get the Materials Down the Hill! Worksheet.
12. Review the brainstorming rules:

• All ideas are good and accepted.
• Only one person talks at the time within the group.
• One student records group ideas on the group’s Get the Materials Down the Hill! Worksheet.

13. Give students 15 minutes to complete Section A as a group.
14. Use the rest of the class period to have each group report out to the class and receive feedback on their ideas.

Day 2

Plan (20 minutes)

1. Give students 5 minutes to read The art of Minga and why we should be more like Ecuador.
2. Briefly discuss the article as a class.
3. Instruct each group to complete Section B in the Get the Materials Down the Hill! Worksheet.
4. Have each group complete Section C in their group worksheet, sketching their planned prototype on a hill or inclined plane.

Practice (20 minutes)

5.  Give students time to practice drawing free body diagrams (FBDs) in Section D.
6. Discuss the FBD answers as a class, referencing the Get the Materials Down the Hill! Worksheet Answer Key.
7. Make sure students understand the FBD examples and their answers.

Create and Test (40 minutes)

8. Have each group calculate the angle of the inclined plane that they will be testing their prototype on in Section E.
9. Allow each group to obtain the necessary materials for their planned prototype.

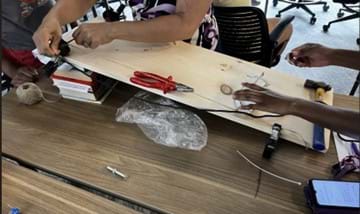

10. Instruct each group to build their prototype as they sketched and planned in Sections C and D.
11. Have students test their prototype in the testing area and collect their data. Data should be recorded in the data table in Section E.
12. Optional homework: Have each group finish the calculations and analysis questions in Section E.

Improve and Iterate (40 minutes)

1. Have each group report their prototype solution and data collected to the class.
2. Instruct the listening groups to provide feedback on the design and data collection. Note: Each group should use the Get the Materials Down the Hill! Worksheet to document the feedback received from their peers.
3. Give students time to rework their solution based on their peers’ feedback.
4. Have students collect data based on their improved solution and complete the analysis of it.
5. Optional: Let students iterate on their improved solution if time exists.

Design Showcase (20 minutes)

6. Have each group briefly present their final, improved solution and data (even if they only iterated once).
7. As a class discuss:

• Which group achieved the best results (e.g., maximum load, lowest effort, fastest time)?
• What was the best design element they saw from another group, and why was it effective?

Reflection and Conclusions (20 minutes)

8. Give each student a Pre/Post Quiz and have them complete it.
9. Give each student a Pre/Post Reflection and have them complete it.
10. Conclude the activity by tying the technical aspects of the project with the introductory theme of community problem-solving. (Note: These questions are also in section H of the Get the Materials Down the Hill! Worksheet.)

• Global Problem-Solving: "How do other countries work to solve a common problem regarding transporting materials necessary for construction?"
• Resourcefulness: "How did the 'minga' concept of community and limited resources influence your group's design decisions?"
• Takeaways: "What are your most important takeaways regarding collaborative problem-solving and resource management?"

Vocabulary/Definitions

force: A physical quantity that denotes the ability to push, pull, twist, or accelerate a body and that has a direction and is measured in a unit dimensioned in mass × distance/time² (ML/T²): SI: Newton (N).

free body diagram: A diagram showing a single body or system of bodies with vectors indicating all forces acting on the system.

friction: A force that resists the relative motion or tendency to such motion of two bodies in contact.

gravitational force: A very long-range, but relatively weak fundamental force of attraction that acts between all particles that have mass; believed to be mediated by gravitons.

inclined planes: One of the simple machines; a sloping surface (e.g., a ramp) such that an object can be raised with less effort than being lifted vertically.

load: A weight to be carried.

mass: A measure of the inertia of a mass of matter, one of four fundamental properties of matter. SI unit of mass: kilogram.

minga work: Collaborative work in which friends and neighbors volunteer their time, effort, and sometimes funds to achieve a shared goal for the betterment of the community.

net force: The combination of all the forces that act on an object.

Newton’s second law of motion: The observation that the rate of change of the momentum of a body is directly proportional to, and in the same direction as, the net force acting on it. Often stated as F = ma: F = force, m = mass, a = acceleration.

normal force: Any force acting normal to a surface, or perpendicular to the tangent plane.

pulley: One of the simple machines; a sheave, a wheel with a grooved rim, in which a pulled rope or chain lifts an object (more useful when two or more pulleys are used together, as in a block and tackle arrangement, such that a small force moving through a greater distance can exert a larger force through a smaller distance).

tension: Force transmitted through a rope, string, cable, or similar object (used with prepositions on, in, or of, e.g., "The tension in the cable is 1000 N," to convey that the same magnitude of force applies to objects attached to both ends).

weight: The force an object exerts on the object it is on due to gravitation.

Assessment

Pre-Activity Assessment

Pre Quiz: Have students complete the Pre/Post Quiz, which tests them on the topics to be covered in the activity.

Class discussion: Remind students of the Motivation/Introduction questions and discuss as a class:

• Can you think of a physical task you had to do that drained all your energy or was risky to do?
• Can you think of different ways you can accomplish the given task?
• Can you think of an easier way to accomplish such a task?
• Are there any machines (simple or complex) that could help with the task?

Activity Embedded (Formative) Assessment

Imagine possible solutions: Teacher provides the Get the Materials Down the Hill! Worksheet on which students complete Section A as a group.

Testing: Students test their prototypes, collect data, and complete analysis as indicated on the Get the Materials Down the Hill! Worksheet Sections D, E, F, G, H, I, and J.

Report and feedback: Students report to the class and receive feedback. Use the Get the Materials Down the Hill! Worksheet to document the feedback received from students’ peers.

Post-Activity (Summative) Assessment

Post Quiz: Perform the Pre/Post Activity Reflection and the Pre/Post Quiz.

Reflection: Students reflect on how other countries work to solve a common problem regarding transporting materials necessary for construction. How do they use their resources to solve that specific problem? What are your takeaways regarding solving their specific problem? This reflection will be completed in the Get the Materials Down the Hill! Worksheet.

Troubleshooting Tips

Your discretion is recommended to determine the materials to be used in this activity. It is recommended that useful materials be provided to promote critical thinking and problem-solving during this activity, as well as options to be potentially used for the problem solution.

Activity Scaling

• For lower-grade / less experienced students, work through the free body diagrams as a class.
• For older / advanced students, do not provide the design of the data collection and analysis section.  Instead, have them design their own experiment, including how the data is collected and analyzed.
• For older/ advanced students, require students to consider friction when solving for acceleration of the prototype.
