Hands-on Activity: Dome It Challenge Scenario Cards

Contributed by: Membrane Biotechnology Laboratory, College of Engineering, University of South Florida, Tampa

A photograph of the interior of the Floating Pavilion in Rotterdam, Netherlands, shows a transparent plastic geodesic dome structure enclosing an exhibit space.
What might it be like to live under a dome with nothing coming in and nothing going out?
copyright
Copyright © 2013 Caryssa Joustra, University of South Florida

Summary

Student teams find solutions to hypothetical challenge scenarios that require them to sustainably manage both resources and wastes. They begin by creating a card representing themselves and the resources (inputs) they need and wastes (outputs) they produce. Then they incorporate additional cards for food and energy components and associated necessary resources and waste products. They draw connections between outputs that provide inputs for other needs, and explore the problem of using linear solutions in resource-limited environments. Then students incorporate cards based on biorecycling technologies, such as algae photobioreactors and anaerobic digesters in order to make circular connections. Finally, the student teams present their complete biorecycling engineering solutions to their scenarios—in poster format—by connecting outputs to inputs, and showing the cycles of how wastes become resources.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Sustainability is important in all engineering disciplines in order to efficiently maintain products and services. This activity implements environmental engineering technologies that enable sustainable food growth, energy production and waste management. Students mirror the real-world work of engineers by collaborating together in design teams to consider limitations and find solutions to challenges.

Pre-Req Knowledge

Students require a basic understanding of biorecycling concepts, including composting, photosynthesis, and anaerobic digestion. The Biorecycling: Using Nature to Make Resources from Waste lesson provides an overview to all these concepts as well as the three biorecycling technologies introduced in this activity.

Learning Objectives

After this activity, students should be able to:

  • Match resource inputs and "waste" outputs to create recycling loops, thereby turning wastes into resources.
  • Map energy, water and nutrient flows within and between biorecycling systems.
  • Map relationships between food waste and food production.
  • Explain the difference between a sustainable (circular) and non-sustainable (linear) practice.

More Curriculum Like This

Dome It Challenge

Students brainstorm, identify and explore the pathways where their food, water and energy originate, and where wastewater and solid waste go. After creating a diagram that maps a neighborhood's inputs and waste outputs, closed and open system concepts are introduced by imagining the neighborhood enc...

Middle School Lesson
Biorecycling: Using Nature to Make Resources from Waste

By studying key processes in the carbon cycle, such as photosynthesis, composting and anaerobic digestion, students learn how nature and engineers "biorecycle" carbon. Students are exposed to examples of how microbes play many roles in various systems to recycle organic materials and also learn how ...

Life Cycles

Students extend their knowledge of matter and energy cycles in organisms to engineering life cycle assessment of products. They learn about product life cycle assessment and the flow of energy through the cycle, comparing it to the flow of nutrients and energy in the life cycles of organisms.

Middle School Lesson
Designing a Sustainable Guest Village in the Saguaro National Park

Students are challenged to design a permanent guest village within the Saguaro National Park in Arizona. To successfully address and respond to this challenge, students must acquire an understanding of desert ecology, environmental limiting factors, species adaptations and resource utilization.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop a model to describe the cycling of Earth's materials and the flow of energy that drives this process. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Students will develop an understanding of the effects of technology on the environment. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Students will develop an understanding of the role of society in the development and use of technology. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Students will develop an understanding of and be able to select and use agricultural and related biotechnologies. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Identify the impact that humans have had on Earth, such as deforestation, urbanization, desertification, erosion, air and water quality, changing the flow of water. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Describe and investigate various limiting factors in the local ecosystem and their impact on native populations, including food, shelter, water, space, disease, parasitism, predation, and nesting sites. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • card set, made from Dome It Challenge Cards & Cycles, a Microsoft® PowerPoint® file; slides 1-4 are pre-made cards; print and cut them out, making one card set per group; alternative for more advanced students: provide blank index cards to have them make some or all of their own cards
  • Internet access or some other way to research three biorecycling technologies: algae photobioreactors, anaerobic digesters and composting
  • paper and pencil for research note-taking
  • markers and/or colored pencils
  • large sheet of paper, such as poster board or butcher paper
  • tape or glue, to attach cards to large sheet of paper
  • Dome It Challenge Worksheet

Introduction/Motivation

Does nature produce waste? What happens to an apple that falls on the ground? (It rots and decomposes.) The apple waste breaks down into nutrients, which are resources that plants need to grow. A tree uses the nutrients to produce more apples, completing the cycle. In this example, what are the wastes? (Answer: No wastes; everything is reused.) Environmental engineers create technologies that mimic the recycling done by natural organisms. By biorecycling, the nutrients and resources in organic wastes, like those from plants and animals, can be used again.

Why is biorecycling important? Why would we want to biorecycle? (Biorecycling greatly reduces or eliminates waste by turning wastes back into resources, and resources are limited.) Is biorecycling sustainable? (Yes!) Why? (Answer: In the apple example, a cycle is formed so that resources are always available and waste does not build up.) Sustainable practices create circular loops or cycles.

Imagine this: If your neighborhood was suddenly trapped under a giant dome, what would happen to all of your waste? (Answer: Waste would pile up.) Where would you get water to drink, food to eat, or electricity? (Answers will vary, but expect students to recognize that they need to find these resources elsewhere if the infrastructure they usually depend upon was taken away.) Is this sustainable? (No.) Why? (Answer: This is an example of a linear system. Resources are used then discarded as waste; they only go one way.)

What if you were on a space station, desert island or underground cavern? In this activity, you are going to work together to survive in a given location. As a group, you will design ways to meet your needs and manage your waste sustainably by using biorecycling systems.

Vocabulary/Definitions

algae photobioreactor: A system that grows algae using water and light.

anaerobic digester: A bioreactor or container that is designed to prevent oxygen from entering and in which anaerobic digestion occurs.

anaerobic digestion: A process that uses microorganisms to break down organic waste in the absence of oxygen.

biofuel: Renewable plant-based fuel made from biomass, such as corn, sugarcane or microalgae.

biogas: A gas mixture produced when organic matter is broken down in the absence of oxygen, such as in anaerobic digestion. The gas contains methane and carbon dioxide and can be burned as an energy source.

biomass: Material that came from living organisms; generally plant material.

biorecycling: A process in which organisms break down "waste" materials and make new materials from them, using biological processes such as anaerobic digestion or photosynthesis.

closed loop system: A system in which process outputs, or "wastes," are used as system inputs, or "resources." An example is algae biofuel production, in which carbon dioxide that is produced in combusting the fuel is used again in photosynthesis.

compost: Organic matter (biomass) that has been decomposed into a fertilizer.

open loop system: A system in which outputs, or "wastes," are not brought back into the process as inputs, or "resources." For example, burning fossil fuels releases carbon dioxide into the atmosphere, but the carbon dioxide is not biorecycled back to organic carbon in this process.

sustainable: Being able to use resources without depleting or damaging them over time; enduring over time; self-sustaining.

Procedure

Before the Activity

  • Gather materials and make copies of the Dome It Challenge Worksheet, one per group.
  • Choose whether to use one, some or all of the Dome It Challenge scenarios, as listed in Table 2. Then print the slides that contain the cards you choose to use from the Dome It Challenge Cards & Cycles, making enough copies for each group. Cut apart the cards to prepare one set per group. Slides 5-8 provide example connections (recycling loop solutions) made with the cards. Note: It is the teacher's discretion whether to have the class use the pre-made cards, or whether students are prepared and advanced enough to make some or all of their own.
  • Set out large sheets of paper for each group to work on.

With the Students

  • Divide the class into engineering groups of three or four students each.
  • Tell students that this activity considers three biorecycling technologies: algae photobioreactors, anaerobic digesters and composting.
  • Use the board to write down each technology as the heading for a three-column table, as shown Table 1.
  • Choose whether to have each team research all three technologies or assign one technology per team.
  • Have student teams research the three technologies and take notes. Direct students to find descriptions, inputs, outputs, applications and images for their assigned technology(ies).
  • As a class, discuss student findings and fill in the table columns on the board (see Table 1 example answers).
    A three-column, five-row table provides descriptions, inputs (resources), outputs (wastes), applications (where or how are they used?), and images for three biorecycling technologies: algae photobioreactors, anaerobic digesters and composting.

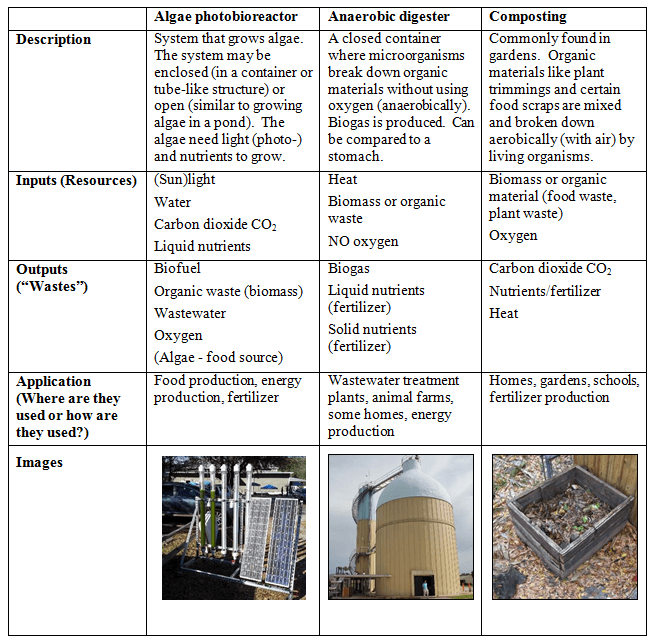

    Table 1. Three biorecycling technologies: algae photobioreactors, anaerobic digesters and composting.
