Lesson Mathematical Modeling- Linear Approximations

Quick Look

Grade Level: 9 (8-10)

Time Required: 1 hour

Approximately five minutes to complete a warm-up, 45 minutes to engage in the lesson and 8-10 minutes to complete a wrapping-up formative assessment.

Lesson Dependency: None

Subject Areas: Algebra, Number and Operations

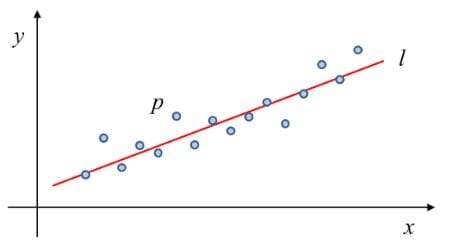

Mathematical representation shows a data set, p, with independent variable, x, and dependent variable, y, plotted on a coordinate plane. Linear model, l, is approximated to fit the data set.
Often in the real-world, situations are not perfect and require a model, such as the linear model shown, to make a prediction.
copyright
Copyright © Algebraic & Geometric Error. (2014, September 13). Retrieved June 27, 2018, from http://darkpgmr.tistory.com/143

Summary

Students investigate the idea of linear approximation. Students apply mathematical modeling, specifically linear approximation, to an already collected data set to make a prediction. In this lesson, students first engage in a warm-up that is not a perfectly linear data set, being exposed to this for the first time. Students take on the role as a packaging engineer to learn the process to apply linear approximation modeling: collecting data, creating a graph, drawing a line-of-fit, creating a model in the form of an equation, defining the model’s variables, and evaluating with the model. Students ultimately use their linear model to predict the net weight of cereal in grams contained by 260 square inches of cardboard packaging.
