Maker Challenge: Visualize Your Heartbeat

Contributed by: Research Experience for Teachers, Office of STEM Engagement, Precise Advance Technologies and Health Systems for Underserved Populations and Department of Electrical and Computer Engineering, Rice University, Rice University

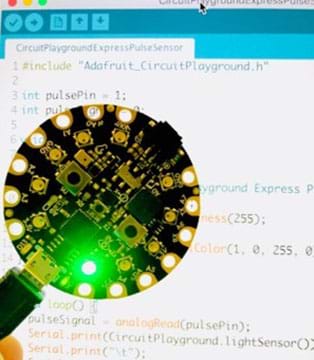

A photograph shows a Circuit Playground Express board and behind it is some programming code on a computer.
You can make a wearable pulse meter!
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET

Maker Challenge Recap

For this maker challenge, students become biomedical engineers who design, create, and test a medical device that measures a patient’s pulse using a microcontroller, LED, and light sensor. Students use data collected from the device they build to determine how to best visualize the results, so that a doctor can view the patient’s pulse on the computer screen. During the challenge, students learn about basic coding, the capabilities of microcontrollers, how sensors gather data, how the human circulatory system works, and how to plot real data. Finally, students are challenged to make their systems portable so that they create wearable health technology. This is a great project for a high school senior design team project.

Maker Materials & Supplies

This activity works best with groups of 3 or 4.

Each group should get the following:

  • Adafruit Circuit Playground Express (CPX) board (other microcontrollers could be used as well but other components will be needed. See below.)
  • computer running Windows, OS X, or Linux (not tested with Chromebooks)
  • spreadsheet program (the given instructions were tested with Google Sheets
  • Arduino Programming IDE
  • microUSB cable (included with Circuit Playground Express)
  • If using a different microcontroller, here are the additional parts needed
    • multiple (3 or 4) LEDs of various colors
    • set of three or four 200 – 400 ohm resistors for use with LEDs
    • light sensor (photocell)
    • 10k-ohm resistor for use with the photocell
    • breadboards for building the circuit

Worksheets and Attachments

More Curriculum Like This

The Heart of the Matter

This lesson describes how the circulatory system works, including the heart, blood vessels and blood. Students learn about the chambers and valves of the heart, the difference between veins and arteries, and the different components of blood.

Elementary Lesson
Nerve Racking

Students learn about the function and components of the human nervous system, which helps them understand the purpose of our brains, spinal cords, nerves and five senses. In addition, how the nervous system is affected during spaceflight is also discussed.

Elementary Lesson
The Beat Goes On

In this activity, students learn about their heart rate and different ways it can be measured. Students construct a simple measurement device using clay and a toothpick, and then use this device to measure their heart rate under different circumstances (i.e., sitting, standing and jumping)

Elementary Activity
Statistical Analysis of Flexible Circuits

Students are introduced to the technology of flexible circuits, some applications and the photolithography fabrication process. They are challenged to determine if the fabrication process results in a change in the circuit dimensions since, as circuits get smaller and smaller (nano-circuits), this c...


Do you know that you can measure your pulse with just a light on your finger and a sensor? This technique is called photoplethysmography and is pretty easy to do with the right tools.

Ask students: How can this work? (Listen to student responses.)

As your heart beats, there is a lub and a dub: your heart compresses to push blood through your circulatory system during the lub, called the systole (SIS-toe-lee), and then your heart relaxes and refills with blood during the dub or the diastole (die-AS-toe-lee). During the systole, there is a little more blood in your skin than during the diastole. If you shine light into your skin, the blood will interact with the light, and as the amount of blood changes during the cardiac cycle, you can detect this change by measuring the light leaving your skin.

The challenge: Each group is a team of biomedical engineers who are designing and testing wearable health systems that sense light changes with a person's pulse using a microcontroller, an LED, and a light sensor. Just as the eyes sense light and the brain processes the information to give it meaning, the microcontroller processes the signal it receives when the sensor detects light. The goal: to accurately measure the patient’s pulse and then convert the light signal measured to be a number that changes over time, giving doctors a visualization of the patient’s heartbeat. This is called a photoplethysmogram (PPG) waveform and has all kinds of uses in medicine.

Ask students: What color LED should you use? How will you get the light from the LED into your finger and then into the sensor? (Listen to student responses.) You and your fellow engineers must figure it out!


Maker Time

The best way to start tackling this problem is to familiarize students with the tools at hand.
Arduino: First, students must learn to use the Arduino software and learn how to interface it with the Circuit Playground Express hardware. Next, there are 10 available LEDs which can display any color by combining different amounts of red, green, and blue light. Students will need to figure out how to control the brightness. (Note: For this project, there only needs to be one LED on. The others being on would be a source of light contamination so make sure students figure this out.) Ask the students to determine: Which LED is closest to the on-board light sensor? The students can find the light sensor by locating the icon of the open eye. It is very small indeed!

The basic challenge here is to turn on an LED and then read the light reflected off a finger into the light sensor. This data will then need to be displayed in the plotter tool to see the pulse in real-time!

Sensors: Sensors used by computers must give data in a digital form. The Arduino reads sensor data as voltage which is handled by the code as numbers. This means that the brightness of the reflected light will show up as numbers for the student engineers to process and display. Remember that when sensors read data, this counts as input data for the microcontroller. Students can then output this data in some useful way.

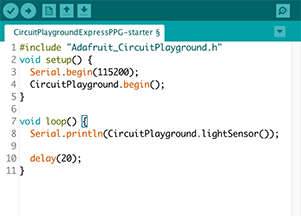

A screenshot shows code on a computer for printing data from a light sensor to the screen.
Example code for printing data from sensors.
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET

In the setup function for this code, we open a connection between the Circuit Playground Express and the computer using a reliable data transfer rate or baud. We must also tell the Circuit Playground Express to start up and be ready to do things like read from the sensors or change the colors of the LEDs. In the loop function, we do two simple things over and over. First, we get the light level reading from the Circuit Playground Express and print it to the serial console. Next, we add a 20-millisecond delay to allow the device to reset.

Students can access the serial console by selecting the Tools menu and then selecting Serial Monitor.

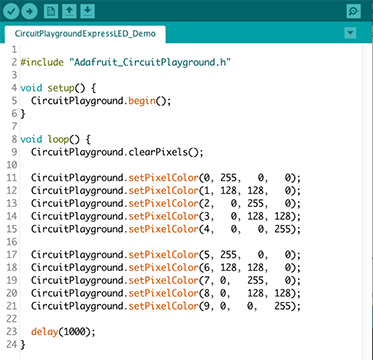

A screenshot shows computer code for changing the colors of the LEDs on a Circuit Playground.
Example code for changing the colors of LEDs on a Circuit Playground Express.
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET

There is a built-in example if students need more help. Go to the menu Examples > Adafruit Circuit Playground  > Hello_LightSensor for a complete working example of reading data from the light sensor.

Putting it together: Next, the students need to put together the various pieces: turn on the LED closest to the light sensor, read the light reflected back into the sensor, and print the values to the serial plotter.

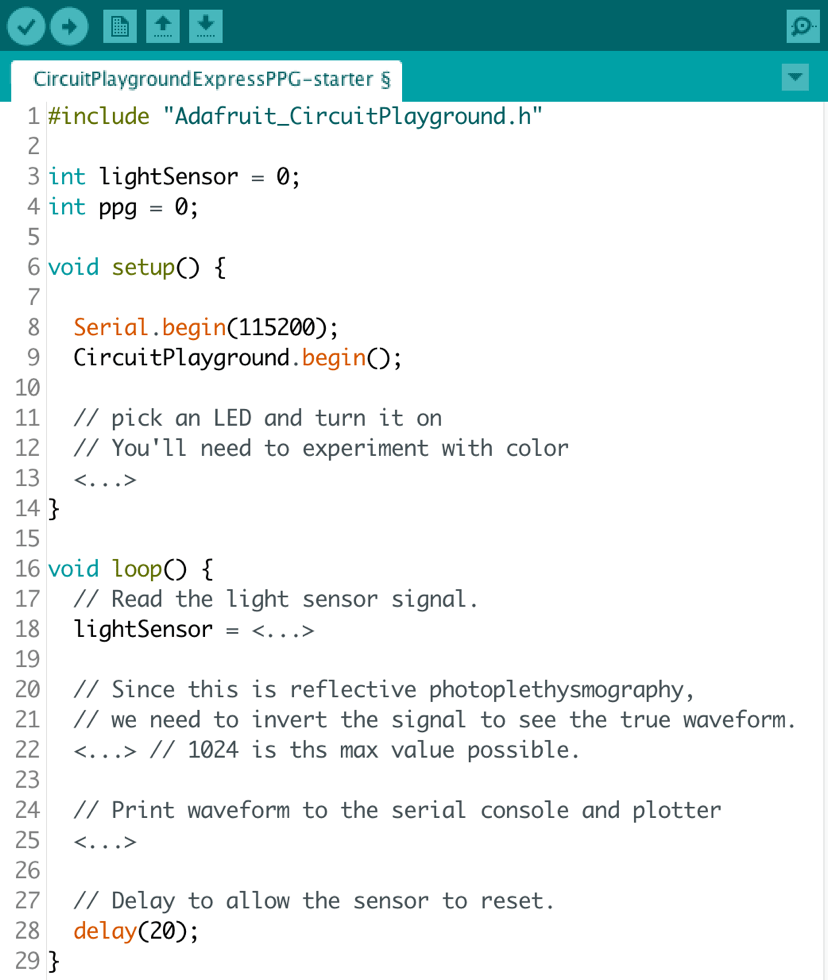

A screenshot shows the starter code for the light sensor pulse reader project including comments for students to follow.
Figure 1. Starter code for the Arduino light sensor pulse reader project.
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET

Students should start by setting up, just as we did before. The comments in Figure 1 are meant to be incomplete, so the students can complete them!

  • Line 13 should have a line that turns on the LED at position 1 (that is the second LED since they start counting at 0). Starting counting at 0 is very common with computing.
  • Line 18 needs to be finished so that the light sensor can be read directly.
  • Line 22 is important! The light we get back from the sensor is the light that WAS NOT absorbed by the person’s tissue. We need to know how much light WAS absorbed. The maximum light value is 1024 (a power of 2 since this is a computer using binary). How can you change the number to represent how much light was absorbed rather than reflected back? Use the provided variable called PPG that was declared on line 4 to store your answer.
  • Line 25 is where you print the result from line 22. This allows you to see the data in a raw format or to see the data plotted over time.

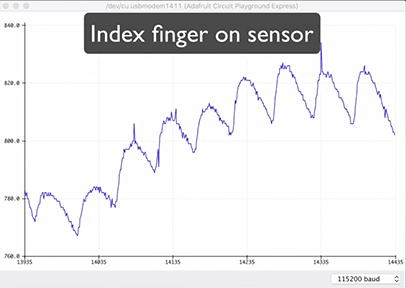

A screenshot shows the Arduino Serial Plotter window displaying a pulse waveform.
Example of a pulse waveform.
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET

Once students load the program and it is running and plugged into their computer, go to Tools -> Serial Plotter and see the pulse in real time!

While testing the device, have students find a comfortable position and hold still for a full minute. Notice that signal calms down and changes. Suggest that the students try it out on different fingers and with a neighbor. Note that how hard a student presses does matter to the output. Have the students experiment with different positions and pressure levels. Ask the students: Which finger works best?

Wrap Up

Students should share their code and waveforms with the one another.

As a class: Discuss where difficulties arose and tackle questions about how students’ algorithms compared with one another.

Ask the students: Now that you have used a microcontroller as a health device, how could this system be made more portable? What other sorts of data could sensors access that might tell us something about a person’s health?

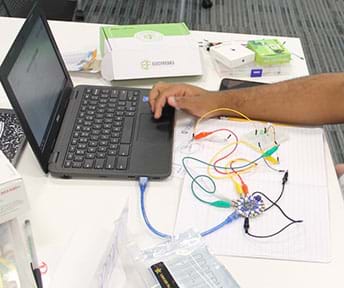

A photograph shows a student’s arm as he codes the Circuit Playground to work with the visible circuit.
Coding an Adafruit Circuit Playground in the classroom.
Copyright © 2018 Jimmy Newland, CC BY-SA 4.0, Rice University RET


  • Students will need to be allowed to explore the programming environment if this is their first programming experience. The time estimate includes some time for pure exploration.
  • For a more challenging project, consider not including the starter code but only the two example programs. This would be appropriate if most students have some coding experience.
