SummaryThis lesson describes how the circulatory system works, including the heart, blood vessels and blood. Students learn about the chambers and valves of the heart, the difference between veins and arteries, and the different components of blood. This lesson also covers the technology engineers have developed to repair the heart if it is damaged. Students also understand how the circulatory system is affected during spaceflight (e.g., astronauts lose muscle in their heart during space travel).
Engineers continue to help protect the heart by developing technological devices to repair it. Artificial heart valves made of metal were developed to replace faulty valves (e.g., valves that do not fully close, which allows blood to flow in the wrong direction). NASA engineers used the technology that the fuel pumps in the Space Shuttle were based on to help design a tiny ventricular assist pump (which helps pump blood through the body). Artificial hearts were developed by engineers to keep hospitalized patients alive while they are waiting for a heart transplant. Engineers are currently working on creating completely internal, artificial hearts. Understanding the circulatory system is also important in order for engineers to keep astronauts healthy during spaceflight (e.g., to help prevent the heart from losing muscle mass during space travel).
Each TeachEngineering lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
- Technological advances have made it possible to create new devices, to repair or replace certain parts of the body, and to provide a means for mobility. (Grades 3 - 5) Details... View more aligned curriculum... Give feedback on this alignment... Thanks for your feedback!
- A subsystem is a system that operates as a part of another system. (Grades 3 - 5) Details... View more aligned curriculum... Give feedback on this alignment... Thanks for your feedback!
- Analyze and interpret data to generate evidence that human systems are interdependent (Grade 5) Details... View more aligned curriculum... Give feedback on this alignment... Thanks for your feedback!
- Assess further scientific explanations regarding basic human body system functions (Grade 5) Details... View more aligned curriculum... Give feedback on this alignment... Thanks for your feedback!
Lesson 1, Spaced Out, of this unit is useful to introduce the space aspect of this lesson.
After this lesson, students should be able to:
- Explain the function of circulatory system.
- Describe the heart as a pump.
- List some devices that engineers have created to help the heart.
- Describe how spaceflight affects the circulatory system.

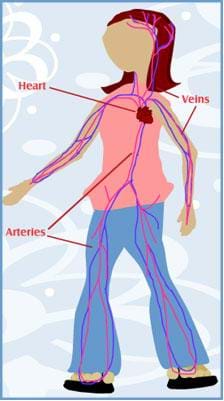

The heart is so important to life that the ancient Egyptians thought of it as the center of personality. To them, the heart was even more important than the brain! We know that without it, we would die. The heart weighs a little more than half a pound and is only the size of a clenched fist; yet, it pumps 2,000 gallons of blood through about 60,000 miles of blood vessels each day! Think about a gallon of milk; now think about 2,000 of those gallon bottles. That is a lot of blood being pumped every day! Blood has some very important jobs: it is what provides our bodies with oxygen, removes waste from our organs, and helps us recover from diseases. Blood travels around our body through blood vessels, such as veins and arteries. We call this bodily system the circulatory system. Circulatory sounds like the word "circle," and the heart pumps blood around our body in a closed loop ─ like a circle ─ through veins and arteries.
What is a pump? Have you ever used a bicycle pump to inflate a flat tire on your bicycle? Well, a bicycle pump actually pushes air into your tires until they are full ─ making your bike ready to go. The heart is essentially a pump, but instead of air, it pushes blood through your body in blood vessels. Pumps can break down with use, and in thinking about the heart as a pump, it too can become clogged or break down ─ just like any other pump. Sometimes when we eat too many fatty foods, the heart can become clogged with fat. If the heart stops pumping, our body is in big trouble!
Have you ever listened to your heartbeat through a stethoscope? What do you hear? You can distinctly hear a lub-dub sound. This is the sound of the valves in your heart opening and closing. ("Lub" is when the two upper chambers, or the atriums, are pumping the blood into the ventricles. "Dub" is when the ventricles are pumping the blood to either the lungs or the body.) The harder you are working (e.g., exercising), the faster your heart pumps blood through your body (because the body needs more oxygen when it is working hard). If you do not have a stethoscope, you can feel your pulse by pressing your fingers (do not use your thumb) against the inside of your wrist or the side of your neck. The blood flowing through the body can be felt because every heartbeat (i.e., every time the ventricles are pumped) sends a surge of blood through the body. Size also affects how fast the heart beats. Very large mammals can have a heartbeat of 20 to 30 BPM (beats per minute) and very small animals can have heart rates exceeding 500 BPM. The average human heart rate is around 60-100 BPM (while at rest) ─ translating to more than 30 million beats per year and about 2.5 billion beats in a 70-year lifetime. That's a lot of pumping by your heart!
Biomedical engineers work with doctors to develop mechanical hearts and valves, artificial veins, and devices to clean fat build-up on arterial walls. Additionally, they create devices to monitor the heart during and after surgery. Engineers also save lives by developing better ways of administering blood transfusions (giving a person back the blood they have lost) when someone loses a lot of blood in an injury or during surgery. They have also created artificial blood, which provides an alternative to a blood transfusion when real blood is either not available or there is not time to test for blood type. Also, engineers have developed equipment for detecting blood diseases, such as diabetes. In fact, new technologies are being invented almost daily.
Just as we have seen how spaceflight has an impact on the muscular, skeletal and digestive systems, it also affects the circulatory system. Astronauts lose heart muscle as well as blood while in space. Because of the lack of gravity, the blood in an astronaut's body moves up towards their head, and their body decreases its total amount of blood and fluids that it is producing. With less blood, their heart does not have to work as hard to pump the blood around their body. However, upon their return to Earth, the heart suddenly has to work harder when the blood returns to the astronaut's lower body due to the presence of gravity. This causes them to become dizzy and sometimes faint when they return to the Earth. Engineers help counter these effects by developing special equipment for spaceflight, such as exercise equipment, to keep the heart strong.
Lesson Background and Concepts for Teachers
The circulatory system consists of the heart, the vascular system (arteries, capillaries and veins), and blood. Its purpose is to transport oxygen and nutrients to the entire body, as well as collect metabolic waste products (e.g., urea and carbon dioxide) and deliver them to the excretory organs (e.g., kidneys and lungs). This system also plays a role in the immune system as it helps defend against infections. The circulatory system also aids the endocrine system by transporting hormones.
The Heart, Blood and Valves

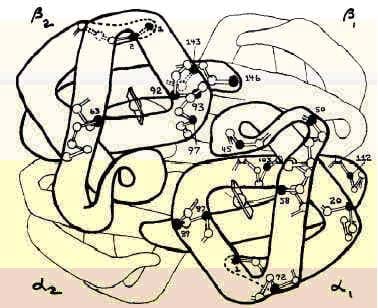

The heart is a four chambered, muscular organ (about the size of your fist) that pumps blood throughout the body (see Figure 2). The vascular system is made up of arteries which carry blood away from the heart, capillaries where the exchange of gases and nutrients takes place between blood cells and body tissues, and veins which return deoxygenated blood to the heart. Together, these blood vessels provide an efficient delivery route for blood throughout the body. Blood cells are the actual vehicles that transport the nutrients and waste products. Blood also helps regulate body temperature and protects humans from bleeding to death after an injury occurs by creating a barrier or clot. Blood is made up of 5% plasma, 50% water, 44% red blood cells, and 1% white blood cells and platelets. Red blood cells are donut-shaped cells that are 90% hemoglobin ─ a ribbon-like material that carries oxygen and gives blood its bright red color (see Figure 3). Hemoglobin turns red when oxygenated. Every living human has either A, B, AB, or O type blood. Type O is known as the universal donor, but humans with this blood type can only receive type O. Type AB is known as the universal receiver, but any humans with other blood types cannot receive it. Types A and B only can receive O, or their respective blood type, and donate to AB. Blood can be a mystery!
The blood's journey begins in the right atrium where it is collected from the body via the superior vena cava (blood from the head and upper body) and the inferior vena cava (blood from the lower body). The oxygen from this blood has been used by the body and contains waste products such as carbon dioxide. It is then pumped through the tricuspid valve into the right ventricle. The blood then travels through the pulmonary valve and into the pulmonary artery, which takes the blood to the lungs to pick up oxygen. (Note: arteries usually carry oxygenated blood while veins carry non-oxygenated blood; the only exception is the pulmonary artery and the pulmonary vein where it is reversed.) In the lungs, the red blood cells (specifically the hemoglobin) pick up oxygen and release carbon dioxide so that it can be expelled from the body through exhalation. This oxygen-rich blood then travels from the right and left lungs (through the right and left pulmonary veins) into the left atrium of the heart. It then flows through the mitral valve and into the final chamber of the heart (the left ventricle). The left ventricle then pumps the blood through the aortic valve to the aorta. The aorta transports the blood to the rest of the body to deliver oxygen and nutrients and pick up waste products (notice how the wall of the left ventricle is thicker, as this extra muscle is needed since this chamber of the heart has to pump the blood the farthest ─ throughout your entire body). The blood then returns to the heart and the cycle begins again. The entire cycle takes only about 20 seconds!
Heart disease is one of the leading causes of death in both men and women. Valves are particularly important to the proper functioning of the heart because they act as doors that open and close, directing and controlling the flow of the blood through the heart. The valves actually keep the blood from flowing backwards! If there is a problem ─ such as narrowing or leaking valves, these valves may be repaired or replaced with natural or artificial valves. Natural valves usually come from human donors (cadavers), while artificial valves were developed by engineers and are made of metal. One drawback of having an artificial valve is that it is necessary to take medication to prevent blood clots for the rest of that person's life. There are modified natural valves that come from animal donors, such as pigs and cows. NASA engineers used the technology that the fuel pumps in the Space Shuttle were based on to help design a tiny ventricular assist pump.

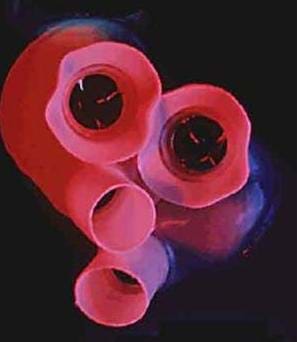

Engineers have also designed artificial hearts. Some of these devices, which may only consist of the ventricles and valves (see Figure 5), are only intended to keep hospitalized patients alive while they are waiting for a heart transplant. The artificial heart is sewn to the remaining atria (top half of the heart) and is connected by tubes from the heart through the chest to a power-generating console that operates and monitors the artificial heart. Again, this in only a temporary fix while the patient awaits a complete heart transplant (which usually comes from a human donor). However, engineers are working on perfecting completely internal, artificial hearts that would use hydraulic pumps and internal batteries.
Microgravity and Its Effect on the Heart

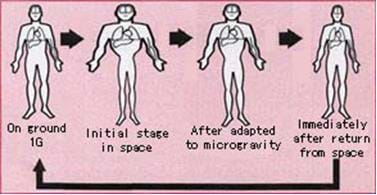

One of the first changes the body undergoes in space is a fluid shift. Without gravity, all the fluids in the body (primarily water) shift toward the head. This results in a phenomenon often referred to as the "puffy-head, bird-legs" syndrome since the legs lose fluid and the head gains it. The brain interprets this "excess" fluid as something it needs to get rid of ─ making astronauts feel less thirsty and increase the output of urine (see Figure 6). This leads to an overall decrease of fluids and electrolytes (e.g., sodium and potassium), which ultimately leads to a decreased blood plasma level. Less blood plasma causes a reduction in the red blood cell mass. This blood loss affects the heart because it now has less blood to pump in addition to the fact that it does not have to overcome the force of gravity anymore (i.e., pumping blood from the feet back up to the heart is easier without gravity). Since the heart does not have to work as hard in space, it loses muscle and shrinks in size (due to, simply, lack of exercise). These changes are not really a problem until the astronauts return to Earth, as their bodies are simply adapting to the environment.
