Sprinkle: Can You Catch the Water? (for Informal Learning) (en español)

Students model a water catchment basin and survey water pathways to understand factors that affect water flow.

Introduction
Bolded words are vocabulary and concepts to highlight with students during the activity.

The entire area from where stream or river water begins to where it finally ends is called a catchment basin (or a river basin or water basin.) Catchment basins and watersheds are important to most living things, since water flow, direction and location are vital to water availability for everyday life. Environmental, chemical and civil engineers, along with geologists and hydrologists, are all very interested in catchment basins, how they change, and how water flows through them. Recently, in the Earth's geologic timeline, we are seeing catchment basins changing in response to human water diversion and water collection activities. Understanding how human-made technologies affect our water sources, water quality and watersheds is of great importance to protect the people, industries and wildlife that depend upon a working system of clean water for survival.

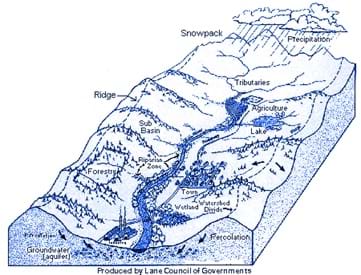

A landform diagram identifies precipitation, snowpack, ridge, tributaries, sub-basin, lake, forestry, riparian zone, agriculture, town, watershed divide, wetlands, percolation, groundwater (aquifer).
A catchment basin.
copyright
Copyright © Lane Council of Governments, Watershed Information Network, U.S. Environmental Protection Agency, www.epa.gov/win/images/ws1.gif

Supplies

Each group needs:

  • 1 cardboard/plastic tray
  • 1 medium white trash bag
  • 1 large spray bottle
  • 1 medium-sized sponge
  • (optional) newspaper
  • 1 roll masking tape
  • 3 Styrofoam/plastic bowls
  • 2 3-oz. (88.7 ml) paper cups
  • (optional) 2 paper plates
  • 2 12 oz. (~350 ml) plastic cups
  • assorted rocks, foam balls, etc. (for making landforms)
  • assorted food coloring colors (can be shared)
  • access to water

Procedure

Procedures Overview

Students act as engineers and build three-dimensional models of water catchment basins and experiment to determine how they can be altered by natural and human activities.

Procedure

  • Organize students into groups of three. Have them brainstorm what things they think could affect a stream, and how the area around the stream would be affected.
  • As a class, discuss students' ideas. Instructor note: If not brought up by students, discuss water quality (dirt, pollution), precipitation (rain, snow), life (animal, plant), human-made changes (dams, buildings), and location (mountains, valleys).
  • Explain to students that a catchment basin is a geographical area that ultimately drains into a river, and that all of the things they discussed in their brainstorming session can affect catchment basins.
    Two photos: An arrangement of cups, plates, bowls, rock and wooden block, then covered by a white plastic trash bag to form the catchment terrain.
    The activity setup.
    copyright
    Copyright © 2006 Malinda Schaefer Zarske, ITL Program, College of Engineering, University of Colorado Boulder
  • Give each group a tray, trash bag and spray bottle. At the front of the classroom, have the rest of the supplies ready for students to use when appropriate.
  • Tell students that the tray is the "region" they are studying. Have students use various supplies to create mountains, valleys and other topographical features in their regions, as illustrated in the photographs above. (Note: Have students use masking tape to secure their features.)
  • Instruct each group to cover its region and "features" with a plastic bag. Loosely mold the plastic around the objects and tape as needed.
  • Have students make predictions about what will happen to the water in their regions if it were to suddenly start raining. Then, have students gently "rain" on their regions with the spray bottles filled with water.
  • Students should observe where the water flows and collects on the plastic covering. Does it form rivers and lakes? Streams?
  • As students are making their observations, walk around the room and give each group a sponge. Instruct them to use the sponge to create a dam in one of their rivers. Then, have them "rain" again, and observe how the dam affects the region.
  • Next, help students model a pollution-generating factory: place a few drops of food coloring on their sponge; then have students place the sponge where a factory might be. Have students "rain" again, and observe where the pollution ends up (that is, where the colored water flows). How does this affect the region?

Wrap Up - Thought Questions

  • How do mountains, hills and valleys dictate water flow in a region?
  • How did a dam affect your region?
  • Where did the industrial pollution end up? How could this affect your region?
