Hands-on Activity: Energy Intelligence Agency

Contributed by: Office of Educational Partnerships, Clarkson University, Potsdam, NY

Cartoon of the official seal of the "Energy Intelligence Agency."
The Energy Intelligence Agency is the focus of this activity.

Summary

In an active way, students discover a few critical facts about how we use energy and how much energy we use. Each student has a "clue," some of which are pertinent energy facts and others are silly statements that are clearly unrelated to the topic. Students mingle and ask each other for clues until they have collected all the facts they need. This provides a more interactive way to communicate energy statistics, compared to a lecture and introduction with board work. The goal is to introduce students to some key terms and issues associated with energy as a necessary prerequisite for the remainder of the unit.

Engineering Connection

Engineers have a critical role to play in harnessing energy resources for use by society. They are among the professionals who have enabled our world-wide mobility, communication, safe food storage etc. These technological advances have benefitted society, but also consume a lot of energy. Developed countries, such as the US, have benefitted from engineered technologies, but now function at unsustainable energy consumption amounts. Engineers must now also contribute to a solution by making tools and devices more energy efficient and developing ways to harness renewable energy resources.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

Suggest an alignment not listed above

Learning Objectives

After this activity, students should be able to provide a definition of our "energy crisis" that includes aspects of dwindling supply, over consumption and health impacts from pollution.

Materials List

  • Student Handout, show class via overhead projector (alternatively, make copies, one per student)
  • List of Clues, cut apart into slips of paper, each with a different "clue," one each per student (23 provided on list)

Introduction/Motivation

Photo shows a young woman talking on a cell phone.
copyright
Copyright © US Department of Health and Human Services, MedlinePlus http://www.nlm.nih.gov/medlineplus/news/fullstory_109008.html

We currently are highly dependent on fossil fuels for most of our energy supply – energy that is instrumental for maintaining our current society. However, our supply of nonrenewable energy sources is being depleted and may even reach a point in which the limited supply adversely affects people's lives. The rapid depletion of fossil fuels stems in part from our current energy use habits. For example, the average American uses six times the energy as the global average, per person. In the US, this translates to the use of one million dollars worth of energy every minute!

Introducing these statistics and the importance of energy in our lives can be accomplished with this activity. It is critical for students to appreciate the importance of energy in their lives early in the unit. Starting the class with questions like "How did you get to school today?" or "What energy did you use this morning to get ready for school?" and "Where did that energy come from?" are good ways to get the students thinking about energy topics. Also ask the students if they have observed automobiles which are dirtier than others? This activity is an excellent way to begin this discussion.

Procedure

Before the Activity:

Print out the List of Clues and cut it apart into individual slips of paper, one clue per slip. Only five "clues" have pertinent energy facts; the rest are unrelated to the topic. Fold the slips so students do not see what is written on them. Make enough to give each student his/her own clue. If the class is larger than ~20 students, reduce the time for this activity by dividing the class in half and having each half work together to find the critical clues.

With the Students:

  1. Pass out EIA letters and clues-information slips (Make sure the slips of paper are folded and that the important facts are scattered around the room and not in a group)
  2. Explain that five informants in the room have crucial information and the rest are decoys
  3. Students must find the five crucial facts, however they must use a code phrase to get the information. For example, Joey approaches Maria and says "Not Every Cat Hates Mice." Mary then responds with what is written on her slip of paper even if it is not important.
  4. As they go around the room, each student should write down the facts they deem important.
  5. As a class, review the informants' facts:
  • A bar graph of the average annual energy consumed per person shows a bar for US citizens that is six times higher than the bar for the average of the rest of the world.
    Figure 1. Annual per capita energy consumption, U.S. vs. world.
    Americans use six times the amount of energy as the average of people in the rest of the world. (Draw a bar chart; see Figure 1.) Is this fair? Why is this true? Relate this to the fact that we have many conveniences and a quality of life that most other countries do not have. Engineers were essential in creating the products, tools and infrastructure that result in this quality of life.
  • Fossil fuels are depleted at a rate that is 100,000 times faster than they are formed. What does this mean? What do you think will happen to the supply of fossil fuels within our lifetime? (Consider introducing the term "peak oil" at this point; it will be covered in a later unit.)
  • Approximately 30,000 lives are cut short in the U.S. each year due to pollution from electricity production. What kind of pollution have you seen from electricity and energy production? (NOx, SOx, particulate matter (including soot), volatile organic compounds, etc.).
  • The average American uses the amount of energy that is equivalent to 7 gallons of gasoline every day. Where do you use energy in your own lives? Mention the three main areas of energy use: shelter and comfort (heating and cooling), household activities (chores like cooking and cleaning, entertainment, lighting, etc.) and transportation.
  • A car that gets 20 miles per gallon (mpg) emits approximately 50 tons of global-warming-inducing carbon dioxide over its lifetime. What is global warming? Where have you heard that term before? Mention global climate change current events (such as loss of polar bear habitat, etc.; see the EPA's A Student's Guide to Global Climate Change website at http://www.epa.gov/climatechange/kids/impacts/index.html). Discuss that education is important, as everyday decisions affect our environment. Discuss carpooling, and that if co-workers and students can drive together, their impacts are reduced greatly. Also discuss other ways to save energy including drying clothes outdoors, reading instead of watching TV, unplugging appliances when they are not being used, and taking the bus.

Attachments

Assessment

Post-Activity Assessment:

Class Discussion: The discussion included in the Procedure section enables the teacher to understand what the students already know about energy issues, including terms such as fossil fuel, pollution, global warming (or climate change). This level of current understanding is needed for determining the right level to start further lessons.

Class Calculations:

  • If the average American uses the amount of energy that is equivalent to 7 gallons worth of gasoline every day, how many gallons are they using in a year? (Answer: 7*365 = 2,555 gallons/yr)
  • If the average American uses 7 gallons of gasoline each day, and they use six times the amount of energy as an average person in the rest of the world, how many gallons per day does one person consume in the rest of the world? (Answer: 7*(1/6) = 1.1667 gallons)
  • Ask the students how they could decrease their daily energy consumption? (Possible answers: Carpool, use less appliances...dry clothing outdoors, take the stairs and not the elevator, eat all of their food, etc.) Enforce that most of the energy we use comes from fossil fuels and is NON-RENEWABLE!

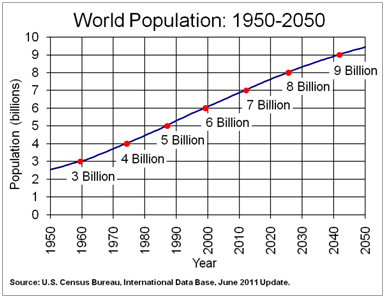

  • Share Figure 2 with the class (world population growth). What do they notice about the world's population? Is it still growing today? Ask the students how this could affect energy, food, and water supplies? Also ask the students if more people = more pollution?
    World Population Growth from 1950 projected to 2050.
    Figure 2. World Population Growth from 1950 projected to 2050
    copyright
    Copyright © http://www.census.gov/population/international/data/idb/images/worldpop.png

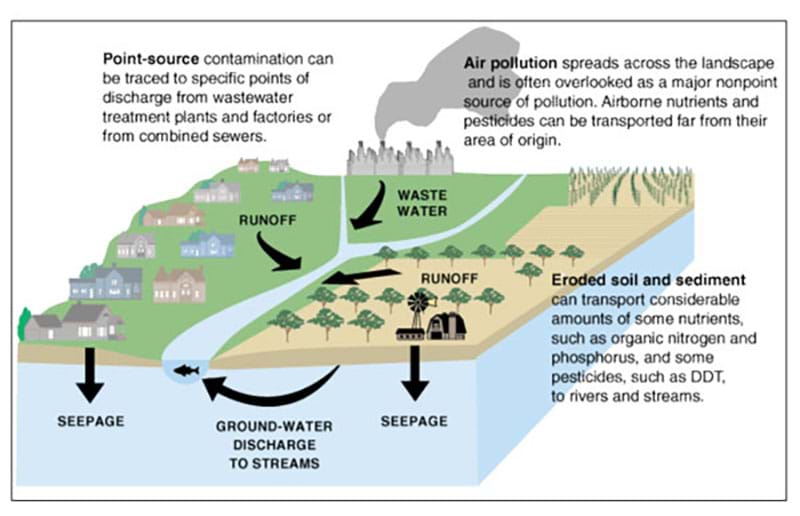

  • Share Figure 3 with the class (pollution sources). There three main types: Point, non-point (area), and mobile. Point sources are big pollution producers, such as power plants! How does this relate to our discussion of energy? (Possible answers: By using more energy everyday, more pollution is made; Driving a car is a mobile pollution source.) Ask the class if they think some power plants are dirtier than others? (Possible answers: Yes, old power plants emit more pollution. Yes, power plants in other countries are often dirtier than American power plants.) Ask the class if some forms of transportation are cleaner than others? (Possible answers: Yes, bicycling is very clean. Yes, motorcycles and scooters are dirtier because many of them use 2-stroke engines which are very dirty.)
    Illustration of Pollution Sources.
    Figure 3. Illustration of Pollution Sources
    copyright
    Copyright © http://epg.modot.org/files/7/7f/127_good_steward_point_source.jpg

References

Energy Information Administration, EIA Kid's Page–Energy Facts. US DOE, Accessed December 29, 2008. http://www.eia.doe.gov/kids/energyfacts/index.html

Other Related Information

This activity was originally published by the Clarkson University K-12 Project Based Learning Partnership Program and may be accessed at http://www.clarkson.edu/highschool/k12/project/energysystems.html.

Contributors

Susan Powers; Jan DeWaters; and a number of Clarkson and St. Lawrence students in the K-12 Project Based Learning Partnership Program

Copyright

© 2013 by Regents of the University of Colorado; original © 2008 Clarkson University

Supporting Program

Office of Educational Partnerships, Clarkson University, Potsdam, NY

Acknowledgements

This activity was developed under National Science Foundation grant nos. DUE 0428127 and DGE 0338216. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.
