Lesson: The Energy Problem

Contributed by: Office of Educational Partnerships, Clarkson University, Potsdam, NY

Photo shows four young students climbing onto a school bus.
How do you use energy in your everyday activities?
copyright
Copyright © 2004 Microsoft Corporation, One Microsoft Way, Redmond, WA 98052-6399 USA. All rights reserved.

Summary

This six-day lesson provides students with an introduction to the importance of energy in their lives and the need to consider how and why we consume the energy we do. The lesson's associated activities engage students in general energy issues, including playing an award-winning Energy Choices board game, and an optional graphing activity that provides experience with MS Excel graphing and perspectives on how we use energy and how much energy we use.

Engineering Connection

Devices that engineers design often convert energy into forms that help us do every day activities—from drying our hair to powering the school bus. In the developed world, energy consumption is close to our technological capacity to produce energy useful to consumers. Engineers and all other people must now reconsider how we use energy. We must make and use products that help society, all while consuming less energy.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

Suggest an alignment not listed above

Learning Objectives

After this lesson, students should be able to:

  • Explain how the depletion of fossil fuels is a serious global issue.
  • List three decisions and actions they can make/take to reduce their personal energy consumption.
  • Use mathematics in other fields, using graphs, computation and models.

Introduction/Motivation

We currently are highly dependent on fossil fuels for most of our energy supply—this energy is instrumental for maintaining our current society. However, our supply of non-renewable energy sources is being depleted and may even reach a point at which its limited supply adversely affects our lives. The rapid depletion of fossil fuels stems in part from our current energy use habits. For example, the average American uses six times the amount of energy as the global average. Another way to describe this is that we use one million dollars worth of energy every minute in the US.

We can work to continue to use energy as appropriate in our everyday lives, but we need to make changes to conserve energy, use energy more efficiently or provide additional renewable energy resources that are technologically available to consumers. As individuals, we can make changes in our own lives and we can make decisions about our future profession to help solve our growing energy crisis.

(Introducing these statistics and the importance of energy in our lives can be accomplished with one of two engaging activities. It is critical for students to appreciate the importance of energy in their lives early in the unit. Starting the class with questions like "How did you get to school today?" or "What energy did you use this morning to get ready for school?" and "Where did that energy come from?" are good ways to get the students started thinking about energy topics. The two possible first day activities are excellent ways to begin this discussion.

Information published by the US DOE on their kids' energy web page is the best place to find information and interesting energy facts for middle school aged students.)

Lesson Background and Concepts for Teachers

People in the US use, on average, six times the energy consumed by the average of all other people in the world. This energy is consumed in three primary ways: buildings, transportation and industry (see Figure 1). Each of these sectors is responsible for approximately one-third of the total energy our nation consumes.

Pie charts show the relative amount of energy consumed by buildings, transportation and industries. These sectors consume 35%, 28% and 37% of the US total, respectively.
Figure 1. Relative energy use by sector (data from US DOE EIA).

This national energy consumption includes all the energy we use as individual consumers, and all of the energy required to run businesses and industry. Figure 2 shows how we primarily use energy in our households. Heating and cooling contributes the most to household energy consumption. Thus, insulating a house is often the most effective way to reduce household energy consumption.

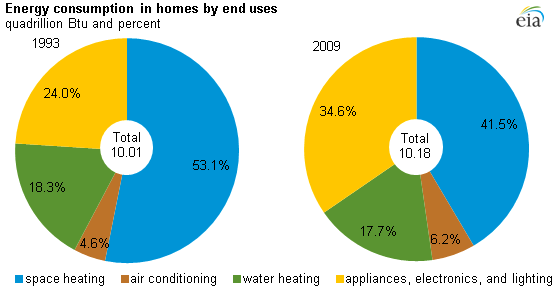

Pie charts show the relative amount of energy consumed in a US household.  Heating and cooling consumes 44% of the total.
Figure 2. Household energy use in the U.S.
copyright
Copyright © US DOE EIA (data)

When we buy items, whether it's food grown on the opposite side of the country, or an automobile, a lot of energy is consumed in the production and manufacturing of these goods. The energy that is consumed in the "upstream" processes, is often called the embodied energy. It is important to consider this energy ,too, not just the energy consumed when using a product. For example, consuming food requires energy for growing the food (producing fertilizer, tractor fuel), transportation (refrigerated trucking), processing, storage, and cooking, among others.

Overall, the key concepts that are most critical for this lesson include:

  1. Energy is a critical resource that is used in all aspects of our daily lives.
  2. Currently, society is highly dependent upon nonrenewable energy resources, mainly fossil fuels.
  3. The world's supply of nonrenewable resources is limited and their use can negatively affect our environment and economy.
  4. Our personal choices affect the future of the world's energy.
  5. Making smart energy decisions today are beneficial later.
  6. Energy is consumed not only when we plug an appliance into an outlet or turn on our cars (direct energy use), but also through the production and transportation of material goods that we purchase and consume every day (indirect energy use).

Associated Activities

  • Energy Intelligence Agency - A short game in which students find energy facts among a variety of bogus clues.
  • Energy in Our Lives Carousel - A short activity in which students brainstorm about how and why they use energy in their lives.
  • Energy Choices Game - A board game that takes players through a variety of energy choices encountered in typical households. Students pay gasoline and home energy bills and make choices about cars, appliances and renewable energy systems for their homes.
  • Energy Perspectives - How much energy do you use? This MS Excel graphing activity helps students better understand the magnitude of how much energy we use, what types of energy we use, and for what activities.

Assessment

See discussion questions throughout all activity sheets that provide insightful questions to assess if the class as a whole understands the basic concepts.

Lesson Summary Assessment: After game discussion is completed, have students complete a five-minute quiz: "List three energy choices that you would make the next time you played this game (or in your own lives) to reduce the cost and impact of your energy consumption."

Homework: Have students pass in graphs and answers to discussion questions related to the graphing activity.

References

Energy Information Administration, EIA Kid's Page – Energy Facts. US DOE, Accessed December 29, 2008. http://www.eia.doe.gov/kids/energyfacts/index.html

Other Related Information

This lesson was originally published by the Clarkson University K-12 Project Based Learning Partnership Program and may be accessed at http://www.clarkson.edu/highschool/k12/project/energysystems.html.

Contributors

Susan Powers; Jan DeWaters; and a number of Clarkson and St. Lawrence University students in the K-12 Project Based Learning Partnership Program

Copyright

© 2013 by Regents of the University of Colorado; original © 2008 Clarkson University

Supporting Program

Office of Educational Partnerships, Clarkson University, Potsdam, NY

Acknowledgements

This lesson was developed under National Science Foundation grants no. DUE 0428127 and DGE 0338216. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.
