Hands-on Activity: Renewable Energy Living Lab: Energy Priorities

Contributed by: Civil and Environmental Engineering Department, Colorado School of Mines

Photo shows a woman standing in a field with a huge three-bladed wind turbine nearby. Screen capture shows a US map with various shadings of green to indicate the degree to which states contribute to renewable energy production.
The feasibility in harnessing the various types of renewable energy varies by location. Map shows the percent renewable energy production by state in the U.S.
copyright
Copyright © (woman and wind turbine) US Bureau of Labor Statistics, US Department of Labor; (map) Energy.gov http://www.bls.gov/green/wind_energy/ http://energy.gov/maps/renewable-energy-production-state

Summary

Students analyze real-world data for five types of renewable energy, as found on the online Renewable Energy Living Lab. They identify the best and worst locations for production of each form of renewable energy, and then make recommendations for which type that state should pursue.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers are continually designing and inventing new technologies to harness energy. All of these technologies must be adapted, however, for local conditions. For example, in Iceland, an island with many active volcanoes, about two-thirds of the country's primary energy comes from geothermal sources. However, in New York, attempting to harness geothermal energy may not make as much sense. Part of an engineer's job is determining what sources of energy are feasible for a given area.

Scientists and engineers around the world gather data through observation and experimentation and use it to describe and understand how the world works. The Renewable Energy Living Lab gives students a chance to evaluate U.S. renewable energy sources. Using the real-world data in the living lab enables students and teachers to practice analyzing data to solve problems or answer questions, in much the same way that scientists and engineers do every day.

Learning Objectives

After this activity, students should be able to:

  • Explain the underlying ideas behind the five renewable energy sources.
  • Use maps to analyze and evaluate the potential for various energy sources.
  • Explain the factors contributing to renewable energy feasibility and make recommendations for best energy sources.

More Curriculum Like This

Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

High School Lesson
Renewable Energy Living Lab: The Bright Idea

Students use real-world data to evaluate the feasibility of solar energy and other renewable energy sources in different U.S. locations. Working in small groups, students act as engineers evaluating the suitability of installing solar panels at four company locations.

Renewable Energy Living Lab: Smart Solar

Students use real-world data to evaluate whether solar power is a viable energy alternative for several cities in different parts of the U.S. Working in small groups, they examine maps and make calculations using NREL/US DOE data from the online Renewable Energy Living Lab.

Renewable Energy Living Lab: Energy Experts

Students use real-world data to evaluate various renewable energy sources and the feasibility of implementing these sources. Working in small groups, students use data from the Renewable Energy Living Lab to describe and understand the way the world works.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Define the criteria and constraints of a design problem with sufficient precision to ensure a successful solution, taking into account relevant scientific principles and potential impacts on people and the natural environment that may limit possible solutions. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The design process is a purposeful method of planning practical solutions to problems. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • The management of waste produced by technological systems is an important societal issue. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Decisions to develop and use technologies often put environmental and economic concerns in direct competition with one another. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Throughout history, new technologies have resulted from the demands, values, and interests of individuals, businesses, industries, and societies. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Social and cultural priorities and values are reflected in technological devices. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Design is a creative planning process that leads to useful products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Requirements for design are made up of criteria and constraints. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Energy can be grouped into major forms: thermal, radiant, electrical, mechanical, chemical, nuclear, and others. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Energy resources can be renewable or nonrenewable. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Earth's natural resources provide the foundation for human society's physical needs. Many natural resources are nonrenewable on human timescales, while others can be renewed or recycled (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • computer with internet access (or printed or projected renewable energy potential maps as found on the Renewable Energy Living Lab website)
  • Energy Priorities Worksheet, one per student

Introduction/Motivation

What is renewable energy? (Listen to student ideas.) Renewable energy is generated by resources that will never dwindle because of use or overuse. Are all renewable energy resources equally feasible solutions to generate electrical energy across the US? (Listen to student ideas.) This is the question that we will investigate today.

We will learn more about renewable energy potential sources using the online Renewable Energy Living Lab during the next couple of class periods. We will look at data acquired and presented by the Department of Energy National Laboratories.

Today, we will investigate five key forms of renewable energy: wind, solar, geothermal, hydropower and biomass. What makes an area suitable for a particular type of renewable energy? Well, it varies, depending upon the type of renewable energy. Let's take Iceland for example. You may be aware that this island country is home to many active volcanoes. In fact, approximately two thirds of the country's primary energy comes from geothermal sources. On the other hand, geothermal energy might not make as much sense in other locations, say in New York. As another example, harnessing solar energy makes sense in the state of Colorado, which receives more than 300 days of sunlight every year, but is not as feasible in much of the Pacific Northwest where skies are more often overcast. Part of an engineer's job is to determine what sources of energy are feasible for a given area.

Vocabulary/Definitions

biomass: Biological (organic) material from living or dead organisms (especially plants) used as an energy source. Biomass used for electricity generation varies widely by region. Examples: Forest and wild plant growth (trees, branches, stumps), industrial wastes (such as from lumber and paper mills), urban waste (park trimmings, yard clippings, municipal solid waste, animal matter, sewage, food scraps), agricultural residues and fuel crops (corn, sugarcane, bamboo, hemp, wheat, straw, rice husks, grasses, algae, seaweed, animal fats, vegetable oils), etc.

fossil fuel: A type of fuel formed by the decay and decomposition process of dead organisms buried in the Earth for millions of years. Examples: Petroleum, natural gas, coal.

geothermal energy: Thermal (heat) energy from heat present under the Earth's surface.

hydropower: Power created from the movement (falling) of water. Dams are often used to create hydropower that can be converted to electricity.

renewable energy: Energy obtained from natural resources that are continually replenished, for example, regardless of how much of the Sun's heat energy is "used" today, more is received by the Earth tomorrow. Examples: Sunlight (solar energy), water (hydropower), geothermal, biomass.

wind turbine: A device similar to a windmill that moves with the wind to convert the kinetic energy created by the wind to mechanical energy. This mechanical energy can be converted to electrical energy as well.

Procedure

Before the Activity

  • Prepare the computers and make copies of the Energy Priorities Worksheet.
  • Divide the class into groups of two or three students each. Small groups work best so each student has a chance to explore the living lab data.

With the Students

  1. Provide students with the background and story for the activity and the challenge: Engineers are often called upon by decision- and policy-makers to provide information as the basis for community decisions about how to allocate resources. For this activity, you are acting as environmental engineers hired by the people on the state utilities commission to investigate which form of renewable energy they should focus their efforts on as they recruit new companies using a federal renewable energy grant. You have been tasked with analyzing potential energy data using the living lab data and then making a recommendation as to what form of energy the state should focus its recruitment efforts on. To solve this problem, we'll use real data hosted on a website called "a living lab."
  2. Hand out the worksheets as a guide for the activity. Review the worksheet with the class.
  3. Show students how to use the Renewable Energy Living Lab, as described in the next steps.
  4. Navigate students to http://www.teachengineering.org/livinglabs/index.php > click on Renewable Energy Living Lab.
  5. Review the five renewable energy icons; discuss why each icon is appropriate for the energy type it represents (wind, biomass, hydro, geothermal, solar).
  6. As an introduction to renewable energy, review the descriptive paragraphs about each energy source the page. Visit each "How It Works" link to explore the engineering.

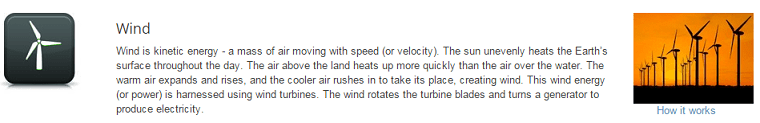

    Wind is kinetic energy—a mass of air moving with speed. The Sun unevenly heats the Earth's surface throughout the day. The air above the land heats up more quickly than the air over the water. The warm air expands and rises, and the cooler air rushes in to take its place, creating wind. This wind energy (or power) is harnessed using wind turbines. The wind rotates the turbine blades and turns a generator to produce electricity.
    A brief description of wind energy, as found on the Renewable Energy Living Lab introduction page. Note the "How It Works" hot link.
    copyright
    Copyright © 2012 Renewable Energy Living Lab, Colorado School of Mines
  7. Choose age group K-12.
  8. Zoom in on your state by double clicking on the map and/or using the mouse hand and the zoom and pan tool.
  9. Check the boxes under the Resources folder (located on the left under the Data Layers tab) to switch between the maps depicting the potential for the five different forms of renewable hydropower, biomass, geothermal, wind and solar. Use the icons in the lower left corner to read more information about each form of energy.

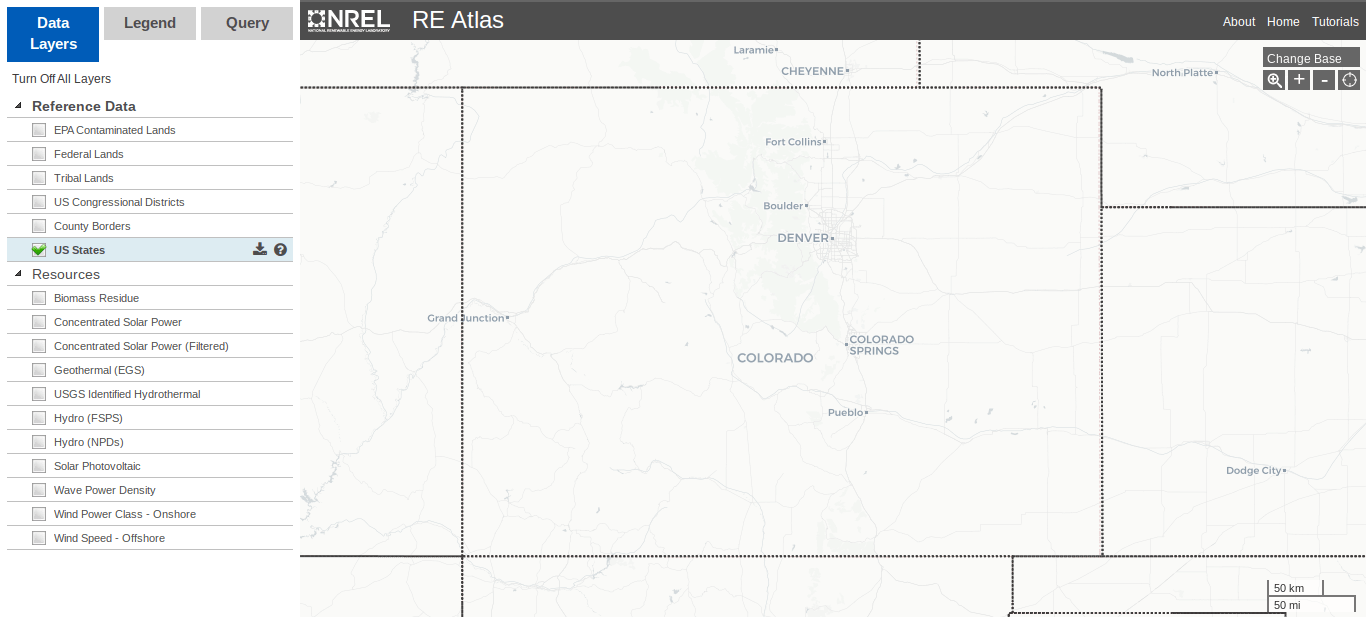

    A map of Colorado.
    On the map, use the zoom and pan tool in the upper right-hand corner to find locations
    copyright
    Copyright © 2016 Renewable Energy Living Lab, Colorado School of Mines
  10. Give students time to explore the living lab before they begin to analyze data. Point out the legend under the Legend tab. Point out the various units and color keys. Point out hot links at the bottom of the legend box for additional resources about each energy type.

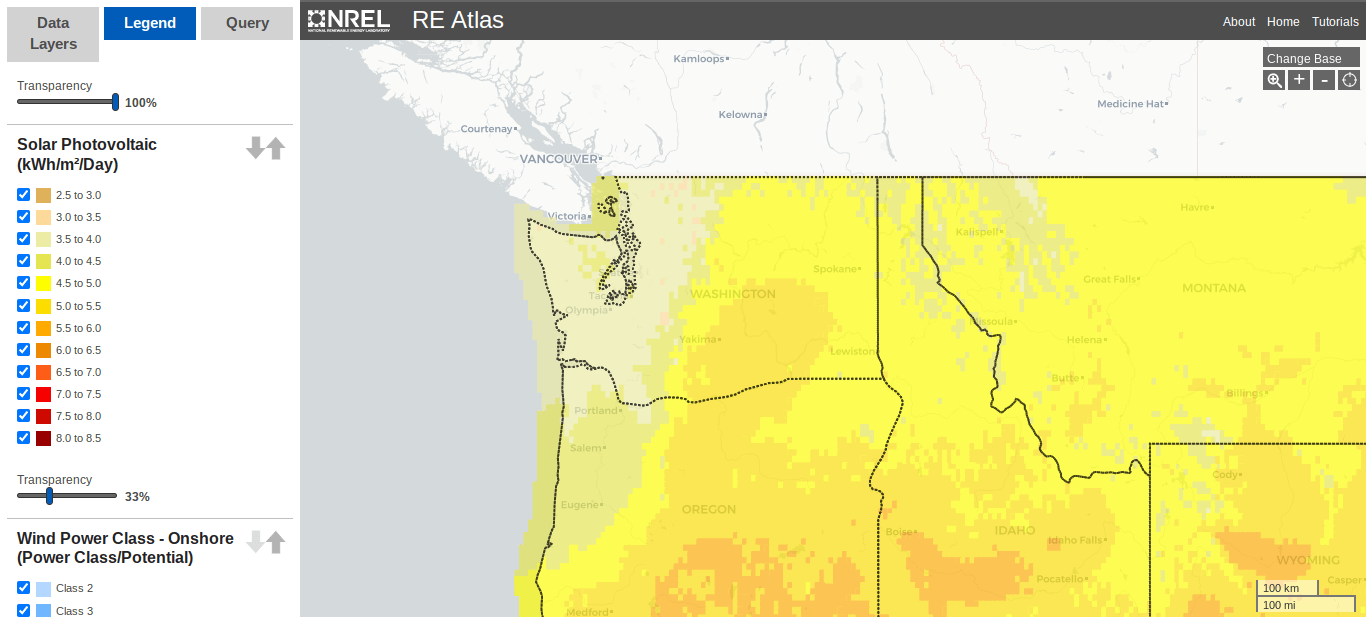

    Screen capture shows a yellow-tone color scale legend for solar power map and links to further info.
    Example Renewable Energy Living Lab screen showing a map legend and additional links.
    copyright
    Copyright © 2016 Renewable Energy Living Lab, Colorado School of Mines
  11. Guide students to complete the "Explain" and "Elaborate" sections of the worksheet. When estimating the average, an eyeball estimate suffices, but expect it to be within a reasonable range. For example, expect an estimate of the average solar output in Washington (see Figure 1) to be between 4.0 and 4.5 kWh/m2/day.

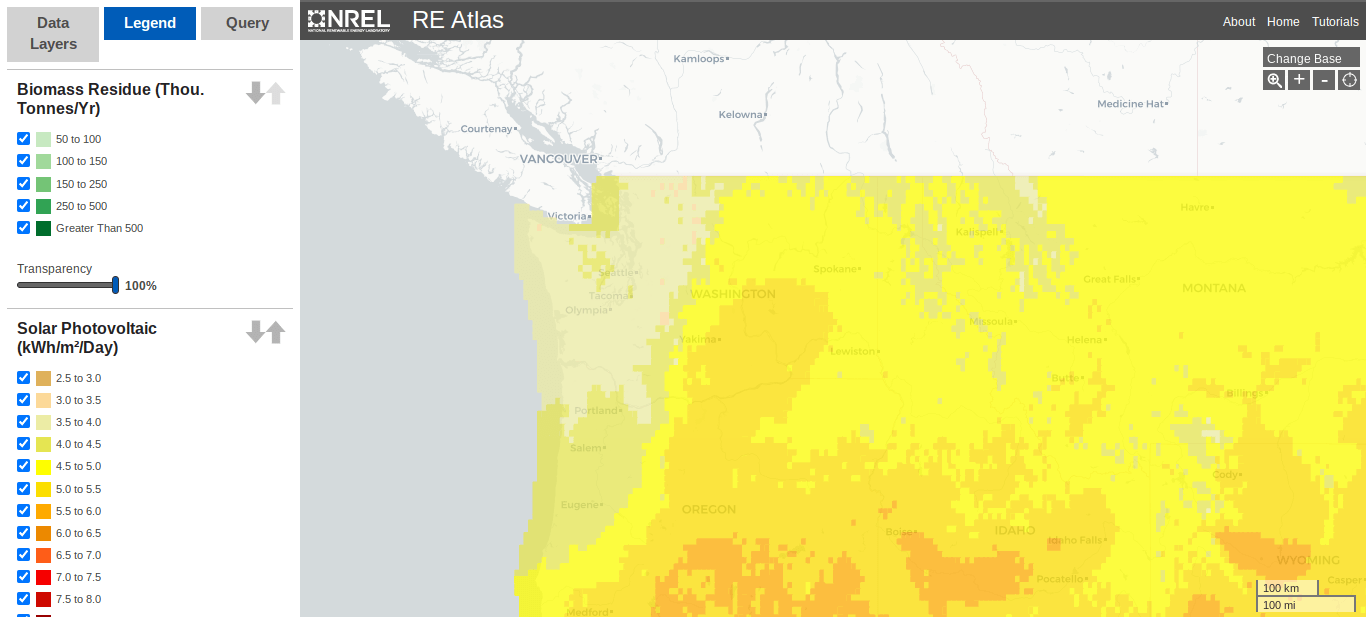

    Screen capture shows a map with terrain and main highways graded in colors from brown to yellow. A legend output (red is the highest) indicates the level of kWh per square meter per day, ranging from > 8.5 to 2.5.
    Figure 1: A solar energy potential map for the state of Washington.
    copyright
    Copyright © 2016 Renewable Energy Living Lab, Colorado School of Mines
  12. Guide students to complete the "Evaluate" section of the worksheet. Expect answers to vary, which is acceptable since this is a qualitative rather than quantitative analysis, and only a limited amount of data is available. One answer for question 2 is the fact that all of the energy sources use different units, which means that they cannot be directly compared.
  13. Conclude by facilitating a class discussion to share results and conclusions, as described in the Assessment section. Have students turn in their worksheets for grading.
