# Hands-on ActivityHanging Around: Gravity and Slinky Spring Scales

(0 Ratings)

### Quick Look

Time Required: 45 minutes

Expendable Cost/Group: US \$5.00

Group Size: 2

Activity Dependency: None

Associated Informal Learning Activity: Hanging Around: Gravity and Slinky Spring Scales

Subject Areas: Physical Science, Physics

NGSS Performance Expectations:

 MS-PS2-2 MS-PS2-4

### Summary

Students learn about weight by building a spring scale from a slinky and observing how it responds to objects with different masses.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

### Engineering Connection

Engineers must balance the relationship between weight of materials and gravity in their designs. Civil engineers design structures, such as bridges and tall buildings, making material choices that assure they will not fall down. Aeronautical engineers design light yet strong airplanes and rockets with enough power and fuel to lift away from the pull of gravity. Environmental engineers analyze the way water flows down a river canyon or the effect of forces pushing against a storage tank's wall.

### Learning Objectives

After this activity, students should be able to

• Explain that weight is a comparison of the force of gravity pulling on objects with different masses.
• Collect and analyze data.
• Make predictions from observed data.
• Describe why engineers must balance the relationship between weight of materials and gravity in their designs.

### Educational Standards Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards. All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org). In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

###### NGSS: Next Generation Science Standards - Science
NGSS Performance Expectation

MS-PS2-2. Plan an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Plan an investigation individually and collaboratively, and in the design: identify independent and dependent variables and controls, what tools are needed to do the gathering, how measurements will be recorded, and how many data are needed to support a claim.

Alignment agreement:

Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Alignment agreement:

The motion of an object is determined by the sum of the forces acting on it; if the total force on the object is not zero, its motion will change. The greater the mass of the object, the greater the force needed to achieve the same change in motion. For any given object, a larger force causes a larger change in motion.

Alignment agreement:

All positions of objects and the directions of forces and motions must be described in an arbitrarily chosen reference frame and arbitrarily chosen units of size. In order to share information with other people, these choices must also be shared.

Alignment agreement:

Explanations of stability and change in natural or designed systems can be constructed by examining the changes over time and forces at different scales.

Alignment agreement:

NGSS Performance Expectation

MS-PS2-4. Construct and present arguments using evidence to support the claim that gravitational interactions are attractive and depend on the masses of interacting objects. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Construct and present oral and written arguments supported by empirical evidence and scientific reasoning to support or refute an explanation or a model for a phenomenon or a solution to a problem.

Alignment agreement:

Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Alignment agreement:

Gravitational forces are always attractive. There is a gravitational force between any two masses, but it is very small except when one or both of the objects have large mass—e.g., Earth and the sun.

Alignment agreement:

Models can be used to represent systems and their interactions—such as inputs, processes and outputs—and energy and matter flows within systems.

Alignment agreement:

###### Common Core State Standards - Math
• Reason abstractly and quantitatively. (Grades K - 12) More Details

Do you agree with this alignment?

• Represent and interpret data. (Grade 5) More Details

Do you agree with this alignment?

• Display numerical data in plots on a number line, including dot plots, histograms, and box plots. (Grade 6) More Details

Do you agree with this alignment?

###### International Technology and Engineering Educators Association - Technology
• Explain how knowledge gained from other content areas affects the development of technological products and systems. (Grades 6 - 8) More Details

Do you agree with this alignment?

###### State Standards
• Represent and interpret data. (Grade 5) More Details

Do you agree with this alignment?

• Display numerical data in plots on a number line, including dot plots, histograms, and box plots. (Grade 6) More Details

Do you agree with this alignment?

• Explain that the mass of an object does not change, but its weight changes based on the gravitational forces acting upon it (Grade 6) More Details

Do you agree with this alignment?

Suggest an alignment not listed above

### Subscribe

Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!
PS: We do not share personal information or emails with anyone.

### Materials List

Each group needs:

• 1 mini slinky or other lightweight spring, available online
• 1 paper cup
• 25 cm of string
• tape
• 2 rulers
• a few books or another heavy object to hold 1 ruler down on a table or desk
• 6 small objects with identical weights, such as pennies, quarters or marbles

### More Curriculum Like This

Middle School Lesson
Get Me Off This Planet

The purpose of this lesson is to teach students how a spacecraft gets from the surface of the Earth to Mars. Students first investigate rockets and how they are able to get us into space. Finally, the nature of an orbit is discussed as well as how orbits enable us to get from planet to planet — spec...

Upper Elementary Lesson
What Is Newton's Second Law?

Students are introduced to Newton's second law of motion: force = mass x acceleration. Both the mathematical equation and physical examples are discussed, including Atwood's Machine to illustrate the principle. Students come to understand that an object's acceleration depends on its mass and the str...

Upper Elementary Lesson
Newton Gets Me Moving

Students explore motion, rockets and rocket motion while assisting Spacewoman Tess, Spaceman Rohan and Maya in their explorations. First they learn some basic facts about vehicles, rockets and why we use them. Then, they discover that the motion of all objects—including the flight of a rocket and mo...

### Introduction/Motivation

The force of gravity acts upon all matter, everywhere. However, gravity pulls more strongly on an object that has more mass than on an object with less mass. We call the force of gravity acting upon mass, weight. Weight is a comparison of how strongly gravity pulls on one object or another. For example, when we say that something weighs 2 pounds or 2 kilograms, it means that gravity is pulling on that object two times as strongly as it does on something that ways 1 pound or 1 kilogram. "Pound" and "kilogram" are just the unit names we give to certain amounts of gravitational pull. Measuring weight, then, is simply a matter of comparing the pull of gravity on different objects.

Historically, people have compared the weight of unknown things to different specific objects known as standard weights. People have used special rocks or stones as standard weights to compare to heavy objects, and special seeds or nuts as standard weights to compare to lighter objects. Today, we compare weights to a standard kilogram and a standard pound, which are special pieces of metal kept in the U.K. Copies of the standard kilogram and the standard pound are kept at different places all over the world, including at the National Institute of Standards and Technology in the U.S.

Comparing the force of gravity on different objects (weighing things) is a really useful thing to do. Aeronautical engineers understand how the force of gravity works so that they can design airplanes and rockets; Civil engineers understand gravity so that they can design tall buildings and bridges that will not fall down; and environmental engineers understand gravity so that they can analyze the way water flows down a river canyon or the forces pushing against a storage tank's wall. In fact, every kind of engineer uses an understanding of gravity to do their work! Because understanding gravity is so important to engineers, engineers have devised many interesting ways to measure the force of gravity acting upon different objects. In this activity, we will engineer a tool to measure the force of gravity, and use that tool to examine gravity's pull on small objects.

### Procedure

Before the Activity

• Gather materials.
• Read through all the activity steps and prepare a few relevant questions.

With the Students

Direct each student team to make its own spring scaby le following these steps:

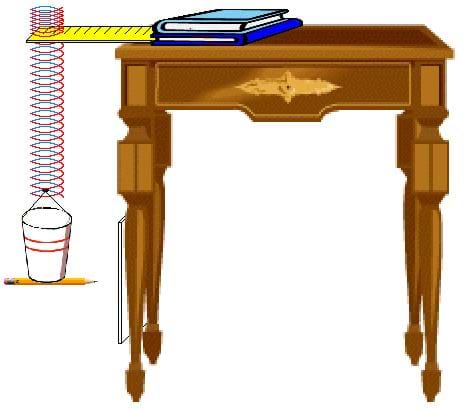

1. Place a ruler on the edge of a table or desk so that it extends past the edge. Stack enough books on the ruler to hold it down securely.
