Hands-on Activity Mars Sample Return Coding Challenge

Learning Objectives

After this activity, students should be able to:

• Explain how complex engineering missions rely on interconnected subsystems.
• Design and code a functional subsystem model using sensors, inputs, and outputs.
• Test, debug, and revise code and circuitry to meet design constraints.
• Collaborate across teams to integrate multiple subsystems into one working system.
• Reflect on the challenges and tradeoffs of real-world engineering teamwork.

Educational Standards

Each Teach Engineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in Teach Engineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

International Technology and Engineering Educators Association - Technology

Materials List

• programmable microcontrollers compatible with external components, such as light sensors, LEDs, etc. (MakeON, Cubit, Micro:Bit, Raspberry Pi, etc.)
• laptop or tablet (one per group)
• Engineering Rubric (1 per student)
• (optional) Imagine and Plan Worksheet (1 per student)
• (optional) Reflections Worksheet (1 per student)

Worksheets and Attachments

Pre-Req Knowledge

Students should:

• Be familiar with programming concepts such as inputs, outputs, variables, loops, conditional statements, and event-driven actions. Note: Experience with block-based or text-based coding platforms is helpful.
• Have knowledge of simple sensors (light, distance), actuators (motors, servos), buttons, LEDs, and other output devices.

Introduction/Motivation

Who has heard of the Perseverance Mars rover? (Let students raise their hands.) The Mars 2020 Perseverance Rover searches for signs of ancient microbial life, to advance NASA's quest to explore the past habitability of Mars.

One of the most significant scientific advancements on the Perseverance Mars rover was that, unlike its predecessor, the Curiosity rover, which drilled holes, Perseverance can collect core samples. These rock cores, each just several centimeters long, will allow NASA scientists to explore internal rock structures as they exist on Mars, without reducing them to powder. But collecting the core samples is only the first step for the future of Mars exploration. Although the scientific tools onboard Perseverance are advanced, they are still limited compared to the complexity of facilities here on Earth. Thus, the question was asked: How can we bring those samples back home for analysis?

How do you think we could bring rocks back from another planet? (Let students offer answers.) Now we are going to do a quick think-pair-share. I want you to think about two questions: (1) What challenges do you think engineers face trying to do this on Mars? (2) Why wouldn’t one single team be able to handle everything? (Give students a minute to think about these questions.) I want you to turn to your shoulder partner and share your thoughts on these two questions. (Give students two minutes to think–pair–share.)

NASA is working on this exact issue. This mission is called the Mars Sample Return mission, and it is incredibly complex. It involves multiple spacecraft, robotic systems, and international engineering teams, all working together. Let’s look at this short video.

(Show the YouTube video: https://www.youtube.com/watch?v=t9G36CDLzIg [1:46 minutes].)

This short animation features key moments of the Mars Sample Return campaign: from landing on Mars and securing the sample tubes to launching them off the surface and ferrying them back to Earth. Notice that instead of one rover doing everything, the mission is broken into separate subsystems, such as collecting samples, storing them, checking systems, communicating with Earth, generating power, and launching the return rocket.

One of the first steps in this process is to retrieve the samples collected by Perseverance with its coring tool. Collecting these samples and bringing them to a stationary lander will allow for samples to be readied for launch back to Earth. Mission architecture could have the Perseverance rover (or future helicopters, as a backup) deliver the samples to our sample retrieval lander. This specific lander would be the first ever mission to bring along a rocket, called the Mars Ascent Vehicle. The lander would transfer the samples into the rocket for launch from the Martian surface. Although returning material from Mars has been impossible in the past, this rocket was specifically created to house our Martian core samples. This small rocket will carry the samples to an orbiter above the surface for redirection back to scientists eagerly waiting for the first arrival of samples sent from another planet.

Today, you are part of NASA’s engineering teams. Each group will design and code one mission subsystem. Just like the teams at NASA, each of your groups will design, code, and test a subsystem that must work with the other groups’ systems to complete the mission.

Procedure

Background (Teacher's Guide)

The Mars Sample Return (MSR) mission is an ambitious multi-step effort by NASA, in collaboration with international partners, to bring rock and soil samples from Mars back to Earth for detailed analysis. The Perseverance rover, part of NASA’s Mars 2020 mission, collects core samples of Martian rock using a coring tool. These samples are carefully stored in sealed tubes, preserving their internal structure and chemical composition, which cannot be fully analyzed with the rover’s onboard instruments. Once collected, the samples must be transferred to a stationary sample return lander on the Martian surface, a critical step that allows them to be prepared for launch.

The Mars Ascent Vehicle (MAV), a small rocket carried aboard the lander, will lift the collected samples off the surface of Mars. From there, the samples will be transferred to an orbiter, which will transport them safely back to Earth. This mission is inherently complex, requiring precise coordination between multiple spacecraft, robotic systems, and engineering teams across different countries. Each step of the mission involves specialized tasks, from sample handling and system checks to communications and launch operations. Understanding this context helps students appreciate the scale of engineering challenges and the need for careful planning, integration, and collaboration in real-world space exploration.

Systems engineering is a critical discipline in complex missions like the Mars Sample Return, focusing on designing, managing, and integrating interconnected subsystems to ensure the overall system functions as intended. Each subsystem—whether it is communications, power generation, sample handling, or launch sequencing—must operate independently while also interacting seamlessly with other components. For example, the lander’s power system must reliably provide energy to the rover handoff mechanisms, communications equipment, and rocket launch systems, all while adhering to strict timing and safety constraints.

You should emphasize that in real missions, failures in one subsystem can affect the entire operation. Engineers must plan for these interactions, consider tradeoffs, and communicate frequently across specialized teams to prevent problems and ensure mission success. By framing the classroom activity around systems engineering, students can understand that the success of the Mars Sample Return mission depends not only on individual technical skills but also on the coordination and integration of multiple subsystems into a cohesive whole.

Before the Activity (Preparation)

• Prepare device kits with basic components.
• Print copies of:
• Engineering Rubric (1 per student).
• Optional: Imagine and Plan Worksheet (1 per student).
• Optional: Reflections Worksheet (1 per student).
• Optional: Test sample programs for:
• Button input.
• LED output.
• Sensor readings.
• Servo or motor movement.
• Optional: Prepare integration stations where groups can connect subsystems together.

During the Activity

Mission Introduction

1. Introduce (or review) the Engineering Design Process.
2. Introduce the Mars Sample Return mission and explain that real missions require many teams working together.
3. Emphasize systems engineering: Each part must work individually and as part of the whole.
4. Distribute the Engineering Rubric to each student.
5. Optional: Review the elements of the rubric.

Ask

6. Present the challenge: Retrieve the samples collected by Perseverance and return the samples to Earth.
7. Assign or have students pick from a list of objectives required to make the complete Mars Sample Return mission successful. Some suggested objectives using common devices are provided below to assist with brainstorming:

• Sample loading into rocket: Students can code a servo or motor that will allow incoming samples to be properly loaded into the return rocket. This may also include a physical or digital counter to keep track of how many samples have been received.

• Power and energy: Solar energy will need to be collected to power the sample return lander. Students can code a light sensor capable of signaling that it is receiving enough energy to power the station.

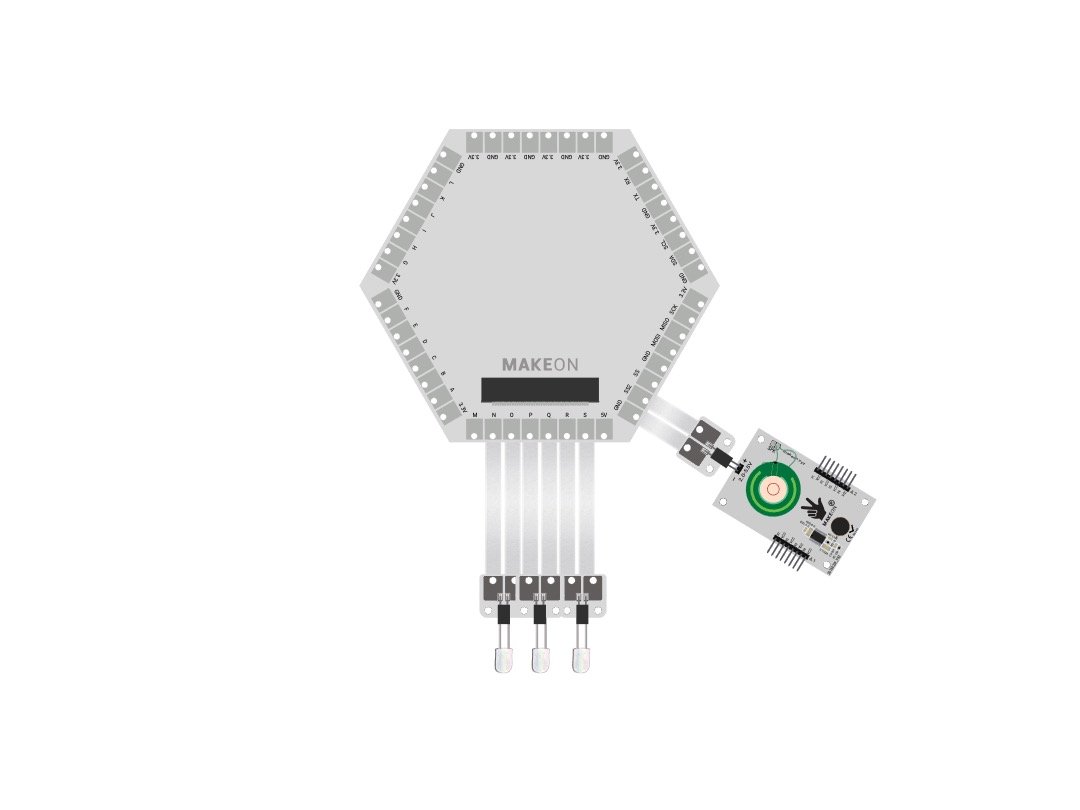

• Communications: To be certain that the lander can send and receive signals to and from Earth, we need to have active communications. This could include coding a radio receiver and/or transmitter that indicates when a message has been sent or received. This can include an audio signal too, using a speaker, although this may present a distraction in the classroom.

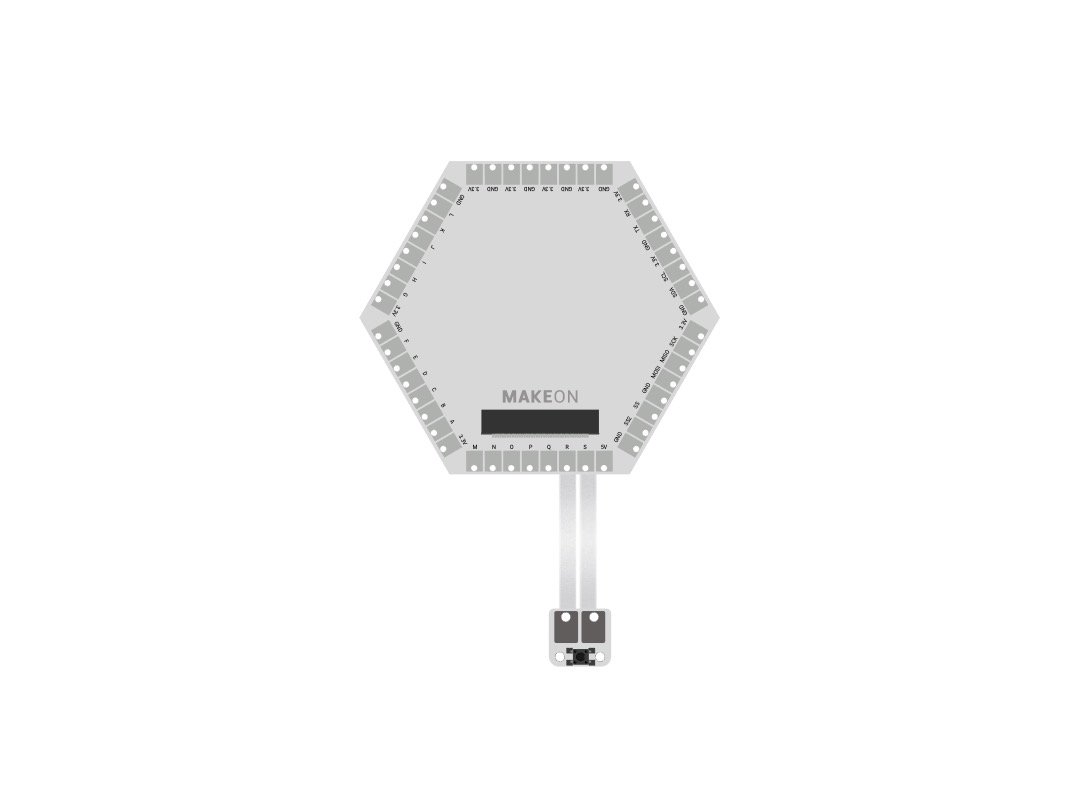

• Systems check: Before any launch, the mission should have an internal checklist to verify everything is ready to go. Students can code a manual input (buttons) or on-screen input (text prompt) to confirm all systems are working.

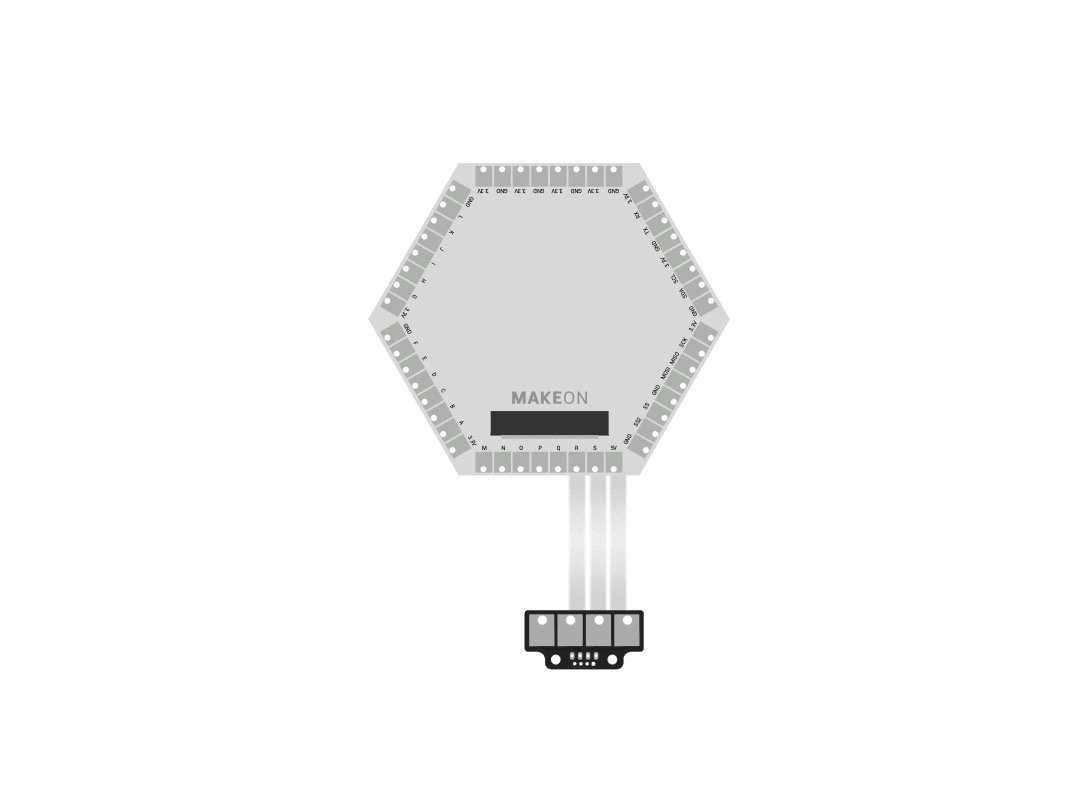

• Launch the return rocket: Once the system has confirmed everything is in working order, it is time to launch our newly collected Mars rocks back home. Students can code the final operation via external inputs such as buttons, levers, etc. to initiate the launch countdown.

• Rover to lander handoff: If you have a device with the capabilities, code a distance sensor that can detect when the rover has reached the sample return station. On Mars, the rover needs to safely approach the station, so consider sounds and/or lights that indicate the right distance has been reached.

Research

8. Optional: Give students time to research their objective.

Imagine

9. Have students brainstorm and imagine how they would code their microdevices to reach their objective. Consider framing the challenge as a “representative model.” That is to say, the rocket does not need to launch; we just need confirmation that it is ready via successful coding and interface with an external device.
10. As students brainstorm:

• Ensure students clearly understand their objective.
• Have students identify the inputs, processes, and outputs.
• Remind students to break the problem into steps.
• Suggest they create a flowchart or pseudocode of their program logic.
• Make sure they brainstorm multiple solutions.

(Optionally, have students complete the Imagine and Plan Worksheet.)

11. Circulate around the room as groups brainstorm, prompting groups to also consider:

• How will they know the code is successful?
• What devices will they require to represent successful operations?

Plan

12.  Once students have brainstormed and imagined solutions, have them pick one solution that their team will implement.

Create

13. Give student groups time to code their microdevices to reach their objective.

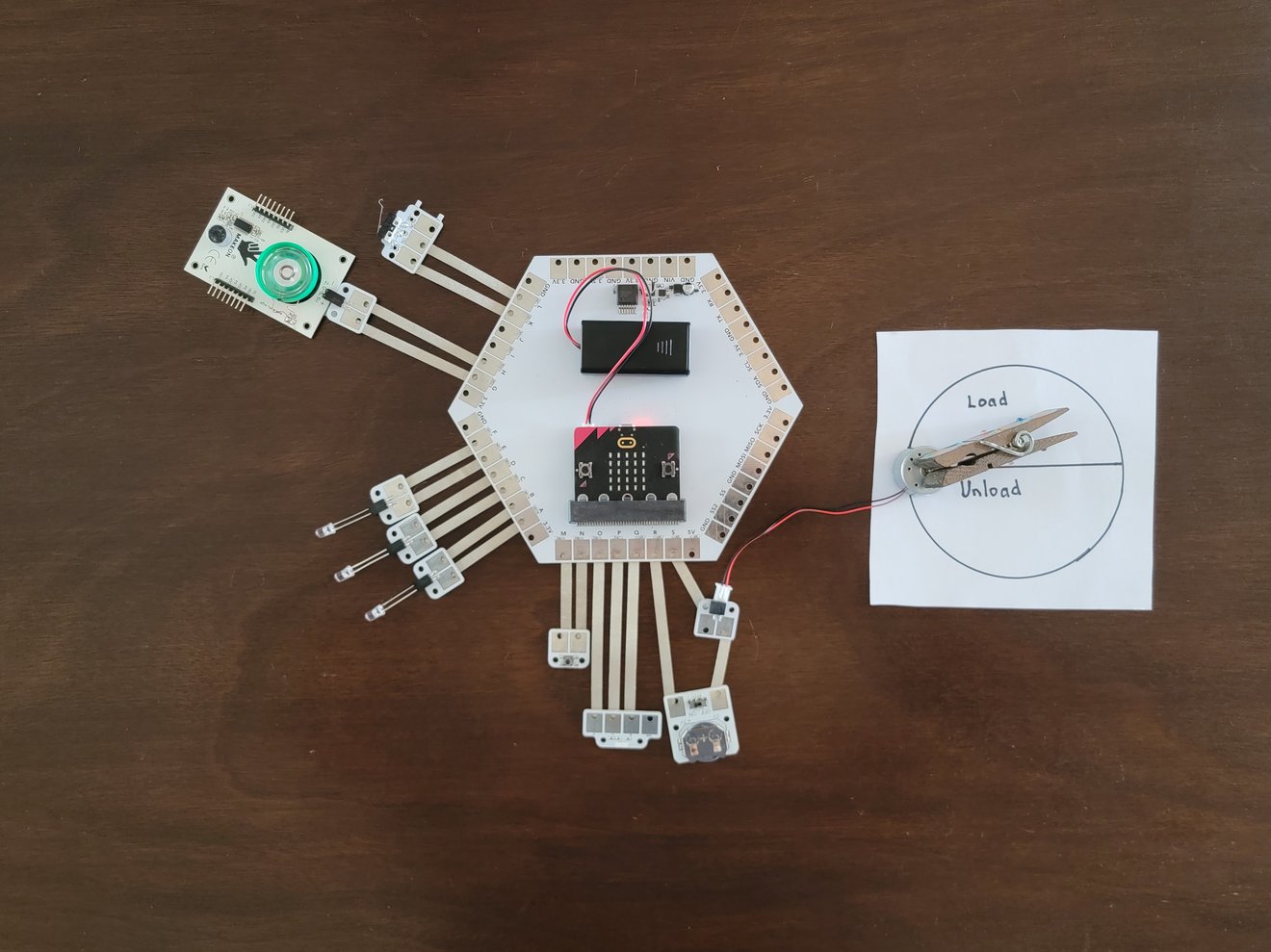

14. With each student group confident in their individual code, have them determine how they will integrate their individual tasks into an integrated mission. (Note: Depending on the available  equipment, this can take many forms. For example, kits such as Mission Design Labs have a central hub that multiple students can connect to simultaneously. Others, such as Cubit, have ports that devices can connect to, although multiple Cubits may be needed to have enough ports for each group. Raspberry Pi’s, combined with breadboards, present the most flexibility on space but will also require clear communication about which group is using which General Purpose Input/Output [GPIO].)

Improve and Iterate

15. Provide ample time for revision and modification as constraints present themselves. Likely, the combined codes will not all fit together seamlessly.

Reflect

16. Upon successful launch of the core samples (i.e., integrating all individual group code into a working class code), have students reflect on the engineering process. (Optionally, have students complete the Reflections Worksheet.) Potential reflective questions include:

• Reflection & Improvement
• What worked well in your design?
• What would you improve next time?
• If you were to repeat this project, what would you do differently to improve communication and teamwork?
• What advice would you give future students working on a multi-team engineering challenge?
• Understanding System Complexity
• How did having multiple teams with different goals make the overall project more complex?
• What challenges arose because your team’s decisions affected other teams’ work?
• What did you learn about how complex engineering systems depend on many connected parts?
• Tradeoffs & Decision-Making
• What tradeoffs did your team have to make to meet your own goals while supporting the goals of other teams?
• Describe a time when improving one part of the system caused a problem for another part. How did you handle it?
• How did limited time, materials, or information affect your team’s decisions?
• Communication & Collaboration
• Why was it important for teams to communicate early and often during this challenge?
• What happened when communication worked well between teams?
• What problems occurred when communication was unclear, delayed, or missing?
• How did communication help prevent or solve design conflicts?
• Systems Thinking
• How did your understanding of the entire system change the way your team designed its solution?
• What strategies helped your team coordinate with other groups?
• How is this activity like how real engineering teams collaborate on large projects?

Vocabulary/Definitions

input / output: Input refers to information or signals a system receives (e.g., button presses, sensor readings), while output refers to the action or result generated (e.g., motor movement, lights, sound).

integration: The process of combining individual subsystems into a larger system so that they work together effectively.

Mars Ascent Vehicle (MAV): A small rocket designed to lift the collected Mars samples from the surface into orbit for transfer back to Earth.

Mars Sample Return (MSR) Mission: A NASA-led mission, in collaboration with international partners, to collect rock and soil samples from Mars and return them to Earth for detailed scientific analysis.

orbiter: A spacecraft that receives the samples from the MAV in Mars orbit and transports them back to Earth.

Perseverance rover: NASA’s Mars 2020 Rover designed to search for signs of ancient microbial life and collect rock and soil samples in sealed tubes.

pseudocode / flowchart: A way to plan code or processes before programming: pseudocode uses plain language instructions, while flowcharts use visual diagrams of steps and decision points.

Sample Return Lander: A stationary platform on Mars that receives samples from the rover, prepares them for launch, and carries the Mars Ascent Vehicle.

sensor: A device that detects changes in the environment (light, distance, temperature, etc.) and converts them into signals for a microcontroller to process.

servo / motor: A device used to create controlled movement in machines, often programmed to perform precise tasks such as loading samples.

subsystem: A smaller, specialized part of a larger system that performs a specific function, such as power, communications, or sample handling.

systems engineering: A discipline focused on designing, managing, and integrating multiple subsystems to ensure the overall system functions correctly and efficiently.

tradeoff: A decision-making situation where improving one aspect of a system may cause challenges or compromises in another aspect.

Assessment

Pre-Activity Assessment

Think-Pair-Share: Before the activity begins, students think-pair-share on the following questions: How do you think we could bring rocks back from another planet? What challenges do you think engineers face trying to do this on Mars? Why wouldn’t one single team be able to handle everything?

Activity Embedded (Formative) Assessment

Imagine-Plan: Circulate the room as groups brainstorm and plan, prompting groups to also consider: How will they know the code is successful? What devices will they require to represent successful operations?

Post-Activity (Summative) Assessment

Engineering Rubric: Assess individual groups using the Engineering Rubric.

(Optional) Peer review: Students can conduct peer reviews for the design and code of the microdevices as part of the assessment to promote student cross-communication.

Troubleshooting Tips

• Consider limiting groups to 2-4 students to ensure that all students are actively engaged, if materials allow for it.
• This project can be tailored to include as many teams as the classroom requires, with suggested team objectives highlighted in the above objectives. Feel free to explore this as a project for a small group of students, wherein they explore each objective, or instead as a collaborative project for numerous groups, each with one objective that fits into the larger mission goal.
• Devices such as Micro:bit and Cubit allow for students to switch between multiple languages, such as block coding and Python. This may be helpful for addressing student differentiation within groups and the class as a whole.

Activity Extensions

• Consider extending the challenge to include how it is that we will communicate with the mission while here on Earth. This can include programming a device capable of sending written messages or detecting signals of light, depending on the types of devices available and student coding knowledge.
• Students can also code the sample collection process by building their own game in scratch.

Activity Scaling

• For groups with mixed coding levels, such as groups being split between block coding and Python, consider a setup where devices can be physically connected to each other and each group can demonstrate their objective(s) one at a time.
• For students exploring more complicated coding, focus can be on the written progression of how each objective is confirmed or rejected.

Other Related Information

NASA/JPL-Caltech

Modified from https://www.jpl.nasa.gov/edu/resources/lesson-plan/mars-sample-return-coding-challenge
