Hands-on Activity: Build & Play Binary Digital Trumpets

Contributed by: SparkFun Education

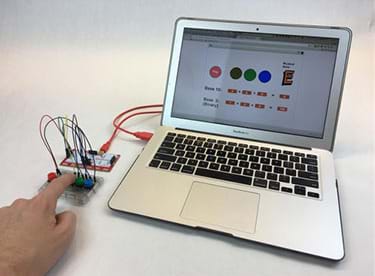

A photograph shows a laptop connected by a USB cable to a MaKey MaKey that is wired to four colored pushbuttons. A finger presses one button. On the screen is the binary trumpet program.
Wire your own binary digital trumpet!
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

Summary

Students wire up their own digital trumpets using a MaKey MaKey. They learn the basics of wiring a breadboard and use the digital trumpets to count in the binary number system. Teams are challenged to play songs using the binary system and their trumpets, and then present them in a class concert.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers of all disciplines use computers to examine and make sense of data; computers employ the binary number system to efficiently exchange and process information. Electrical and computer engineers must understand the binary number system in order to design computers and other electronics. Electrical engineers also apply a thorough knowledge of circuits when designing new technologies. Before creating full-scale products, they use breadboards to wire prototypes that can be re-wired and altered as they test and improve the circuits. Like electrical engineers, students use breadboards to develop model circuits; then they use their digital trumpets to explore the binary number system.

Pre-Req Knowledge

A basic understanding of circuits and musical theory (that a combination of different notes make up a song).

Learning Objectives

After this activity, students should be able to:

  • Assemble circuit components on a breadboard.
  • Count in binary/base 2.
  • Explain that computers translate binary code into outputs such as sound.
  • Create music using different combinations of binary numbers.

More Curriculum Like This

Exploring Nondestructive Evaluation Methods

Students learn about nondestructive testing, the use of the finite element method (systems of equations) and real-world impacts, and then conduct mini-activities to apply Maxwell’s equations, generate currents, create magnetic fields and solve a system of equations. They see the value of NDE and FEM...

Build Your Own Arduino Light Sculpture! Part 2

In the companion activity, students experimented with Arduino programming to blink a single LED. During this activity, students build on that experience as they learn about breadboards and how to hook up multiple LEDs and control them individually so that they can complete a variety of challenges to...

What Makes Up a Color?

As a part of the research and revise step of the Legacy Cycle, this lesson provides students with information they will need later on to be able to average pixels to simulate blurring in the peripheral plane of vision. Students learn why image color becomes important as we distort the outer boundari...

High School Lesson
Making the Connection

Students learn and apply concepts and methods of graph theory to analyze data for different relationships such as friendships and physical proximity. They are asked about relationships between people and how those relationships can be illustrated.

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Integrate qualitative scientific and technical information to support the claim that digitized signals (sent as wave pulses) are a more reliable way to encode and transmit information. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Evaluate questions about the advantages of using a digital transmission and storage of information. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Design a solution to a complex real-world problem by breaking it down into smaller, more manageable problems that can be solved through engineering. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Some technological problems are best solved through experimentation. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The design process includes defining a problem, brainstorming, researching and generating ideas, identifying criteria and specifying constraints, exploring possibilities, selecting an approach, developing a design proposal, making a model or prototype, testing and evaluating the design using specifications, refining the design, creating or making it, and communicating processes and results. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Gather, analyze, and interpret data to describe the different forms of energy and energy transfer (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Note: The expendable cost for this activity is very low because the main items—MaKey MaKeys, breadboards, cables, jumper cables, pushbuttons (~$57 per project/group)—are expensive, yet fully reusable by taking apart the finished products.

Each group needs:

To share with the entire class:

  • paper and pencils

Introduction/Motivation

Who plays an instrument? (Look for raised hands.) Do you ever play around on a computer? (Look for raised hands again.) Have you ever played an instrument using a computer? Today, you’ll act as if you are engineers and explore the components that go into making a computer-based trumpet. Our goal is to hold a class concert with each group performing a song using the digital trumpet they built.

To play music on a computer, we need a way to communicate with the computer. How could we do this? (Listen to student answers. Example possible student responses: Type on a keyboard, click with a mouse, use a video game controller, etc.) We will wire up some pushbuttons to a MaKey MaKey (hold up a pushbutton and a MaKey MaKey to show students), which enables us to turn the pushbuttons into keys that the computer recognizes.

To wire everything up, we’ll use a breadboard. A breadboard is a construction base that engineers use to made circuits without needing to solder the wires. Using a breadboard, you can easily connect and disconnect wires to test many circuits and make changes to them.

A top view of a breadboard with red lines added to show the location of metal bars that connect together holes in the same rows.
Figure 1. Breadboards connect wires in the same rows.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

How does a breadboard make connections between two wires? Metal bars inside the breadboard connect holes in the same row (see Figures 1 and 2). When you plug wires into holes that touch the same bar of metal, electricity flows from one wire, through the bar, then into the other wire.

A photograph shows a breadboard with four wires plugged into it. The two wires on the left are in different rows and so are not connected. The two wires on the right are in the same row and so are connected.
Figure 2. Wires placed in the same row in a breadboard are connected.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

The buttons we are using are designed to fit breadboards, which makes them easy to connect to the MaKey MaKey.

Once we’ve wired up the buttons and connected the MaKey MaKey to the computer, the next step is to figure out how the computer turns the action of pressing buttons into musical notes. Computers process and transmit information using the binary number system. Have you heard of this system? (At this point, determine student’s prior knowledge about the binary number system by conducting the pre-activity assessment think-pair-share as described in the Assessment section. Then, continue on.)

Let’s break it down. The word “binary” means “two choices.” The binary number system is a way to write numbers using only two symbols—zeroes and ones. The number system that most of us use every day is the base 10 number system. In base 10, each digit—for example, 99 is a number with two digits—has one of 10 values: 0, 1, 2, 3, 4, 5, 6, 7, 8 or 9. In the binary number system, each digit has one of two values: 0 or 1. (Figure 3 shows the numbers 0 to 7 written in base 10 and binary/base 2; do not show this to the class because later they will figure it out themselves and fill in a chart like this on their worksheets.)

A table with two columns and nine rows. The left column, Base 10, lists number from 0 to 7. The right column, Binary/Base 2, lists the binary versions of numbers 0 to 7—0, 1, 10, 11, 100, 101, 110, 111—which are all combinations of zeroes and ones.
Figure 3. The binary number equivalents for base-10 numbers 0 to 7.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

Now, we can use a program that uses the binary number system to make some music! Remember, in your teams, you are acting as electrical engineers who are responsible for wiring up a binary digital trumpet and experimenting with the binary number system to create a short song. Let’s get started!

Vocabulary/Definitions

binary number: A number expressed in the base-2 (or binary) numbering system, which uses only zeroes and ones.

binary numeral system: A representation of numerals using only two different symbols, zeroes and ones.

breadboard: A solderless construction base for creating circuits.

ground: In electricity, the reference point in an electrical circuit from which voltages are measured. Also called earth.

musical note: A pitched sound for some duration of time.

Procedure

Background

When wiring components for a circuit, the circuit must be complete for it to work. In a breadboard, this translates to the wires aligning in the same rows so that they are connected, as in Figure 2. Wires are easily added, moved and removed on breadboards, making it an ideal tool for creating simple circuits and re-wiring as needed. Wires create a complete circuit by starting at the MaKey MaKey, going to the breadboard, through the button, then out of the breadboard to “earth.”

Once the button is wired up and the MaKey MaKey is connected to the computer, pressing the button completes the circuit and electrical energy “flows” through the circuit. The button sends a code to the computer, which it interprets via the binary number system. The computer then transforms electrical energy into sound energy, creating a musical note. In this activity, students experiment with button combinations to make different binary numbers, and therefore produce different notes.

The binary number system—also called base 2—is a way to write numbers that uses only zeroes and ones. See the Introduction/Motivation section for some background on binary and Figure 3 for the base-10 numbers 0 to 7 in binary/base 2.

Before the Activity

With the Students

  1. Introduce the project by presenting to the class the Introduction/Motivation section, which includes conducting the pre-activity assessment.
  2. Organize the class into student pairs and distribute the materials to each group. Hand out the worksheet, which guides students through the activity. A teacher overview of the worksheet instructions is provided below.
  3. As students work, walk around and assist as needed. If students have trouble while testing the buttons, refer to the Troubleshooting Tips section. Encourage group member to take turns reading the instructions and wiring the breadboard.
  4. Walk around to each group and ask students the Investigating Questions.
  5. After groups have completed the worksheet and practiced their songs, bring the class together for the post-activity assessment—a class concert.

Wiring Procedure: Teacher Overview of Student Worksheet Instructions

  1. Get to know your breadboard: Provides background information on breadboards (which was covered in the Introduction/Motivation content) and the Figure 1 breadboard diagram for student reference.
  2. Place a button in the breadboard. Provides instructions on how to place a pushbutton into the breadboard, including Figure 4. Students place the red button so that a pair of its legs is on either side of the breadboard gap, as shown in Figure 4.

A photograph shows a breadboard with a red pushbutton placed so that one pair of its legs is on either side of the breadboard gap.
Figure 4. Place a button with its leg pairs on each side of the breadboard gap.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

  1. Wiring a button. Provides instructions on how to wire a button to the MaKey MaKey. Students are given Figure 5 to assist, and reminded that the wires must be in the same rows as the button legs.

A wiring diagram shows a breadboard with four pushbuttons (red, yellow, green, blue) placed across its gap, and a MaKey MaKey. Two wires connect the red button to the MaKey MaKey: a red wire to D4 and a black wire to earth.
Figure 5. The wiring diagram for a single button.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

  1. Wire the rest of your buttons. Provides instructions on how to wire the remaining three buttons to the MaKey MaKey, and includes Figure 6.

A wiring diagram shows a breadboard with four buttons and MaKey MaKey (same as Figure 5), plus wires that also connect the yellow, green and blue buttons to the MaKey MaKey. The four colored button wires go to D4, D2, D1 and D0, and black wires to earth.
Figure 6. The wiring diagram for multiple buttons.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

  1. Hook up the MaKey MaKey. Students use a USB cable to plug the MaKey MaKey into the computer.
  2. Load the binary trumpet Scratch program. Students follow instructions to open and test the Scratch program, with Figure 7 to assist.

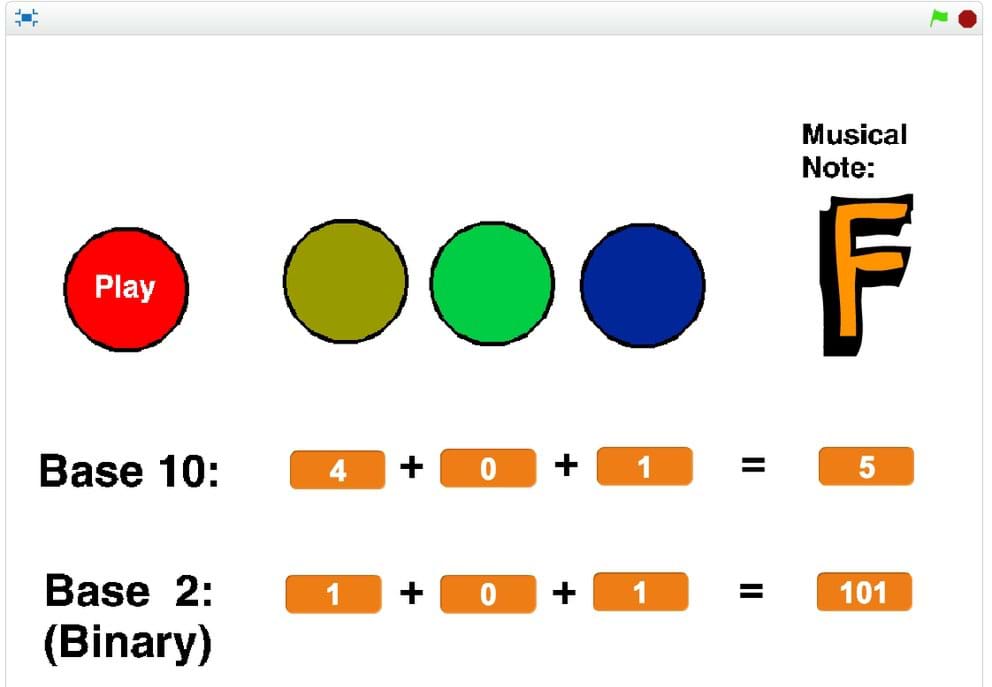

A screen capture from the binary trumpet Scratch program shows circles (representing buttons) displayed with numbers in base 10 and base 2 (binary) below them. On the right, the resulting musical note, in base 10 and base 2 numbers, are shown.
Figure 7. The binary trumpet Scratch program.
copyright
Copyright © 2016 SparkFun Education https://invent.sparkfun.com/cwists/preview/1489x

  1. Get to know the binary number system. Recaps the binary number system content that was covered in the Introduction/Motivation section.
  2. Counting binary on your hands. Students start using the buttons to count binary. They fill in a blank table (similar to Figure 3), writing in the binary equivalents of the base-10 numbers 0 to 7.
  3. Playing the binary trumpet. The instructions prompt students to start playing notes with their binary trumpets and then compose a team song to contribute to the concluding class concert.

Attachments

Safety Issues

To prevent shocks, always disconnect the MaKey MaKey from the computer if wiring modifications need to be done.

Troubleshooting Tips

If a button doesn’t work, make sure that the MaKey MaKey is connected to the computer, then check the wiring of that button (see the Safety Issues section).

Investigating Questions

  • Can you wire the buttons to the MaKey MaKey using the holes at the very edge of the breadboards (the ones between the red and blue lines)? (Answer: No) Why not? (Answer: The breadboard is set up so that the two long columns at either side are not connected to the rows in the middle. Wires put here do not connect to the button. Have students refer to Figure 1 (Photo 1 on the worksheet) as they explain.)
  • Why does each button have a wire going to earth? (Answer: To create a complete circuit: from the MaKey MaKey, to the breadboard, across the button, then back to the MaKey MaKey.)
  • Can you see a pattern in the notes? (Answer: Yes) What is it? (Answer: Each number from 0 to 7 represents a note on the musical scale.)

Assessment

Pre-Activity Assessment

Think-Pair-Share: Determine students’ prior knowledge about the binary number system. Direct students to think individually for one or two minutes. Then, have them share their thoughts in pairs. Finally, lead a class discussion during which the pairs share what they know. Expect that students might say: it’s a number system based on zeroes and ones, used by computers, used in coding, etc.

Activity Embedded Assessment

Group Work and Group Play: Observe students as they work. Make sure that each group member is contributing, either by reading the worksheet or wiring the breadboard. Encourage students to take on more than one role, and check that each student gets a chance to play the binary trumpet.

Post-Activity Assessment

Class Concert: As a class, have each group perform their song on their binary trumpet. Lead a discussion on what was easy/hard about playing a song using the binary number system.

Activity Extensions

Have groups write down songs in binary, and switch their songs with other groups. Students are challenged to play other groups’ songs by reading the binary notation.

Activity Scaling

For lower grades, go through the wiring process as a class (worksheet steps 1 - 6). Let students spend more time counting in binary using the trumpet and creating their songs.

References

Activity adapted from SparkFun’s Binary Trumpet activity at https://invent.sparkfun.com/cwists/1489/preview

Contributors

Sabina Schill

Copyright

© 2017 by Regents of the University of Colorado; original © 2016 SparkFun Education
