Hands-on Activity: Design a Soundproof Room

Contributed by: Collaborative RET Program, University of Dayton, Central State University and Wright State University in Ohio

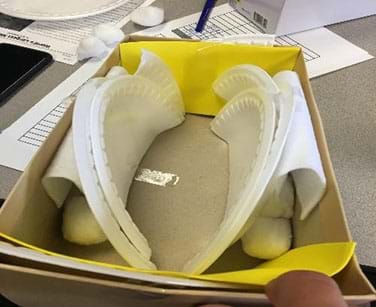

A photograph shows a shoebox design with materials such as, styrofoam plates, cotton balls, and foam sheets to attempt to dampen the sound that is leaving the room.
Figure 1. A model soundproof box that uses a variety of materials, including Styrofoam and cotton.
copyright
Copyright © 2017 Emma Cipriani, Natalie Jackson, Geanna Schwaegerle, and La’Nise Gray; Collaborative RET: University of Dayton, Central State University and Wright State University in Ohio.

Summary

Students are presented with the following challenge: their new school is under construction and the architect accidentally put the music room next to the library. Students need to design a room that will absorb the most amount of sound so that the music does not disturb the library. Students use a box as a proxy for the room need to create a design that will decrease the sound that is coming from the outside of the box. To evaluate this challenge, students use a speaker within the box and a decibel meter outside the box to measure the effectiveness of their design.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Students relate science to engineering as they examine properties of sound and apply this knowledge in order to design a soundproof room—a practical application that acoustical engineers may perform in their work. The students employ the engineering design process and are given a range of materials to choose from. As students design their soundproof rooms, they are also limited by several constraints that acoustical engineers may encounter; they must work with a finite number of materials and must stay within a budget.

Pre-Req Knowledge

Students should complete the Decibels and Acoustical Engineering lesson and What Soundproofing Material Works Best? activity prior to this activity.

Learning Objectives

After this activity, students should be able to:

  • Apply their knowledge of sound to a real-life situation.
  • Evaluate materials for their design using quantitative data.
  • Design a soundproof box using the engineering design process.

More Curriculum Like This

What Soundproofing Material Works Best?

Students use the engineering design process to design and create soundproof rooms that use only one type of material. They learn and explore about how these different materials react to sound by absorbing or reflecting sound and then test their theories using a box as a proxy for a soundproof room. ...

To Absorb or Reflect... That is the Question

Students learn how different materials reflect and absorb sound.

Decibels and Acoustical Engineering

Students learn that sound is energy and has the ability to do work. Students discover that sound is produced by a vibration and they observe soundwaves and how they travel through mediums. They understand that sound can be absorbed, reflected or transmitted.

All about Linear Programming

Students learn about linear programming (also called linear optimization) to solve engineering design problems. They apply this information to solve two practice engineering design problems related to optimizing materials and cost by graphing inequalities, determining coordinates and equations from ...

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop and use a model to describe that waves are reflected, absorbed, or transmitted through various materials. (Grades 6 - 8 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

    This Performance Expectation focuses on the following Three Dimensional Learning aspects of NGSS:
    Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
    Develop and use a model to describe phenomena.

    Alignment agreement:

    A sound wave needs a medium through which it is transmitted.

    Alignment agreement:

    When light shines on an object, it is reflected, absorbed, or transmitted through the object, depending on the object's material and the frequency (color) of the light.

    Alignment agreement:

    The path that light travels can be traced as straight lines, except at surfaces between different transparent materials (e.g., air and water, air and glass) where the light path bends.

    Alignment agreement:

    A wave model of light is useful for explaining brightness, color, and the frequency-dependent bending of light at a surface between media.

    Alignment agreement:

    However, because light can travel through space, it cannot be a matter wave, like sound or water waves.

    Alignment agreement:

    Structures can be designed to serve particular functions by taking into account properties of different materials, and how materials can be shaped and used.

    Alignment agreement:

  • Add, subtract, multiply, and divide decimals to hundredths, using concrete models or drawings and strategies based on place value, properties of operations, and/or the relationship between addition and subtraction; relate the strategy to a written method and explain the reasoning used. (Grade 5 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Represent and interpret data. (Grade 5 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Display numerical data in plots on a number line, including dot plots, histograms, and box plots. (Grade 6 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of the attributes of design. (Grades K - 12 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of engineering design. (Grades K - 12 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of the role of troubleshooting, research and development, invention and innovation, and experimentation in problem solving. (Grades K - 12 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • When designing an object, it is important to be creative and consider all ideas. (Grades 3 - 5 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Solve real-world problems by adding, subtracting, multiplying, and dividing decimals using concrete models or drawings and strategies based on place value, properties of operations, and/or the relationship between addition and subtraction, or multiplication and division; relate the strategy to a written method and explain the reasoning used. (Grade 5 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Represent and interpret data. (Grade 5 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Display numerical data in plots on a number line, including dot plots (line plots), histograms, and box plots. (Grade 6 ) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:

  • shoe box or tissue box with the top removed (note: each group’s boxes should be roughly the same size; have the students determine this during the Decibels and Acoustical Engineering lesson)
  • scissors
  • glue
  • roll of tape

To share with the entire class:

  • portable speaker and two smart phones (for decibel testing and sound generation)
  • two apps from the App store:
  • Tone Generator
  • Decibel X: dB, dBA Noise Meter
    • bubble wrap (cut into 30 cm x 30 cm pieces)
    • steel wool
    • Play-doh
    • parchment paper (cut into 10 cm x 15 cm pieces)
    • aluminum foil (cut into 10 cm x 15 cm pieces)
    • sponges
    • Styrofoam plates
    • felt (cut into 10 cm x 15 cm pieces)
    • notecards
    • painter’s tape
    • cotton balls
    • newspaper
    • computer paper
    • straws
    • paper plates
    • craft pom-pomspipe cleaners
    • corkboard
    • fleece (cut into 10 cm x 15 cm pieces)
    • craft sticks
    • foam sheets

Note: see Post-Introduction Assessment for more information on how much material students are allowed to use in their design. Depending on the class size, this will determine how much material to purchase.

Introduction/Motivation

(Show slides 15 and 16 from the Soundproofing Material PowerPoint Presentation.)

Now that we’ve learned about sound and explored the properties of a select number of materials, you are going to take on the role of acoustical engineers faced with a new design challenge. Your new school is under construction and the architect accidentally put the music room next to the library! In your groups, design a room that will absorb the most amount of sound so that students playing music do not disturb those reading in the library.

Your groups will create a design inside a box that will decrease the decibels measured from the outside of the box. Just like real acoustical engineers, you’ll follow the engineering design process and work within a set number of constraints. Each group has a materials budget of only $15, so make sure to choose your materials wisely! Use your prior knowledge of how different materials interact with sound to create a soundproofed music room!

Vocabulary/Definitions

absorption: The process by which a material, structure, or object takes in sound energy when sound waves are encountered, as opposed to reflecting the energy.

acoustic: The branch of physics that deals with the study of all mechanical waves in gases, liquids, and solids including vibration, sound, ultrasound, and infrasound.

decibel: A unit of measurement used to express the intensity of a sound, or the power level of an electrical signal by comparing it with a given level on a logarithmic scale.

medium: A material substance that can help move energy waves (such as sound) along. Also known as a transmission medium.

oscillation: The repetitive variation, typically in time, of some measure about a central value (often a point of equilibrium) or between two or more different states. The term vibration is precisely used to describe mechanical oscillation.

reflection: The change in direction of a wave at the fact of a medium so that the wave returns to where it originated.

sound: A vibration that manifests itself as a wave of pressure and can be perceived by humans (depending on the frequency) via the ear. Humans can hear soundwaves when the frequency lies between 20Hz and 20 kHz.

Procedure

Background

Refer to the Soundproofing Material PowerPoint Presentation to review information on acoustical engineering and the science of sound.

Before the Activity

With the Students

  1. Introduce the activity and design challenge the students will need to complete (See Soundproofing Material PowerPoint Presentation, slide 15).
  2. Pass out the Post-Introduction Assessment.
  3. Explain to the class that each group will be given a budget of $15 to design their soundproof room.
  4. Show students the “store” where they will buy their materials to design their soundproof room. The Post-Introduction Assessment lists all the materials with a price. The materials list also tells the students how much material they are allowed to buy per group. (A discussion about constraints in the engineering design process would fit well here, if time allows. This constraint is explained in Slide 16 in Soundproofing Material PowerPoint Presentation).
  5. Provide the class with ideas to jumpstart the brainstorm process (Show Figure 1 and Figure 3 as an example).
  6. Provide students with extra copies of materials list so they can sketch out different budgets while brainstorming.
  7. Tell students to brainstorm three different ideas individually about what would be the best way to soundproof their music room. They will write their brainstorm on the Post-Introduction Assessment.
  8. Assign students to groups for the challenge and instruct students to bring their best individual design with them to their group.
  9. Instruct them to collaborate with their groups about which individual brainstorm, or combination of, is the best design for their soundproof room and record this within the Post-Introduction Assessment.
  10. Students decide on the best design within their group and fill out their final budget (see Figure 2).

A photograph shows a student creating his material list for the soundproof activity to make sure that he is staying under budget.
Figure 2. Students fill out their budget sheets.
copyright
Copyright © 2017 Emma Cipriani, Natalie Jackson, Geanna Schwaegerle, and La’Nise Gray, Collaborative RET: University of Dayton, Central State University and Wright State University in Ohio.

  1. Approve of their design, and move on to the construction process.
  2. Allow students to visit the materials “store” and “purchase” materials based on their budget ($15 per group).
  3. Have students ACE (answer, cite, and explain) the following question in the Post-Introduction Assessment after they have chosen their design: Explain why you picked specific materials for your soundproof room design based on the previous activity and the collected data.
  4. Instruct students to test their empty boxes with sound to measure the decibels as a baseline.  Make sure that the testing is all performed in the same location.
    • App to test: Tone Generator, found at the (App Store for free)
    • Decibel meter: Decibel X: dB, dBA Noise Meter (App store for free)
    • Note: testing environment must be quiet in order to get an accurate reading.
    • Test with the box face down on the table.
    • Put one phone inside the box with the Tone Generator on; place the box face-down on the table.
    • Use Decibel X outside the box to measure the sound generated from the Tone Generator.
    • Note: you can substitute the Tone Generator for music from iTunes or a similar music app. Playing music will give it the feel of a music room. However, if you use music there will be variations in amplitude and this may affect the decibel reading.
  1. Tell students to record their baseline data on the Post-Activity Assessment.
  2. Allow the students to start building their designs. (Refer to Figure 1 or Figure 3 again as example designs.)
    • There are no limits on layers of material for this activity. Encourage students to try to build using all the supplies they purchased.
  1. With the teacher’s assistance, repeat step 12 and measure the decibels from a completed design.
  2. Have students record their data on the Post-Activity Assessment.
  3. Each group will place their information on the board so the class can analyze the information. Place all group names on the board so that each group can fill in their data table. (Using a collaborative Google doc may also help with data collection.)
  4. Guide students through creating a bar graph with the collected data.
    • y-axis = decibel reading (in amps)
    • x-axis = group names
    • Title: For example, “Decibel readings of soundproof rooms”
    • Change in decibel reading; subtract the initial reading taken inside the empty box from the reading taken inside the constructed design.
  1. Students and teacher will analyze data and answer critical thinking questions about the graph in the Post-Activity Assessment.
  2. Lead a discussion as to why a certain group’s design worked and why another group’s design may have needed further iteration. In the discussion, discuss a given material’s ability to absorb, reflect, or transmit sound. Use the Soundproof Rubric to help guide the grading process.

Two photographs show examples of student groups’ final project designs; multiple shoeboxes are lined with materials including felt, plastic, and foil.
Figure 3. Examples of student groups’ final designs.
copyright
Copyright © 2017 Geanna Schwaegerle, Collaborative RET: University of Dayton, Central State University and Wright State University in Ohio.

Worksheets and Attachments

Safety Issues

  • Remind students about the importance of using scissors properly in the classroom.

Troubleshooting Tips

  • Ask students and teachers to collect boxes prior to the activity.
  • Have the materials store set up prior to starting the activity with each material labeled.
  • Teacher can be the official “tester” (place the phone flat on the side of the box; choose the exact same orientation for each test to reduce the variables added into testing).
  • Use two phones; one to play the Tone Generator (or a music app) inside the box and the other to measure the decibel reading from outside the box.

Investigating Questions

  1. Why did a groups’ designs work really well at absorbing sound? (Possible answers include: they used materials that absorb sound well, their materials were thicker, etc.)
  2. Why did other groups’ design fail at absorbing sound? (Possible answers include: they used materials that reflect sound, they used materials that transmit sound, etc.)
  3. What materials work really well at absorbing sound? (Possible answers include: cotton, felt, Styrofoam, etc.)
  4. What materials work well at reflecting sound? (Possible answers include: plastic plates, foil, etc.)
  5. What materials work well at transmitting sound? (Possible answers include: newspaper, printer paper, etc.)

Assessment

Pre-Activity Assessment

Motivational Activity: Complete motivational activity/hook with students.

  1.  Use Slide 13 of the Soundproofing Material PowerPoint Presentation to present students with the activity. You may also have students groups research one of the following readings, “Movie Sound Effects”, “Sounds Trivia”, “Moving Sound: The Doppler Effect” (see Additional Multimedia Support).
  2.  Once students begin reading, begin making noise with some kind of instrument (this will vary).
  3.  Hold discussion about how this noise would affect learning within the classroom.
    1. Questions (listed on Slide 14 of the PowerPoint):
      • How would you feel if you had to listen to these loud noises each time you were trying   to read a book or article?
      • Would this affect your concentration?
      • How would your grades be affected from the constant noise?

Activity 2 Embedded Assessment

Assessments: Students should complete the Post-Introduction Assessment and the Post-Activity Assessment.

Post-Activity Assessment

Rubric: See the Soundproof Rubric to grade students on their performance during the activity.

Activity Extensions

Lead a class discussion using the following questions. If time allows, let students redesign their boxes or supply them with containers or boxes of different shapes and allow them to iterate on their designs.

  • How would different sizes and shapes affect results?
  • How would different materials affect results?
  • What places will this design be useful?
  • What are other factors besides sound that go into architect design?
  • If you had an unlimited budget, how would you have done your design?

Activity Scaling

  • For lower grades: Eliminate store and budget by giving the students the materials you want them to work with. Simplify rubric when grading the soundproof room challenge. Complete the data bar graph as a class instead of individually.  Go over post-activity assessment questions orally as a class.
  • For higher grades:  Have students take multiple test readings (5-10 tests recommended) and figure out the mean, median, mode and range of the measurements.
