Hands-on Activity: Making "Magic" Sidewalks of Pervious Pavement

Contributed by: Water Awareness Research and Education (WARE) Research Experience for Teachers (RET), University of South Florida, Tampa

A photograph in a classroom shows student groups standing at lab stations with gloves and tubs.
Students use inquiry-based learning methods, mixing different combinations of materials, to create their own "magic" sidewalk material.
copyright
Copyright © 2013 Ryan Locicero, WARE raingardens.us (author)

Summary

Students use everyday building materials—sand, pea gravel, cement and water—to create and test pervious pavement. They learn what materials make up a traditional, impervious concrete mix and how pervious pavement mixes differ. Groups are challenged to create their own pervious pavement mixes, experimenting with material ratios to evaluate how infiltration rates change with different mix combinations.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Civil engineers design the roads and bridges that we drive on. When it rains, stormwater collects on these roads and must be managed. Historically, roads have been designed with impervious materials, which means water cannot pass through them, rain and snowmelt runs off their surfaces, becoming stormwater runoff. By applying low-impact development technologies, engineers can manage this stormwater at its sources (where the precipitation falls) in innovative ways. One approach is to enable the water to infiltrate through the road surface into the underlying media layers. This requires engineers to design pavement that permits the passage of water, which is referred to as a pervious surface.

Replacing impervious surfaces with pervious surfaces such as porous concrete or asphalt enables infiltration and percolation of stormwater into the ground and provides a cleansing treatment for pollutants at the source location. This approach to stormwater management provides solutions to grand challenges for engineers and creates a more sustainable human/nature partnership.

Learning Objectives

After this activity, students should be able to:

  • Explain the materials that make a traditional concrete mix and how pervious pavement differs.
  • Evaluate different ratios of materials to predict how infiltration rate changes with different mix combinations.
  • Use everyday building materials to create pervious pavement.

More Curriculum Like This

Green Infrastructure and Low-Impact Development Technologies

Students are introduced to innovative stormwater management strategies that are being used to restore the hydrology and water quality of urbanized areas to pre-development conditions. A PowerPoint® presentation provides photographic examples, and a companion file gives students the opportunity to sk...

Natural and Urban "Stormwater" Water Cycles

Students examine in detail the water cycle components and phase transitions, and then learn how water moves through the human-made urban environment. Students show their understanding of the process by writing a description of the path of a water droplet through the urban water cycle, from the dropl...

Urban Stormwater Management

Through the two lessons in this unit, students are introduced to green infrastructure (GI) and low-impact development (LID) technologies, including green roofs and vegetative walls, bioretention or rain gardens, bioswales, planter boxes, permeable pavement, urban tree canopies, rainwater harvesting,...

Middle School Unit
Raging Rivers

Student are introduced to rivers, and to the components of the water cycle. They think about the effects of communities, sidewalks and roads on the natural flow of rainwater. Students also learn about the role of engineering in community planning and protecting our natural resources.

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop a model to describe the cycling of water through Earth's systems driven by energy from the sun and the force of gravity. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Analyze data from tests to determine similarities and differences among several design solutions to identify the best characteristics of each that can be combined into a new solution to better meet the criteria for success. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Understand the concept of a ratio and use ratio language to describe a ratio relationship between two quantities. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use ratio and rate reasoning to solve real-world and mathematical problems, e.g., by reasoning about tables of equivalent ratios, tape diagrams, double number line diagrams, or equations. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Summarize numerical data sets in relation to their context, such as by: (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Reporting the number of observations. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Describing the nature of the attribute under investigation, including how it was measured and its units of measurement. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Recognize and represent proportional relationships between quantities. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Knowledge gained from other fields of study has a direct effect on the development of technological products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Inventions and innovations are the results of specific, goal-directed research. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Systems, which are the building blocks of technology, are embedded within larger technological, social, and environmental systems. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Humans devise technologies to reduce the negative consequences of other technologies. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Identify the impact that humans have had on Earth, such as deforestation, urbanization, desertification, erosion, air and water quality, changing the flow of water. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Describe and investigate various limiting factors in the local ecosystem and their impact on native populations, including food, shelter, water, space, disease, parasitism, predation, and nesting sites. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Describe and investigate the process of photosynthesis, such as the roles of light, carbon dioxide, water and chlorophyll; production of food; release of oxygen. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Classify and compare substances on the basis of characteristic physical properties that can be demonstrated or measured; for example, density, thermal or electrical conductivity, solubility, magnetic properties, melting and boiling points, and know that these properties are independent of the amount of the sample. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • describe the water cycle, the composition and structure of the atmosphere and the impact of oceans on large-scale weather patterns (Grades 5 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

To share with the entire class:

  • 50-lb. bag ¼-inch to 3/8-inch pea gravel, pond rocks, granite or limestone
  • 50-lb. bag construction/playground sand
  • 10-lb. bag Portland cement (do not use pre-mix cement)

Introduction/Motivation

What happens to water when it rains? When it rains hard enough, rainwater begins to collect on surfaces such as roofs, sidewalks, driveways and even within our yards. This rainwater becomes stormwater runoff as it moves into the street and travels down the street gutters into the storm drain or storm sewer. Does anyone know where stormwater goes once it enters the sewer? That's right; after entering the storm sewer, stormwater typically goes into stormwater ponds, rivers and lakes. This water is also known as surface water and eventually makes its way into the oceans. Older cities have combined storm sewer and sanitary sewer systems. In these cases, the water is first directed to a wastewater treatment plant where it is treated (cleaned) and released back into surface water ecosystems.

A lot of pollutants collect on surfaces such as roofs, sidewalks, driveways and our yards, and these pollutants are carried away with the stormwater after it rains. These pollutants make their ways into the rivers, lakes, groundwater and oceans, and can negatively impact the health of the ecosystem, fishes, wildlife and humans.

Does anyone have a better idea of how we might reduce the amount of water that makes its way to the oceans when it rains? What if, instead of creating stormwater runoff from our homes, we were able to capture and provide treatment of pollutants before they enter the traditional stormwater infrastructure? One way to do just that is to create "magic" sidewalks—or concrete that permits water to pass through it.

Would it seem like magic if water went through a sidewalk? Well, Yes! Water can pass through a sidewalk if we change the materials that we use to make a sidewalk. (You may want to write the following four items on the board as you describe them.) Traditional materials that are used to create an impervious sidewalk—or a sidewalk in which water does not pass through—are a coarse aggregate consisting of ¼-inch to 3/8-inch limestone, pebble, granite or locally sourced material; fine grain sand such as construction, playground or beach sand; Portland cement, which is made of clay and limestone fines; and water.

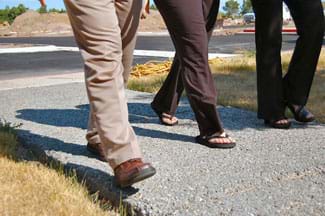

A photograph shows the legs and feet of three people walking on a gray sidewalk that looks like it is made of much aggregate, as spaces can be seen between the aggregate pieces.
Water is absorbed into this pervious Rapid City, SD, visitor path pavement to help collect and filter stormwater.
copyright
Copyright © U.S. EPA http://www2.epa.gov/region8/green-infrastructure#4

To create pervious concrete, we need to eliminate one of the four materials used to create traditional concrete and determine the best design ratio mix for those materials. In this activity, we will keep track of the types of material used, the quantity of materials and the resulting infiltration rate of the final pervious pavement mix, and compare the results.

Pervious concrete may look a little different, but it serves the same purpose and helps protect the environment from the effects of pollution.

Vocabulary/Definitions

cement: A gray powder that serves as the bonding agent when sand and course aggregate are mixed with water to create concrete. Cement is composed of clay and limestone fines.

concrete: A "rock hard" mass that is made by mixing cement, sand, course aggregate and water. The resulting material is heavy and strong, and used for road paving, and slabs for structures like homes, bridges, foundations, basements, retaining walls and sidewalks.

Procedure

Background

The objective of this activity is to create a pervious pavement that is structurally sound to walk on and also allows water to pass through it. Students begin by adding small amounts of water, aggregate (pea gravel, pond rocks, granite or limestone), and Portland cement and then mixing to the appropriate consistency. Adding too much water or cement results in a material that water will NOT pass through. The teacher may want to experiment with this mix to gain familiarity with what a successful mix feels and looks like before conducting this activity with the class. Expect a pervious pavement mix combination to feel very course and just be able to stick together. See Figure 1 for the appropriate consistency. When the mix is placed in a mold, expect to be able to see openings between the aggregate, so that water will be able to pass through.

Before the Activity

  • Gather all materials and set them up at group lab stations, students' desks, classroom tables, or outside, prior to students arriving for class.
  • Make copies of the Magic Sidewalk Worksheet, a two-page handout; page 1 for Day 1 and page 2 for Day 2. The porous concrete mixes must dry overnight before testing continues.
  • Poke holes in the bottom of the plastic planter liner to permit water drainage. Do not poke holes in the center; the plant will be placed in the center.
  • Note that students will need their completed worksheets and pervious pavement mixes for the next activity in this unit.

With the Students

  1. Day 1: Ask the class the pre-assessment warm-up questions provided in the Assessment section. Then present the Introduction/Motivation content, having students think more deeply about some of its questions using the think-pair-share approach described in the Assessment section.
  2. Then divide the class into groups of two or three students each, depending on class size and the availability of resources. Hand out the worksheets.
  3. If conducting the experiment outside, direct students to record the date, time of day, temperature, humidity, dew point and weather conditions on the worksheet. Refer to an online weather website that provides localized weather conditions, such as Weather Underground at http://www.wunderground.com.
  4. Start the activity by presenting the Introduction/Motivation content, which includes asking students what happens when it rains and describing the concept of impervious and pervious surfaces. If water can go through a sidewalk, would this be magic?
  5. Explain that cement, sand, aggregate (such as gravel, pebbles, crushed limestone) and water are the four ingredients that make a traditional concrete sidewalk. Have students record these materials on their worksheets.
  6. Tell students that the materials for making a traditional sidewalk are at each group's lab station. By removing one of these materials from the mix, they can create a "magic" sidewalk, that is, concrete that lets water pass through it.

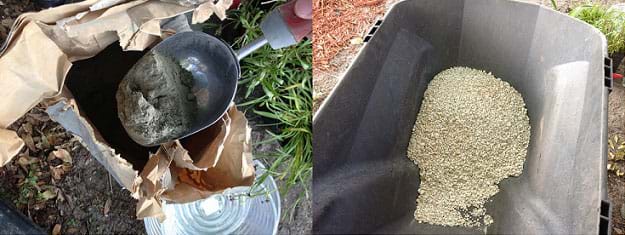

    Two photographs: A metal scoop lifts fine gray powder (cement) out of a brown paper bag. A wheelbarrow contains a pile of small and crumbly beige rock pieces (crushed limestone).
    Cement (left) acts as the glue binding the materials together and the aggregate, in this case crushed limestone (right), provides structural support.
    copyright
    Copyright © 2013 Ryan Locicero, WARE raingardens.us (author)
  7. Ask students to record on their worksheets the material they think they should remove to create the magic sidewalk.
  8. Direct student teams to begin the challenge to create a "magic" sidewalk mix by removing one of the materials from the typical concrete sidewalk mix in their mixing tubs. To do this, groups need a measuring cup or volumetric cylinder, large mixing tub, brick trowel and mix materials. Remind students to keep track of the quantities of each ingredient in their mixes. Direct students to begin with small quantities of each material and complete several trials until they achieve a mix combination that they believe will result in a magic sidewalk.
  9. Upon mix completion, have students answer the questions:
  • Does the magic sidewalk mix stick together?
  • Does the magic sidewalk mix look magical?
  • Will the mix allow water to pass through?
  1. Circulate through the groups and observe their mixes. Generally speaking, as they go through the trials, expect students to conclude that they must use a higher ratio of aggregate to cement and water. Keep hinting at this.

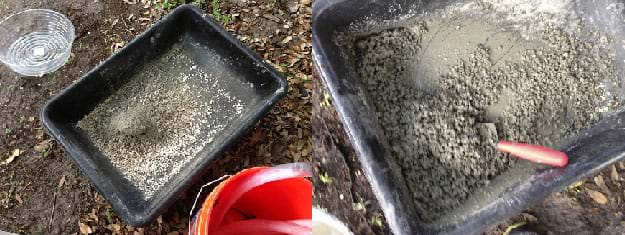

    Two photographs show two tubs with wet, mixes of ingredients; looks like wet, chunky globs of unset concrete.
    Aggregate + cement + water = magic sidewalk. What will your magic sidewalk mix look like?
    copyright
    Copyright © 2013 Ryan Locicero, WARE raingardens.us (author)
  2. Next, have students in each group place their 1-gallon native plant species container in the center of the 12-inch planter liner and fill the surrounding area with the magic sidewalk mix, approximately 2 to 3-inches deep. If liquid cement color is available, incorporate it to the mix prior to filling the planter liner. Then, let the mix in the planter liner dry over night before testing to see if it is magic and determine its infiltration rate.
  3. Students use the 12-inch planter liner and a 1-gallon plant container so that the magic sidewalk can be inserted into the basket/planter while allowing space for native plants to be inserted inside the opening. Prior to having students place their magic sidewalk mixes into the planter liner, poke several holes in the bottom of the liner except in the center area where the plant will be inserted. These holes allow excess water to drain from the pervious pavement mix. Hence, the plant container serves as a mold for the magic sidewalk mix and provides appropriate spacing for the plant within in the final personal rain garden assembly (created in the next associated activity, A Guide to Rain Garden Construction).

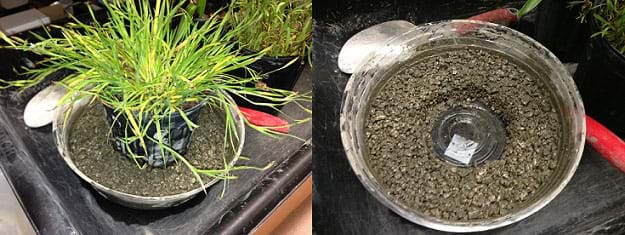

    Two photographs: A 12-inch round x 3-inch deep clear plastic planter liner with a 1-gallon plant container in the middle, surrounded by the wet concrete mix. When the plant pot is removed, the resulting donut-shape of the wet magic sidewalk mix is easily visible.
    Figure 1. Use the plastic planter liner and 1-gallon plant pot to create a form to mold the concrete mix into the desired shape.
    copyright
    Copyright © 2013 Ryan Locicero, WARE raingardens.us (author)
  4. Day 2: The next day, the materials should be dry and ready to test to see if they are indeed "magic" sidewalks. Remove the magic sidewalk from the plastic liner and place it into the coir basket or planter. Use the coir basket/planter filled with the media mix combination from the Does Media Matter? Infiltration Rates and Storage Capacities activity. Place the magic sidewalk on top of the media layer in the hanging pot.

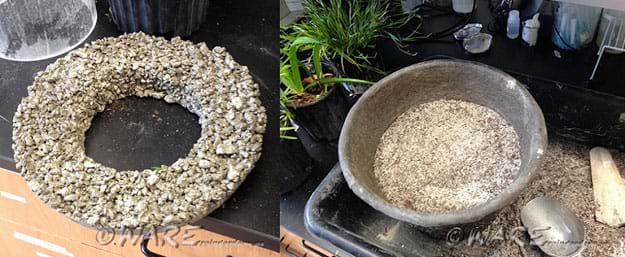

    Two photographs: The 12-inch magic sidewalk, which looks like a wreath of high-aggregate (very porous) gray concrete. Its hole dimension is the size of the 1-gallon plant pot. A low, wide coir basket is halfway filled with a dry media mix (sand, soil, pea gravel, mulch) from the previous activity.
    Does your magic sidewalk look like this (left)? What are some similarities and differences, and why?
    copyright
    Copyright © 2013 Ryan Locicero, WARE raingardens.us (author)
  5. Remind students to have available their worksheets from the day before, so they can record new data and observations on page 2. If conducting the experiment outside, direct students to record the date, time of day, temperature, humidity, dew point and weather conditions on the worksheet.
  6. Have teams test the magic sidewalks by filling a volumetric cylinder with a known volume of water and pouring the water directly over the magic sidewalk. Advise them to start with small quantities of water to ensure that all the water does infiltrate into the magic sidewalk. Have students keep track of the amount of water, the time it takes for the water to disappear from the surface of the magic sidewalk, and record on the worksheet this information and their observations. The infiltration rate is equal to the volume of water divided by the time it takes for the water to disappear from the surface.
  7. Conclude by leading a class discussion to share, compare and review student results and recommendations. Write on the classroom board the different mix combinations and their infiltration rates. Examine the mix ratios of the different groups. What can we conclude about the common characteristics of the mixes with higher infiltration rates? Also ask the questions provided in the Assessment section. Collect and review the worksheets.

Attachments

Assessment

Pre-Activity Assessment

Warm-Up Questions: Ask students the following questions to gauge their base level of knowledge and warm up the class to the activity topic.

  • Have you ever seen a hard surface, driveway, road or sidewalk that permitted water to go through it? If so, what did it look like? If you have not seen such a surface, what do you think one would look like? (Answer: Water can go through many everyday surfaces such as grass, pavement cracks, soil, rocks and pavers. Water follows the path of least resistance and will flow through any surface that provides openings for it to move through.)
  • What is the technical term for a surface in which water can pass through? (Answer: Pervious surface.)
  • What is the technical term for a surface in which water can NOT pass through? (Answer: Impervious surface.)

Activity Embedded Assessment

Think-Pair-Share: As part of the Introduction/Motivation presentation, ask students to think about the following questions with a partner, and then share with the class.

  • What happens to water when it rains? (Answer: When it rains hard enough, rainwater begins to collect on surfaces such as roofs, sidewalks, driveways and even within our yards. This rainwater becomes stormwater runoff as it moves into the street and travels down the street gutters into the storm drain or storm sewer.)
  • Where does stormwater go once it enters a storm sewer? (Answer: After entering the storm sewer, stormwater typically goes into stormwater ponds, rivers and lakes. This water is also known as surface water and eventually makes its way into oceans. Older cities have combined storm sewer and sanitary sewer systems. In those situations, water is first directed to a wastewater treatment plant where it is treated/cleaned and released back into surface water ecosystems.)
  • Does anyone have a better idea of how we can reduce the amount of stormwater that makes its way to rivers, lakes, ponds and oceans when it rains? (Answer: Low-impact development [LID] and green infrastructure (GI) technologies can be utilized to reduce stormwater runoff at its sourced to restore the hydrology and water quality of developed sites to pre-development conditions. Examples of LID or GI are rain gardens or bioretention, pervious pavement, green roofs, bioswales, rainwater harvesting, green streets and alleys, planter boxes, urban tree canopies and downspout disconnection.)

Worksheet: Have students complete the two-day Magic Sidewalk Worksheet as they conduct the activity by answering questions, recording measurements and observations, and making calculations. Review their worksheets to gauge their depth of comprehension.

Post-Activity Assessment

Wrap-Up: Lead a class discussion to share, compare and review student results and recommendations, including the worksheet questions/answers. Ask the students:

  • Where might this magic sidewalk material be used in the real world and how would engineers use this information? (Answer: A magic sidewalk could be used in areas that do not see a lot of heavy traffic. This includes driveways, sidewalks, bike paths, patios, parking lots, public plazas, outdoor basketball courts, and neighborhood streets and alleys. Engineers could use the testing results from this activity to specify the mix combination to be installed at a specific project, to design a stormwater management plan for new development, or to reduce areas of localized flooding within the existing urban environment.)
  • What is the difference in materials between traditional pervious pavement and traditional pavement? (Answer: By mixing specific ratios of materials together to create permanent pore spaces, pervious pavement lets water pass through. Pervious pavement uses materials that are similar to traditional pavement mix materials—small aggregate, cement and water—but differs from traditional pavement in that finer grain size particles [such as sand] are eliminated. The ratio of small aggregate, cement and water is critical; too much of one material may create an impervious surface or a surface that is not structurally sound.)
  • How does pervious pavement reduce stormwater runoff and pollution from affecting downstream ecosystems? (Answer: Reducing the volume of water entering into traditional stormwater infrastructure systems limits the mass of pollutant loading entering downstream ecosystems. Pervious pavement reduces stormwater runoff at its sources by promoting infiltration of stormwater into the ground.)

References

Davis, A. P. (2008). Field performance of bioretention: Hydrology impacts. Journal of Hydrologic Engineering, 13(2), 90-95. doi: 10.1061/(asce)1084-0699(2008)13:2(90)

Davis, A. P., Shokouhian, M., Sharma, H., and Minami, C. (2006). Water quality improvement through bioretention media: Nitrogen and phosphorus removal. Water Environment Research, 78(3), 284-293. doi: 10.2175/106143005x94376

Holman-Dodds, J. K., Bradley, A. A., and Potter, K. W. (2003). Evaluation of hydrologic benefits of infiltration based urban storm water management. Journal of the American Water Resources Association, 39(1), 205-215. doi: 10.1111/j.1752-1688.2003.tb01572.x

Kadlec, R. H., and Wallace, S. D. Treatment Wetlands. Boca Raton, FL: CRC Press, 2009.

Contributors

Ryan Locicero, Maya Trotz, Krysta Porteus, Jennifer Butler, William Zeman, Brigith Soto

Copyright

© 2014 by Regents of the University of Colorado; original © 2013 University of South Florida
