Quick Look
Grade Level: 8
Time Required: 2 hours 45 minutes
(three 55minute class periods)
Expendable Cost/Group: US $0.00
The activity uses some nonexpendable (reusable) items such as medical sensor devices, tape measures and a scale; see the Materials List for details.
Group Size: 3
Activity Dependency: None
Subject Areas: Data Analysis and Probability, Science and Technology
Summary
Students are introduced to several types of common medical sensor devices, such as ear and forehead thermometers, glucometers and wrist blood pressure monitors; they use the latter to measure their blood pressure and pulse rates. Students also measure their heights and weights in order to calculate their BMIs (body mass index). Then they use the collected data to create and analyze scatterplots of the different variables to determine if any relationships exist between the measured variables. Discussions about the trends observed and possible health concerns conclude the activity.Engineering Connection
Sensor devices are tools designed by biomedical engineers for use in the medical field, as well as for other engineering applications. Medical research and development is growing as engineers design newer and better performing sensors. As part of the design cycle, engineers measure, collect and analyze data. When investigating relationships between two variables, scatterplots are utilized to enable engineers to examine any trends that exist.
Learning Objectives
After this activity, students should be able to:
 Collect and organize data.
 Create scatterplots.
 Analyze a scatterplot by determining the relationship between axis variables and data trend.
 Draw line of best fit and make predictions.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards  Science
NGSS Performance Expectation

Apply concepts of statistics and probability to explain the variation and distribution of expressed traits in a population. (Grades 9  12 ) Do you agree with this alignment?

This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices  Disciplinary Core Ideas  Crosscutting Concepts
Apply concepts of statistics and probability (including determining function fits to data, slope, intercept, and correlation coefficient for linear fits) to scientific and engineering questions and problems, using digital tools when feasible. Alignment agreement:  Environmental factors also affect expression of traits, and hence affect the probability of occurrences of traits in a population. Thus the variation and distribution of traits observed depends on both genetic and environmental factors. Alignment agreement:  Algebraic thinking is used to examine scientific data and predict the effect of a change in one variable on another (e.g., linear growth vs. exponential growth). Alignment agreement: Technological advances have influenced the progress of science and science has influenced advances in technology.Alignment agreement: Science and engineering are influenced by society and society is influenced by science and engineering.Alignment agreement:
View other curriculum aligned to this performance expectation
Common Core State Standards  Math

Summarize numerical data sets in relation to their context, such as by:
(Grade 6 )
More Details
Do you agree with this alignment?

Reporting the number of observations.
(Grade 6 )
More Details
Do you agree with this alignment?

Describing the nature of the attribute under investigation, including how it was measured and its units of measurement.
(Grade 6 )
More Details
Do you agree with this alignment?

Giving quantitative measures of center (median and/or mean) and variability (interquartile range and/or mean absolute deviation), as well as describing any overall pattern and any striking deviations from the overall pattern with reference to the context in which the data were gathered.
(Grade 6 )
More Details
Do you agree with this alignment?

Relating the choice of measures of center and variability to the shape of the data distribution and the context in which the data were gathered.
(Grade 6 )
More Details
Do you agree with this alignment?

Solve realworld and mathematical problems involving the four operations with rational numbers.
(Grade 7 )
More Details
Do you agree with this alignment?

Construct and interpret scatter plots for bivariate measurement data to investigate patterns of association between two quantities. Describe patterns such as clustering, outliers, positive or negative association, linear association, and nonlinear association.
(Grade 8 )
More Details
Do you agree with this alignment?

Use the equation of a linear model to solve problems in the context of bivariate measurement data, interpreting the slope and intercept.
(Grade 8 )
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Use data collected to analyze and interpret trends in order to identify the positive and negative effects of a technology.
(Grades 6  8 )
More Details
Do you agree with this alignment?

Interpret and evaluate the accuracy of the information obtained and determine if it is useful.
(Grades 6  8 )
More Details
Do you agree with this alignment?

Advances and innovations in medical technologies are used to improve healthcare.
(Grades 6  8 )
More Details
Do you agree with this alignment?
State Standards
Texas  Math

Measurement and data. The student applies mathematical process standards to use numerical or graphical representations to analyze problems. The student is expected to:
(Grade
6 )
More Details
Do you agree with this alignment?

communicate mathematical ideas, reasoning, and their implications using multiple representations, including symbols, diagrams, graphs, and language as appropriate;
(Grades
6
8 )
More Details
Do you agree with this alignment?

apply and extend previous understandings of operations to solve problems using addition, subtraction, multiplication, and division of rational numbers.
(Grade
7 )
More Details
Do you agree with this alignment?

add, subtract, multiply, and divide rational numbers fluently; and
(Grade
7 )
More Details
Do you agree with this alignment?

construct a scatterplot and describe the observed data to address questions of association such as linear, nonlinear, and no association between bivariate data;
(Grade
8 )
More Details
Do you agree with this alignment?

use a trend line that approximates the linear relationship between bivariate sets of data to make predictions;
(Grade
8 )
More Details
Do you agree with this alignment?
Materials List
For the teacher's introduction:
 computer with projector to show the Introduction to Sensors and Scatterplots Presentation, a Microsoft^{®} PowerPoint^{®} file
 variety of medical sensors, such as: thermometers (ear, mercury oral, digital oral, forehead strips), glucometer, blood pressure monitor (borrow or purchase); if purchasing, approximate costs are: ear thermometer $45, digital oral thermometer $20, glucometer $20, and forehead strip thermometer kit $13
Each group needs:
 wrist blood pressure monitor, available for $2035 at Amazon.com or local discount store/pharmacy (note: wrist monitors can be shared among groups if necessary)
 tape measure
 sticky notes, any size, one per student
 ruler
 calculator
 computer with internet access to Create A Graph (if not available, see note below)
 Sensors and Scatterplots PreActivity Assessment, one per student
 Student Data Sheet, one per student
 Creating and Analyzing Scatterplots Worksheet, one per student
 Scatterplots with Technology Worksheet, one per student
 copy of completed Class Data Sheet, one per student
 Sensors and Scatterplots PostActivity Assessment, one per student
To share with the entire class:
 23 digital body weight scales
 Class Data Sheet
Materials note: This activity uses the Create A Graph online tool at https://nces.ed.gov/nceskids/createagraph/default.aspx, an application that enables students to independently and quickly create graphs. Thus, students need access to computers with internet connections for part of the Day 3 activity. For teachers and students who do not have internet access, an alternate worksheet is provided that uses Microsoft^{®} Excel^{®} to create scatterplots. In addition, another worksheet is available for manual graphing. See the Attachments section.
Worksheets and Attachments
Visit [www.teachengineering.org/activities/view/utpa_sensors_activity1] to print or download.More Curriculum Like This
Students learn the purpose of a fever in the body's immune system and how it protects the body against germs. The students continue to explore temperature by creating a model thermometer and completing a temperature conversion worksheet.
Students learn about the difference between temperature and thermal energy. They create thermometers using simple materials and develop their own scales for measuring temperature. They compare their thermometers to a commercial thermometer, and get a sense for why engineers need to understand the pr...
Students act as R&D entrepreneurs, learning ways to research variables affecting the market of their proposed (hypothetical) products. They calculate related statistics and gain proficiency in obtaining and finding relationships between variables, which is important in the work of engineers as well ...
Students study how heart valves work and investigate how valves that become faulty over time can be replaced with advancements in engineering and technology. Learning about the flow of blood through the heart, students are able to fully understand how and why the heart is such a powerful organ in ou...
PreReq Knowledge
Students should know how to do the following:
 Solve problems involving rational numbers.
 Calculate averages.
 Graph in the coordinate plane.
Students should be familiar with the following:
 Create and analyze scatterplot trends.
 Make predictions from lines of best fit.
Introduction/Motivation
(Be prepared to show sample medical sensors, the presentation and [optional] two short online videos. Also have ready copies of the preactivitiy assessment worksheets.)
How many of you have had a fever recently? (Expect a few students to raise their hands.) What kind of thermometer was used to measure your fever? (Expect a variety of responses.) A variety of thermometers are available to measure body temperature. Earlier thermometers were made of glass and used mercury to measure your temperature (if available, show students a mercury thermometer). Although they work well enough, mercury thermometers have some problems: for instance, it takes 37 minutes to read your temperature, and they are made of glass. When broken, these thermometers release mercury, which is dangerous to handle. Engineers started looking at these problems, and with the advancement of electronics, the digital thermometer was developed, which has nearly made the mercury thermometer an antique. The digital oral thermometer takes about 1 minute to get a reading while the ear and forehead thermometers take 13 seconds (if available, show students examples of digital thermometers). These designs make it easy and fast to take a temperature reading. In fact, the newest forehead thermometer design uses an infrared light so your forehead is never touched—this is perfect for taking a temperature reading for someone who is sleeping.
Have your parents ever taken you to the doctor when you had a high fever? (Expect some "yes" answers.) At the doctor's office, a visit usually begins with a medical assistant taking your vital signs: your weight, height, temperature, blood pressure and pulse. These measurements provide the doctor with important medical information about your health.
Today, we will use sensors to collect some of these measurements and then use the data to create and analyze scatterplots. Measuring, collecting and analyzing data accurately are important parts of the engineering design cycle. Scatterplots are useful to engineers when they are investigating relationships between two variables—just like we are going to be doing in this activity. Let's view a presentation that will clarify the variables and relationships we will be investigating.
(Proceed to show the presentation, followed by the preactivity worksheets.)
Procedure
Background
Body mass index, or BMI, is used as a screening tool for children to identify possible weight problems that may lead to health issues as an adult. The greater (higher) the BMI, the greater the risk of contracting diseases associated with obesity, including high blood pressure, diabetes, arteriosclerosis (narrowing and thickening of the arteries) and high cholesterol levels.
The following YouTube video illustrates these concerns: https://www.youtube.com/watch?v=uonXKiLZ9AE (note: make sure to preview the video to ensure that the content is appropriate for your students, as the video shows a graphic liposuction surgery; the video can be stopped right before the surgery scene, however, to eliminate any risk of inappropriateness). Although this video raises serious health concerns, children who lose weight and maintain a healthy lifestyle can erase the concerns discussed in this video, https://www.youtube.com/watch?v=GRT0M0HuXY. It is important for students to learn about BMI and blood pressure, and this activity introduces both and demonstrates how easy it is for students to monitor them using simple medical sensors.
If you have small classes (less than 20 students), combine data from two or more classes so that the scatterplots have a sufficient number of data points.
Before the Activity
 Gather sample sensors for the activity introduction, as well as all materials needed for each group.
 A portion of this activity requires use of the Create A Graph tool at https://nces.ed.gov/nceskids/createagraph/default.aspx. If students do not have access to the internet, Microsoft Excel can be used to create the scatterplots with a different worksheet. If computers are not available, the scatterplots can be done manually with a different worksheet that has a few modifications (change relationships) to complete the additional scatterplots. Depending on your classroom resources, make copies of the appropriate Creating and Analyzing Scatterplots Worksheet; see the Attachments section for all worksheets.
 Make copies of the Sensors and Scatterplots PreActivity Assessment, Student Data Sheet, Creating and Analyzing Scatterplots Worksheet and Scatterplots with Technology Worksheet, one each per student.
 Print out one copy of the Class Data Sheet, to be used by the entire class.
 After Day 1, make enough copies of the completed Class Data Sheet so that each student has a copy for Day 2 and Day 3.
 For the last day, make copies of the Sensors and Scatterplots PostActivity Assessment, one per student.
With the Students
Day 1: Collecting Data
 Divide the class into groups of three students each and distribute the Student Data Sheets to each student.
 Following the Student Data Sheet instructions, have students weigh and measure themselves, and calculate BMI values.
 Next, using a wrist blood pressure cuff, and following the Student Data Sheet instructions, have student measure their blood pressures and pulse rates. Make sure they record their measurements on their data sheets and then transfer their data to the Class Data Sheet.
Day 2: Creating and Analyzing Scatterplots
 Direct students to organize into the same groups they had during the Day 1 activities. Distribute the Creating and Analyzing Scatterplots Worksheet, one per student (each student should complete his/her own worksheet), and copies of the completed Class Data Sheet from Day 1.
 Using the Class Data Sheets, students create scatterplots of BMI vs. systolic blood pressure (see Figure 1). Then, they analyze the scatterplot, identify a trend and write an explanation of the relationship between BMI and systolic blood pressure.
 Next, using the Class Data Sheets again, have students create scatterplots of pulse rate vs. systolic blood pressure. They analyze the scatterplot, identify a trend and write an explanation of the relationship between pulse rate and systolic blood pressure.
 The students may also complete the second page of the class data worksheet which includes some statistics on random students. This allows them to calculate the variance and standard deviations of the sample sets. Explain that the higher the variance (or standard deviation) value, the more the data is scattered, and the more difficult it can be to find trends. Also explain that these values may be improved with more data sets (the students can expand this activity by calculating variance and standard deviation for the entire class!)
 Students turn in their worksheets at the end of the class period.
Day 3: Scatterplots with Technology
 Direct students to work in the same groups as in Days 1 and 2.
 Distribute the Scatterplots with Technology Worksheets to students (each student completes his/her own worksheet).
 On the worksheet, students use the Create A Graph application found at https://nces.ed.gov/nceskids/createagraph/default.aspx (or Microsoft^{®} Excel^{®} or manual methods) to generate scatterplots for the collected class data. If desired, graphs can be printed and lines of best fit drawn on the scatterplots. If Microsoft® Excel® is used, ask the students to plot a line of best fit as well as the R2 value. The R2 value is useful for determining "goodness of fit", or well the line describes the data set. Instructions may be found here: https://support.office.microsoft.com/enUS/article/addchangeorremoveatrendlineinachartfa59f86c58524b68a6d4901a745842ad
 Using the class data sheets, have students create and analyze scatterplots of BMI vs. pulse rate, following the instructions on the Creating and Analyzing Scatterplots Using Technology Worksheet (see Figure 2).
 Next, direct students to follow the worksheet instructions to create and analyze scatterplots that compare male and female data.
(Note: If the class size is fewer than 20 students or the mix of females/males in a class is far from equal [the female/male ratio should be ~50/50; a ratio of 60/40 is acceptable], it might be necessary to combine class data sheets.)
 Have students turn in the worksheets at activity end.
After the Activity
Have students present summaries of the BMI and blood pressure relationships they observed during the activity. Select a different relationship (individual vs. class vs. male vs. female, etc.) for each group to present to the class. Inform them that they they must present the data, the scatterplot and the analysis of the relationship they observed.
The expected results are as follows:

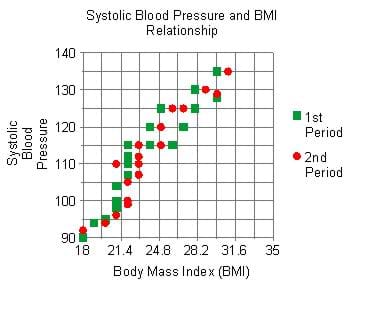

 A positive trend (correlation) exists between systolic blood pressure and BMI, which means that generally, as BMI increases, so does systolic blood pressure. (See Figure 3 for an example graph created with the Create A Graph online application.)
 No correlation exists between pulse rate and systolic blood pressure, so expect the second graphs to not show any trends.
 In the third scatterplot, as BMI increases so does pulse rate. When comparing male and female data, generally girls have higher BMI values due to the normal existence of more fat on female bodies compared to male bodies, so expect to see that reflected on the scatterplots.
After the presentations, lead a class discussion about the implications that high BMI values can have about people's health. Higher BMI values have been shown to indicate the possibility of serious health concerns, such as high blood pressure and diabetes. By collaborating with physicians, engineers play an important role in the medical field by designing advanced medical technologies that improve the quality of life for people.
Vocabulary/Definitions
BMI: Acronym for body mass index. A number calculated from a person's weight and height for the purpose of identifying potential health issues.
diastolic blood pressure: A measure of blood pressure when the heart is at rest between beats.
line of best fit: A straight line that best represents the data on a scatterplot.
medical sensor: A device used to measure physiological responses.
negative correlation: A relationship between two variables such that the values of one variable increase as the values of the other variable decrease.
positive correlation: A relationship between two variables such that their values increase or decrease together.
pulse rate: The number of times a heart beats per minute.
systolic blood pressure: A measure of blood pressure when the heart is pumping blood.
trend: A description of the relationship between two variables on a scatterplot.
Assessment
PreActivity Assessment
PreActivity Worksheet: After presenting the Sensors and Scatterplots Introduction Presentation, have students complete the Sensors and Scatterplots PreActivity Assessment, which is designed to check their understanding of the types of trends in scatterplots. Students need to be able to identify the following trends: positive correlation, negative correlation, no correlation, and need to be able to make predictions from trend lines since they will be creating and analyzing scatterplots.
Activity Embedded Assessments
Student Data Sheet: Students measure and record their weights and heights, and then calculate their BMI values. Also, they measure their blood pressures and pulse rates. Verify that students have collected their data accurately and have calculated their BMI, blood pressure and pulse values correctly on the Student Data Sheets. This data is used by the students to create and analyze scatterplots.
Creating and Analyzing Scatterplots Worksheet: Students use their completed Creating and Analyzing Scatterplots Worksheets to create and analyze scatterplots of systolic blood pressure vs. BMI. For these plots, expect to see positive trends: the higher the systolic blood pressure, the higher the BMI value. Students also draw lines of best fit and make predictions from the scatterplots. The second scatterplot they create examines the relationship between pulse rate and systolic blood pressure; expect it to show that no relationship exists between these two variables.
Scatterplots with Technology Worksheet: Students use the completed Scatterplots with Technology Worksheets to create and analyze two scatterplots using the Create A Graph website. The first scatterplot examines the relationship between BMI and pulse rate; expect the results to show positive trends. The second scatterplot examines the difference between male and female data for the BMI vs. systolic blood pressure relatioinship. Expect this scatterplot to show that females generally have higher BMI values. Verify that scatterplots are constructed and questions are answered correctly.
PostActivity Assessment
PostActivity Assessment: Have students complete the Sensors and Scatterplots PostActivity Assessment, which is designed to evaluate their abilities to create and analyze scatterplots. Using the class data sheet, students select two different variables to analyze, construct a scatterplot, analyze and explain the correlation between the two variables and draw a line of best fit for the scatterplot. They also reflect on what they learned during this investigation.
Safety Issues
Remind students to use caution when handling the sample sensor equipment, especially if it is borrowed. Some of the electronic components and connections are fragile and breakable.
Troubleshooting Tips
 If no internet connection is available for the computers, use Microsoft Excel and the Creating and Analyzing Scatterplots – Excel Worksheet instead.
 If no computers are available, then use the Creating and Analyzing Scatterplots – Manual Graphing Worksheet for the activity.
Activity Extensions
Have students use the data collected to construct scatterplots on a graphing calculator. The line of regression (line of best fit) can then be found using the calculator.
Have students use the data to create other forms of data representation such as bar graphs, line plots, histograms, stem and leaf plots, box and whisker plots, and circle graphs.
Have students use other sensors, such as thermometers, to collect and analyze data.
Have students brainstorm new realworld examples of positive and negative correlations in a context different than the application discussed in this lesson. For instance, the number of pages printed by an inkjet printer and the amount of ink remaining in the printer cartridge (negative correlation), or the distance traveled by a car and the elapsed time (positive correlation).
Activity Scaling
For lower grades, use measured data to create grade level appropriate data representations, such as bar graphs, line plots or circle graphs.
Additional Multimedia Support
Show students the "Obesity Epidemic in America" video on the risks associated with high BMI values (2:43 minutes): https://www.youtube.com/watch?v=uonXKiLZ9AE
Show students the "Dr. Miriam Vos Discusses Health Risks Related to Childhood Obesity" video on how normalizing weight reverses health risks (1:13 minutes): https://www.youtube.com/watch?v=GRT0M0HuXY
References
About BMI for Children and Teens. Last updated September 13, 2011. Centers for Disease Control and Prevention. Accessed October 17, 2013. http://www.cdc.gov/healthyweight/assessing/bmi/childrens_bmi/about_childrens_bmi.html
Chronic Disease Prevention and Health Promotion. Last updated May 26, 2011. Centers for Disease Control and Prevention. Accessed October 17, 2013. http://www.cdc.gov/chronicdisease/resources/publications/AAG/obesity.htm
Contributors
Elma M. Piñon; Mounir Ben GhaliaCopyright
© 2013 by Regents of the University of Colorado; original © 2013 The University of TexasPan AmericanSupporting Program
RETENET Program, Electrical Engineering Department, The University of TexasPan AmericanAcknowledgements
This activity was created through The University of TexasPan American's Electrical Engineering Research Experiences for Teachers in Emerging and Novel Engineering Technologies (RETENET) Program with support from National Science Foundation grant number CNS 1132609. However, these contents do not necessarily represent the policies of the National Science Foundation, and you should not assume endorsement by the federal government.
