Lesson: Position, Velocity and Acceleration

Contributed by: IMPART RET Program, College of Information Science & Technology, University of Nebraska Omaha

Three graphs, one above the other, plot an object's position, velocity and acceleration vs. time. The graphs are oriented so that relationships between them can be realized.
Object motion graphs.
copyright
Copyright © 2007 Pieter Kuiper, Wikimedia Commons http://commons.wikimedia.org/wiki/File:1-D_kinematics.svg

Summary

Students observe four different classroom setups with objects in motion (using toy cars, a ball on an incline, and a dynamics cart). At the first observation of each scenario, students sketch predicted position vs. time and velocity vs. time graphs. Then the classroom scenarios are conducted again with a motion detector and accompanying tools to produce position vs. time and velocity vs. time graphs for each scenario. Students compare their predictions with the graphs generated by technology and discuss their findings. This lesson requires assorted classroom supplies, as well as motion detector technology.

Engineering Connection

Many types of engineers, such as systems engineers, structural engineers and civil engineers, carefully observe and analyze systems to determine what causes them to behave as they do. They examine how systems work and make predictive models of them. In this lesson, students observe systems and make predictions about what they see, just like real engineers do. Doing this serves as a hands-on application of aspects of the engineering design process, the steps when needs are identified and research is conducted.

Pre-Req Knowledge

A basic understanding of the concepts of position, velocity and acceleration, and how they relate to each other.

Learning Objectives

After this lesson, students should be able to:

  • Define position and velocity.
  • Identify the relationships between position and velocity.
  • Observe a system and make predictions about what they see, just like real engineers do.

More Curriculum Like This

Android Acceleration

Students prepare for the associated activity in which they investigate acceleration by collecting acceleration vs. time data using the accelerometer of a sliding Android device. Based on the experimental set-up for the activity, students form hypotheses about the acceleration of the device. Students...

High School Lesson
A Tale of Friction

High school students learn how engineers mathematically design roller coaster paths using the approach that a curved path can be approximated by a sequence of many short inclines. They apply basic calculus and the work-energy theorem for non-conservative forces to quantify the friction along a curve...

High School Lesson
Matching the Motion

Students learn about slope, determining slope, distance vs. time graphs through a motion-filled activity. Working in teams with calculators and CBR2 motion detectors, students attempt to match the provided graphs and equations with the output from the detector displayed on their calculators.

Middle School Activity
Walk This Way

After students have complete the associated activity to collect and graph acceleration data from walking human subjects, they learn more about gait analysis---the study of human motion, which is used as biometric data for human medical diagnostics and (non-human) comparative biomechanics.

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Represent data with plots on the real number line (dot plots, histograms, and box plots). (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Technological problems must be researched before they can be solved. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Collect information and evaluate its quality. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Synthesize data, analyze trends, and draw conclusions regarding the effect of technology on the individual, society, and environment. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Represent data with plots on the real number line (dot plots, histograms, and box plots). (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use multiple processes and diverse perspectives to explore alternative solutions. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Operate Systems - Understand technology systems and use hardware and networks to support learning. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

(Have ready the supplies [toy cars, ball, incline, dynamics cart] to present the four motion scenarios, plus motion detectors with their necessary software and/or interfaces, as described in more detail in the Lesson Background section.)

In this lesson, you will observe moving objects and discuss position, velocity and acceleration to describe motion. The four different scenarios of moving objects are:

  1. Two toy cars that move across a table or floor with constant speeds, one faster than the other.
  2. A ball that speeds up at a uniform rate as it rolls down an incline.
  3. A dynamics cart that slows down at a uniform rate as it rolls across a table or floor.
  4. A person walking across the room with a speed that changes irregularly.

For each scenario, observe the moving objects and sketch predicted position vs. time and velocity vs. time graphs for each. After you observe all the examples, consider these questions. (Refer to Table 1; read the questions aloud, write them on the classroom board, or show the class the Six Questions Visual Aid.)

(Proceed to demonstrate the four scenarios in the classroom, directing students to sketch predicted graphs for each and then answer the questions in Table 1.)

A two-column table provides six questions: How would you describe the motion of each object? What is position? What is velocity? How is velocity represented on a position vs. time graph? How is position represented on a velocity vs. time graph? What is acceleration? Answers are: Expect students to generally describe motion with words such as "faster" and "slower" and possibly "acceleration" and "deceleration," and be less likely to have a precise definition in mind for those terms. Position is an object's location relative to a reference point. Velocity is the rate of change in an object's position with respect to time. An object's velocity is the slope of a position vs. time graph. An object's change in position is the area under the curve of a velocity vs. time graph. Expect students to describe acceleration as speeding up and deceleration as slowing down.
Table 1. Questions for students and answers for the teacher.

Now, using a motion detector, interface and software, observe each moving object again, while collecting data to generate position vs. time and velocity vs. time graphs as the objects are moving. To accomplish this, use a sonar-based motion detector. These devices measure where an object is located as long as it is directly in front of the sensor and nothing between the object and the sensor blocks the sound waves. Then use software to interpret the data collected using the motion detector. Finally, compare your predicted graphs to the graphs produced using the motion detector's data and discuss any differences.

Lesson Background and Concepts for Teachers

To collect data for generating position vs. time and velocity vs. time graphs, have students use sonar-based Vernier motion detectors or similar devices. These sensors require software to interpret the data. With the Vernier device, use Logger Pro, or Logger Lite—a free download. Some motion detectors also require an interface, but Vernier has a version that connects directly to a computer via USB. Vernier also has a CBR version that connects directly to a compatible TI-calculator and uses internal software to record data.

Possible motion detector options:

Possible interface options:

Possible software options:

As students compare their predicted graphs to the graphs produced using the motion detector data, the ultimate goal is for them to understand that the slope of a tangent line at a given point is the object's instantaneous velocity and that a velocity vs. time graph is just a representation of an object's instantaneous velocities over time. If necessary, guide the class discussion so that students reach this understanding.

In order to complete the associated activity,"Gaitway" to Acceleration: Walking Your Way to Acceleration, students must understand what a secant line to a curve is and how to compute Riemann sums. So, teach students the following lesson content to prepare them for the associated activity.

Secant lines: A secant line of a curve is a line that intersects a curve in a local region at two points on the curve. As the two intersection points become closer together on the curve, the secant line becomes closer and closer to the tangent line at a point on the curve. In calculus, the derivative evaluated at a point on the curve is the slope of the tangent line at that evaluated point. A secant line is a way to approximate derivatives without taking a derivative.

In the associated activity, the data does not have a corresponding equation (although you could perform a regression to find one) so taking a derivative is not possible. Secant lines allow the approximation of the derivative (which would represent the velocity of the object) without requiring the computation of the derivative. If you create a curve from the associated points found by taking a derivative (or approximating using secant lines), you can create a velocity curve of the object. Computing secant lines for this curve in the same fashion as the previous example is a method for approximating the second derivative, which represents the acceleration of the object. Again, by using secant lines, the acceleration can be approximated without having an equation and using calculus. To compute a secant line, select two points, calculate the slope, plug one of the selected points and the slope into point slope form, and then algebraically manipulate it into any form of the line that you wish. When working from the object's position, the secant line evaluated at an appropriate "x" value yields a "y" value that represents the object's velocity (first derivative). When working from the object's velocity, the secant line evaluated at an appropriate "x" value yields a "y" value that represents the object's acceleration (second derivative).

Riemann sum: A Riemann sum is an approximation of the area under a curve. The sum is computed by dividing the region into polygons (rectangles, trapezoids, etc.) that when combined approximate the area under the curve. The area for each of the polygons is computed using an appropriate area equation and the results are added to approximate the region. Using Riemann sums, a numerical approximation of a definite integral can be found. Similar to the secant line, a Riemann sum can be used to approximate an object's velocity or position without having an equation that you can integrate. An integral is the inverse of a derivative. Hence, a Riemann sum approximation works backwards from a secant line approximation. Given an object's acceleration curve, a Riemann sum can be used to determine an object's velocity curve. Given an object's velocity curve for an object, a Riemann sum can be used to determine an object's position curve.

Various Definitions of Acceleration

In recognizable terms: In common words, acceleration is a measure of the change in speed of an object, either increasing (acceleration) or decreasing (deceleration). This definition is not completely accurate because it disregards the directional component of the velocity vector. Vectors have two components—magnitude and direction. When discussing speed, we only consider the change in magnitude.

In conceptual terms: Acceleration is a quantity in physics that is defined to be the rate of change in the velocity of an object over time. Since velocity is a vector, acceleration describes the rate of change in the magnitude and direction of the velocity of an object. When thinking in only one dimension, acceleration is the rate that something speeds up or slows down.

In mathematical terms: Many different mathematical variations exist for acceleration. Below is a partial listing:

  • Newton's second law of motion: For a body with constant mass, the acceleration is proportional to the net force acting on it. Fnet = ma
  • Rate of change in velocity with respect to time, slope of velocity vs. time graph (two forms):

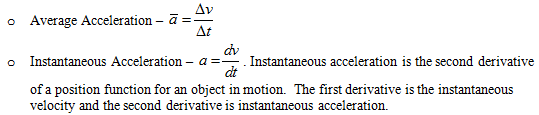

    Average and instantaneous acceleration equations. Average acceleration = delta v / delta t. Instantaneous acceleration = dv / dt. Instantaneous acceleration is the second derivative of a position function for an object in motion. The first derivative is the instantaneous velocity and the second derivative is instantaneous acceleration.
  • Constant acceleration is when the velocity of an object in motion changes by an equal amount in equal interval time periods. Using algebra, the following kinematic equations can be derived:
    Kinematic equations. v = v0 + at; x = x0 + v0t + 1/2at^2; v^2 = v0^2 + 2a(x-x0)

In process terms: To compute the acceleration of an object, it is first essential to understand what type of motion is occurring. Once the type of motion is determined, a variety of mathematical equations can be applied, depending on the situation. Unfortunately, the acceleration is only easy to find in situations in which the object's motion is predictable. For instance, when an object is undergoing harmonic motion, the acceleration of the object can be determined because the object's position is predictable at any point in time.

In applicable terms: Any object in motion has acceleration. If the object's velocity is changing, the object is either accelerating or decelerating. If the object has constant velocity, the object's acceleration is zero. If an object is moving at a constant speed following a circular path, the object experiences a constant acceleration that points toward the center of the circle.

Vocabulary/Definitions

acceleration: The rate of change of an object's velocity.

dynamics cart: A low-friction cart with mass designed to perform high-quality motion experiments.

position: An object's location relative to a reference point.

Riemann sum: The approximation of the area of the region under a curve.

secant line: A line that locally intersects two points on the curve. Secant lines can be used to approximate the tangent to a curve by moving the points of intersection of the secant line closer to the point of tangency.

velocity: The rate of change in an object's position with respect to time.

Associated Activities

  • "Gaitway" to Acceleration: Walking Your Way to Acceleration - Students collect data related to their bodies' position vs. time and acceleration vs. time as they walk using motion-detecting sensors. They import their data into Excel® to analyze and discover the relationships between position, velocity and acceleration.

Attachments

Assessment

Pre-Lesson Assessment: Ask students the following questions to gauge their prior knowledge:

  • Explain your understanding of velocity. (Answer: Velocity is the rate of change in [derivative of] position with respect to time.)
  • How does velocity change as an object moves? (Answer: The velocity of an object changes based on how the object's motion changes. If the object's motion changes directions or slows down or speeds up, its velocity changes. If the object's motion remains at a constant speed in the same direction, its velocity is unchanged.)
  • What is acceleration? (Answer: Acceleration is the rate of change in [derivative of] velocity with respect to time.)

Formative Assessment: As students are engaged in the lesson, ask these (or similar) questions:

  • Can you draw accurate representations of what a velocity vs. time graph would look like for the scenarios?
  • Do you understand how velocity can be represented on a position vs. time graph?
  • Can you make reasonable comparisons between position vs. time graphs and velocity vs. time graphs?

Lesson Summative Assessment: Assign students to answer the following writing prompt:

  • Using your experiences in this lesson, explain how you can find the instantaneous velocity of an object or draw a velocity vs. time graph given the object's position vs. time graph. (Answer: To find the instantaneous velocity of an object given the position vs. time graph, find the slope of the tangent line to the curve at the desired point. To draw a velocity vs. time graph from a position vs. time graph, compute the instantaneous velocity of the object at regular intervals and then graph those values at the time that they occurred and connect the "dots" with a smooth curve.)
