Hands-on Activity: Earthquakes Living Lab: Locating Earthquakes

Contributed by: Civil and Environmental Engineering Department, Colorado School of Mines

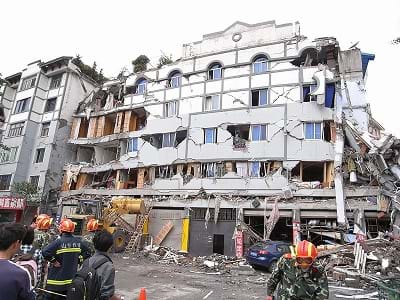

A photograph shows emergency first responders in gear and helmets in front of a six-story residential building (now looks like five-stories) that looks broken, cracked and crumbling.
During the 2008 Sichuan earthquake, the second floor of this building collapsed, killing several people and trapping a pregnant woman and an elderly woman.
copyright
Copyright © 2008 miniwiki.org via Wikimedia Commons http://commons.wikimedia.org/wiki/File:Sichuan_earthquake_building_collasped..JPG

Summary

Students use U.S. Geological Survey (USGS) real-time, real-world seismic data from around the planet to identify where earthquakes occur and look for trends in earthquake activity. They explore where and why earthquakes occur, learning about faults and how they influence earthquakes. Looking at the interactive maps and the data, students use Microsoft® Excel® to conduct detailed analysis of the most-recent 25 earthquakes; they calculate mean, median, mode of the data set, as well as identify the minimum and maximum magnitudes. Students compare their predictions with the physical data, and look for trends to and patterns in the data. A worksheet serves as a student guide for the activity.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Every year, thousands of people die in earthquakes, and many more homes and communities are destroyed or damaged. Many of these catastrophes can be mitigated, however, by smart engineering. The first step in protection is determining where earthquakes are likely to occur, and how severe they may be. Some techniques engineers use include looking at fault lines, examining previous earthquake data and identifying patterns and trends.

Scientists and engineers around the globe gather data through observation and experimentation and use it to describe and understand how the world works. The Earthquakes Living Lab gives students the chance to track earthquakes across the planet and examine where, why and how they are occurring. Using the real-world data in the living lab enables students and teachers to practice analyzing data to solve problems and answer questions, in much the same way that scientists and engineers do every day.

Pre-Req Knowledge

Students should be able to calculate the mean, median and mode for a set of data. If students are unfamiliar with these concepts, do this portion of the assignment as a class.

Learning Objectives

After this activity, students should be able to:

  • Describe what a fault is, and how it can cause earthquakes.
  • Use USGS online maps to retrieve data.
  • Explain how engineers use earthquake data.

More Curriculum Like This

Earthquakes Living Lab: FAQs about P Waves, S Waves and More

Students learn what causes earthquakes, how we measure and locate them, and their effects and consequences. Through the online Earthquakes Living Lab, student pairs explore various types of seismic waves and the differences between shear waves and compressional waves.

Earthquakes Living Lab: Geology and Earthquakes in Japan

Students study how geology relates to the frequency of large-magnitude earthquakes in Japan. Using the online resources provided through the Earthquakes Living Lab, students investigate reasons why large earthquakes occur in this region, drawing conclusions from tectonic plate structures and the loc...

Volcanic Panic!

Students learn about the causes, composition and types of volcanoes. They begin with an overview of the Earth's interior and how volcanoes form. Once students know how volcanoes function, they learn how engineers predict eruptions.

Elementary Lesson
Earthquakes Rock!

They make a model of a seismograph—a measuring device that records an earthquake on a seismogram. Students also investigate which structural designs are most likely to survive an earthquake.

Elementary Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Analyze and interpret data on natural hazards to forecast future catastrophic events and inform the development of technologies to mitigate their effects. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • With the aid of technology, various aspects of the environment can be monitored to provide information for decision-making. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • The alignment of technological processes with natural processes maximizes performance and reduces negative impacts on the environment. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Analyze and interpret data about natural hazards using direct and indirect evidence (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Seek, evaluate, and use a variety of specialized resources available from libraries, the Internet, and the community to find scientific information on Earth's history (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • computer or other device and Internet access
  • Microsoft® Excel® (or similar application) to calculate the mean, median and mode
  • journal or writing paper for each student
  • pen or pencil, one per student
  • Where Are Earthquakes Happening Right Now? Worksheet, one per group

Introduction/Motivation

Below the Earth's surface is a layer called the lithosphere, which is divided into huge sections called tectonic plates. An earthquake occurs when two tectonic plates, these gigantic blocks of the Earth, suddenly slip past one another on their fault planes. The U.S. Geological Survey (USGS) keeps track of earthquakes around the planet. How often do you think an earthquake occurs somewhere on the planet? (Listen to student responses.) Sometimes hundreds of earthquakes occur in a day, although most are too small to be felt.

Engineers use seismographs to collect data about earthquakes. For every earthquake, its duration, direction and intensity are recorded. Why might engineers want to know this information? What types of engineers might use this data the most? How might they use this information? (Listen to student ideas.) Civil engineers, who design and construct buildings and bridges, may use this data to help them design safe structures. For example, in regions with high earthquake activity, civil engineers may design buildings that are not over a certain height limit or include extra support beams and other design elements as safety factors. Engineers and scientists apply their knowledge of the intensity, frequency and location of past earthquakes to do their best to predict the likelihood of future earthquakes and prepare for their occurrence; it's our best attempt to mitigate the effects and prevent loss of life.

Vocabulary/Definitions

fault plane: The surface where tectonic plates slip past one another.

lithosphere: The outermost rigid layer of the Earth, consisting of the crust and upper mantle. This layer of the Earth is composed of tectonic plates and is where earthquakes occur.

seismograph: An instrument that measures motions of the ground, including those of seismic waves generated by earthquakes. Also called seismometer. The instrument detects and documents the intensity, direction and duration of ground vibrations, which are used to determine the strength or magnitude of earthquakes or other seismic events.

tectonic plates: Large sections of the Earth's crust (lithosphere layer) that move, float and sometimes fracture, and whose interaction causes much of the planet's seismic activity.

Procedure

Before the Activity

With the Students

  1. Divide the class into student pairs, and have them assemble at their computers with journals/paper and writing instruments.
  2. Hand out the worksheets to the groups and direct them to read through the instructions. Encourage them to explore all of the Earthquakes Living Lab as they complete the worksheet.
  3. Before looking at the Earthquakes Living Lab, have pairs complete the Engage section of the worksheet (the first three questions; includes predictions about earthquake location patterns and trends). See details in the Assessment section.
  4. Then guide the teams to the Earthquakes Living Lab via the living lab website at http://www.teachengineering.org/livinglabs/index.php. Have them scroll down to the Earthquakes Living Lab section (see Figure 1). Tell students that this activity is designed around the Earthquakes Living Lab, a resource and online interface that uses real-time, real-world seismic data gathered from around the world.

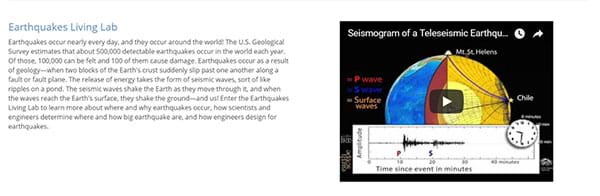

    Screen capture image of a website page shows a paragraph of text, an embedded video and a hot link to "enter the Earthquakes Living Lab."
    Figure 1. The entry web page for the Earthquakes Living Lab.
  1. Have students click on the Earthquakes Living Lab hyperlink in the top left or right in the earthquakes section. Now on the main page of the Earthquakes Living Lab website (see Figure 2), note the focus on four active seismic areas..

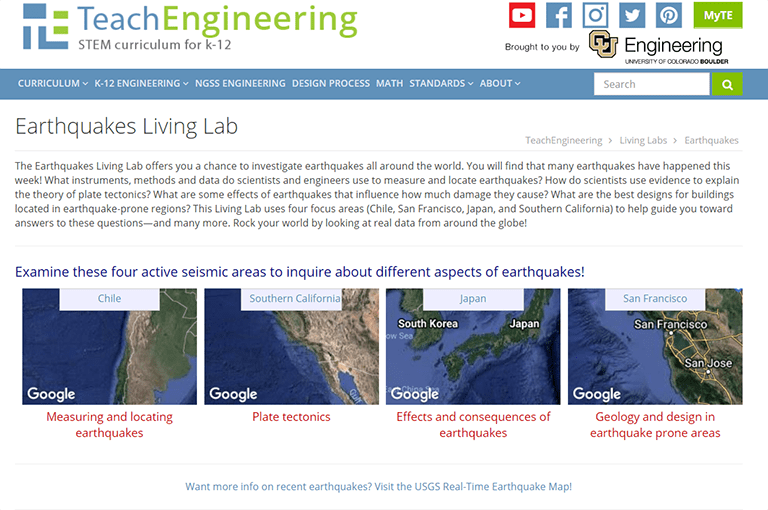

    Screen capture image of a website page shows maps of four active seismic areas (Mexico, Southern California, Japan, San Francisco). All maps show a scattering of yellow, orange and red dots of various sizes. Dot placement indicates the locations of recent earthquakes. Dot size indicates magnitude (2-7+). Dot color indicates how long since occurred (past hour, past day, past week).
    Figure 2. The main page of the Earthquakes Living Lab website.
  1. Direct students to complete the first half of the worksheet (the Explore, Explain and part of the Evaluate sections), which is also summarized below.
  • Of the four Earthquakes Living Lab seismic areas, choose the "Mexico" box.
  • Follow the first link on the right side of the page titled, "Where did earthquakes occur this week?"
  • Examine the data on the screen. Note that each circle represents an earthquake that occurred during the last seven days.
  • Examine the data and record your answers to the worksheet questions:
  1. What do the dot colors indicate?
  2. What does the circle size indicate?
  3. When you click on a circle, what information is provided?
  4. Approximately how many earthquakes occurred within the last hour?
  5. Approximately how many earthquakes occurred within the last day?
  6. Where did the greatest magnitude earthquakes occur this week?
    An aerial photograph shows a dry terrain of hills and canyons spreading out from a spine-shaped crack in the Earth's crust.
    An aerial view of the San Andreas Fault in California.
    copyright
    Copyright © USGS http://pubs.usgs.gov/gip/dynamic/San_Andreas.html
  • Looking at the website, note the general location and frequency of earthquakes. Record any patterns or trends you see and why you think they are occurring.
  • In the upper right corner, click on the small gear-shaped button. From the drop-down options, click on the "Map Layers" button (about halfway down) and turn on the "U.S faults" overlay. Write down what you think "faults" are and why earthquakes are located along some faults but not all along all fault lines. (Example answer, as provided on the Worksheet Example Answers: A fault is a crack in the Earth's crust, resulting from the displacement of one side with respect to the other. Large faults form from the result of plate tectonic forces. Only active faults cause earthquakes and many faults are inactive. Some fault lines do not have much seismic activity no movement. While most earthquakes occur along fault lines, not all fault lines have earthquakes.)
  1. For the second part of the worksheet (the rest of the Evaluate and entire Elaborate sections), have students perform a detailed analysis of the first 25 most recent earthquakes listed. Have them use Excel, to calculate the mean, median and mode. Have them record how they think the data would change if they were given an entire year's worth of data. (Example answer: Although the mean, median and mode could change significantly, it is difficult to predict. If several large earthquakes happened in the last week, the mean and median would probably decrease with a year's worth of data. Similarly, they would probably increase if no large earthquakes occurred in the last week. The maximum and minimum, however, would almost certainly change, given data for an entire year.)
  2. Conclude the activity with a class discussion, as described in the Assessment section.

Attachments

Assessment

Pre-Activity Assessment

Predictions: Before student pairs look at the Earthquakes Living Lab, direct them to complete the Engage section of the Where Are Earthquakes Happening Right Now? Worksheet, which asks them to apply their prior knowledge to identify regions of the world and the U.S. where earthquakes occur. From what they know, they are asked to make predictions about what might be patterns or trends in earthquake locations. Review their answers to assess their base knowledge of the subject matter. Students will revisit their predictions later in the activity.

Activity-Embedded Assessment

Data Analysis: Student pairs complete worksheets by using the Earthquakes living lab interface to locate recent earthquakes, as well as perform statistical analysis on the 25 most recent earthquakes listed. After working with the data, they make predictions on how their analysis results (mean, median, mode, and maximum and minimum magnitude values) might be different based on a full year of earthquake data.

Post-Activity Assessment

Sharing Information/Class Discussion: Lead a class discussion to share students' answers, observations and conclusions. Refer to the Where Are Earthquakes Happening Right Now? Worksheet Example Answers. Go around the classroom, having different pairs share their answers for each worksheet question. Do we have a consensus on where earthquakes are most likely to occur? Do you see any discrepancies in the numerical data? Would the mean and median increase or decrease given a year's worth of data? How might engineers use this data?

Activity Extensions

Have student groups explore the other three regions (Southern California, Japan and San Francisco) and concepts presented in the Earthquakes Living Lab.

Activity Scaling

  • For lower grades, work through the mean, median and mode calculations as a class, or skip that section.
  • For upper grades, have students work individually, perform more in-depth statistical analysis such as finding standard deviation and variance, and graph their data (activity vs. time, earthquakes vs. area, etc.)

Other Related Information

This activity is designed around the Earthquakes Living Lab, a resource and online interface that uses real-time U.S. Geological Survey seismic data from around the world. The living lab presents earthquake information through a focus on four active seismic areas and historic earthquakes in those areas. The real-world earthquake data is viewable via a graphical interface using a scaling map.

Contributors
