Hands-on Activity: Physics Tug of War

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

A photo shows a man and a dog in a tug of war over a squashed red ball that is being pulled one way by the man’s two hands and the other way by the dog’s bite.
A tug of war depicts the distribution of force.
copyright
Copyright © 2005 David Goehring, Flickr (CC BY 2.0) https://www.flickr.com/photos/carbonnyc/37085152 https://creativecommons.org/licenses/by/2.0/

Summary

Students learn about Newton's second law of motion: force = mass x acceleration. In other words, a heavy object requires a greater force to move than a lighter object. In a tug-of-war experimental setup using paperclips, rubber bands and text books, they collect data and make calculations, seeing that the force required to move a book is proportional to the weight of the book. They relate their conclusions to how engineers use their understanding of this relationship to determine how much force is needed to move airplanes.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers apply their understanding of Newton's laws of motion when designing objects that move. Newton's second law states that the force required to move an object is proportional to the mass of that object. So engineers who design airplanes apply this relationship, knowing that the heavier the airplane, the more force it requires to move. Further, they also consider that to create a larger force requires more fuel, which is more expensive and releases more pollutants into the environment.

Learning Objectives

After this activity, students should be able to:

  • Explain that the force needed to accelerate an object is proportional to its mass and weight.
  • Explain how Newton's second law of motion applies to airplanes.
  • Generate conclusions based on experimental data.

More Curriculum Like This

Newton Gets Me Moving

Students explore motion, rockets and rocket motion while assisting Spacewoman Tess, Spaceman Rohan and Maya in their explorations. First they learn some basic facts about vehicles, rockets and why we use them. Then, they discover that the motion of all objects—including the flight of a rocket and mo...

Elementary Lesson
What Is Newton's Second Law?

Students are introduced to Newton's second law of motion: force = mass x acceleration. Both the mathematical equation and physical examples are discussed, including Atwood's Machine to illustrate the principle. Students come to understand that an object's acceleration depends on its mass and the str...

Middle School Lesson
How Do Things Fall?

Students learn more about forces by examining the force of gravitational attraction. They observe how objects fall and measure the force of gravitational attraction upon objects.

Middle School Lesson
What Is Newton's First Law?

Students are introduced to the concepts of force, inertia and Newton's first law of motion: objects at rest stay at rest and objects in motion stay in motion unless acted upon by an unbalanced force. Students learn the difference between speed, velocity and acceleration, and come to see that the cha...

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Plan an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Summarize numerical data sets in relation to their context, such as by: (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Reporting the number of observations. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Describing the nature of the attribute under investigation, including how it was measured and its units of measurement. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Giving quantitative measures of center (median and/or mean) and variability (interquartile range and/or mean absolute deviation), as well as describing any overall pattern and any striking deviations from the overall pattern with reference to the context in which the data were gathered. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use variables to represent quantities in a real-world or mathematical problem, and construct simple equations and inequalities to solve problems by reasoning about the quantities. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve linear equations in one variable. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Knowledge gained from other fields of study has a direct effect on the development of technological products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use the four operations to solve word problems involving distances, intervals of time, liquid volumes, masses of objects, and money, including problems involving simple fractions or decimals, and problems that require expressing measurements given in a larger unit in terms of a smaller unit. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Appropriate measurement tools, units, and systems are used to measure different attributes of objects and time. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Add, subtract, multiply, and divide decimals to hundredths. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Fluently divide multi-digit numbers using standard algorithms. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve real-world and mathematical problems involving the four operations with rational numbers. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use tools to gather, view, analyze, and report results for scientific investigations about the relationships among mass, weight, volume, and density (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Research and critically evaluate data and information about the advantages and disadvantages of using fossil fuels and alternative energy sources (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Predict and evaluate the movement of an object by examining the forces applied to it (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • 15-20 extra large, heavy paperclips
  • 6-7 6-inch rubber bands OR, make a 6-10-inch chain of 10-15 smaller rubber bands
  • 3 identical hardcover books about one-half-inch thick; such as math books, encyclopedias, dictionaries
  • 1 yardstick
  • masking tape; share a roll among all groups
  • Physics Tug of War! Worksheet, one per student

Introduction/Motivation

Newton's second law of motion uses a mathematical equation to say that the force needed to move an object is proportional to the object's mass. This means that if a person who is 100 pounds pushed off of a person who is 200 pounds (twice as heavy), then the person who weighed 100 pounds would accelerate backwards twice as fast. If the second person was 10 times heavier than the first, then the person who weighed 100 pounds would accelerate backwards 10 times as fast.

Can you think of any time that this has happened to you? Maybe on the playground or during sports? If you throw a tennis ball and a basketball with the same amount of force, which can you throw father? (Answer: Tennis ball.)

Newton's second law of motion:

F = m * a

force = mass * acceleration

Gravitational acceleration = 9.8 m/s2

Engineers must consider the weight and mass of object when designing. This is especially important for airplanes because they are much heavier than the air molecules that they are pushing against. This means that the airplanes have to push A LOT of air.

Procedure

Before the Activity

  • Test the activity to fine-tune the materials. Specifically, make sure that the books are light enough to permit the side with two books to move in Part 2 of the experiment. If the books are too heavy, the stack of two books will not move at all.
  • Gather materials and make copies of the Physics Tug of War! Worksheet.

With the Students

  1. Conduct the pre-assessment true/false voting exercise, as described in the Assessment section.
  2. Present to the class the Introduction/Motivation content.
  3. Divide the class into groups of 2-4 students each. Hand out the materials and worksheets.
  4. Experimental setup: Using four paperclips and two 6-inch rubber bands (or a chain of smaller rubber bands 6-10-inches long), attach a rubber band/paperclip sling to each of two books; see Figure 1 for an example of how to configure the sling. Bend the free end of each paperclip to make a right-angled hook. Insert each hook into the book's spine, or use masking tape to attach the hooked paperclip to the outside book end. The object is to have the rubber bands pull the books toward each other. Refer to the experimental setup on the worksheet.

A photo shows two paperclips that are each attached to rubber bands. Each free end of the paperclip is bent at a right angle and slipped into the ends of the same textbook spine.
Figure 1. A textbook attached to rubber bands.
copyright
Copyright © 2003 Tom Rutkowski, College of Engineering, University of Colorado Boulder

  1. Place the experimental setup on a smooth surface, such as a wooden table or laminate countertop.
  2. Lay down the yardstick in front of the books (see Figure 2) so you can see where the books are located in relation to one another; position them 6-10-inches apart.

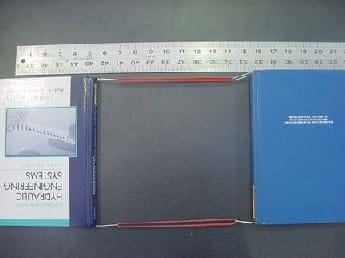

A photo shows two books attached together with a sling-type setup made with rubber bands and paperclips. A ruler is in place to measure the movement of the books before and after the books are pulled apart.
Figure 2. The experimental setup of the books.
copyright
Copyright © 2003 Tom Rutkowski, College of Engineering, University of Colorado Boulder

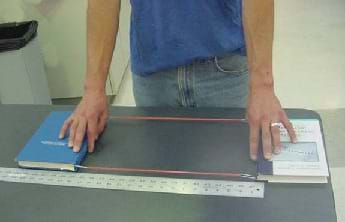

A photo shows a student holding two books apart, just before they are released.  The books are attached to one another via a sling-type setup made with rubber bands and paperclips.
Figure 3. The experiment: pulling the books apart.
copyright
Copyright © 2003 Tom Rutkowski, College of Engineering, University of Colorado Boulder

  1. Experiment Part 1—One book vs. one book: Pull the books apart a few inches (see Figure 3). Read the numbers on the yardstick that correspond to the inside edges of each book (the area spanned by the rubber band slings). Have students record this number on the worksheets.
  2. Now let the books go. Expect them to move the same distance towards each other.
  3. On the worksheets, record the position where the books collide or come to rest.
  4. Repeat steps 7-9 for three trials (that is, three times).
  5. Experiment 2—One book vs. two books: Stack two books on top of one of the books being measured, and run the experiment three more times. If twice as many books are on one side, expect the lighter side to move twice as far as the heavier side.
  6. For each experiment, have students subtract the initial position of each book relative to the final position of the books. Expect the distances to be nearly proportional to the weight of each stack of books. A stack of two books moves only one-half the distance of a single book.
  7. Data analysis: As a class, discuss what students learned from the experiment. Have students share their results and conclusions. Make sure they understand that this activity demonstrates Newton's second law of motion: the force required to move an object is proportional to the mass of the object. In the experiment, the stretched rubber bands pull on both books equally, and both books move towards each other equally (assuming they are the same weight) when the rubber bands are released. When one book is stacked higher (with two books total), the pulling force only moves the stack half as far as the single book. Large airplanes weigh a lot and, therefore, require a large force to move them.
  8. Have students complete their worksheet questions and hand them in.
  9. To condlude, administer the remaining assessment activities—math problems, student-generated questions, and roundtable questions—as described in the Assessment section.

Attachments

Safety Issues

Be careful not to place hands between the sliding books, as they could get pinched.

Do not pull apart the books so far that the rubber bands break or the books are sent flying.

Troubleshooting Tips

If using multiple small rubber bands, it is important to use the same number and sequence of rubber bands in each chain so that they pull with the same force.

Make sure that the paperclips are secured to the book so that they remain in place when the rubber bands are stretched. In addition, caution students not to pull the rubber bands too far because they may pull the paperclips out of the books.

It helps to use the same size books if possible. Books that come in sets, like condensed journals or encyclopedias, work well for this activity.

Assessment

Pre-Activity Assessment

Voting: Ask a true/false question and have students vote by holding thumbs up for true and thumbs down for false. Tally the votes and write the number on the board. Give the right answer.

  • True or False: Most airplanes are made from steel. (Answer: False, aluminum.)
  • True or False: Newton's second law of motion states that a heavy object requires a greater force to move than a lighter object. (Answer: True)

Activity Embedded Assessment

Worksheet: Have students use the Physics Tug of War worksheet to guide them through the activity, recording measurements and answering questions. After students have finished their worksheets, have them compare their answers with their peers. Discuss as a class.

Math Problems: Have students practice some Newton's second law of motion math problems such as the following:

  • How much force is required to accelerate a 2 kg mass at 3 m/s2? (Answer: F = 2 kg * 3 m/s2 = 6 N)
  • Given a force of 100 N and an acceleration of 10 m/s2, what is the object's mass? (Answer: m = 100 N/ 10 m/s2 = 10 kg)

Post Activity Assessment

Student-Generated Questions: Have each student come up with one question of their own to ask the rest of the class. Be prepared to help some students form questions. Have students take turns asking their questions to the class.

Real-World Roundtable: Have students form teams of 3–5 students each. Ask the class a question that has many possible answers and relates the concepts they learned to everyday situations. Have students on each team make a list, each one writing an answer and passing the paper on to the next person. Then, as a class, have each team share its responses.

  • What situations can you think of that demonstrate Newton's second law of motion in action? (The force needed to move an object is proportional to the object's mass.) Any examples at school? On the playground? In sports? At home? In traffic?

Activity Extensions

If small scooters are available, such as the low square type with four weels used in gym class, or even a few skateboards, roller blades or rolling office chairs. Have students sit on the scooters and push off of each other with their feet. This enables them to see and feel how larger students do not move as far as smaller students. Take care that kids do not fall off the scooters and hurt themselves if they lose their balance or push off too hard. If just a few rolling items are available, conduct as a class demo..

Activity Scaling

  • For younger students, to help them understand the problem, do the math on the classroom board first before they try to do the division on their own.
  • Give older students a problem in which the mass is known for two objects pushing off of each other as well as the distance that one of the objects moves. Challenge them to use this known information to solve for the unknown distance the other object moved.

Contributors
