Lesson: Are You In Control?

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

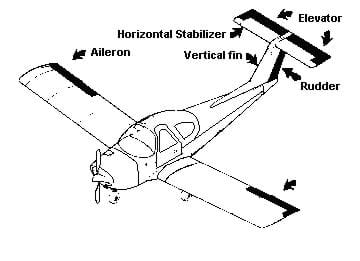

A black and white drawing of an airplane with key components labeled: aileron (movable back ends of each wing), horizontal stabilizer (fixed horizontal fin at the very top of the airplane's tail), vertical fin (vertical tail piece that connect the airplane body to the horizontal stabilizer), elevator (a moveable airfoil at the rear end of the horizontal stabilizer), and rudder (moveable airfoil at the rear end of the vertical stabilizer).
Figure 1. Airplane control surfaces.
copyright
Copyright © NASA http://www.grc.nasa.gov

Summary

Students learn about airplane control surfaces on tails and wings, and engineering testing wherein one variable is changed while others are held constant. Through the associated activity, they compare the performance of a single paper airplane design while changing its shape, size and flap positions.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Designing aircraft control systems is more complicated than the control systems for most other transportation vehicles because not only can airplanes move left and right (yaw), but they can also pitch and roll. To master these added dimensions, engineers build ailerons, rudders and elevators to provide adequate airplane steering. Engineers build small-size models of airplanes with these control surfaces and then test them in wind tunnels to find out the capabilities of their designs.

Pre-Req Knowledge

Helpful but not required: A familiarity with airplane flight parts—wings, aileron, tail, rudder, elevator, fin, flaps, fuselage, cockpit—as provided in lesson 6 of the Airplanes unit.

Learning Objectives

After this lesson, students should be able to:

  • Design and construct a model of an airplane.
  • Modify the airplane to attempt to improve its flight.
  • Relate parts of a paper airplane to parts on a real airplane.
  • Explain why testing of models is an important step in the design-build process.

More Curriculum Like This

Take Off with Paper Airplanes

Students are introduced to the art of designing airplanes through paper airplane constructions. The goal is for students to learn important aircraft design considerations and how engineers must iterate their designs to achieve success.

Middle School Lesson
Heads Up

Students learn the different airplane parts, including wing, flap, aileron, fuselage, cockpit, propeller, spinner, engine, tail, rudder, elevator. Then they each build one of four different (provided) paper airplane (really, glider) designs with instructions, which they test in three trials, measuri...

Middle School Activity
Rocket Me into Space

Through the continuing storyline of the Rockets unit, this lesson looks more closely at Spaceman Rohan, Spacewoman Tess, their daughter Maya, and their challenges with getting to space, setting up satellites, and exploring uncharted waters via a canoe. Students are introduced to the ideas of thrust,...

Elementary Lesson
Balsa Glider Competition

Students act as if they are engineers designing gliders, aiming to improve the flight distance and time in the air. This activity brings together students' knowledge of engineering and airplanes, applying what they have previously learned about lift, weight, thrust and drag to glider models, as well...

Middle School Activity

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Students will develop an understanding of and be able to select and use transportation technologies. (Grades K - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Many inventions and innovations have evolved using slow and methodical processes of tests and refinements. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use the particle model of matter to illustrate characteristics of different substances (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

Who has designed and flown a paper airplane? How did it do? Did it go far or do tricks? How can we make our paper airplanes better? What does "better" mean? (Encourage discussions that involve making planes fly further, faster, with better control, etc.)

(Draw a picture of an airplane on the classroom board or make an overhead transparency of Figure 1. Review the various airplane parts that are important to flight: wings, aileron, tail, rudder, elevator, fin, flaps, fuselage, and cockpit.) We refer to the movable parts of the plane's wing or tail as control surfaces, which are parts of the plane that the pilot can control from the cockpit. These airplane parts are going to be important to us today as we design and modify our own paper airplanes to make them go farther.

Engineers are trained to design small-scale models and then test them to make them better. Usually they do this over and over again in order to achieve designs that perform as desired. One important part of this process is keeping track of each design change and its effect on the airplane's performance. Does the airplane go farther when one part of the wings is changed? Or does it fly farther when one part of the tail is modified without the wing modification?

Engineers who design airplanes test their models in a powerful wind tunnel and then carefully record and analyze their results. The wind tunnel enables them to determine if they have designed an airplane that will fly in different conditions and at different speeds. The wind tunnel also helps them to distinguish how small modifications to the plane change the way it flies.

Today, we are going to use a simple paper airplane design, which we will modify, and then test and record how well it flies. Then, we will change certain parts on our planes and record our observations of how each change affects the plane's flight ability.

Lesson Background and Concepts for Teachers

Wing Construction

Wing construction is similar for all aircraft types. Early inventors explored and experimented with a variety of materials for airplane wing construction. Most modern aircraft have all metal wings, while many older aircraft had wood and fabric wings.

Most wing structures have two spars, the front spar and the rear spar. The front spar is found near the leading edge while the rear spar is about two-thirds the distance to the trailing edge. Depending on the design of the flight loads, some of the all-metal wings have as many as five spars. The ribs are the parts of a wing that support the covering and provide the airfoil shape. These ribs are called forming ribs, and their primary purpose is to provide shape. Some may have an additional purpose of bearing flight stress, and these are called compression ribs. Figure 2 shows the wing structure.

A black and white drawing shows the internal structure of an aircraft wing: two spars (horizontal support bars) span the entire length of the wing; ribs are spaced between the spars to give the wing its shape and support the skin. The wing tip and leading and trailing edges are also shown.
Figure 2. The structure of a wing.
copyright
Copyright © U.S. Centennial of Flight Commission http://www.centennialofflight.gov

Tail Construction

The front, fixed section of the horizontal tail is called the horizontal stabilizer and is used to prevent the airplane from pitching up or down. The rear section is called the elevator and is usually hinged to the horizontal stabilizer. The elevator is a movable airfoil that controls the up-and-down motion of the aircraft's nose. See Figure 1 for a diagram of aircraft control and stability surfaces.

The vertical tail structure is divided into the vertical stabilizer and the rudder. The front section is called the vertical stabilizer and is used to prevent the aircraft from yawing back and forth. The principle behind its operation is much like the principle of a deep keel (the timber at the very bottom of a boat's hull to which the frame is attached) on a sailboat which helps the boat from rolling side to side. In light, in a single-engine aircraft, it also serves to offset the tendency of the aircraft to roll in the opposite direction in which the propeller is rotating.

The rear section of the vertical structure is the rudder. It is a movable airfoil that is used to turn the aircraft. Engineers have to be aware of the construction of the wings when testing their designs. When designing and testing planes, engineers make several test flights with different wings and wing designs. The rudder and tail are also important in the design of most airplanes, almost like the tail of a kite, in that these two components also greatly affect flight capability.

Vocabulary/Definitions

aileron: The outward movable section of an airplane wing that is used to make a turn. An airplane's ailerons move in opposite directions (one up, one down).

cockpit: The space in an airplane fuselage for the pilot and the passengers. In some aircraft, it is just the pilot and co-pilot.

elevator: The movable horizontal section of the tail that causes the nose of the plane to move up and down.

flap: A movable section of an airplane wing closest to the fuselage. An airplane's flaps are moved in the same direction (down), enhancing the lift of the wing and enabling the airplane to fly more slowly while still creating enough lift to stay in the air.

fuselage: The central body portion of an airplane that accommodates the crew and passengers or cargo.

horizontal stabilizer: The horizontal surface attached to the aft part of the fuselage that is used to balance the airplane.

landing gear: The part of a plane that supports it while on the ground. Located underneath the airplane. Composed of wheels and shocks. Often moved inside the plane while in flight.

propeller: A rotating blade located on the front of an airplane. The engine turns the propeller, which subsequently pulls the airplane through the air.

rudder: The movable vertical section of the tail that controls lateral movement.

wing: An airplane part that provides lift and supports most (if not all) of the aircraft weight and contents while in flight.

Associated Activities

  • Better By Design - This activity focuses on investigating the design of paper airplanes and changing/controlling variables within the design.

Lesson Closure

(After completion of the associated activity, lead a class discussion using the following prompts.) Tell me about the engineering design process. What are the steps? (Answer: Brainstorm, design, build a model, test, redesign, test again, redesign again, etc.

(Refer to a sketch of an airplane drawn or displayed on the classroom board.) Tell me the parts of an airplane that are important to its flight and to controlling its flight.

What did we change on our airplanes to make them fly differently? What changes made some planes fly farther than other changes? (Encourage students to use vocabulary terms to describe the parts of the paper airplanes that they modified. Expect that most students changed and tested the aileron, rudders, flaps, and/or elevators to make their planes fly further and with more control.)

Attachments

Assessment

Pre-Lesson Assessment

Brainstorming: Have students generate a number of possible ideas about airplane design. Encourage all ideas and discourage criticism at this stage.

  • How can we make planes better? What does "better" mean? (Encourage discussions that involve making planes fly farther, faster, with better control, etc.)

Post-Introduction Assessment

Question/Answer: Ask students questions and have them raise their hands to respond. Write answers on the board.

  • For what reason do aerospace engineers use wind tunnels? (Answer: To test their airplane designs to make them fly better.)
  • What part of the airplane is the fuselage? (Answer: The central body portion of an airplane, which accommodates the crew and passengers or cargo.)
  • Do engineers always test a model of a design before they build the real thing? (Answer: Yes, engineers may test a model many times before getting the design to meet their requirements.)
  • What parts of an airplane might you change if your airplane is not flying as far as needed? (Answer: Any part. Accept all answers from a plane's parts that were covered in the introduction diagram. Remind students that they only want to change one part at a time so they can draw logical conclusions.)

Lesson Summary Assessment

Engineering Report: Have students write short reports to their "company" about their new paper airplane models. Requre them to include the following in their reports:

  • The name of their model paper airplane.
  • How far the paper airplane flies.
  • What changes they made to the paper airplane to improve its performance.
  • Why the company should consider building their airplane design.
  • A picture (drawing) of their airplane.

Pass the Buck: In groups of four, have students brainstorm ideas to design the ultimate paper airplane. First, assign one student in the group to be the recorder. Then have someone toss out an idea. Next, another person in the group provides an idea that builds on the first. Go around the group in this fashion until all students have put in enough ideas to put together a design. When they are done, have them share their idea(s) with the class. (This can also be a fun exercise to do as an entire class!)

Lesson Extension Activities

Give students the How a Plane is Controlled Handout to guide them in learning more about how airplanes are controlled. This handout provides information on control surfaces and helps students modify their paper airplanes to make them move up/down and left/right.

Have students research airplanes on the Internet. They may want to begin with NASA Glenn Research Center's Beginners's Guide to Aeronautics at http://www.grc.nasa.gov/WWW/K-12/airplane/.

References

Northington, Darryl B. The Evolution of the Small Airplane. http://vestibule13.20m.com/ezine/northington.htm

Levin, David and Hart, Dan. Lift and Drag. Posted September 30, 2010. NOVA, PBS Online by WGBH. http://www.pbs.org/wgbh/nova/xplanes/airborne.html

Stern, David P. Basics of Aviation. Last updated September 22, 2004. (22c) Airplane Flight, Goddard Space Flight Center, NASA. http://www-spof.gsfc.nasa.gov/stargaze/Sflight.htm
